iConverter OC12FF

Multimode to Single-Mode Managed Fiber Converter

The iConverter OC12FF managed media converter provides multimode to single-mode and dual to single fiber conversion, and is a cost-effective solution for extending SONET/SDH network distances.

question

OC-12 multimode to single-mode fiber converter

  • Supports multimode and single-mode dual fiber; and single-mode single-fiber with SC connectors
  • Supports distances of 80km or longer*
  • User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
  • LED displays for immediate visual status of each port
  • Plug-in modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
  • Management of the plug-in module is available with the addition of a management module to the chassis
  • SNMP management via NetOutlook® provides real-time port and module status information, remote parameter configuration and trap notification
  • Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges
  • Lifetime Warranty and free 24/7 Technical Support

*Contact Omnitron

The iConverter OC12FF is a OC-12/STM-4 fiber-to-fiber media converter available as a compact, unmanaged standalone unit or a managed chassis plug-in module. The iConverter OC12FF provides a cost-effective solution to extend fiber network distances with multimode to single-mode, dual fiber to singlefiber, and wavelength (850/1310 and 850/1550) conversion.

iConverter OC12FF models support multimode and singlemode dual fiber; and single-mode single-fiber with SC connectors. The single-mode fiber port supports distances up to 80km and the multimode fiber port supports distances up to 550m.

The iConverter OC12FF features user-selectable Link Propagate and Remote Fault Detection modes to facilitate quick fault detection, isolation and reporting.

The hot-swappable plug-in module can be mounted in a high-density 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.

The standalone OC12FF can be wall-mounted and is DC powered. It can be ordered with an external AC to DC power adapter, or it can be directly powered using a 2-pin terminal connector.

iConverter Multi-Service Platform

The iConverter Multi-Service Platform consists of Network Interface Devices, T1/E1 multiplexers, CWDM multiplexers and managed media converters that combine to deliver Carrier Ethernet and TDM services over fiber or CWDM wavelengths. This flexible architecture supports a wide variety of configurations for scalable and reliable fiber connectivity in Service Provider and Enterprise networks.

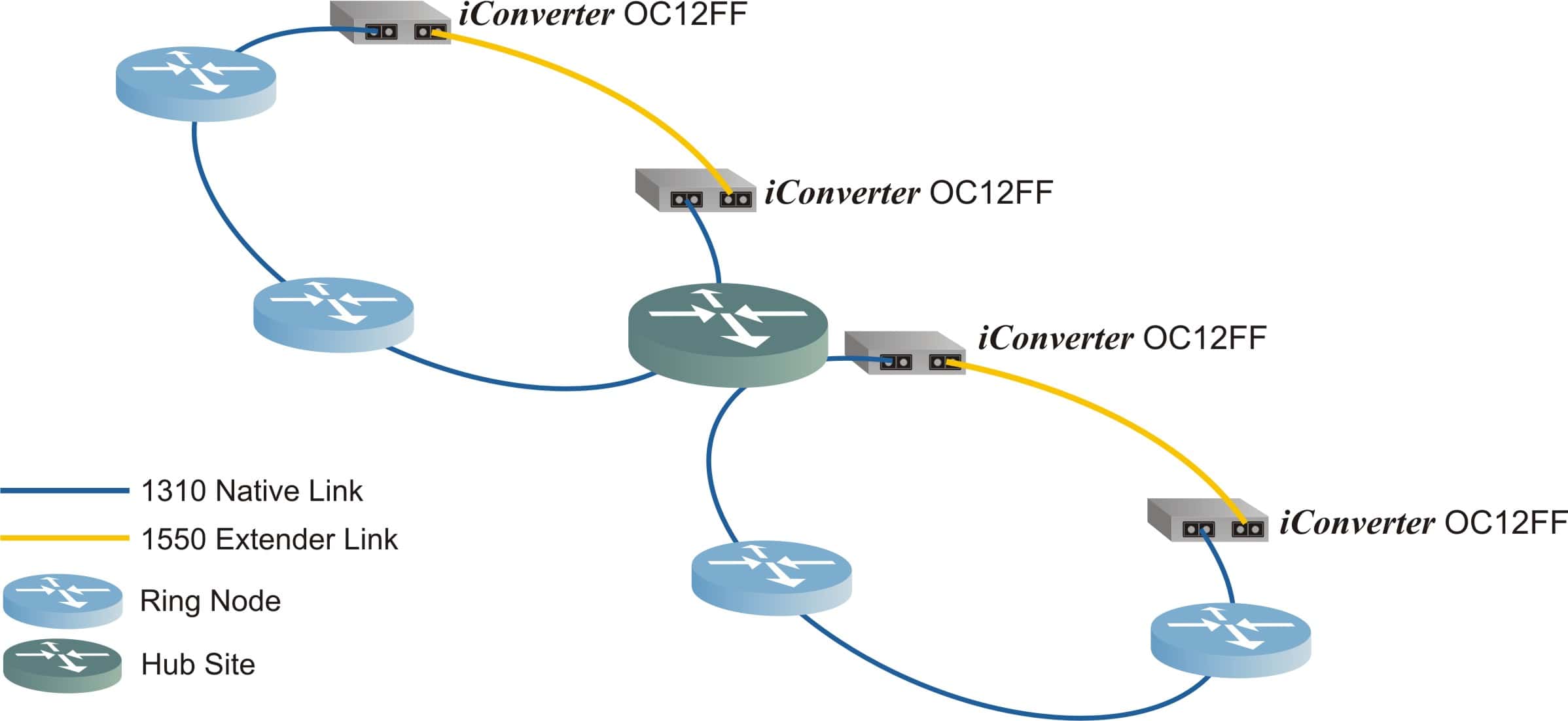

When fiber rings must extend beyond the standard 1310nm wavelength capability, a longer wavelength with increased optical power can extend SONET ring distances.

The iConverter OC12FF fiber-to-fiber media converter is an inexpensive and reliable solution, especially when compared to upgrading SONET node equipment. The OC12FF provides wavelength conversion from 1310nm to 1550nm, and amplifies the optical power to span the distance in longer ring segments.


The iConverter OC12FF plug-in module can be used in managed or unmanaged applications. Management provides remote configuration, monitoring and trap notification. Management of the OC12FF plug-in module is accomplished by installing an iConverter Management Module (NMM2) or Network Interface Device (NID) in the same chassis.

The Management Module can be accessed via SNMP, Telnet, and serial port. The OC12FF can be managed with Omnitron’s intuitive, graphic-oriented NetOutlook SNMP Management Software or third party SNMP management software. Management via the Telnet and the serial interfaces have an easy-to-use, menu-driven interface.

The management software can override the physical DIPswitch settings such as link modes. Some of the real-time OC12FF parameters that can be monitored include power, link, data activity status, module type and model, hardware and software revisions, serial numbers and a user-defined identifier.

The iConverter OC12FF supports SNMP trap notification for the monitoring and notification of different network events. Specific events that generate traps include module insertion and removal, and port link-up and link-down. Trap monitoring of specific events can be selectively enabled or disabled by the network management software.

8680DS-G-specififcations

Description
 iConverter OC12FF

Multimode to Single-Mode Managed Fiber Converter
Standard
Compliances
SONET OC-12, SDH STM-4
Regulatory
Compliances
UL, CE, FCC Class A, RoHS2, WEEE, REACH
Frame Size
Unlimited
Port Types
Fiber:
SONET OC-12 (SC,Single-fiber SC)
Cable Types
Fiber:
Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power
Requirements
AC Adapter:
(US)

AC Adapter:
(Universal)
100 - 120VAC/60Hz
0.05A @ 120VAC

100 - 240VAC/50 - 60Hz
0.05A @ 120VAC
DC Power
Requirements
DC Input:
(Backplane)

DC Input:
(Terminal Block)

DC Input:
(AC Adapter)
3.3VDC, 0.5A @ 3.3VDC


5 - 32VDC, 0.3A @ 9VDC (1.0A max)
2-Pin Terminal (non-isolated)

5 - 32VDC, 0.3A @ 9VDC (1.0A max)
2.5mm Barrel Connector
Dimensions
Plugin:


Standalone:
W: 0.85" x D: 4.5" x H: 2.8"
L: 21.6 mm x B: 114.3 mm x H: 71.1 mm

W: 3.8" x D: 4.8" x H: 1.0"
L: 96.5 mm x B: 121.9 mm x H: 25.4 mm
Weight
Plug-in:

Standalone w/o Adapter:

Standalone w Adapter:
8 oz.; 226.8 grams

1.0 lb.; 453.6 grams

1.5 lbs.; 680.4 grams
Temperature
Commercial:
Wide:
Storage:
    0 to 50°C
 -40 to 60°C
 -40 to 80°C
Humidity
5 to 95% (non-condensing)
Altitude
-100m to 4,000m
MTBF (hrs)
Plugin:
Standalone w/o Adapter:
Standalone w/ US Adapter:
Standalone w/ Universal Adapter:
1,100,000
1,100,000
250,000
100,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support


Port
Fiber
Type
Distance
Connector Type

Tx
Lambda

(nm)

Rx
Lambda

(nm)
Min. Tx
Power

(dBm)
Max. Tx
Power

(dBm)
Min. Rx
Power

(dBm)
Max. Rx
Power

(dBm)
Min.
Attenuation

(dB)
Link
Budget

(dB)

SC

Port 1
MM/DF
220 / 550m1
8681-1
850
850
-10
-4
-17
-3
-
7
Port 2
SM/DF
12km
1310
1310
-9.5
-3
-19.5
-3
-
10
Port 1
MM/DF
220 / 550m1
8681-2
850
850
-10
-4
-17
-3
-
7
Port 2
SM/DF
34km
1310
1310
-5
0
-23
-3
3
18
Port 1
MM/DF
220 / 550m1
8681-3
850
850
-10
-4
-17
-3
-
7
Port 2
SM/DF
80km
1550
1550
-5
0
-23
-3
3
18
Port 1
MM/DF
220 / 550m1
8690-1
850
850
-10
-4
-17
-3
-
7
Port 2
SM/SF2
20km
1310
1550
-9.5
-3
-20
-3
-
10.5
Port 1
MM/DF
220 / 550m1
8691-1
850
850
-10
-4
-17
-3
-
7
Port 2
SM/SF2
20km
1550
1310
-9.5
-3
-20
-3
-
10.5
Port 1
SM/DF
12km
8692-1
1310
1310
-9.5
-3
-19.5
-3
-
10
Port 2
SM/SF2
20km
1310
1550
-9.5
-3
-20
-3
-
10.5
Port 1
SM/DF
12km
8693-1
1310
1310
-9.5
-3
-19.5
-3
-
10
Port 2
SM/SF2
20km
1550
1310
-9.5
-3
-20
-3
-
10.5
 162.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m. Refer to the fiber cable manufacturer for multimode distance
  specifications.
 2When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.

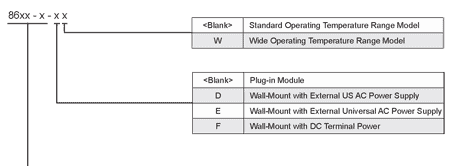

  For wide temperature (-40 to 60°C), add a "W" to the end of the model number. Contact Omnitron for other fiber options and operational temperature ranges.



Chassis and Mounting Options Ordering Table

 19-Module 5-Module2-Module 1-Module
ConfigurationAC
(60 watts)
AC
(120 watts)
24VDC48VDCAC24VDC48VDCAC18-60DCUS ACUNIV AC
One (1) Power Supply 8200-1 8201-1 8206-1 8205-1 8220-1 8226-1 8225-1 8230-0 8235-0 8240-1 8240-2
One (1) Power Supply with Dying Gasp Support - - - - - - - 8230-1 8235-1 8241-1 8241-2
Two (2) Power Supplies 8200-2 8201-2 8206-2 8205-2 8220-2 8226-2 8225-2 - - 8245-111* 8245-112*
Three (3) Power Supplies 8200-3 8201-3 8206-3 8205-3 - - - - - - -
Spare Power Supply 8200-9 8201-9 8206-9 8205-9 8220-9 8226-9 8225-9 - - - -
23" Rack Mounting Kit 8091-2 8091-2 8091-2 8091-2 8092-2 8092-2 8092-2 - - - -
Blank Module Panel 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 - -
Wall Mounting Hardware Kit -   - - - - - 8249-0 8249-0 8249-0 8249-0
1U 19" Rack Mount Shelf - - - - - - - 8260-0 8260-0 8260-0 8260-0
DIN Rail Mounting Kit -   - - - - - - - 8250-0 8250-0

Use the Power Calculator to determine the iConverter chassis power supplies required for your module configuration.
