iConverter Gx AN

1000BASE-T to 1000BASE-SX/LX Managed Media Converter

The iConverter Gx AN Media Converter is a managed media converter that provides 1000BASE-T UTP to 1000BASE-X fiber conversion between Gigabit networking devices. The UTP port supports auto-negotiation or forced negotiation of duplex modes and pause capability while the fiber port supports both manual or auto-negotiation.

question

The iConverter Gx AN is an IEEE 802.3ab compatible 1000BASE-T copper to 1000BASE-X fiber converter

  • Small Form Pluggable (SFP) transceivers with Optical Statistics for standard or CWDM applications
  • Fixed-fiber connectors support multimode, single-mode dual fiber with ST, SC and LC connectors, and singlemode single-fiber with SC connectors
  • Fiber port supports auto or manual negotiation
  • RJ-45 auto or forced negotiation of duplex modes and pause capabilities
  • RJ-45 supports MDI/MDIX auto-crossover
  • User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
  • LED displays for immediate visual status of each port
  • Plug-in modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
  • Management of the plug-in module is available with the addition of a management module to the chassis
  • SNMP management via NetOutlook® provides module status information, remote parameter configuration and trap notification
  • Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges
  • Lifetime Warranty and free 24/7 Technical Support

The iConverter Gx AN is a 1000BASE-T copper to 1000BASE-X fiber media converter, and is available as a compact unmanaged standalone unit or a managed chassis plug-in module.

The RJ-45 port supports auto-negotiation or forced negotiation of duplex modes and pause capability. The fiber port supports both manual or auto-negotiation.

The iConverter Gx AN features user-selectable link fault detection modes, including Link Propagate, Link Segment and Remote Fault Detection. These Link Modes provide rapid fault detection and isolation by monitoring the state of the cabling hardware, and operate independently of the network management.

Fixed-fiber connectors are available with multimode (MM) dual fiber, single-mode (SM) dual fiber and single-mode single-fiber (SF) options. They support ST, SC and LC connectors with distances up to 220/550m over MM fiber, 140km over SM fiber and 40km over SF. The Gx AN Small Form Pluggable (SFP) model supports a wide variety of 1000BASE-X SFP transceivers.

The hot-swappable plug-in module can be mounted in a 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.

The Gx AN standalone unit is available as a tabletop or wallmount unit. The tabletop model can be DIN-rail mounted using an optional DIN-rail mounting kit. Both the tabletop and the wall-mount models are DC powered and are available with an external AC to DC power adapter or a terminal connector for DC power.

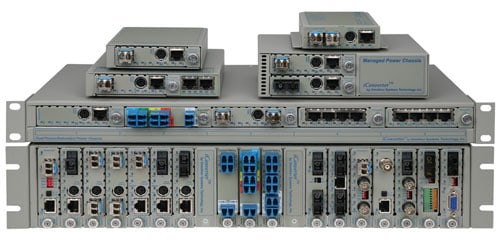

The iConverter Multi-Service Platform consists of Network Interface Devices, T1/E1 multiplexers, CWDM multiplexers and managed media converters that combine to deliver Carrier Ethernet and TDM services over fiber or CWDM wavelengths. This flexible architecture supports a wide variety of configurations for scalable and reliable fiber connectivity in Service Provider and Enterprise networks.

In this application example, Gx AN media converters are deployed in a star topology network with fiber links distributed from a central location.

At Building A, iConverter Gx AN media converters are installed in an iConverter 19-Module providing a high density copper-to-fiber deployment. RJ-45 ports from an Ethernet switch are converted to fiber, extending the network to different locations throughout the campus.

At Buildings B and C, iConverter Gx AN standalone media converters provide copper-to-fiber connectivity to Ethernet switches in each building.

The iConverter Gx AN supports Link Modes used to provide network notification of fiber and copper faults. Link failures on any port are propagated to managed network switches, notifying network administrators of link failure.


The iConverter Gx AN plug-in module can be used in managed or unmanaged applications. Management provides remote configuration, monitoring and trap notification. Management of the plug-in module is accomplished by installing an iConverter Management Module (NMM2) or Network Interface Device (NID) in the same chassis.

The Management Module can be accessed via SNMP, Telnet, and serial port. The Gx AN can be managed with Omnitron’s intuitive, graphic-oriented NetOutlook SNMP Management Software or third party SNMP management software. Management via the Telnet and the serial interfaces have an easy-to-use, menu-driven interface.

The management software can override the physical DIPswitch settings such as fiber negotiation, auto or forced negotiation of duplex modes and link modes. Some of the real-time Gx AN parameters that can be monitored include power, link and data activity status. Other parameters include module type and model, hardware and software revisions, serial numbers and a user-defined identifier.

The iConverter Gx AN supports SNMP trap notification for the monitoring and notification of different network events. Specific events that generate traps include module insertion and removal, and port link-up and link-down. Trap monitoring of specific events can be selectively enabled or disabled by the network management software.

8500NDS-C-specififcations

Description
 iConverter Gx AN

1000BASE-T Copper to 1000BASE-X Fiber Media Converter
Standard
Compliances
IEEE 802.3
Regulatory
Compliances
UL, CE, FCC Class A, RoHS2, WEEE, REACH
Frame Size
Supports frame sized up to 10k bytes
Port Types
Copper:

Fiber:
1000BASE-T (RJ-45)

1000BASE-SX (ST, SC, LC, SFP)
1000BASE-LX (ST, SC, LC, SFP)
1000BASE-ZX (SC, SFP)
1000BASE-BX (SC, SFP)
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power
Requirements
AC Adapter:
(US)

AC Adapter:
(Universal)
100 - 120VAC/60Hz
0.04A @ 120VAC (max)

100 - 240VAC/50 - 60Hz
0.04A @ 120VAC (max)
DC Power
Requirements
DC Input:
(Backplane)

DC Input:
(Terminal Block)

DC Input:
(AC Adapter)
3.3VDC, 0.7A @ 3.3VDC (typical)


8 - 15VDC, 0.3A @ 9VDC (max)
2-Pin Terminal (non-isolated)

8 - 15VDC, 0.3A @ 9VDC (max)
2.5mm Barrel Connector
Dimensions
Plugin:


Standalone:


Standalone:
(Wall-Mount):
W: 0.85" x D: 4.5" x H: 2.8"
L: 21.6 mm x B: 114.3 mm x H: 71.1 mm

W: 3.1" x D: 4.8" x H: 1.0"
L: 78.7 mm x B: 121.9 mm x H: 25.4 mm

W: 3.8" x D: 4.8" x H: 1.0"
L: 96.5 mm x B: 121.9 mm x H: 25.4 mm
Weight
Plug-in:
Standalone w/o Adapter:
Standalone w Adapter:
8 oz.; 226.8 grams
1.0 lb.; 453.6 grams
1.5 lbs.; 680.4 grams
Temperature
Commercial:
Wide:
Storage:
    0 to 50°C
 -40 to 60°C
 -40 to 80°C
Humidity
5 to 95% (non-condensing)
Altitude
-100m to 4,000m
MTBF (hrs)
Plugin:
Standalone w/o Adapter:
Standalone w/ US Adapter:
Standalone w/ Universal Adapter:
870,000
1,100,000
250,000
100,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support




Fiber Type
Distance
Connector Types
Tx
Lambda

(nm)
Rx
Lambda

(nm)
Min. Tx
Power

(dBm)
Max. Tx
Power

(dBm)
Min. Rx
Power

(dBm)
Max. Rx
Power

(dBm)
Min.
Attenuation

(dB)
Link
Budget

(dB)
ST
SC
LC
SFP
-
-
-
-
-
8519N-0
-
-
-
-
-
-
-
-
MM/DF
220/550m1
8500N-0
8502N-0
8506N-0
-
850
850
-10
-4
-17
-3
-
7
MM/DF
2km
-
8502N-6
-
-
1310
1310
-9.5
-3
-19.5
-3
-
10
SM/DF
12km
8501N-1
8503N-1
8507N-1
-
1310
1310
-9.5
-3
-19.5
-3
-
10
SM/DF
34km
-
8503N-2
8507N-2
-
1310
1310
-5
0
-23
-3
3
18
SM/DF
80km
-
8503N-3
8507N-3
-
1550
1550
-5
0
-23
-3
3
18
SM/DF
110km
-
8503N-4
-
-
1550
1550
0
5
-24
-3
8
24
SM/DF
140km
-
8503N-5
-
-
1550
1550
2
5
-28
-8
13
30
 SM/SF2
20km
-
8510N-1
-
-
1310
1550
-9.5
-3
-20
-3
-
10.5
 SM/SF2
20km
-
8511N-1
-
-
1550
1310
-9.5
-3
-20
-3
-
10.5
 SM/SF2
40km
-
8510N-2
-
-
1310
1550
-3
0
-20
-3
3
17
 SM/SF2
40km
 -
8511N-2
-
-
1550
1310
-3
0
-20
-3
3
17
 162.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m. Refer to the fiber cable manufacturer for multimode distance
  specifications.
 2Single-fiber (SF) media converter are used in pairs. The Tx wavelength on one end has to match the Rx wavelength on the other.
  For wide temperature (-40 to 60° C), add a "W" to the end of the model number. Contact Omnitron for other fiber options and extended temperature
  (-40 to 75° C) models.
  Order the appropriate Gigabit SFPs separately. Visit http://www.omnitron-systems.com/optical-transceivers

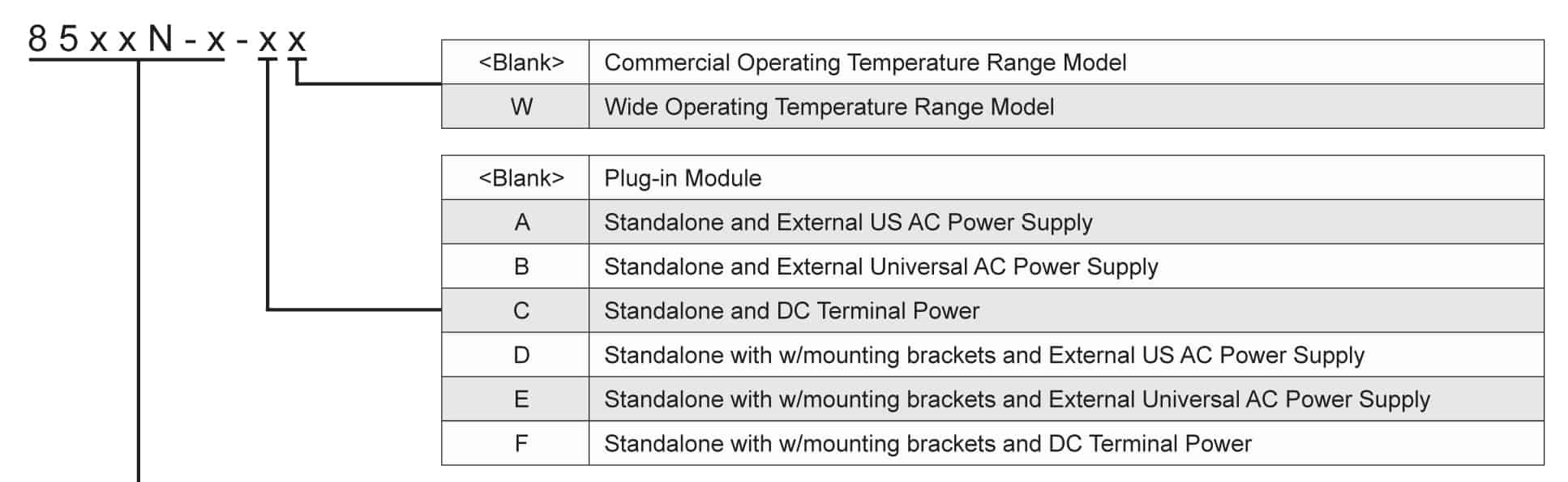

Chassis and Mounting Options Ordering Table
