iConverter Modular T1/E1 Multiplexer

T1/E1 and Ethernet Managed Multiplexer System

The iConverter Modular T1/E1 Multiplexer transports up to sixteen T1/E1 circuits and 10/100/1000 Ethernet over point-to-point fiber, CWDM channel or Ethernet Virtual Connection (EVC). This flexible and scalable system is comprised of an iConverter Fiber Transport module, and one or more iConverter 4xT1/E1 MUX modules installed in a 2, 5 or 19-module chassis.

question

Modular system multiplexes up to sixteeen independent T1/E1 circuits and 10/100/1000 Ethernet over fiber or Ethernet Virtual Connection (EVC)

  • Multiple groups of mux modules can be installed in the same chassis
  • Optional connectivity to adjacent Ethernet switch modules
  • Remotely-managed configuration and testing enables rapid deployment
  • CLI management interface via TELNET or serial port
  • Manageable via SNMP with Omnitron’s NetOutlook® Management Software or third party software
  • Commercial (0 to 50º C ) and wide (-40 to 60º C) operating temperature ranges

iConverter Fiber Transport Modules

  • Fiber Transport modules are available for point-to-point Ethernet or Carrier Ethernet Virtual Connection (EVC)
  • Small Form Pluggable (SFP) or fixed fiber transceivers, in standard and CWDM wavelengths
  • Multimode, single-mode dual fiber and single-mode single-fiber options

iConverter 4xT1/E1 MUX Modules

  • Supports balanced T1/E1 or unbalanced E1
  • 24 hour T1/E1 statistic logging
  • In-band T1 loop-back
  • Out-of-band local loop-back on the copper and fiber ports, remote fiber loop-back and circuit test modes
  • Configurable alarm relay contacts for audio/visual fault notification
  • Easy configuration of T1/E1 line codes and line build-out
  • Optional external I/O clock port

The iConverter Modular T1/E1 Multiplexer transports up to sixteen T1/E1 circuits and 10/100/1000 Ethernet over point-to-point fiber, CWDM channel or Ethernet Virtual Connection (EVC). This flexible and scalable system is comprised of an iConverter Fiber Transport module, and one or more iConverter 4xT1/E1 MUX modules installed in a 2, 5 or 19-module chassis.

Each iConverter Fiber Transport module and up to four contiguous iConverter 4xT1/E1 MUX modules combine to form a MUX group. A MUX group can connect with another MUX group at the opposite end of a dedicated fiber link or EVC. A MUX group can also interoperate with a managed iConverter fixed-configuration T1/E1 Multiplexer.

Multiple MUX groups can be installed in a chassis, enabling high-density, star-topology deployments.

There are three Fiber Transport modules available: the iConverter TM3, the iConverter GM3 NID plug-in module and the iConverter GM4 NID plug-in module. The TM3 supports Ethernet Link OAM with IEEE 802.3ah. The GM3 and GM4 NID modules support Carrier Ethernet Service OAM with IEEE 802.1ag Connectivity Fault Management and ITU-T Y.1731 Performance Monitoring.

The Fiber Transport module is available with fixed-fiber or Small Form Pluggable (SFP) transceivers, and feature two Ethernet backplane ports for additional Ethernet connectivity to adjacent modules. A common application of this feature is to combine a 4-Port switch module in the adjacent slot to provide a solution with four additional 10/100/1000 ports.

The iConverter 4xT1/E1 MUX module supports four copper RJ-48 ports for balanced T1/E1 applications. Adapter cables are available to convert each RJ-48 interface to a BNC interface for unbalanced E1 transport applications.

The 4xT1/E1 MUX module features an optional external clock port that can be configured as a clock input or output. As an input, the port can be connected to an external clock source, such as a GPS receiver, to provide a common reference clock for the module. As an output, the port can provide the recovered T1/E1 clock from port 1 to other TDM equipment at the site.

The T1/E1 Multiplexer modules are part of the iConverter multiservice platform, and can be installed in a chassis equipped with iConverter Network Interface Devices, media converters, transponders and CWDM multiplexers. The multi-service platform is capable of delivering Ethernet, TDM, SONET and other services across a Wide Area Network. iConverter modules can be added to this scalable architecture to expand bandwidth capacity and add new services.

The iConverter Modular T1/E1 Multiplexer system is designed for service provider, enterprise, government and energy/utility networks.

Enterprise and government applications include extension of multiple T1/E1 circuits from a service provider demarcation point, and building-to-building PBX connectivity.

Service provider and utility applications include mobile backhaul and business services that require delivery of multiple T1/E1s and/or Ethernet.

Mobile Backhaul

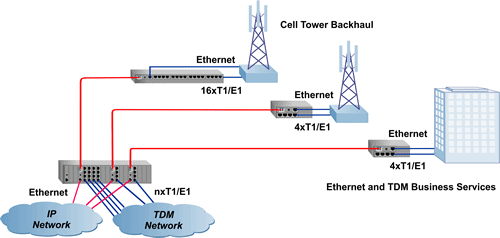

In this application diagram, iConverter Modular T1/E1 Multiplexers deliver Ethernet and T1 mobile backhaul.

At the Mobile Switching Center, two iConverter MUX groups are installed in a high-density 19-module chassis, and connect to TDM and IP networks. The iConverter MUX groups convert RJ-45 Ethernet and T1 interfaces to fiber, and transport the multiplexed data over the fiber links.

At the Cell Sites, MUX groups are installed in 2-module or 5-module chassis. The fiber link with multiplexed data is converted back to RJ-45 Ethernet and T1 interfaces where they connect to the tower’s radio equipment.

Using the GM3 or GM4 NID Transport modules enables a seamless migration from 2G (T1s), to 3G (T1s and Ethernet), to 4G/LTE (Carrier Ethernet).

Ethernet and TDM Business Services

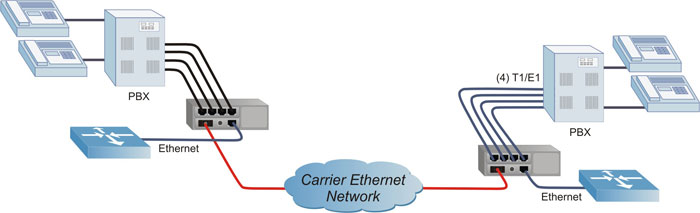

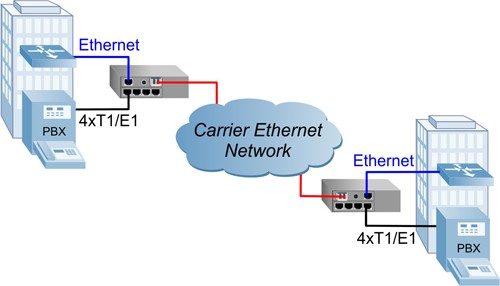

In this application diagram, iConverter Modular T1/E1 Multiplexers deliver Ethernet and T1s over an Ethernet Virtual Connection (EVC). A two module chassis with a GM3 or GM4 NID Transport Module and a T1/E1 MUX module are installed at each customer location.

The EVC transports the business Ethernet and four T1 circuits between the two customer locations across a Carrier Ethernet network. The Ethernet transports business data, and the T1s are used for telephony services (PBX to PBX connectivity).

The T1/E1 Multiplexer system features integrated management.  Monitoring, configuration and remote testing functions can be accessed through the iConverter Fiber Transport module serial console port, IP-based SNMP or IP-less OAM channels.  Alarm relays and SNMP traps provide fault notification for loss of power, LOS and AIS.

SNMP management via NetOutlook provides a graphical user interface for real-time port and module information, local and remote configuration, and trap notification.

2420DS-E-specifications

Description
 iConverter TM3 Fiber Transport Module
Data Rates
Ethernet:
10/100/1000Mbps (900Mbps throughput)
Standard
Compliances
IEEE 802.3
Regulatory
Compliances
UL, CE, FCC Class A, RoHS2, WEEE, REACH
Frame Size
Up to 10,236 bytes
Port Types
Copper:

Fiber:

Serial:
10/100/1000BASE-T (RJ-45)

ST, SC, Single-fiber SC, SFP

RS-232 (Mini DIN-6 female)
Mini DIN-6 to DB-9 adapter included
Cable Types
Copper:


Fiber:


Serial:
EIA/TIA 568A/B, Cat 5 UTP and higher for
Ethernet

Multimode: 50/125μm, 62.5/125μm
Single-mode: 9/125μm

RS-232, 22 to 24 AWG, 12 to 50 pF/ft
DC Power
Requirements
DC Input:
(Backplane)
1.6A @ 3.3.VDC
Dimensions
W: 0.85” x D: 4.5” X H: 2.8”
L: 21.6 mm x B: 114.3 mm x H: 71.1 mm
Weight
8 oz.; 226.8 grams
Temperature
Commercial:
Wide:
Storage:
    0 to 50°C
 -40 to 60°C
 -40 to 80°C
Humidity
5 to 95% (non-condensing)
Altitude
-100m to 4,000m
MTBF (hrs)
340,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support
Description
iConverter 4xT1/E1 MUX Module
Data Rates
T1 or ISDN PRI:

E1:
1.544Mbps

2.048Mbps
Standard
Compliances
ANSI: T1.403, T1.102

AT&T: T62411

ITU: G.703, G.704, G.706, G.736, G.755, G.823, G.824, G.8261

ETSI: ETS 300 166
Regulatory
Compliances
UL, CE, FCC Class A, RoHS2, WEEE, REACH
Port Types
Copper:



Clock I/O:
(8486-4)

T1/E1 (RJ-45/RJ-48)



Input: 10 MHz, 1.544 MHz, or 2.048 MHz
(BNC, SMB)


Output: Recovered clock from Port 1 (BNC,
SMB)

Cable Types
Copper:



Clock I/O:
Category 3 or better for T1/E1
T1: 100 Ohm, E1: 120 Ohm
(Active Pairs are Pins 1, 2 and 4, 5)

50 ohm coax
DC Power
Requirements
DC Input:
(Backplane)
1.6A @ 3.3.VDC
Dimensions
W: 0.85” x D: 4.5” X H: 2.8”
L: 21.6 mm x B: 114.3 mm x H: 71.1 mm
Weight
8 oz.; 226.8 grams
Temperature
Commercial:
Wide:
Storage:
    0 to 50°C
 -40 to 60°C
 -40 to 80°C
Humidity
5 to 95% (non-condensing)
Altitude
-100m to 4,000m
MTBF (hrs)
410,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support



 iConverter TM3 Transport Modules

Port Configuration
Fiber
Type
Distance
Connector Types
Tx
Lambda

(nm)
Rx
Lambda

(nm)
Min. Tx
Power

(dBm)
Max. Tx
Power

(dBm)
Min. Rx
Power

(dBm)
Max. Rx
Power

(dBm)
Min.
Attenuation

(dB)
Link
Budget

(dB)
P1
P2
ST
SC
SFP
FF
RJ-45
MM/DF
220/550m1
2420-0-T
2422-0-T
-
850
850
-10
-4
-17
-3
-
7
FF
RJ-45
SM/DF
12km
2421-1-T
2423-1-T
-
1310
1310
-9.5
-3
-19.5
-3
-
10
FF
RJ-45
SM/DF
34km
2421-2-T
2423-2-T
-
1310
1310
-5
0
-23
-3
3
18
FF
RJ-45
SM/DF
80km
-
2423-3-T
-
1550
1550
-5
0
-23
-3
3
18
FF
RJ-45
SM/DF
110km
-
2423-4-T
-
1550
1550
0
5
-24
-3
8
24
FF
RJ-45
SM/DF
140km
-
2423-5-T
-
1550
1550
2
5
-28
-8
13
30
FF
RJ-45
SM/SF2
20km
-
2430-1-T
-
1310
1550
-9.5
-3
-20
-3
-
10.5
FF
RJ-45
SM/SF2
20km
-
2431-1-T
-
1550
1310
-9.5
-3
-20
-3
-
10.5
FF
RJ-45
SM/SF2
40km
-
2430-2-T
-
1310
1550
-3
0
-20
-3
3
17
FF
RJ-45
SM/SF2
40km
-
2431-2-T
-
1550
1310
-3
0
-20
-3
3
17
SFP
RJ-45
-
-
-
-
2439-0-T
Order the appropriate SFPs separately. Visit the Optical Transceivers web page.
SFP
SFP
-
-
-
-
2499-0-T
Order the appropriate SFPs separately. Visit the Optical Transceivers web page.
  FF - Fixed Fiber, RJ-45 - Ethernet Port, SFP - Small Form Pluggable Transceiver
 162.5/125 µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m. Refer to the fiber cable manufacturer for multimode distance
  specifications
 2When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.
  To order wide temperature (-40 to 60°C) TM3 module, add a "W" to the end of the model number. Contact Omnitron for other configurations.
  See the GM4 or GM3 NID data sheets for ordering information.
  Visit the GM3 NID or the GM4 NID web page.



Accessories
Model Number
Description
9140-3
RJ-48 to Coax Adapter Cable (3 meters)
9142-1
Relay Breakout Adapter Cable
9144-6
Clock I/O Cable, 50 ohm mini-coax plug to BNC, 6"



iConverter 4xT1/E1 MUX Module
Model Number

4 T1/E1
4 T1/E1 with Clock I/O
8485-4
8486-4

To order a wide temperature (-40 to 60°C) 4xT1/E1 MUX module, add a "W" to the end
of the model number.



Chassis and Mounting Options Ordering Table

 19-Module 5-Module2-Module 1-Module
ConfigurationAC
(60 watts)
AC
(120 watts)
24VDC48VDCAC24VDC48VDCAC18-60DCUS ACUNIV AC
One (1) Power Supply 8200-1 8201-1 8206-1 8205-1 8220-1 8226-1 8225-1 8230-0 8235-0 8240-1 8240-2
One (1) Power Supply with Dying Gasp Support - - - - - - - 8230-1 8235-1 8241-1 8241-2
Two (2) Power Supplies 8200-2 8201-2 8206-2 8205-2 8220-2 8226-2 8225-2 - - 8245-111* 8245-112*
Three (3) Power Supplies 8200-3 8201-3 8206-3 8205-3 - - - - - - -
Spare Power Supply 8200-9 8201-9 8206-9 8205-9 8220-9 8226-9 8225-9 - - - -
23" Rack Mounting Kit 8091-2 8091-2 8091-2 8091-2 8092-2 8092-2 8092-2 - - - -
Blank Module Panel 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 - -
Wall Mounting Hardware Kit -   - - - - - 8249-0 8249-0 8249-0 8249-0
1U 19" Rack Mount Shelf - - - - - - - 8260-0 8260-0 8260-0 8260-0
DIN Rail Mounting Kit -   - - - - - - - 8250-0 8250-0

Use the Power Calculator    to determine the iConverter chassis power supplies required for your module configuration.
