iConverter 100FF

100BASE-FX Single-Mode to Multimode Managed Fiber Converter

The iConverter 100FF managed media converter provides multimode to single-mode and dual fiber to single fiber conversion, and is a cost-effective solution for extending fiber network distances. iConverter 100FF models are available with multimode, single-mode and single-fiber options. The single-mode fiber port supports ST or SC connectors and distances up to 120km.

question

100BASE-X single-mode to 100BASE-X multimode fiber converter

  • Conforms to IEEE 802.3 and 100BASE-FX specifications
  • Operates with a constant rate signal from 1Mbps to 100Mbps
  • Supports multimode, single-mode dual fiber with ST and SC connectors, and single-mode single-fiber with SC connectors
  • Supports distances of 120km or longer*
  • User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
  • LED displays for immediate visual status of each port
  • Plug-in modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
  • Management of the plug-in module is available with the addition of a management module to the chassis
  • SNMP management via NetOutlook® provides real-time port and module status information, remote parameter configuration and trap notification
  • Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges
  • Lifetime Warranty and free 24/7 Technical Support

*Contact Omnitron

The iConverter 100FF is a Fast Ethernet fiber-to-fiber media converter available as a compact, unmanaged standalone unit or a managed chassis plug-in module. The iConverter 100FF provides a cost-effective solution to extend fiber network distances with multimode to single-mode, dual fiber to singlefiber, and wavelength (850/1310 and 1310/1550) conversion.

iConverter 100FF models support multimode and single-mode dual fiber with ST and SC connectors; and single-mode singlefiber with SC connectors. The multimode fiber port supports distances up to 5km and the single-mode fiber port supports distances up to 120km.

The 100FF features user-selectable Link Propagate and Remote Fault Detection modes to facilitate quick fault detection, isolation and reporting.

The hot-swappable plug-in module can be mounted in a high-density 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.

The standalone 100FF can be wall-mounted and is DC powered. It can be ordered with an external AC to DC power adapter, or it can be DC powered using a 2-pin terminal connector.

iConverter Multi-Service Platform

The iConverter Multi-Service Platform consists of Network Interface Devices, T1/E1 multiplexers, CWDM multiplexers and managed media converters that combine to deliver Carrier Ethernet and TDM services over fiber or CWDM wavelengths. This flexible architecture supports a wide variety of configurations for scalable and reliable fiber connectivity in Service Provider and Enterprise networks.

Networks often require conversion from multimode to single-mode fiber, which supports longer distances. In this application, two Ethernet switches equipped with multimode fiber ports are connected utilizing a pair of fiber-to-fiber converters which convert the multimode fiber to single-mode and enable network connectivity across the distance between the switches.


The iConverter 100FF plug-in module can be used in managed or unmanaged applications. Management provides remote configuration, monitoring and trap notification. Management of the 100FF plug-in module is accomplished by installing an iConverter Management Module (NMM2) or Network Interface Device (NID) in the same chassis.

The Management Module can be accessed via SNMP, Telnet, and serial port. The 100FF can be managed with Omnitron’s intuitive, graphic-oriented NetOutlook SNMP Management Software or third party SNMP management software. Management via the Telnet and the serial interfaces have an easy-to-use, menu-driven interface.

The management software can override the physical DIPswitch settings such as link modes. Some of the real-time 100FF parameters that can be monitored include power, link, data activity status, module type and model, hardware and software revisions, serial numbers and a user-defined identifier.

The iConverter 100FF supports SNMP trap notification for the monitoring and notification of different network events. Specific events that generate traps include module insertion and removal, and port link-up and link-down. Trap monitoring of specific events can be selectively enabled or disabled by the network management software.

8620DS-J-specififcations

Description
 iConverter 100FF

100BASE-FX Single-Mode to Multimode Managed Fiber Converter
Standard
Compliances
IEEE 802.3
Regulatory
Compliances
UL, CE, FCC Class A, RoHS2, WEEE, REACH
Frame Size
Unlimited
Port Types
Fiber:
100BASE-FX (ST, SC)
100BASE-LX (ST, SC)
100BASE-ZX (SC)
100BASE-BX (Single-fiber: SC)
Cable Types
Fiber:
Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power
Requirements
AC Adapter:
(US)

AC Adapter:
(Universal)
100 - 120VAC/60Hz
0.05A @ 120VAC

100 - 240VAC/50 - 60Hz
0.05A @ 120VAC
DC Power
Requirements
DC Input:
(Backplane)

DC Input:
(Terminal Block)

DC Input:
(AC Adapter)
3.3VDC, 0.5A @ 3.3VDC


5 - 32VDC, 0.3A @ 9VDC (1.0A max)
2-Pin Terminal (non-isolated)

5 - 32VDC, 0.3A @ 9VDC (1.0A max)
2.5mm Barrel Connector
Dimensions
Plugin:


Standalone:
W: 0.85" x D: 4.5" x H: 2.8"
L: 21.6 mm x B: 114.3 mm x H: 71.1 mm

W: 3.1" x D: 4.8" x H: 1.0"
L: 96.5 mm x B: 121.9 mm x H: 25.4 mm
Weight
Plug-in:

Standalone w/o Adapter:

Standalone w Adapter:
8 oz.; 226.8 grams

1.0 lb.; 453.6 grams

1.5 lbs.; 680.4 grams
Temperature
Commercial:
Wide:
Storage:
    0 to 50°C
 -40 to 60°C
 -40 to 80°C
Humidity
5 to 95% (non-condensing)
Altitude
-100m to 4,000m
MTBF (hrs)
Plugin:
Standalone w/o Adapter:
Standalone w/ US Adapter:
Standalone w/ Universal Adapter:
1,100,000
1,100,000
250,000
100,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support

8620DS-J-ordering


Port
Fiber
Type
Distance
Connector Types
Tx/Rx
Lambda

(nm)
Min. Tx
Power

(dBm)
Max. Tx
Power

(dBm)
Min. Rx
Power

(dBm)
Max. Rx
Power

(dBm)
Min.
Attenuation

(dB)
Link
Budget

(dB)
ST/ST,
ST/SC SF
SC/SC,
SC/SC SF
Port 1
MM/DF
2km
-
8622-61
850/850
-10
-4
-24
-3
-
14
Port 2
SM/DF
30km
1310/1310
-15
-8
-31
-8
-
16
Port 1
MM/DF
5km
8620-1
8622-1
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/DF
30km
1310/1310
-15
-8
-31
-8
-
16
Port 1
MM/DF
5km
8620-2
8622-2
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/DF
60km
1310/1310
-5
0
-31
-3
3
26
Port 1
MM/DF
5km
-
8622-3
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/DF
120km
1550/1550
-5
0
-31
-3
3
26
Port 1
MM/DF
5km
8630-1
8634-1
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/SF1
20km
1310/1550
-15
-5
-30
-3
-
15
Port 1
MM/DF
5km
8631-1
8635-1
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/SF1
20km
1550/1310
-15
-5
-30
-3
-
15
Port 1
MM/DF
5km
8630-2
8634-2
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/SF1
40km
1310/1550
-8
0
-30
-3
3
22
Port 1
MM/DF
5km
8631-2
8635-2
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/SF1
40km
1550/1310
-8
0
-30
-3
3
22
Port 1
SM/DF
30km
8632-1
8636-1
1310/1310
-15
-8
-31
-8
-
16
Port 2
SM/SF1
20km
1310/1550
-15
-5
-30
-3
-
15
Port 1
SM/DF
30km
8633-1
8637-1
1310/1310
-15
-8
-31
-8
-
16
Port 2
SM/SF1
20km
1550/1310
-15
-5
-30
-3
-
15
Port 1
SM/DF
30km
8632-2
8636-2
1310/1310
-15
-8
-31
-8
-
16
Port 2
SM/SF1
40km
1310/1550
-8
0
-30
-3
3
22
Port 1
SM/DF
30km
8633-2
8637-2
1310/1310
-15
-8
-31
-8
-
16
Port 2
SM/SF1
40km
1550/1310
-8
0
-30
-3
3
22
 1When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.

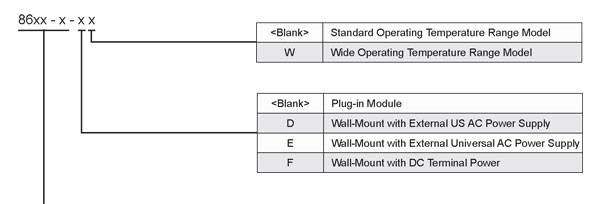

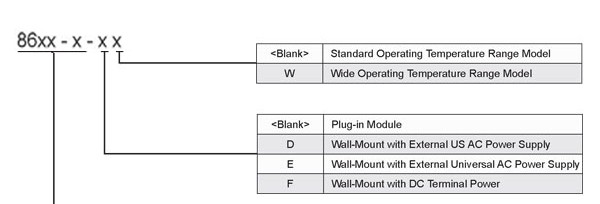

  For wide temperature (-40 to 60°C), add a "W" to the end of the model number. Contact Omnitron for other configurations and extended temperature
  (-40 to 75°C) models.
