iConverter NMM2

Network Management Module

The iConverter NMM2 provides comprehensive remote monitoring, configuration and alarm notification functions for all iConverter managed media converters and Network Interface Devices (NIDs). Installed in any slot of an iConverter chassis, the NMM2 manages all other modules and power supplies installed in the chassis through a high-speed management backplane.

question

Provides real-time management, trap notification and remote configuration

  • Supports SNMPv1, SNMPv2c, SNMPv3 and Telnet protocols
  • SNMP management via Omnitron’s NetOutlook® management software, or third-party SNMP management software
  • Password protected to prevent unauthorized access
  • Utilizes IEEE 802.3ah OAM extensions and Omnitron’s Secure OAM for IP-Less management
  • Management access available through the RJ-45 Ethernet port, serial port or from an adjacent module across the Ethernet backplane
  • 10/100Mbps RJ-45 port supports auto or manual negotiation and auto-crossover
  • Commercial (0 to 50°C), wide (-40 to 60°C) and extended (-40 to 75°C) temperature ranges
  • LED displays for immediate visual status of each port
  • Hot-swappable in 19-Module, 5-Module, or 2-Module chassis
  • Lifetime Warranty and free 24/7 Technical Support

The iConverter NMM2 provides comprehensive remote monitoring, configuration and alarm notification functions for all iConverter managed media converters and Network Interface Devices (NIDs). Installed in any slot of an iConverter chassis, the NMM2 manages all other modules and power supplies installed in the chassis through a high-speed management backplane. Additionally, all remote NIDs linked to the managed iConverter chassis can be managed by the installed NMM2 through a secure IP-less management channel.

Through the 10/100 RJ-45 Ethernet port, the NMM2 can be remotely accessed by IP-based management protocols, including SNMPv1/2c/3, TELNET and FTP. The serial console port provides local access and initial configuration from an RS-232 terminal. Management is accessed either via NetOutlook®, Omnitron’s SNMP Management Software, or by any third party SNMP management software. An intuitive Command Line Interface (CLI) can be accessed either via the serial port or TELNET.

The NMM2 provides real-time management, continuously collecting system status and module information. It reports the collected status to the network management applications and displays LED alarms for chassis power supplies. The NMM2 also provides comprehensive provisioning support for all local and remote iConverter modules, including port settings, VLANs and rate limiting. Network alarms are forwarded as traps to multiple trap hosts and recorded in a persistent system log.

In the event of a power outage, the NMM2 also supports dying gasp SNMP trap notification.

The NMM2 manages remote NIDs connected to the managed chassis via an IP-less management channel. Utilizing IEEE 802.3ah extensions, an NMM2 in a chassis at the network core can use a single IP address to manage up to 18 iConverter Network Interface Devices (NIDs) at different edge locations. This capability simplifies IP address management, improves network security and conserves the use of IP addresses.

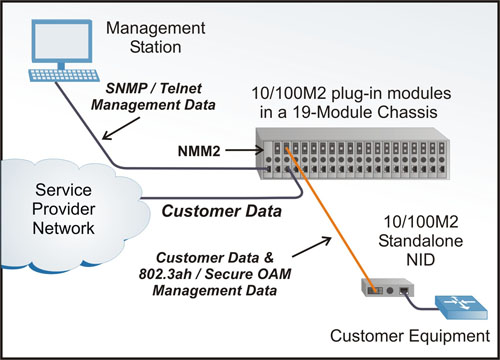

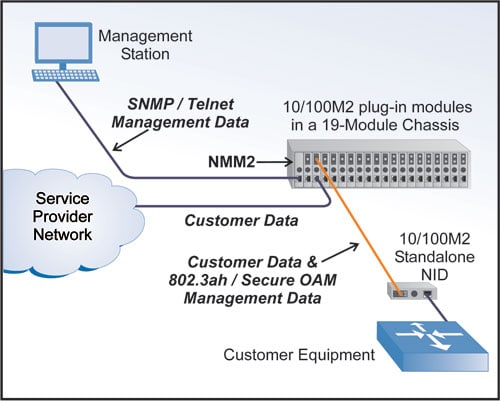

In this application example, iConverter 10/100M2 plug-in modules are installed in the 19-Module chassis, and connected via the fiber link to a standalone 10/100M2 Network Interface Device (NID). With an NNM2 installed in the 19-Module chassis, an IP-less management channel between the 10/100M2 link partners is established. The IP address resides only at the network core (NMM2), and does not exist on the customer network.

NMM2 Application

Active Controls

  • Link Propagate/Link Segment
  • Remote Fault Detection
  • Module Name
  • Chassis Name and Number
  • IP Address
  • 802.3ah OAM Enable
  • Secure IP-less OAM Enable
  • Subnet Mask
  • Gateway
  • Management Port Disable
  • Alarm Threshold Setting
  • Software updates via FTP
  • Telnet
  • Trap IPs
  • FTP Enable
  • Password Selection
  • Soft Switch Reload

Module Information

  • Module Type
  • Slot Occupied
  • Part Number
  • Serial Number
  • Configuration
  • Revision
  • Ports on Module
  • User-defined Identifier



Alarms / Traps

  • Warm Start
  • Link Up/Down
  • Chassis Insertion/Removal
  • Authentication Failure
  • Configuration Change
  • Temperature Out-of-Range
  • Power Supply Out-of-Range
  • Power Supply Insertion/Removal
  • Module Reset
  • Port Link State Change
  • FTP Session Open/Close
  • Telnet
  • Session Open/Close
  • Dying Gasp (Power Loss Trap)

Chassis Status

  • Power Status
  • Power Output Voltage
  • Chassis Temperature

Module Status

  • Module Power
  • Link Status
  • Diagnostic Status
  • Management




Description iConverterNMM2
Network Management Module
Standard
Compliances

IEEE 802.3
RFC1155, RFC1156, RFC1157, RFC1212, RFC1213, OST MIB
MEF 9, 14, 21

Management Telnet, SNMPv1, SNMPv2c, SNMPv3, Serial Console
Regulatory
Compliances
UL, CE, FCC Class A, NEBS Level 3, RoHS2, WEEE,REACH
Frame Size Up to 2,048 bytes
Port Types Copper:

Serial:
10/100BASE-T (RJ-45)

RS-232 (Mini DIN-6 female)
Mini DIN-6 to DB-9 adapter included
Cable Types Copper:

Serial:
EIA/TIA 568 A/B, Category 5 and higher

RS-232, 22 to 24 AWG, 12 to 50 pF/ft
DC Power Requirements DC Input:
(Backplane)
3.3VDC, 0.9A @ 3.3VDC
Dimensions W: 0.85” x D: 4.5” x H: 2.8”
L: 21.6 mm x B: 114.3 mm x H: 71.1 mm
Weight 8 oz.; 226.8 grams
Temperature Commercial:
Wide:
Extended:
Storage:
   0 to 50°C
-40 to 60°C
-40 to 75°C
-40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4000m
MTBF (hrs) 600,000
Warranty Lifetime warranty and 24/7/365 free Technical Support

8000NDS-C-ordering

Model Number
Description
8000N-0
iConverter NMM2 Module
  For wide temperature (-40 to 60°C), add a "W" to the end of the model number.
  For extended temperature (-40 to 75°C), add a "Z" to the end of the model number.



Accessories
Model Number
Description
8081-3
NMM2 Serial Cable (DB-9 Male to Female - 3ft.)
8082-0
NMM2 DIN-6 to DB-9 Female Adapter Cable



Chassis and Mounting Options Ordering Table

 19-Module 5-Module2-Module 1-Module
ConfigurationAC
(60 watts)
AC
(120 watts)
24VDC48VDCAC24VDC48VDCAC18-60DCUS ACUNIV AC
One (1) Power Supply 8200-1 8201-1 8206-1 8205-1 8220-1 8226-1 8225-1 8230-0 8235-0 8240-1 8240-2
One (1) Power Supply with Dying Gasp Support - - - - - - - 8230-1 8235-1 8241-1 8241-2
Two (2) Power Supplies 8200-2 8201-2 8206-2 8205-2 8220-2 8226-2 8225-2 - - 8245-111* 8245-112*
Three (3) Power Supplies 8200-3 8201-3 8206-3 8205-3 - - - - - - -
Spare Power Supply 8200-9 8201-9 8206-9 8205-9 8220-9 8226-9 8225-9 - - - -
23" Rack Mounting Kit 8091-2 8091-2 8091-2 8091-2 8092-2 8092-2 8092-2 - - - -
Blank Module Panel 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 - -
Wall Mounting Hardware Kit -   - - - - - 8249-0 8249-0 8249-0 8249-0
1U 19" Rack Mount Shelf - - - - - - - 8260-0 8260-0 8260-0 8260-0
DIN Rail Mounting Kit -   - - - - - - - 8250-0 8250-0

Use the Power Calculator to determine the iConverter chassis power supplies required for your module configuration.
