iConverter 1-Module Redundant Power Chassis

with Power-over-Ethernet (PoE) Option

The iConverter 1-Module Redundant Power Chassis is ideal for mission-critical Customer Premises (CP) Ethernet services, and in applications where the monitoring of external events is required.

question

1-Module iConverter Redundant Power Chassis with dual redundant power source options

  • Supports the following Power Options:
    • Power-over-Ethernet (IEEE 802.3af PoE/PD)
    • Low Voltage DC Power 9-24VDC (terminal or universal AC/DC adapter available)
    • High Voltage DC Power 24-60VDC
  • Two (2) optional 10/100 configurable Ethernet ports
  • Four (4) optional contact closure alarm sensors
  • Managed via an installed iConverter Media Converter with Integrated Management (such as a 10/100M2)
  • Management supports Monitoring, Remote Configuration and Trap Notification
  • Features Dying Gasp Trap support
  • Commercial (0 to 50ºC), wide (-40º to 60ºC) and extended (-40º to 75º C) temperature ranges
  • Lifetime Warranty and free 24/7 Technical Support

The iConverter 1-Module Redundant Power Chassis is ideal for mission-critical Customer Premises (CP) Ethernet services, and in applications where the monitoring of external events is required.

The chassis supports multiple power sources, configurable 10/100 Ethernet ports and a wide variety of alarm options.

Power source options feature load-sharing combinations of Power-over-Ethernet (PoE), 9-24VDC and 24-60VDC. The PoE option is designed for applications where the converter chassis must be physically located where power is unavailable or is costly to install. Power is provided to one of the chassis' optional 10/100 network ports from a Power Source Equipment (PoE/PSE) such as a switch or a Mid-Span power injecting device.

The 9-24VDC power sources can be connected via barrel-style or terminal connectors. The barrel-style connector versions are shipped with US or universal AC/DC power adapters.

The two optional 10/100 RJ-45 network ports are available with PoE optional on one of the ports. Auto-negotiation, 10/100 and Half/Full-Duplex modes can be configured for each port.

Four optional contact-closure alarm sensors are available for monitoring external events. These sensors can be used to monitor a backup battery, the state of an enclosure's door or other environmental device states. An SNMP trap can be selectively generated upon the occurrence of any of these monitored events.

The chassis can be remotely managed when an iConverter module with integrated management (such as the 10/100M2) is installed in the chassis. The management module provides monitoring, remote configuration and trap notification.

The monitoring of external events, redundant power, PoE and 10/100 network ports make the iConverter 1-Module Redundant Power Chassis ideal for mission-critical Service Provider and Enterprise network applications.

The chassis can be remotely managed when used with an iConverter media converter with integrated management. Management can be accessed through a menu-driven command-line interface (CLI) via Telnet or the Serial Console Port, or can be accessed through a SNMP-based graphical user interface (GUI) such as Omnitron's NetOutlook® management software.

The intuitive NetOutlook network management software provides real-time detailed port and module information as well as parameter configuration and event monitoring.

NetOutlook can be used as a stand-alone application under Windows 2000/2003/XP/Vista/Windows7 or integrated with third-party SNMP management software.

Using NetOutlook , fixed parameters that can be monitored on the Redundant Power Chassis include the chassis type and model, manufacturing information, along with hardware and software revisions.

The management can monitor and configure the states of the 10/100 ports, monitor the power sources and generate traps upon different link, power, temperature and contact closure events.

1) Power-Over-Ethernet Applications

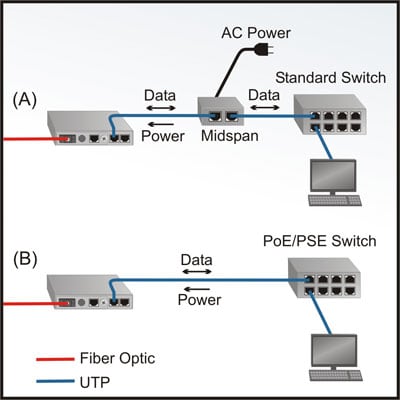

Figure 1 depicts an application where the chassis contains an iConverter 10/100M2 copper-to-fiber converter, and does not have access to a power source. In Figure 1(A), chassis power is provided by a Mid-Span device inserted between the chassis and a standard switch to inject power into the UTP cable. In Figure 1(B), the chassis is powered by a switch that supports PoE/PSE via the UTP cable.

Fig. 1 PoE Chassis Powered by a Midspan device and a PoE/PSE Switch

2) Using Contact Closure Sensors

Figure 2 depicts an application where battery backup power is required, and the chassis is connected to an Uninterruptible Power Supply (UPS) battery. The battery provides power to sustain chassis operation in the event of a power outage. The UPS battery also provides alarm status for utility power, low battery reserve and battery error via the contact closures on the chassis.

Fig. 2 PoE Chassis with UPS Battery Back-Up

3) Daisy Chain Network Application

Figure 3(A) depicts a Daisy Chain network configuration with an iConverter 2FXM2 fiber-to-fiber converter installed in each chassis. Figure 3(B) depicts a resilient ring configuration that requires a fiber spanning tree switch at the network core, and an additional fiber link (dotted line).

Fig. 3 PoE Chassis with 2FXM2s in a Fiber Resilient Ring Configuration

Specifications 8245DS-D

Description iConverter 1-Module Redundant Power Chassis
Standard Compliances

IEEE 802.3, 802.3af

Management* Telnet, SNMPv1, SNMPv2c, SNMPv3, Serial Console
Regulatory Compliances UL, CE, FCC Class A, AS/NZS 3548, VCC1 Class A, RoHS2, WEEE
Frame Size Up to 1,536 bytes
Port Types
Copper:

Sensors:
10/100BASE-T (RJ-45)

4 Contact Closures (8-Pin Terminal)
Cable Types
Copper:

Sensors:
EIA/TIA 568A/B, Cat 5 UTP and higher

16 to 24 gauge
AC Power
Requirements
US AC Adapter:

Universal AC Adapter:
100 - 120VAC/60Hz
0.2A @ 120VAC (typical)
100 - 240VAC/50 - 60Hz
0.2A @ 120VAC (typical)
DC Power
Requirements
DC Input
(Terminal Block):

DC Input
(Terminal Block):

DC Input
(AC Adapter):

DC Input (PoE):
9 - 24VDC, 1.5A @ 9VDC (typical)
2-Pin Terminal (non-isolated)

24 - 60VDC, 0.3A @ 48VDC
3-Pin Terminal (isolated)

9 - 24VDC, 1.5A @ 9VDC (typical)
2.5mm Barrel Connector

44 - 57VDC, 0.27A @ 48VDC (typical)
RJ-45 (Alternative A & B)
Output Power
3A @ 3.3VDC (per power input)
Dimensions
W: 5.4" x L: 6.8" x H: 1.0"
L: 137.16 mm x B: 172.72 mm x H: 25.4 mm
Weight w/o AC Adapter:
w/ AC Adapter:
1.5 lbs. (0.68 kg)
2.0 lbs. (0.91 kg)
Temperature Commercial:
Wide:
Storage:
   0 to 50°C
-40 to 60°C
-40 to 80°C
Humidity
5 to 95% (non-condensing)
Altitude
-100m to 4,000m
MTBF (hrs)
Chassis:
w/ US AC Adapter:
w/ Univ AC Adapter:
540,000
250,000
100,000
Warranty Lifetime warranty with 24/7/365 free Technical Support

Ordering 8245DS-D

1-Module Redundant Power Chassis
Model Number
Contact
Closure
Two RJ-45
Ports
Primary Power Input
Backup Power Input
AC Power
Adapter Type
DC Input
(Barrel)
DC Input
(2-Pin Terminal)
DC Input
(3-Pin Terminal)
PoE Power
(RJ-45)
DC Input
(Barrel)
DC Input
(2-Pin Terminal)
8245-111


x



x

Two US
8245-112


x



x

Two Universal
8246-111

x
x



x

Two US
8246-112

x
x



x

Two Universal
8246-511

x



x
x

Two US
8246-512

x



x
x

Two Universal
8247-111
x

x



x

Two US
8247-112
x

x



x

Two Universal
8247-121
x

x




x
Two US
8247-122
x

x




x
Two Universal
8247-220
x


x



x
-
8247-311
x



x

x

Two Universal
8247-312
x



x

x

Two US
8247-320
x



x


x
-
8248-111
x
x
x



x

Two US
8248-112
x
x
x



x

Two Universal
8248-121
x
x
x




x
Two US
8248-122
x
x
x




x
Two Universal
8248-220
x
x

x



x
-
8248-311
x
x


x

x

Two US
8248-312
x
x


x

x

Two Universal
8248-320
x
x


x


x
-
8248-511
x
x



x
x

Two US
8248-512
x
x



x
x

Two Universal
8248-520
x
x



x

x
-

For wide temperature (-40 to 60°C), add a "W" to the end of the model number.
Contact Omnitron for other configurations and extended temperature (-40 to 75°C) models.

Accessories
Model Number
Description
8249-0
Wall-Mount Hardware Kit
8260-0
19" Rack-Mount Shelf
9130-0
NEBS Grounding Kit
