iConverter® Cable Management Kit

For iConverter 19 and 5-Module Chassis

The iConverter 10T/2 is a 10BASE-T to 10BASE-2 media converter that converts between twisted pair (UTP) and coax LANs and joins their collision domains. The iConverter 10T/2 facilitates the connection of a coax segment to a 10BASE-T hub.



Description


The iConverter Cable Management Kit* organizes the routing of fiber and copper cables providing a secure, clean and orderly installation.

The Cable Management Kit is used with the iConverter 19 and 5 Module Chassis and is capable of routing dozens of fiber and copper cables.

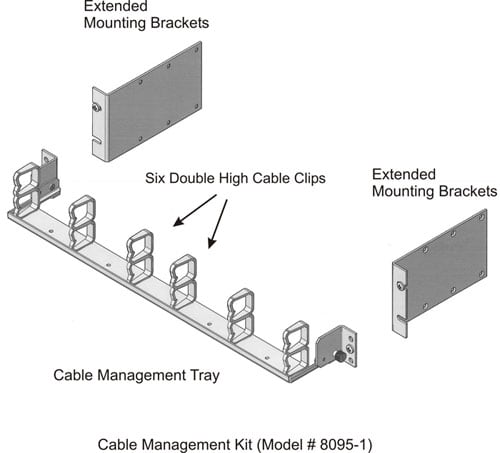

The Cable Management Kit includes two extended mounting brackets and a hinged cable management tray with cable clips. The extended mounting brackets are used to recess the chassis two inches back in the rack or cabinet. The hinged cable management tray attaches to the front of the rack and provides an organized method for routing cables to each module in the chassis. The cable management tray accommodates for minimum fiber bend radius to each installed module. The cable management tray’s unique hinge design allows the tray to swing down for easy module insertion and extraction and system maintenance.

The 19-Module Chassis kit is illustrated below.

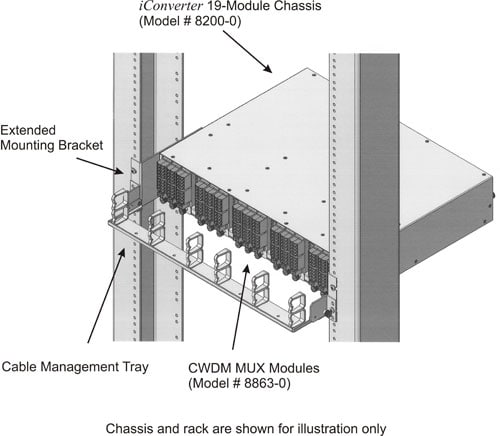

iConverter 19 Model 8200-0 Chassis Illustration




iConverter 19 Model 8200-0 Chassis Illustration

 *Patent Pending





Ordering


Model NumberDescription
8095-1 19-Module Chassis 19” Rack Mount Cable Management Kit with extended mounting brackets, cable management tray and double height cable clips
8095-2 19-Module Chassis 23” Rack Mount Cable Management Kit with extended mounting brackets, cable management tray and double height cable clips
8096-1 5-Module Chassis 19” Rack Mount Cable Management Kit with extended mounting brackets, cable management tray and single height cable clips
8096-2 5-Module Chassis 23” Rack Mount Cable Management Kit with extended mounting brackets, cable management tray and single height cable clips
