iConverter 1000FF

Gigabit Fiber-to-Fiber Managed Media Converter

The iConverter 1000FF managed media converter provides multimode to single-mode and dual fiber to single fiber conversion, and is a cost-effective solution for extending fiber network distances.

question

1000BASE-SX or 1000BASE-LX single-mode to multimode fiber converter

  • Supports multimode, single-mode and single-fiber with SC connectors
  • Supports distances up to 80km or longer*
  • User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
  • SNMP management via NetOutlook ® provides real-time port and module information, remote parameter configuration and trap notification
  • Management is available with the addition of a management module to the chassis
  • Modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
  • LED displays for immediate visual status of each port
  • Lifetime Warranty and free 24/7 Technical Support

*Contact Omnitron



The iConverter 1000FF managed media converter provides multimode to single-mode and dual fiber to single fiber conversion, and is a cost-effective solution for extending fiber network distances.

iConverter 1000FF models feature SC connectors and are available with multimode, single-mode and single-fiber options. The single-mode fiber port supports distances up to 80km, and the multimode fiber port supports distances up to 550m.

The 1000FF features user-selectable Link Propagate and Remote Fault Detection modes to facilitate quick fault detection, isolation, and reporting.

The iConverter 1000FF is available as a compact, unmanaged standalone unit, or as a chassis plug-in module that can be managed with a management module installed in the chassis. The hot-swappable plug-in module can be mounted in a high-density 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.

The standalone 1000FF can be wall-mounted and is DC powered. It can be ordered with an external AC/DC power adapter, or it can be directly powered using a 2-pin terminal connector.

Management of the plug-in module is accomplished by using a Management Module (such as an iConverter NMM2 or 10/100M2) that provides monitoring, configuration and trap notification. The management module can be accessed via SNMP, Telnet, or serial port. The SNMP-based management is accomplished via Omnitron’s intuitive, graphic-oriented NetOutlook management software or third party SNMP management software, while the Telnet and the serial interfaces have an easy-to-use, menu-driven interface.

Real-time 1000FF parameters that can be monitored include power, link, data receive status, module type and model, hardware and software revisions, serial numbers and a user-defined identifier.

The user can override the 1000FF module’s physical DIP-switch settings by using SNMP or Telnet to configure DIP-switch-selectable parameters such as Link Propagate or Remote Fault Detection.

In addition to all standard iConverter SNMP traps such as module insertion and removal, the 1000FF modules can generate traps on port state changes including link-up and link-down. Trap monitoring of specific events can be selectively enabled or disabled by the network administrator.

Model Type iConverter 1000FF
Protocols 1000BASE-SX, 1000BASE-LX
Compliance UL, FCC Class A, CE, NEBS Level 3
Fiber Connectors SC, ST, Single-Fiber SC
Controls LP, RFD
LED Displays Power, FO link (2)
Dimensions

Plug-in:

Standalone:

W 0.85” x D 4.5” x H 2.8”

W 3.8” x D 4.8” x H 1.0”

Weight

Plug-in:

Standalone
without Power Adapter:

Standalone
with Power Adapter:

8 oz.

1.0 lb.

1.5 lb.

DC Power Connector

Plug-in:

Standalone:

Power supplied by backplane

2.5mm Barrel Connector or
2 Pin Terminal Connector

DC Power Requirement (typical)

Plug-in:

Standalone:

0.5A @ 3.3VDC

5 - 32VDC
0.3A @ 9VDC (1.0A max)

AC Power Adapter [US]

Plug-in:

Standalone:

N/A

100 - 120VAC/60Hz
0.05A @ 120VAC

AC Power Adapter [Universal]

Plug-in:

Standalone:

N/A

100 - 240VAC/50 to 60Hz
0.05A @ 120VAC

Temperature

Standard:

Wide:

Storage:

Standard: 0 to 50º C

Wide: -40 to 60º C

Storage: -40 to 80º C

Humidity 5 to 95% (non-condensing)
Altitude -100m to 4000m
MTBF (hrs)

Plug-in:

Standalone
with US Power Adapter:

Standalone
with Universal Adapter:

1,600,000

250,000

100,000

Model TypeConnector Type
SC/SC
Fiber Type
Port 1
Port2
Fiber Type
Port1
Port2
Tx λ (nm)Rx λ (nm)Min.
Tx Power (dBm)
Max.
Tx Power (dBm)
Min.
Rx Sense (dBm)
Max.
Rx Sense (dBm)
Link Budget
(dBm)
1000FF
Dual Fiber
8642-1 MM/DF 220 / 550m1 850 850 -10 -4 -17 -3 7
SM 12km 1310 1310 -9.5 -3 -19.5 -3 10
8642-2 MM/DF 220 / 550m1 850 850 -10 -4 -17 -3 7
SM 34km 1310 1310 -5 0 -23 -3* 18
8642-3 MM/DF 220 / 550m1 850 850 -10 -4 -17 -3 7
SM 80km 1550 1550 -5 0 -23 -3* 18
8643-2 SM 12km 1310 1310 -9.5 -3 -19.5 -3 10
SM 34km 1310 1310 -5 0 -23 -3* 18
8643-3 SM 12km 1310 1310 -9.5 -3 -19.5 -3 10
SM 80km 1550 1550 -5 0 -23 -3* 18
1000FF

Port 1
Dual Fiber Port 2
Single-Fiber
8650-1 MM/DF 220 / 550m1 850 850 -10 -4 -17 -3 7
SM 20km 1310 1550 -9.5 -3 -20 -3 10.5
8651-1 MM/DF 220 / 550m1 850 850 -10 -4 -17 -3 7
SM 20km 1550 1310 -9.5 -3 -20 -3 10.5
8652-1 SM/DF 12km 1310 1310 -9.5 -3 -19.5 -3 10
SM 20km 1310 1550 -9.5 -3 -20 -3 10.5
8653-1 SM/DF 12km 1310 1310 -9.5 -3 -19.5 -3 10
SM 20km 1550 1310 -9.5 -3 -20 -3 10.5
8652-2 SM/DF 12km 1310 1310 -9.5 -3 -19.5 -3 10
SM 40km 1310 1550 -3 0 -20 -3* 17
8653-2 SM/DF 12km 1310 1310 -9.5 -3 -19.5 -3 10
SM 40km 1550 1310 -3 0 -20 -3* 17

For wide temperature (-40 to 60º C), add a "W" to the end of the model number.
Consult factory for extended temperature (-40 to +75º C) models.
When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.
*A minimum of 3dB of attenuation is required for these models.
1 62.5/125μm, 100/140μm multimode fiber up to 220m. 50/125μm multimode fiber up to 550m. Refer to the fiber cable manufacturer for multimode distance specifications.

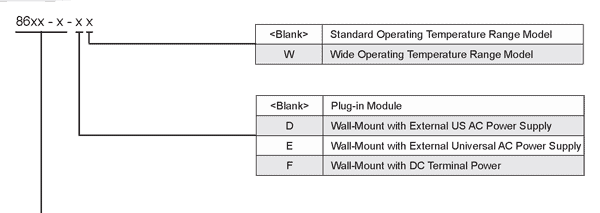

Chassis and Mounting Options Ordering Table

 19-Module5-Module2-Module1-Module
ConfigurationAC
(60 watts)
AC
(120 watts)
24VDC48VDCAC24VDC48VDCAC18-60DCUS ACUNIV AC
One (1) Power Supply 8200-1 8201-1 8206-1 8205-1 8220-1 8226-1 8225-1 8230-0 8235-0 8240-1 8240-2
One (1) Power Supply with Dying Gasp Support - - - - - - - 8230-1 8235-1 8241-1 8241-2
Two (2) Power Supplies 8200-2 8201-2 8206-2 8205-2 8220-2 8226-2 8225-2 - - 8245-111* 8245-112*
Three (3) Power Supplies 8200-3 8201-3 8206-3 8205-3 - - - - - - -
Spare Power Supply 8200-9 8201-9 8206-9 8205-9 8220-9 8226-9 8225-9 - - - -
23" Rack Mounting Kit 8091-2 8091-2 8091-2 8091-2 8092-2 8092-2 8092-2 - - - -
Blank Module Panel 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 8090-0 - -
Wall Mounting Hardware Kit -   - - - - - 8249-0 8249-0 8249-0 8249-0
1U 19" Rack Mount Shelf - - - - - - - 8260-0 8260-0 8260-0 8260-0
DIN Rail Mounting Kit -   - - - - - - - 8250-0 8250-0

When ordering a Wide Temperature chassis, add a W to the end of the part number. For example:8230-1W
Consult factory for extended temperature (-40 to +75º C) models.
* Click on part number for complete ordering information on the 1-Slot Redundant Power Chassis with Power over Ethernet
