Cost-Effective 10/100/1000 Media Converter with Power over Ethernet (PoE or PoE+)

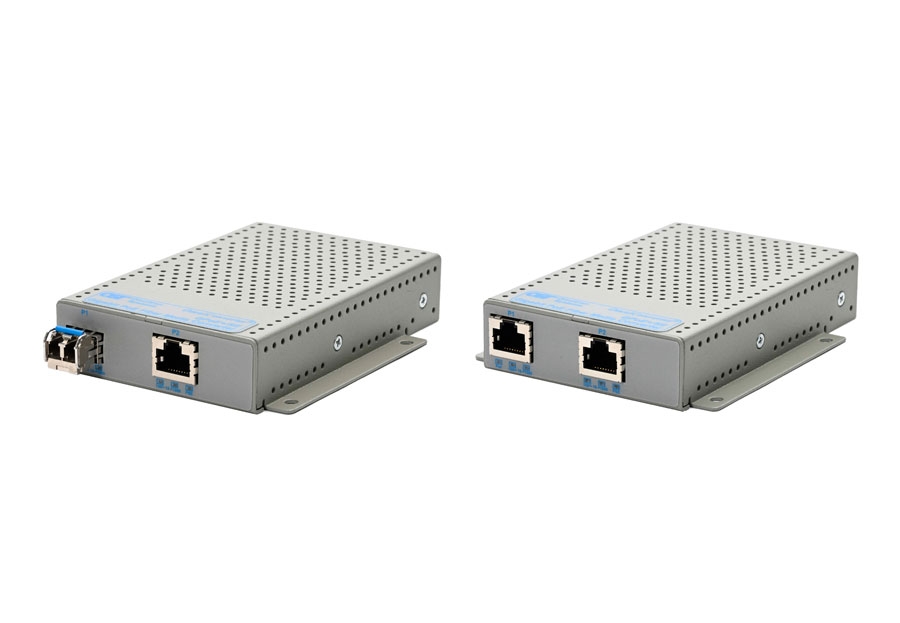

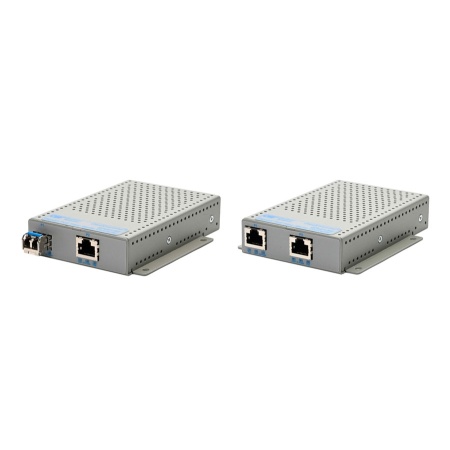

OmniConverter® GPoE+/SE

6ef598b10d1539793d4ace8d8b7b613f XL
The OmniConverter GPoE+/SE are IEEE 802.3at PoE+ Ethernet media converters that feature one uplink port and one 10/100/1000 RJ-45 PoE+ user ports. The GPoE+/SE provides up to 30W PoE+ on the RJ-45 user port and supports frame sizes up to 10,240 bytes. The uplink ports can be a SFP receptacle or 10/ ...Read more

Features
  • IEEE 802.3af/at Gigabit Ethernet Media Converter
  • 1000Mbps SFP or 10/100/1000 RJ-45 uplink port
  • 10/100/1000 RJ-45 PoE+ user port
  • Plug and Play
  • Available in AC and DC models
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents
  • IEEE 802.3af/at Gigabit Ethernet Media Converter
  • Compact size
  • One 1000Mbps SFP or one 10/100/1000 RJ-45 uplink port
  • One 10/100/1000 RJ-45 PoE+ user port
  • Plug and Play
  • Available in AC and DC models
  • Commercial (0? to 50?C) and wide (-40? to 60?C) operating temperature ranges
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Lifetime Warranty and free 24/7 Technical Support

*See the Model Comparison table for the comparison of the previous/old and the enhanced models

In this application example, a fiber-to-the-desk network is deployed to leverage the security and distance benefits of fiber.

In the main data closet, media converters are installed in high-density rack-mount chassis to provide reliable and cost-effective fiber distribution from existing copper network equipment.

Fiber optic cables run to each office that is outside the 100 meter distance, where they are terminated by OmniConverter GPoE+/SE fiber-to-copper media converters. Copper cable are used when the office is within the 100 meter distance, where they are terminated by OmniConverter GPoE+/SE copper-to-copper media converters



Fiber to the desk app GPoE SE

The previous/old version of the GPoE/SE and GPoE+/SE are no longer in production. GPoE/SE models 9460 - 9479 and GPoE+/SE 9480 - 9499 are replaced with the enhanced models below.



Step 1: Choose a Base Part Number (949xN-0-1pt)

 Model Number Description
9498N-0-1pt GPoE+/SE - 1 x 10/100/1000 RJ-45 Uplink Port + 1 x 10/100/1000 RJ-45 30W Port
9499N-0-1pt GPoE+/SE - 1 x SFP Uplink Port + 1 x 10/100/1000 RJ-45 30W Port

Contact Omnitron for other fiber options. Order the appropriate 100Mbps SFPs separately. Visit the Omnitron Optical Transceivers web page.

Contact Omnitron for conformal coating options.

Step 2: Choose a Power Option (949xN-0-1pt)

 1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord
 2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord
 8 = External AC/DC Adapter, 100 - 240 VAC included, PS JET/PSE Certified, with Japanese Power Cord
 9 = Direct DC 2 pin terminal connector, no AC/DC power adapter

Step 3: Choose an Operating Temperature Range Option (949xN-0-1pt)

<leave blank> = Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)




Accessories

Model Number
Description
8250-0
DIN-Rail Mounting Bracket
8251-0
DIN-Rail Mounting Clip
8260-0
19" rack mount shelf





MODEL COMPARISON

Previous/Old Base Model #Previous/Old Model Enhanced Base Model #Enhanced Model
9460 - 9471 GPoE/SE 15 W per RJ-45 User Port FF with 1 or 2 PoE RJ-45 9420N - 9431N GPoE+/S 30 W per RJ-45 User Port Fixed Fiber with 1 or 2 PoE+ RJ-45
9479 GPoE/SE 15 W per RJ-45 User Port SFP with 1 or 2 PoE RJ-45 9439N GPoE+/S 30 W per RJ-45 User Port SFP with 1 or 2 PoE+ RJ-45
9480 - 9491 GPoE+/SE 30 W per RJ-45 User Port Fixed Fiber with 1 or 2 PoE+ RJ-45 9420N - 9431N GPoE+/S 30 W per RJ-45 User Port Fixed Fiber with 1 or 2 PoE+ RJ-45
9499 GPoE+/SE 30 W per RJ-45 User Port SFP with 1 or 2 PoE+ RJ-45 9439N GPoE+/S 30 W per RJ-45 User Port SFP with 1 or 2 PoE+ RJ-45





Features

Previous/Old Model

GPoE/SE and GPoE+/SE

Enhanced Model

GPoE+/SE

Benefits
Copper Uplink Ports N/A One port Product flexibility
PoE Power Level

IEEE 802.3af - GPoE/SE

IEEE 802.3af/at - GPoE+/SE

 IEEE 802.3af/at 15W and 30W versions in one model
Models Fixed Fiber Model Not Available

Simplified models available:

1 x SFP + 1 x RJ-45 PoE+ or

1 X RJ-45 + 1 x RJ-45 PoE+
Two RJ-45 PoE User Ports
IP Protection

IP20

 IP30D Provides increased enclosure protection



For all models, # of RJ-45 User Ports (y) = 1 or 2, Power Option (p) = 1,2,8 and 9 and Temperature Option (t) = blank and W



Replacement Guide for the Previous/Old GPoE/SE and GPoE+/SE Models

Previous/Old

GPoE/SE Model

Previous/Old

GPoE+/SE Model

Enhanced

GPoE+/S Model

Enhanced

GPoE+/S Product Description

9460-0-ypt 9480-0-ypt 9420N-0-ypt 850 / 850 MM ST 220/550M 7dB
9462-0-ypt 9482-0-ypt 9422N-0-ypt 850 / 850 MM SC 220/550M 7dB
9461-1-ypt 9481-1-ypt 9421N-1-ypt 1310 / 1310 SM ST 12km 10dB
9463-1-ypt 9483-1-ypt 9423N-1-ypt 1310 / 1310 SM SC 12km 10dB
9461-2-ypt 9481-2-ypt 9421N-2-ypt 1310 / 1310 SM ST 34km 18dB
9463-2-ypt 9483-2-ypt 9423N-2-ypt 1310 / 1310 SM SC 34km 18dB
9463-3-ypt 9483-3-ypt 9423N-3-ypt 1550 / 1550 SM SC 80km 18dB
9463-4-ypt 9483-4-ypt 9423N-4-ypt 1550 / 1550 SM SC 110km 24dB
9463-5-ypt 9483-5-ypt 9423N-5-ypt 1550 / 1550 SM SC 140km 30dB
9470-0-ypt 9490-0-ypt 9430N-0-ypt 1310 / 1550 MM-SF SC 550m 9dB
9471-0-ypt 9491-0-ypt 9431N-0-ypt 1550 / 1310 MM-SF SC 550m 9dB
9470-1-ypt 9490-1-ypt 9430N-1-ypt 1310 / 1550 SM-SF SC 20km 10.5dB
9471-1-ypt 9491-1-ypt 9431N-1-ypt 1310 / 1550 SM-SF SC 20km 10.5dB
9470-2-ypt 9490-2-ypt 9430N-2-ypt 1310 / 1550 SM-SF SC 40km 17dB
9471-2-ypt 9491-2-ypt 9431N-2-ypt 1550 / 1310 SM-SF SC 40km 17dB
9479-0-2pt 9499-0-2pt 9439N-0-2pt 1 x SFP with 2 x PoE+ RJ-45 Ports
9479-0-1pt 9499-0-1pt 9499N-0-1pt (GPoE+/SE) 1 x SFP with 1 x PoE+ RJ-45 Port

OmniConverter GPoE+/SE (Data Sheet)

OmniConverter GPoE+/SE (User Manual)

Media Converter Comparison App Note (The Application Note provides a cross reference from the Previous/Old models to the Enhanced models)

The OmniConverter GPoE+/SE are IEEE 802.3at PoE+ Ethernet media converters that feature one uplink port and one 10/100/1000 RJ-45 PoE+ user ports.

The GPoE+/SE provides up to 30W PoE+ on the RJ-45 user port and supports frame sizes up to 10,240 bytes. The uplink ports can be a SFP receptacle or 10/100/1000 RJ-45 copper port.

The GPoE+/SE are available with Small Form Pluggable (SFP) transceiver receptacles. SFP models support 1000Mbps standard, CWDM and DWDM transceivers in a variety of distances and fiber types.

The GPoE+/SE can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting kit. They can also be mounted on a 1U 19” rack-mount shelf. They are available with DC power via terminal connectors or an external 100 to 240V AC power adapters.

Description
OmniConverter GPoE+/SE
10/100/1000BASE-T to 1000BASE-X
Fiber Media Converter with PoE+
Standard Compliances

IEEE 802.3,

IEEE 802.3af (15.40 watts max), IEEE 802.3at (30 watts max)
Regulatory Compliances
(Pending)

Safety: UL 62368-1, UL 60950-1,

            IEC 62368-1, IEC 60950-1,

            EN 62368-1, EN 60950-1,

            CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

            CE Mark, UKCA

EMC:   EN 55032/24 CE Emissions/Immunity,

            IEC 61000-6-4 Industrial Emissions,

            IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32, FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

            IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

            IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

            IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

            IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

            IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

            IEC 61000-4-6 CS: Signal: 10 V,

            IEC 61000-4-8 (Magnetic Field) 30A/m,

            IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP30D Protection

ACT: TAA, BAA,NDAA
Environmental
RoHS, WEEE, REACH
PoE Power Modes
IEEE Alterative A (Alt A)
Frame Size
Up to 10,240 bytes
Port Types:

Copper: 10/100/1000BASE-T (RJ-45)

Fiber:     1000BASE-X (SFP)
Cable Types

Copper: EIA/TIA 568A/B, Cat 5 UTP and higher

Fiber:     Multimode: 50/125, 62.5/125µm

              Single-mode: 9/125µm
AC Power Requirements
(Models with AC/DC Adapters)

100 - 240VAC/50 to 60Hz

0.31A @ 120VAC (typical)
DC Power Requirements
(Models with DC Terminals)

+/-46 to +/-57VDC;

0.59A @ 56VDC

2 Pin Terminal (isolated)
A minimum of 50VDC is required to guarantee 25.5 watts at 100 meters on Cat 5 cable or better.
Dimensions (W x D x H) 3.8” x 4.8” x 1.0” (96.5 mm x 121.9 mm x 25.4 mm)
Weight

Module Only: 1.0 lbs.; 453.6 grams

Module w/ Adapter: 1.8 lbs.; 816.4grams
Operating Temperature
(See Temperature Derating Table)

Commercial: 0 to 50°C

Wide:         -40 to 60°C (-20°C AC cold start)

Storage:     -40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hours)

Module Only: 681,000

AC/DC Adapter: 100,000
Warranty Lifetime warranty with 24/7/365 free Technical Support





 Power / Voltage Requirements and Specifications per IEEE


Description IEEE 802.3af PoE IEEE 802.3at PoE+
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts
