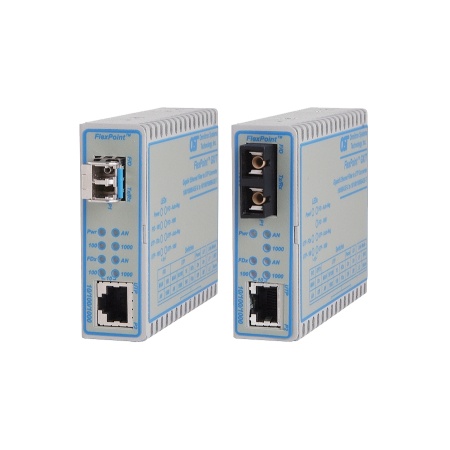

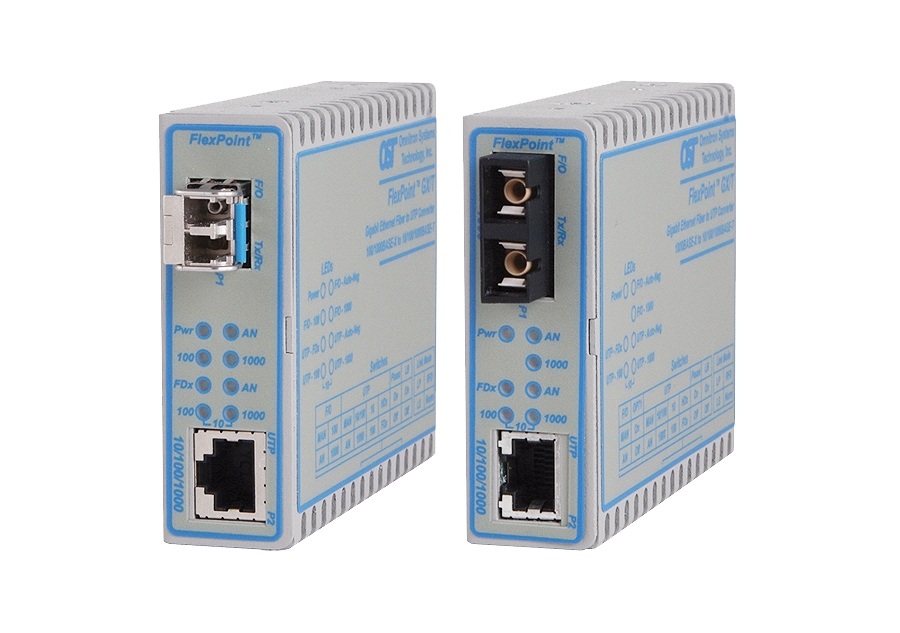

10/100/1000 Copper to 100/1000X Fiber Ethernet Media Converter

FlexPoint® GX/T

787ae9ec9023a82f5aa7e4c1a64f73cb XL
The FlexPoint GX/T is a 10/100/1000BASE-T copper to 1000BASE-X fiber media converter that supports jumbo frames up to 10,240 bytes. The GX/T features Small Form Pluggable (SFP) transceivers that support both 100BASE-FX and 1000BASE-X for interoperability with Gigabit and Fast Ethernet fiber equipmen ...Read more

Features
  • 10/100/1000 copper to 100/1000 fiber media converter
  • Conforms to 10BASE-T, 100BASE-TX, 1000BASE-T, 100BASE-FX and 1000BASE-X specs
  • Supports 100Mbps and 1Gbps SFP transceivers for standard, CWDM or DWDM wavelengths
  • Provides Far-End Fault and Link Fault modes
  • Fixed fiber port supports MM and SM DF with ST, SC and LC connectors; and SM SF with SC connectors
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents
  • 10/100/1000 copper to 100/1000* fiber media converter
  • Conforms to 10BASE-T, 100BASE-TX, 1000BASE-T, 100BASE-FX* and 1000BASE-X specifications
  • Fixed fiber port supports multimode and single-mode dual fiber with ST, SC and LC connectors; and single-mode single-fiber with SC connectors
  • Supports 100Mbps and 1Gbps SFP transceivers for standard, CWDM or DWDM wavelengths
  • Both the fiber and RJ-45 ports support auto-negotiation
  • Provides Far-End Fault and Link Fault modes
  • RJ-45 port supports 10/100/1000Mbps, Half/Full-Duplex, configurable Pause function for flow control and MDI/MDIX auto-crossover
  • Supports jumbo frames up to 10,240 bytes
  • Loopback mode supports end-to-end testing
  • User-selectable Link Modes for quick fault detection
  • Diagnostic and DIP-switch configurations are displayed with status LEDs for quick and easy installation
  • Tabletop, wall-mounted, rack-mounted in a 5-Module shelf or in a 14-Module power-redundant chassis options
  • Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Lifetime Warranty and free 24/7 Technical Support KEY FEATURES

* 100BASE-FX is supported on SFP models only

In this enterprise application example, FlexPoint GX/T media converters are used to connect to multiple generations of networking components across a campus. A legacy 100 Mbps fiber switch (A) is directly connected to a UTP Gigabit switch using a FlexPoint GX/T with a 100 Mbps SFP transceiver installed. A fiber-to-desktop application (B) uses a FlexPoint GX/T at both ends to provide 10/100/1000 copper-to-fiber conversion. The FlexPoint GX/T also connects a UTP Gigabit Ethernet switch (C) via fiber back to the main distribution center. In all cases, multimode, single-mode, or single-mode singlefiber can be used.



FlexPoint GX/T Application

Step 1: Choose a Base Part Number (xxxx-pt)

Fiber
Type
Distance
Connector Types
Tx
Lambda

(nm)
Min. Tx
Power

(dBm)
Max. Tx
Power

(dBm)
Min. Rx
Power

(dBm)
Max. Rx
Power

(dBm)
Min.
Attenuation

(dB)
Link
Budget

(dB)
ST
SC
LC
SFP
-
-
-
-
-
4719-pt
-
-
-
-
-
-
-
MM/DF
220 / 550m1
4706-pt
4700-pt
4714-pt
-
850/850
-10
-4
-17
-3
-
7
SM/DF
12km
4707-pt
4701-pt
4715-pt
-
1310/1310
-9.5
-3
-19.5
-3
-
10
SM/DF
34km
-
4702-pt
4716-pt
-
1310/1310
-5
0
-23
-3
3
18
SM/DF
80km
-
4703-pt
4717-pt
-
1550/1550
-5
0
-23
-3
3
18
SM/DF
110km
-
4704-pt
-
-
1550/1550
0
5
-24
-3
8
24
SM/DF
140km
-
4705-pt
-
-
1550/1550
2
5
-28
-8
13
30
SM/SF2
20km
-
4710-pt
-
-
1310/1550
-9.5
-3
-20
-3
-
10.5
SM/SF2
20km
-
4711-pt
-
-
1550/1310
-9.5
-3
-20
-3
-
10.5
SM/SF2
40km
-
4712-pt
-
-
1310/1550
-3
0
-20
-3
3
17
SM/SF2
40km
-
4713-pt
-
-
1550/1310
-3
0
-20
-3
3
17
162.5/125µm (OM1) multimode fiber up to 220m. 50/125µm (OM2) multimode fiber up to 550m
2When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.
MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber
Contact Omnitron for other operational temperature ranges and RoHS (5/6) compliant models
Order the appropriate SFPs separately. Visit the Omnitron Optical Transceivers web page.

Step 2: Choose a Power Option (xxxx-pt)

 -0 = Barrel Connector, No AC/DC Power Adapter
 -1 = Barrel Connector and US AC/DC Power Adapter, 100-240 VAC, 50-60Hz
 -2 = Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

Step 3: Choose an Operating Temperature Range (xxxx-pt)

<leave blank> = Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)





  -1 = Barrel Connector and US AC/DC Power Adapter, 100-240 VAC, 50-60Hz

Wall Wort PS flexpoint

 -2 = Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

Universal PS flexpoint





Accessories

Model NumberDescriptionModel NumberDescription
4380 Wall-Mounting Hardware Kit for Modules 4381 Wall-Mounting Hardware Kit for DC to DC Power Adapter
4384 DC to DC Power Adapter 4384-W DC to DC Power Adapter, Wide Temperature (-40 to 60°C)
4385 14-Module Chassis with two 48VDC Power Supplies 4386 14-Module Chassis with one 48VDC Power Supply
4389 Spare 48VDC Power Supply 4392 5-Module Rack-Mount Shelf
4395 14-Module Chassis with two AC Power Supplies 4396 14-Module Chassis with one AC Power Supply
4399 Spare AC Power Supply 8250 DIN-Rail Mounting Kit
See all FlexPoint accessories on FlexPoint Chassis and Mounting Options product page.

FlexPoint GX/T (Data Sheet)

FlexPoint GX/T (User Manual)

The FlexPoint GX/T is a 10/100/1000BASE-T copper to 1000BASE-X fiber media converter that supports jumbo frames up to 10,240 bytes. The GX/T features Small Form Pluggable (SFP) transceivers that support both 100BASE-FX and 1000BASE-X for interoperability with Gigabit and Fast Ethernet fiber equipment. SFP transceivers enable adaptability to different fiber types, speed and distances, and support CWDM and DWDM wavelengths.

The FlexPoint GX/T also supports ST, SC and LC; and fixed fiber connectors for multimode, single-mode fiber; and single-mode single-fiber models are available.

Both the fiber port and the RJ-45 port support auto-negotiation to achieve the best possible mode of operation (speed, duplex mode and Pause mode) between the devices. The auto-negotiation feature can be disabled on both ports (for manual configuration) using DIP-switches on the product. This is useful in a situation where the GX/T is connected to a non-negotiating device and the configuration parameters must be set manually.

Network flow control is managed by the Pause function (configured via auto-negotiation or manually) that prevents network congestion on both the RJ-45 and fiber ports. When Pause is enabled and the device is experiencing network congestion, it will send out a Pause signal to its link partner, instructing it to slow down data transmission.

A variety of testing and fault detection tools are provided for easy installation and troubleshooting. The GX/T supports Port Loop-Back, IEEE defined Far-End-Fault and Link Fault bit as Remote Fault indicators. The GX/T generates a remote fault indicator when it detects link fault conditions, and reports detection of these signals by displaying status on the LED. Through user DIP-switch configuration, the detection of these indicators or link modes can also be propagated to the other port on the GX/T as a means of notifying connected end-devices of the link fault.

Diagnostic status LED indicators assist in network installation and maintenance. The LEDs report the availability of power, port activity and link status and duplex mode.

The GX/T supports a wide input voltage range of 5 to 32VDC for flexibility to power the device from a variety of sources.

GX/T modules can be standalone or surface-mounted utilizing optional wall-mounting hardware or DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a high-density 14-Module, power-redundant chassis.

Description
 FlexPoint GX/T
 10/100/1000BASE-T Copper to 100BASE-FX/1000BASE-X Fiber Media Converter
Standard Compliances
 IEEE 802.3
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size
 Up to 10,240 bytes
Port Types
Copper:

Fiber:
10/100/1000BASE-T (RJ-45)

100BASE-FX (SFP)
1000BASE-X (ST, SC, SFP)
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC Adapter:

100 - 240VAC/50 - 60Hz
0.03A @ 120VAC (typical)
DC Power Requirements

Voltage Range:
Nominal Voltage:
Nominal Power:
Barrel Connector
5.0 to 32VDC
9VDC
0.3A @ 9VDC
Molex Connector
4.75 to 5.25VDC
5VDC
0.5A @ 5VDC
Dimensions
W x D x H
 3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight
 w/o AC Adapter:
6 oz. (170.1 grams)
Temperature
 Commercial:
Wide:
Storage: 		    0 to 50°C
-40 to 60°C
-40 to 80° C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
 w/o AC Adapter (-0):
w/ AC Adapter (-1):
w/ AC Adapter (-2): 		 900,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support
