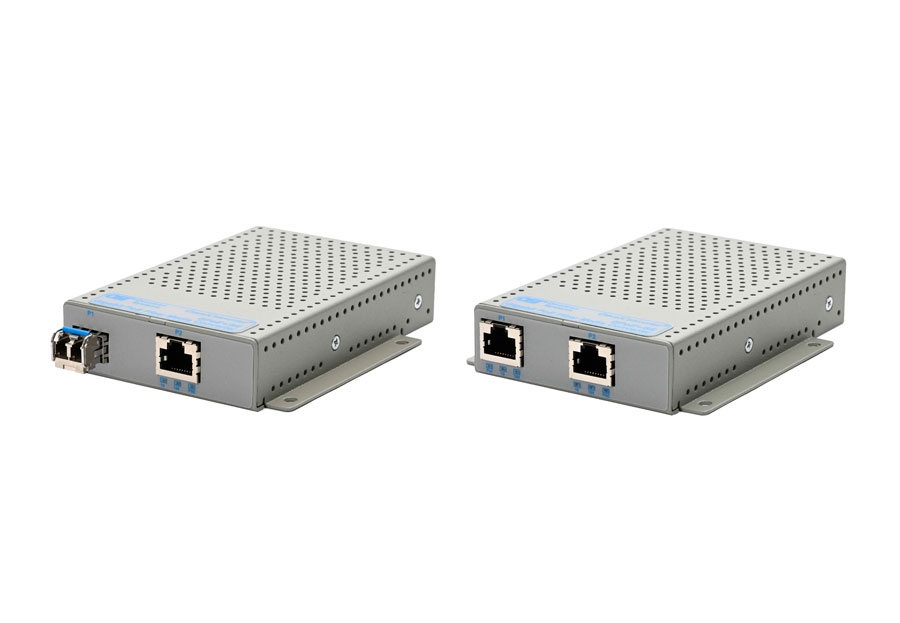

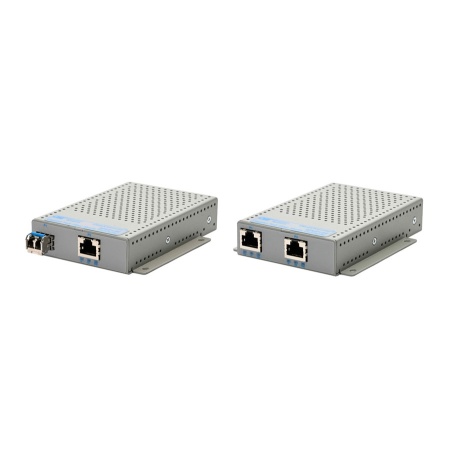

10/100BASE-T to 100BASE-X Media Converter with Power over Ethernet (PoE or PoE+)

OmniConverter® FPoE+/SE

fd2436c23111d947c615d80fa5115911 XL
The OmniConverter FPoE+/SE are IEEE 802.3at PoE+ Ethernet media converters that feature one uplink port and one 10/100 RJ-45 PoE+ user ports. The FPoE+/SE provides up to 30W PoE+ on the RJ-45 user port and supports frame sizes up to 10,240 bytes. The uplink ports can be a SFP receptacle or 10/100 R ...Read more

Features
  • IEEE 802.3af/at Fast Ethernet Media Converter
  • 1 100Mbps SFP or 1 10/100 RJ-45 uplink port
  • 1 10/100 RJ-45 PoE+ user port
  • Plug and Play
  • Available in AC and DC models
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents
  • IEEE 802.3af/at Fast Ethernet Media Converter
  • Compact size
  • One 100Mbps SFP or one 10/100 RJ-45 uplink port
  • One 10/100 RJ-45 PoE+ user port
  • Plug and Play
  • Available in AC and DC models
  • Commercial (0? to 50?C) and wide (-40? to 60?C) operating temperature ranges
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Lifetime Warranty and free 24/7 Technical Support

*See the Model Comparison table for the comparison of the previous/old and the enhanced models

In this application example, a fiber-to-the-desk network is deployed to leverage the security and distance benefits of fiber.

In the main data closet, media converters are installed in high-density rack-mount chassis to provide reliable and cost-effective fiber distribution from existing copper network equipment.

Fiber optic cables run to each office, where they are terminated by OmniConverter FPoE+/SE media converters providing data and power to the IP phones.

 Combined App fpoe se

The previous/old version of the FPoE/SE and FPoE+/SE are no longer in production. FPoE/SE models 9360 - 9379 and FPoE+/SE 9380 - 9399 are replaced with the enhanced models below.



Step 1: Choose a Base Part Number (939xN-0-1pt)

 Model Number Description
9398N-0-1pt FPoE+/SE - 1 x 10/100 RJ-45 Uplink Port + 1 x 10/100 RJ-45 30W Port
9399N-0-1pt  FPoE+/SE - 1 x SFP Uplink Port + 1 x 10/100 RJ-45 30W Port

Contact Omnitron for other fiber options. Order the appropriate 100Mbps SFPs separately. Visit the Omnitron Optical Transceivers web page.

Contact Omnitron for conformal coating options.

Step 2: Choose a Power Option (939xN-0-1pt)

 1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord
 2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord
 8 = External AC/DC Adapter, 100 - 240 VAC included, PS JET/PSE Certified, with Japanese Power Cord
 9 = Direct DC 2 pin terminal connector, no AC/DC power adapter

Step 3: Choose an Operating Temperature Range Option (939xN-0-1pt)

<leave blank> = Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)




Accessories

Model Number
Description
8250-0
DIN-Rail Mounting Bracket
8251-0
DIN-Rail Mounting Clip
8260-0
19" rack mount shelf





MODEL COMPARISON

Previous/Old Base Model #Previous/Old Model Enhanced Base Model #Enhanced Model
9360 - 9371 FPoE/SE 15 W per RJ-45 User Port Fixed Fiber with 1 or 2 PoE RJ-45 9320N - 9331N FPoE+/S 30 W per RJ-45 User Port Fixed Fiber with 1 or 2 PoE+ RJ-45
9379 FPoE/SE 15 W per RJ-45 User Port SFP with 1 or 2 PoE RJ-45 9339N FPoE+/S 30 W per RJ-45 User Port SFP with 1 or 2 PoE+ RJ-45
9380 - 9391 FPoE+/SE 30 W per RJ-45 User Port Fixed Fiber with 1 or 2 PoE+ RJ-45 9320N - 9331N FPoE+/S 30 W per RJ-45 User Port Fixed Fiber with 1 or 2 PoE+ RJ-45
9399 FPoE+/SE 15 W per RJ-45 User Port SFP with 1 or 2 PoE+ RJ-45 9339N FPoE+/S 30 W per RJ-45 User Port SFP with 1 or 2 PoE+ RJ-45





FeaturesPrevious/Old Model FPoE/SE and FPoE+/SEEnhanced Model FPoE+/SEBenefits
Copper Uplink Ports N/A One port Product flexibility
PoE Power Level

IEEE 802.3af - FPoE/SE

IEEE 802.3af/at - FPoE+/SE

 IEEE 802.3af/at 15W and 30W versions in one model
Models Fixed Fiber Model Not Available

Simplified models available:

1 x SFP + 1 x RJ-45 PoE+ or

1 X RJ-45 + 1 x RJ-45 PoE+
Two RJ-45 PoE User Ports
IP Protection

IP20

 IP30D Provides increased enclosure protection



For all models, # of RJ-45 User Ports (y) = 1 or 2, Power Option (p) = 1,2,8 and 9 and Temperature Option (t) = blank and W



Replacement Guide for the Previous/Old FPoE/SE and FPoE+/SE Models

Previous/Old

FPoE/SE Model

Previous/Old

FPoE+/SE Model

Enhanced

FPoE+/S Model

Enhanced

FPoE+/S Product Description

9360-0-ypt 9380-0-ypt 9320N-0-ypt 1310 / 1310 MM ST 5km 7dB
9362-0-ypt 9382-0-ypt 9322N-0-ypt 1310 / 1310 MM SC 5km 7dB
9361-1-ypt 9381-1-ypt 9321N-1-ypt 1310 / 1310 SM ST 30km 16dB
9363-1-ypt 9383-1-ypt 9323N-1-ypt 1310 / 1310 SM SC 30km 16dB
9361-2-ypt 9381-2-ypt 9321N-2-ypt 1310 / 1310 SM ST 60km 26dB
9363-2-ypt 9383-2-ypt 9323N-2-ypt 1310 / 1310 SM SC 60km 26dB
9363-3-ypt 9383-3-ypt 9323N-3-ypt 1550 / 1550 SM SC 120km 26dB
9370-0-ypt 9390-0-ypt 9330N-0-ypt 1310 / 1550 MM-SF SC 5km 20dB
9371-0-ypt 9391-0-ypt 9331N-0-ypt 1550 / 1310 MM-SF SC 5km 20dB
9370-1-ypt 9390-1-ypt 9330N-1-ypt 1310 / 1550 SM-SF SC 20km 15dB
9371-1-ypt 9391-1-ypt 9331N-1-ypt 1550 / 1310 SM-SF SC 20km 15dB
9370-2-ypt 9390-2-ypt 9330N-2-ypt 1310 / 1550 SM-SF SC 40km 22dB
9371-2-ypt 9391-2-ypt 9331N-2-ypt 1550 / 1310 SM-SF SC 40km 22dB
9379-0-2pt 9399-0-2pt 9339N-0-2pt 1 x SFP with 2 x PoE+ RJ-45 Ports
9379-0-1pt 9399-0-1pt 9399N-0-1pt (FPoE+/SE) 1 x SFP with 1 x PoE+ RJ-45 Port

OmniConverter FPoE+/SE (Data Sheet)

OmniConverter FPoE+/SE (User Manual)

Media Converter Comparison App Note (The Application Note provides a cross reference from the Previous/Old models to the Enhanced models)

The OmniConverter FPoE+/SE are IEEE 802.3at PoE+ Ethernet media converters that feature one uplink port and one 10/100 RJ-45 PoE+ user ports.

The FPoE+/SE provides up to 30W PoE+ on the RJ-45 user port and supports frame sizes up to 10,240 bytes. The uplink ports can be a SFP receptacle or 10/100 RJ-45 copper port.

The FPoE+/SE are available with Small Form Pluggable (SFP) transceiver receptacles. SFP models support 100Mbps standard, CWDM and DWDM transceivers in a variety of distances and fiber types.

The FPoE+/SE can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting kit. They can also be mounted on a 1U 19” rack-mount shelf. They are available with DC power via terminal connectors or an external 100 to 240V AC power adapters.

Description OmniConverter FPoE+/SE
10/100BASE-T to 100BASE-X Fiber Media Converter with PoE+
Standard Compliances

IEEE 802.3, IEEE 802.3af (15.40 watts max), IEEE 802.3at (30 watts max)

Regulatory Compliances

(Pending)

Safety: UL 62368-1, UL 60950-1,

            IEC 62368-1, IEC 60950-1,

            EN 62368-1, EN 60950-1,

            CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

            CE Mark, UKCA

EMC:   EN 55032/24 CE Emissions/Immunity,

            IEC 61000-6-4 Industrial Emissions,

            IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32, FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

            IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

            IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

            IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

            IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

            IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

            IEC 61000-4-6 CS: Signal: 10 V,

            IEC 61000-4-8 (Magnetic Field) 30A/m,

            IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP30D Protection

ACT: TAA, BAA,NDAA
Environmental RoHS, WEEE, REACH
PoE Power Modes IEEE Alterative A (Alt A)
Frame Size Up to 10,240 bytes
Port Types

Copper: 10/100BASE-T (RJ-45)

Fiber: 100BASE-X (SFP)
Cable Types

Copper: EIA/TIA 568A/B, Cat 5 UTP and higher

Fiber:     Multimode: 50/125, 62.5/125µm

              Single-mode: 9/125µm
AC Power Requirements
(Models with AC/DC Adapters)

100 - 240VAC/50 to 60Hz

0.31A @ 120VAC (typical)
DC Power Requirements
(Models with DC Terminals)

+/-46 to +/-57VDC;

0.59A @ 56VDC

2 Pin Terminal (isolated)
A minimum DC input voltage of 50VDC is required to guarantee 25.5 watts (802.3at) at the end of 100 meters of Cat 5 or better
Dimensions (W x D X H) 3.8” x 4.8” x 1.0” (96.5 mm x 121.9 mm x 25.4 mm)
Weight

Module Only: 1.0 lbs.; 453.6 grams

Module w/ Adapter: 1.8 lbs.; 816.4grams
Operating Temperature
(See Temperature Derating Table)

Commercial: 0 to 50°C

Wide: -40 to 60°C (-20°C AC cold start)

Storage: -40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hrs) Module: 681,000
AC/DC Adapter: 100,000
Warranty Lifetime warranty with 24/7/365 free Technical Support
