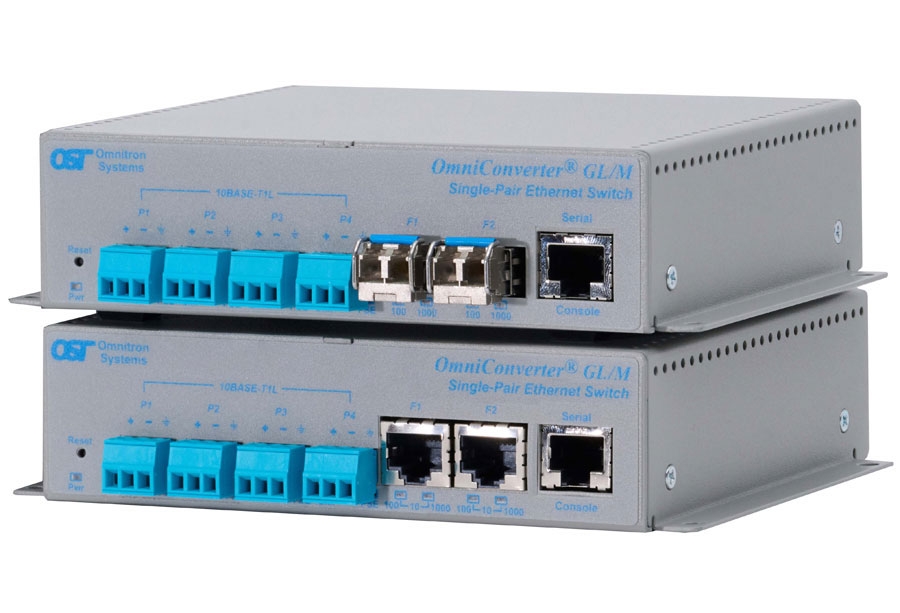

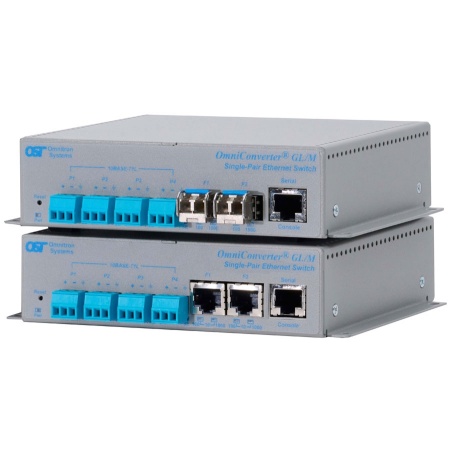

e791ab626e6785062374d45b25cc6e7f XL
The OmniConverter GL/M is a managed compact gigabit Ethernet switch that features copper or fiber uplink ports and four single-pair 10BASE-T1L Ethernet copper user ports. The Single Pair Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPE terminal ports or IEC 63171-2 SPE port ...Read more
  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

OmniConverter® 10T/APS Single Pair Ethernet

10Mbps 10BASE-T to 10BASE-T1L PSE Converters

Dual Device Mode Application

This Dual Device feature is extremely useful when two isolated networks domains share a single network distribution location.

The example below depicts a scenario where a surveillance security (green) network and a Wi-Fi (purple) network are sharing a single hub distribution location. Using the two uplinks and the Dual Device mode facilitates using a single switch driving both the Cameras and the Wi-Fi Access Points across SPE cabling while maintaining isolation between the networks. At the far end, OmniConverter 10TPS/L modules are used to power the Cameras and Access Points.

Dual Device App GL M

Building Automation Application

This example shows a Building Automation application using an OmniConverter GL/M and 10TPS/L modules to connect building systems back to a centralized control room. Each building system is powered by PoE/PoE+ from the OmniConverter 10TPS/L modules. Systems controlled by the OmniConverter modules include Motion Detection, Lighting, Elevator Control, Access Control to Floors, Security Surveillance and HVAC.

Building App Motion GL M

Step 1: Choose a Base Part Number (2910-x-4c-pt)

Model NumberDescription
2910-0-4c-pt 4 x 10BASE-T1L + 2 x 100/1000 SFP Ports
2910-1-4c-pt 4 x 10BASE-T1L + 2 x 10/100/1000 RJ-45 Ports

Step 2: Choose a SPE Connector Type (2910-x-4c-pt)

0 = 3-pin SPE Terminal Connector
2 = IEC 63171-2 SPE Connector

Step 3: Choose a Power Option (2910-x-4c-pt)

1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord
2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord
8 = External AC/DC Adapter, 100 - 240 VAC included, PS JET/PSE Certified, with Japanese Power Cord
9 = Direct DC 2 pin terminal connector, no AC/DC power adapter

Step 4: Choose an Operating Temperature Option (2910-x-4c-pt)

<leave blank> = Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)
Z = Extended temperature (-40 to 75°C)



ACCESSORIES

Model Number Description
8251-0 DIN-Rail Mounting Clip
8260-0 19” rack mount shelf (up to 2 modules)

OmniConverter GL/M (Data sheet)

OmniConverter GL/M (User Manual)



OmniConverter / RuggedNet SPE Web Interface (User Manual)

OmniConverter / RuggedNet SPE NOL (User Manual)

OmniConverter / RuggedNet SPE Hierarchical CLI (User Manual)

The OmniConverter GL/M is a managed compact gigabit Ethernet switch that features copper or fiber uplink ports and four single-pair 10BASE-T1L Ethernet copper user ports.

The Single Pair Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPE terminal ports or IEC 63171-2 SPE ports and two 10/100/1000 RJ-45 or 100/1000 fiber uplink ports.

The OmniConverter GL/M is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

The switch supports Dual Device mode, Directed Switch mode and Protected Uplinks.

Dual Device mode enables the module to operate as two independent and isolated Ethernet switches. In Dual Device mode, the GL/M provides separate and independent data traffic paths between the two uplink ports and four user ports.

Directed Switch mode directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.

The switch supports protected uplinks using industrial ring Media Redundancy Protocol (MRP) or Spanning Tree Protocol or Redundant uplinks for high availability industrial network applications.

For daisy-chain applications, the second uplink port can be used to cascade multiple switches.

The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. IPv4 and IPv6 are supported on the switches. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email notification and alarm reporting is provided.

The switch is available with Small Form Pluggable (SFP) transceiver receptacle ports or 10/100/1000 RJ-45 ports. The SFP ports support 10/100/1000BASE-T and 1000BASE-T copper transceivers and 100Mbps and 1000Mbps standard, CWDM and DWDM fiber transceivers in a variety of distances and fiber types.

The switch can be wall mounted, rack mounted using a shelf (8260-0) or DIN-rail mounted using the DIN-rail mounting clips (8251-0). The switch is available with an external 100 to 240V AC power adapter or with a DC terminal connector.

Description

OmniConverter® GL/M

10T/T1L to 100/1000 Fiber or 10/100/1000 Copper Uplinks

Managed Ethernet Switch
Standard Compliances

IEEE 802.3, IEEE 802.3cg, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1w RSTP/MSTP,

RFC 5424, RFC 4541, RFC 2710,

IEC 624339-2, SMTP, SNTP, RADIUS, TACACS+, IEEE 802.1x
Regulatory Compliances (Pending)

Safety:  UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             EN 62368-1, EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

             CE Mark, UKCA

EMC:    EN 55032/24 CE Emissions/Immunity,

             IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity

EMI:    CISPR 32,

            FCC 47 Part 15 Subpart B Class A

EMS:   IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

            IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

            IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

            IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

            IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

            IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

            IEC 61000-4-6 CS: Signal: 10 V,

            IEC 61000-4-8 (Magnetic Field) 30A/m,

            IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection

ACT:    TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
Management

IPv4 and IPv6 address

Web, Telnet, SSH, SNMPv1/v2c/v3

In-Band management via Ethernet port

Out-of-band management via serial port
Frame Size

10BASE-T1L: Up to 2,048 bytes

RJ-45:             Up to 10,240 bytes

SFP:               100M - up to 2,048 bytes

                       1000M - up to 10,240 bytes
Port Types

10BASE-T1L: 3-Pin SPE Terminal connector or IEC 63171-2 SPE connector

RJ-45:            10/100/1000BASE-T

SFP:               10/100/1000BASE-T SGMII or 1000BASE-T SERDES Copper Transceiver,

                       100BASE-X or 1000BASE-X Fiber Transceiver
Cable Types

10BASE-T1L: Single-Pair Ethernet (SPE) cable, IEC 61156-13 (fixed) or IEC 61156-14 (flexible) 18AWG cable or better

RJ-45:             EIA/TIA 568A/B, Cat 5 UTP and higher

Fiber:              Multimode: 50/125, 62.5/125µm

                       Single-mode: 9/125µm

AC Power Requirements

(Models with AC/DC Adapters)

100 - 240VAC/50 - 60Hz

0.9A max at 115VAC; 0.5A max at 230VAC

DC Power Requirements

(Models with DC Terminals)

+12 to +58VDC;

0.66A @ 12VDC;

2 Pin Terminal (isolated)

Dimensions (W x D x H)

6.28” x 5.2” x 1.5” (159.5 mm x 132.1 mm x 38.1 mm)
Weight

Module Only: 1.5 lb.; 720 grams

Module with AC/DC Adapter: 2.0 lbs.; 913 grams
Operating Temperature

Commercial: 0 to 50°C

Wide:          -40 to 60°C (-20°C AC cold start)

Extended:   -40 to 75°C (-20°C AC cold start)

Storage:      -40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hours)

Module Only:      207,000

AC/DC Adapter: 100,000
Warranty 5 year product warranty with 24/7/365 free Technical Support and 2 year AC power adapter warranty
