Managed 6 and 10 Port 10Gigabit Ethernet Switch

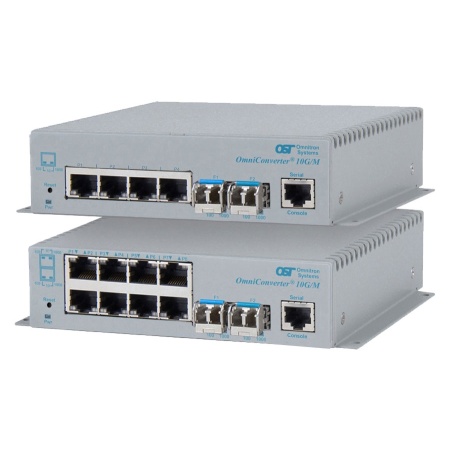

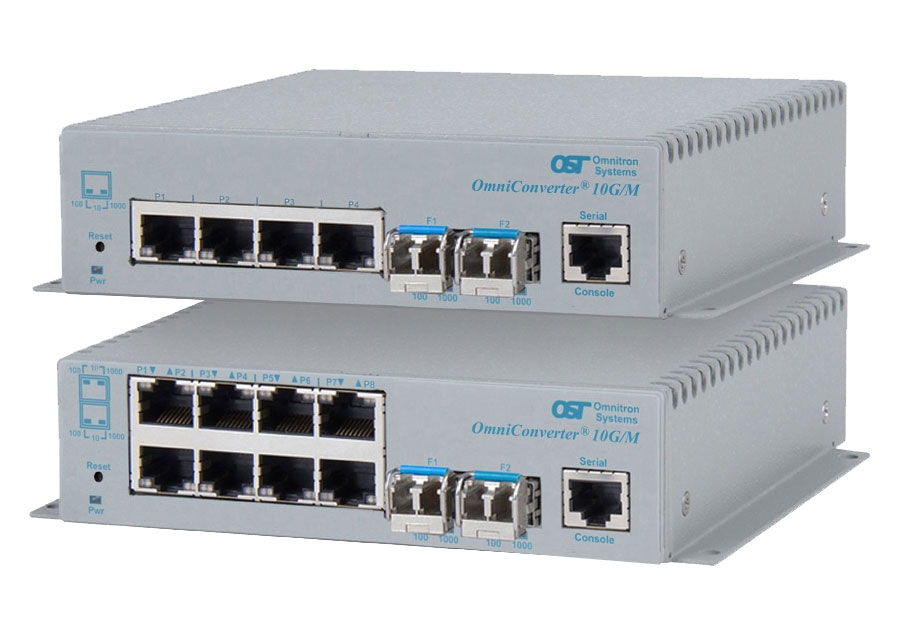

OmniConverter® 10G/M

The OmniConverter 10G/M is a managed compact Ethernet switch that features two 1/10G uplink ports and four or eight 10/100/1000 RJ-45 copper user ports. The OmniConverter 10G/M enables network distance extension with fiber or copper cabling. The OmniConverter 10G/M is a Layer 2 Ethernet switch that ...Read more

Features

Managed 1/10G Ethernet Switch
Modbus Industrial Protocol for device management and monitoring
Supports IPv4 and IPv6
Management via Web, Telnet, SSH, SNMPv1/v2c/v3 and serial interfaces
SNMP management via Omnitron?s NetOutlook? management software, or third-party SNMP software

PRODUCT SELECTOR

Description
Features
Specifications
Applications
Ordering
Documents

Managed 1/10G Ethernet Switch
Modbus Industrial Protocol for device management and monitoring
Supports IPv4 and IPv6
IEEE 802.1x, RADIUS, TACACS+ and ACL
Email Notification
Rapid and Multiple Spanning Tree Protocol
Media Redundancy Protocol (MRP)
IEEE 802.1ax LAG and LACP; Act/Act and Act/Standby
IEEE 802.1Q VLAN tagging and IEEE 802.1ad Q-in-Q
Broadcast / Multicast / Unicast Storm Prevention
DHCP Relay Option 82, DHCPv6 and DHCPv6 Relay
IPv4 Internet Group Management (IGMP) and IPv6 Multicast Listener Discovery (MLD) snooping
Rate Limiting, Queue prioritization and Class of Service
IEEE 802.1ab Link Layer Discovery Protocol
Static MAC configuration and blocking of unknown Unicast/Multicast addresses
Management via Web, Telnet, SSH, SNMPv1/v2c/v3 and serial interfaces
Easy to use Hierarchical Command Line Interface
SNMP management via Omnitron?s NetOutlook® management software, or third-party SNMP software
Dual Device mode for operating as two separate switches
Directed Switch mode prevents flooding of multicast video traffic
Free 24/7/365 Technical Support

ADDITIONAL FEATURES

Two 1/10G SFP/SFP+ transceiver uplink ports
Supports copper and fiber SFP transceivers
Supports 10M, 100M, 1G and 10Gbps copper SFP/SFP+ transceivers
Four or eight 10/100/1000 copper user ports
AC to DC Power Adapter or 2-Pin DC terminal
Wall, Rack and DIN-rail mountable
Fan-less design for long life
Commercial (0? to 50?C), wide (-40? to 60?C) and extended (-40? to 75?C) operating temperature ranges
TAA, BAA and NDAA compliant, and Made in the USA

Dual Device Mode Application

This Dual Device feature is extremely useful when two isolated networks domains share a single network distribution location.

The example below depicts a scenario where the Administration (green) network and the Engineering (purple) network are sharing a single hub distribution location. Using the two uplinks and the Dual Switch mode facilitates using a single switch driving both the Administration and the Engineering workstations while maintaining isolation between the networks.

Daisy Chain Application

This example demonstrates the daisy chaining and ring capabilities of the OmniConverter. In this application each OmniConverter switch connects to its neighboring switches via its uplink ports eventually closing the ring. The OmniConverter switches are providing connectivity between the workstations and the router.

Using this network architecture combined with ring protection protocols such as Media Redundancy Protocol (MRP) or Rapid Spanning Tree Protocol (RSTP) facilitates a highly resilient network required in mission critical applications.

Step 1: Choose the Base Part Number (xxxx-x-xx-pt)

OmniConverter 10G/M Models
Model Number	Description
2900-0-24-pt	OmniConverter 10G/M 2 x SFP/SFP+ uplink port and 4 x RJ-45 user ports
2900-0-28-pt	OmniConverter 10G/M 2 x SFP/SFP+ uplink port and 8 x RJ-45 user ports
Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.

Step 2: Choose the Power Option (xxxx-x-xx-pt)

1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord

2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord

8 = External AC/DC Adapter, 100 - 240 VAC included, PS JET/PSE Certified, with Japanese Power Cord

9 = Direct DC 2 pin terminal connector, no AC/DC power adapter

Step 3: Choose the Operating Temperature Range Option (xxxx-x-xx-pt)

<leave blank> = Commercial temperature (0 to 50°C)

W = Wide temperature (-40 to 60°C)

Z = Extended temperature (-40 to 75°C)

Accessories

Model Number	Description
8251-0	DIN-Rail Mounting Clip
8260-0	19" rack mount shelf

OmniConverter 10G/M (Data Sheet)

OmniConverter 10G/M (Quick Start)

OmniConverter Command Line Interface (User Manual)

OmniConverter Web Interface (User Manual)

OmniConverter / RuggedNet 2.5 Hierarchical CLI (User Manual)

The OmniConverter 10G/M is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

The OmniConverter 10G/M supports Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.

The switches support redundant uplinks, industrial ring Media Redundancy Protocol (MRP), Spanning Tree protocol and daisy-chain configurations for high availability industrial network applications.

The switches support Dual Device mode that enables the 10G/M to operate as two independent and isolated Ethernet switches. In Dual Device mode, the 10G/M provides separate and independent data traffic paths between each uplink port and a group of user ports.

The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. IPv4 and IPv6 are supported on the switches. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email notification and alarm reporting is provided.

The OmniConverter switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber, dual or single-fiber and standard, CWDM and DWDM wavelengths.

The compact OmniConverter 10G/M Ethernet switches can be wall mounted, rack mounted using a shelf or DIN-rail mounted using DIN-rail mounting clips. The OmniConverter Ethernet switch models are available with 2-Pin DC Terminal or external 100-240V AC power adapters.

Specifications

Description	OmniConverter® 10G/M 10/100/1000BASE-T with 1/10G Uplink Ports Managed 6 and 10 Port 10Gigabit Ethernet Switch
Standard Compliances	IEEE 802.3, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1ax, IEEE 802.1w RSTP/MSTP RFC 5424, RFC 4541, RFC 2710, IEC 624339-2, SMTP, SNTP, RADIUS, TACACS+, IEEE 802.1x
Regulatory Compliances (*Pending)	Safety*: UL 62368-1, UL 60950-1, IEC 62368-1, IEC 60950-1, EN 62368-1, EN 60950-1, CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1, CE Mark, UKCA EMC: EN 55032/24 CE Emissions/Immunity, IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity EMI: CISPR 32, FCC 47 Part 15 Subpart B Class A EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models), IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models), IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models), IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models), IEC 61000-4-6 CS: Signal: 10 V, IEC 61000-4-8 (Magnetic Field) 30A/m, IEC 61000-4-11 (Voltage Dips, interrupts) IP Rating: IP20 Protection ACT: TAA, BAA,NDAA
Environmental	REACH, RoHS and WEEE
Management	IPv4 and IPv6 address Web, Telnet, SSH, SNMPv1/v2c/v3 In-Band management via Ethernet port Out-of-band management via serial port
Frame Size	Up to 10,240 bytes
Port Types	Copper: 10/100/1000BASE-T (RJ-45) SFP/SFP+: 10GBASE-X Fiber Transceivers 10GBASE-T Copper Transceivers 1000BASE-X Fiber Transceivers 1000BASE-T Copper Transceivers 10/100/1000BASE-T SGMII Copper Transceivers Serial: RS-232 (RJ-45)
Cable Types	Copper: EIA/TIA 568A/B, Cat 5 UTP and higher Fiber: Multimode: 50/125, 62.5/125µm Single-mode: 9/125µm Serial: Category 3 and higher
AC Power Requirements (Models with AC/DC Adapters)	100 - 240VAC/50 - 60Hz 0.25A max at 115VAC 0.12A max at 230VAC
DC Power Requirements (Models with DC Terminals)	4 RJ-45 Ports: +12 to +57VDC; 0.81A @ 12VDC 0.20A @ 48VDC 2 Pin Terminal (isolated)	8 RJ-45 Ports: +12 to +57VDC; 0.90A @ 12VDC 0.22A @ 48VDC 2 Pin Terminal (isolated)
Dimensions (W x D x H)	6.28” x 5.2” x 1.5” (159.5 mm x 132.1 mm x 38.1 mm)
Weight	4 RJ-45 Ports: Module Only: 1.5 lb. (720 grams) Module with AC/DC Adapter: 2.0 lbs. (913 grams)	8 RJ-45 Ports: Module Only: 1.6 lbs. (748 grams) Module with AC/DC Adapter: 2.1 lbs. (941 grams)
Operating Temperature	Commercial: 0 to 50°C Wide: -40 to 60°C (-20°C AC cold start) Extended: -40 to 75°C (-20°C AC cold start) Storage: -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	Module Only: 290,000 AC/DC Adapter: 100,000
Warranty	5 year product warranty with 24/7/365 free Technical Support 2 year AC power adapter warranty
