iConverter Fiber Transport Modules
iConverter 4xT1/E1 MUX Modules
The T1/E1 Multiplexer system features integrated management. Monitoring, configuration and remote testing functions can be accessed through the iConverter Fiber Transport module serial console port, IP-based SNMP or IP-less OAM channels. Alarm relays and SNMP traps provide fault notification for loss of power, LOS and AIS.
SNMP management via NetOutlook provides a graphical user interface for real-time port and module information, local and remote configuration, and trap notification.
Mobile Backhaul
In this application diagram, iConverter Modular T1/E1 Multiplexers deliver Ethernet and T1 mobile backhaul.
At the Mobile Switching Center, two iConverter MUX groups are installed in a high-density 19-module chassis, and connect to two different Providers. Each Provider is using a different clocking method by using the 4xT1/E1 MUX module with Clock I/O (8486-4). Provider 1 is using the NTR Clock at the Mobile Switching Center as the input clock to the MUX module and all T1/E1 circuits are synchronized to the incoming NTR clock. At the Cell Site 1, all T1/E1 circuits are loop timed. Provider 2 is using the GPS as the input clockto the MUX module and all T1/E1 circuits are synchronized to the incoming GPS clock. At the Mobile Switching Center, all T1/E1 circuits are loop timed.
The iConverter MUX groups convert RJ-45 Ethernet and T1 interfaces to fiber, and transport the multiplexed data over the fiber links.
At the Cell Sites, MUX groups are installed in 2-module chassis. The fiber link with multiplexed data is converted back to RJ-45 Ethernet and T1 interfaces where they connect to the tower’s radio equipment.
MUX groups support up to 16 T1/E1 circuits and can be installed in a 5-module chassis.
Ethernet and TDM Business Services
In this application diagram, iConverter Modular T1/E1 Multiplexers deliver Ethernet and T1s over an Ethernet Virtual Connection (EVC). A two module chassis with a GM3 or GM4 NID Transport Module and a T1/E1 MUX module are installed at each customer location.
The EVC transports the business Ethernet and four T1 circuits between the two customer locations across a Carrier Ethernet network. The Ethernet transports business data, and the T1s are used for telephony services (PBX to PBX connectivity).
iConverter TM3 Transport Module | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Port Configuration
|
Fiber
Type |
Distance
|
Connector Types
|
Tx / Rx
Lambda (nm) |
Min. Tx
Power (dBm) |
Max. Tx
Power (dBm) |
Min. Rx
Power (dBm) |
Max. Rx
Power (dBm) |
Min.
Attenuation (dB) |
Link
Budget (dB) | |||
P1
|
P2
|
ST
|
SC
|
SFP
| |||||||||
FF
|
RJ-45
|
MM/DF
|
220/550m1
|
2420-0-Tt | 2422-0-Tt |
-
|
850/850
|
-10
|
-4
|
-17
|
-3
|
-
|
7
|
FF
|
RJ-45
|
SM/DF
|
12km
|
2421-1-Tt | 2423-1-Tt |
-
|
1310/1310
|
-9.5
|
-3
|
-19.5
|
-3
|
-
|
10
|
FF
|
RJ-45
|
SM/DF
|
34km
|
2421-2-Tt | 2423-2-Tt |
-
|
1310/1310
|
-5
|
0
|
-23
|
-3
|
3
|
18
|
FF
|
RJ-45
|
SM/DF
|
80km
|
-
|
2423-3-Tt
|
-
|
1550/1550
|
-5
|
0
|
-23
|
-3
|
3
|
18
|
FF
|
RJ-45
|
SM/DF
|
110km
|
-
|
2423-4-Tt
|
-
|
1550/1550
|
0
|
5
|
-24
|
-3
|
8
|
24
|
FF
|
RJ-45
|
SM/DF
|
140km
|
-
|
2423-5-Tt |
-
|
1550/1550
|
2
|
5
|
-28
|
-8
|
13
|
30
|
FF
|
RJ-45
|
SM/SF2
|
20km
|
-
|
2430-1-Tt |
-
|
1310/1550
|
-9.5
|
-3
|
-20
|
-3
|
-
|
10.5
|
FF
|
RJ-45
|
SM/SF2
|
20km
|
-
|
2431-1-Tt
|
-
|
1550/1310
|
-9.5
|
-3
|
-20
|
-3
|
-
|
10.5
|
FF
|
RJ-45
|
SM/SF2
|
40km
|
-
|
2430-2-Tt |
-
|
1310/1550
|
-3
|
0
|
-20
|
-3
|
3
|
17
|
FF
|
RJ-45
|
SM/SF2
|
40km
|
-
|
2431-2-Tt |
-
|
1550/1310
|
-3
|
0
|
-20
|
-3
|
3
|
17
|
SFP
|
RJ-45
|
-
|
-
|
-
|
- |
2439-0-Tt
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
SFP
|
SFP
|
-
|
-
|
-
|
- |
2499-0-Tt
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
162.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m.
2When using single-fiber (SF) models, the Tx wavelength on one end has to match the Rx wavelength on the other.
FF - Fixed Fiber, RJ-45 - Ethernet Port, SFP - Small Form Pluggable Transceiver
MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber
Contact Omnitron for other fiber options and operating temperature ranges. Order the appropriate SFPs separately. Visit the Omnitron Optical Transceivers web page.
|
<leave blank> = Commercial temperature (0 to 50°C) | ||
W = Wide temperature (-40 to 60°C) |
iConverter 4xT1/E1 MUX Module | |
---|---|
8485-4t
|
4 Port T1/E1 MUX Plug-in Module
|
8486-4t
|
4 Port T1/E1 MUX Plug-in Module with Clock I/O
|
<leave blank> = Commercial temperature (0 to 50°C) | ||
W = Wide temperature (-40 to 60°C) |
Accessories | |
---|---|
Model Number | Description |
9140-3 | RJ-48 to Coax Adapter Cable (3 meters) |
9142-1 | RJ-48 Alarm Breakout Cable |
9144-6 | Clock I/O Cable, 50 ohm mini-coax plug to BNC, 6” |
See chassis and mounting options at: iConverter Chassis and Mounting Option web page. |
iConverter Modular T1/E1 Multiplexer (Data Sheet)
iConverter TM3 Module (Quick Start)
iConverter 4xT1/E1 Mux Module (User Manual)
iConverter Modular T1/E1 MUX (User Manual)
Menu Driven Interface T1/E1 Multiplexers (User Manual)
2420-0-T, 2421-1-T, 2422-0-T, 2423-1-T, 2423-2-T, 2423-3-T, 2423-4-T, 2423-5-T, 2430-1-T, 2431-1-T, 2430-2-T, 2431-2-T, 2439-0-T, 2499-0-T, IE-IMCV-T1-MUX/4 857-18110,RAD Optimux 45 28T1 Over Fiber SM Multiplexer,SKU: OP45B28XACRST13L

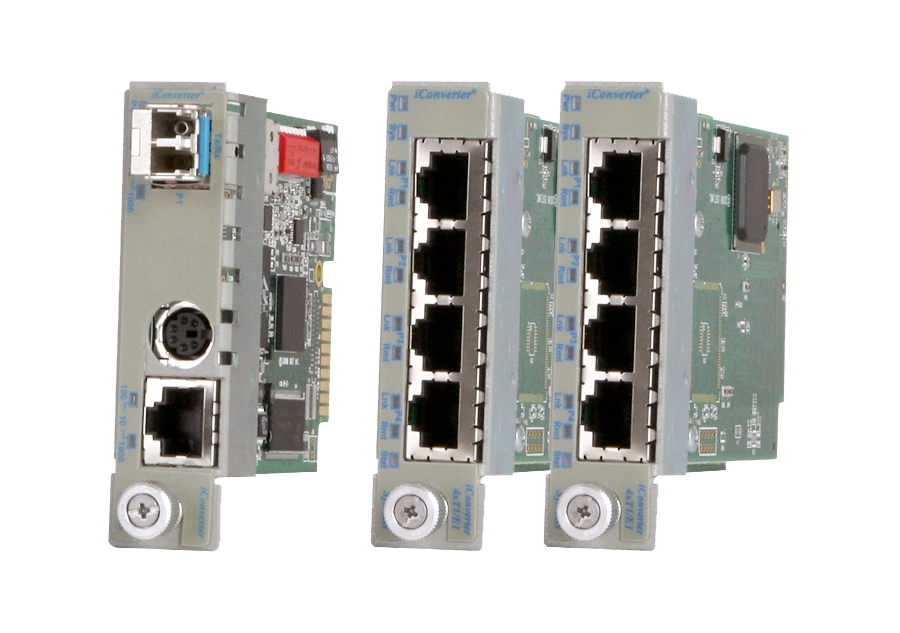

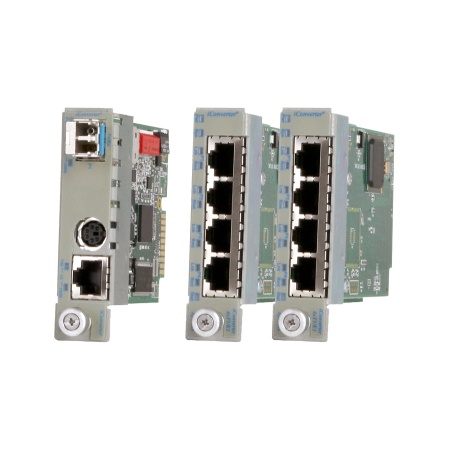

The iConverter Modular T1/E1 Multiplexer transports up to sixteen T1/E1 circuits and 10/100/1000 Ethernet over pointto-point 1000Mbps fiber, CWDM/DWDM channel or Ethernet Virtual Connection (EVC). This flexible and scalable system is comprised of an iConverter Fiber Transport module, and one or more iConverter 4xT1/E1 MUX modules installed in a 2, 5 or 19-module chassis.
Each iConverter Fiber Transport module and up to four contiguous iConverter 4xT1/E1 MUX modules combine to form a MUX group. A MUX group connects with another MUX group at the opposite end of a dedicated fiber link or EVC. A MUX group can also interoperate with a Managed iConverter fixed-configuration T1/E1 Multiplexer.
Multiple MUX groups can be installed in a chassis, enabling high-density, star-topology deployments.
There are three Fiber Transport modules available: the iConverter TM3, the iConverter GM3 NID plug-in module and the iConverter GM4 NID plug-in module. The TM3 supports Ethernet Link OAM with IEEE 802.3ah. The GM3 and GM4 NID modules support Carrier Ethernet Service OAM with IEEE 802.1ag Connectivity Fault Management and ITU-T Y.1731 Performance Monitoring.
The Fiber Transport module is available with fixed-fiber or Small Form Pluggable (SFP) transceivers, and feature two Ethernet backplane ports for additional Ethernet connectivity to adjacent modules. A common application of this feature is to combine a 4-Port switch module in the adjacent slot to provide a solution with four additional 10/100/1000 ports.
The iConverter 4xT1/E1 MUX module supports four copper RJ-48 ports for balanced T1/E1 applications. Adapter cables are available to convert each RJ-48 interface to a BNC interface for unbalanced E1 transport applications.
The 4xT1/E1 MUX module features an optional external clock port that can be configured as a clock input or output. As an input, the port can be connected to an external clock source, such as a GPS receiver, to provide a common reference clock for the module. As an output, the port can provide the recovered T1/E1 clock from port 1 to other TDM equipment at the site.
The T1/E1 Multiplexer modules are part of the iConverter multi-service platform, and can be installed in a chassis equipped with iConverter Network Interface Devices, media converters, transponders and CWDM multiplexers. The multi-service platform is capable of delivering Ethernet, TDM, SONET and other services across a Wide Area Network. iConverter modules can be added to this scalable architecture to expand bandwidth capacity and add new services.
|
