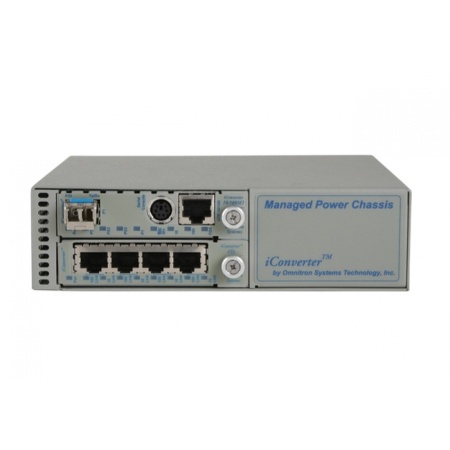

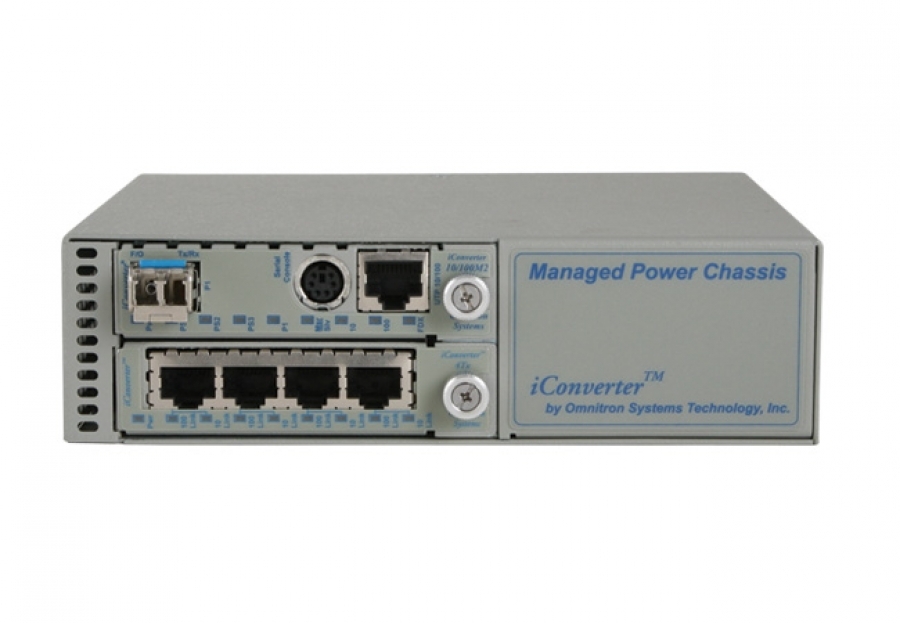

iConverter 2-Module Power Chassis

iConverter® 2-Module Power Chassis

867519228d1d5325856fc61d710ded0e XL
The iConverter 2-Module Power Chassis is a compact, versatile chassis featuring a single internal universal AC or 18-60VDC power supply. The chassis provides housing for all iConverter multi-service platform modules. The 2-Module Chassis features a backplane that enables sharing ...Read more

Features
  • 2-Module chassis feature an internal AC or DC power supply
  • Houses all models of hot-swappable iConverter media converter and switch modules
  • NEBS Level 3 Certification
  • Ethernet backplane ports for connectivity to installed modules to support a wide variety of configurations
  • Wall-mount or tabletop options for flexible installations
  • Management is available with the addition of a management module to the chassis
  • SNMP management via NetOutlook? provides real-time port and module status information, remote parameter configuration and trap notification
  • Commercial (0 to +50? C), wide (-40 to +60? C) and extended (-40 to +75? C) temp ranges
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Lifetime Warranty and free 24/7 Technical Support
icons

  • Description
  • Features
  • Specifications
  • Management
  • Ordering
  • Documents
  • 2-Module chassis feature an internal AC or DC power supply
  • Houses all models of hot-swappable iConverter media converter and switch modules
  • NEBS Level 3 Certification
  • Ethernet backplane ports for connectivity to installed modules to support a wide variety of configurations
  • Wall-mount or tabletop options for flexible installations
  • Management is available with the addition of a management module to the chassis
  • SNMP management via NetOutlook® provides real-time port and module status information, remote parameter configuration and trap notification
  • Commercial (0 to +50? C), wide (-40 to +60? C) and extended (-40 to +75? C) temperature ranges
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Lifetime Warranty and free 24/7 Technical Support

Management provides remote configuration, monitoring and trap notification. Management of the chassis and modules is accomplished by installing an iConverter Management Module (NMM2) or Network Interface Device (NID) in the same chassis.

The Management Module can be accessed via SNMP, Telnet and serial port. The chassis and modules can be managed with Omnitron’s intuitive, graphic-oriented NetOutlook SNMP Management Software or third party SNMP management software. Management via the Telnet and the serial interfaces have an easy-to-use, menu-driven interface.

Fixed parameters that can be monitored include chassis configuration, power supply health status and network traffic statistics for the modules.

In addition to all standard iConverter SNMP traps such as module insertion and removal, 2-Module Chassis models 8230-1, 8231-1, 8232-1, 8235-1, 8236-1 and 8238-1 support Dying Gasp traps (Power Loss Traps) in the event of loss of power. All of these events can be selectively enabled or disabled to generate SNMP traps.

Step 1: Choose a Base Part Number (xxxx-xt)

Model NumberModel TypePower Description
8230-0t

2-Module Chassis with 8.5 watt AC Power Supply,

No fan

IEC 320 Socket, 100 to 240VAC, 50/60Hz, 0.5A @ 120VAC,

US power cord included
8230-1t

2-Module Chassis with 8.5 watt AC Power Supply,

No fan, with dying gasp

IEC 320 Socket, 100 to 240VAC, 50/60Hz, 0.5A @ 120VAC,

US power cord included
8231-0t

2-Module Chassis with 16.5 watt AC Power Supply,

with temperature controlled fan

IEC 320 Socket, 100 to 240VAC, 50/60Hz, 0.5A @ 120VAC,

US power cord included
8231-1t

2-Module Chassis with 16.5 watt AC Power Supply,

with temperature controlled fan, with dying gasp

IEC 320 Socket, 100 to 240VAC, 50/60Hz, 0.5A @ 120VAC,

US power cord included
8232-1t

2-Module Chassis with 16.5 watt High Airflow AC Power Supply,

with fan, with dying gasp

IEC 320 Socket, 100 to 240VAC, 50/60Hz, 0.5A @ 120VAC,

US power cord included
8235-0t

2-Module Chassis with 6.6 watt 48 VDC Power Supply,

No fan

Direct DC 3-Pin Terminal, +/- 18 to 60VDC, 1.0A @ 48VDC
8235-1t

2-Module Chassis with 6.6 watt 48 VDC Power Supply,

No fan, with dying gasp

Direct DC 3-Pin Terminal, +/- 18 to 60VDC, 1.0A @ 48VDC
8236-0t

2-Module Chassis with 16.5 watt 48 VDC Power Supply,

with temperature controlled fan

Direct DC 3-Pin Terminal, +/- 18 to 60VDC, 2.0A @ 48VDC
8236-1t

2-Module Chassis with 16.5 watt 48 VDC Power Supply,

with temperature controlled fan, with dying gasp

Direct DC 3-Pin Terminal, +/- 18 to 60VDC, 2.0A @ 48VDC
8238-1t

2-Module Chassis with 16.5 watt High Airflow 48 VDC Power Supply,

with fan, with dying gasp

Direct DC 3-Pin Terminal, +/- 18 to 60VDC, 2.0A @ 48VDC

High Airflow fans are always turned on.

High Airflow models are only available with dying gasp.

Use the Power Calculator to determine the iConverter chassis power supplies required for your module configuration.

High Airflow power supplies are required for iConverter XG+, XGT+ and GM4 installations. Refer to Application notes.

Contact Omnitron for other operating temperatures and RoHS (5/6) compliant models.

Step 2: Choose an Operating Temperature Range (xxxx-xt)

<leave blank> = Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)
Z = Wide temperature (-40 to 75°C) - DC models only





Accessories

Model Number
Description
8249-0
Wall-Mount Hardware Kit
8260-0
19" Rack-Mount Shelf
8290-0
Blank Module Panel
See Chassis and Mounting Options product page

iConverter 2-Module Power Chassis (Data Sheet)

iConverter 2-Module Power Chassis (User Manual)

The iConverter 2-Module Power Chassis is a compact, versatile chassis featuring a single internal universal AC or 18-60VDC power supply. The chassis provides housing for all iConverter multi-service platform modules.

The 2-Module Chassis features a backplane that enables sharing of Ethernet data between two installed iConverter modules that are equipped with Ethernet backplane ports. This enables the chassis to support a variety of networking configurations. Installing an iConverter copper-to-fiber module and a four-port switch module provides a fiber uplink and five 10/100 or 10/100/1000 user ports.

Equipped with an iConverter management module or Network Interface Device (NID), the 2-Module Chassis provides a secure, local or remote managed solution capable of supporting advanced Ethernet services for Enterprise and Service Provider networks. It can be remotely managed via IP-based SNMP or Telnet.

The 2-Module Chassis is ideal for extending a fiber network connection across a campus. The 2-Module Chassis provides a carrier-grade solution; combining a compact, managed edge switch.

Installing an iConverter NID plug-in module and a four-port switch module provides a securely managed Carrier Ethernet demarcation for one or more User-to-Network Interfaces (UNI). This configuration provides an MEF certified deployment supporting advanced Operation, Administration and Maintenance (OAM) features.

The iConverter 2-Module Chassis can be wall-mounted using the optional wall mounting kit or installed on a stable, flat surface. Utilizing the iConverter 19” rack-mount shelf, two chassis can be securely mounted side-by-side.

Description2-Module AC
No Fan		2-Module AC with
Temp. Controlled Fan		2-Module AC with
High Airflow Fan*		2-Module DC
No Fan		2-Module DC with
Temp. Controlled Fan		2-Module DC with
High Airflow Fan*
Model Number
Standard:
Dying Gasp:

 8230-0
8231-0
-
8235-0
8236-0
-
8230-1
8231-1
8232-1
8235-1
8236-1
8238-1
Module Capacity
2
Power Supply Capacity
Single Fixed Internal Power Supply
Regulatory Compliances

Safety: UL, cUL, CE, NEBS Level 3, UKCA

EMI: FCC Class A

ACT: TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Input Power Requirements
(typical)
100 to 240VAC,
50/60Hz
0.5A @ 120VAC
100 to 240VAC,
50/60Hz
0.5A @ 120VAC
100 to 240VAC,
50/60Hz
0.5A @ 120VAC
+ / - 18 to 60VDC
1.0A @ -48VDC
+ / - 18 to 60VDC
2.0A @ -48VDC
+ / - 18 to 60VDC
2.0A @ -48VDC
Output Power
8.5 watts
2.6A @ 3.3VDC
1.5A per slot
16.5 watts
5A @ 3.3VDC
2.5A per slot
16.5 watts
5A @ 3.3VDC
2.5A per slot
6.6 watts
2.0A @ 3.3VDC
1.5A per slot
16.5 watts
5A @ 3.3VDC
2.5A per slot
16.5 watts
5A @ 3.3VDC
2.5A per slot
Power Connector
IEC 320 Socket
IEC 320 Socket
IEC 320 Socket
3-Pin Terminal
(Isolated)
3-Pin Terminal
(Isolated)
3-Pin Terminal
(Isolated)
Dimensions
W x D x H
6.7" x 5.51" x 1.87" (170.18 mm x 139.95 mm x 47.5 mm)
Weight
2.5 lbs (1.14 kg)
Temperature
Standard:
Wide:
Extended:
Storage:
0 to 50°C
-40 to 60°C
-40 to 75°C - DC models only
-40 to 80°C
Humidity
5 to 95% (non-condensing)
Altitude
-100m to 4,000m
MTBF (hrs)
151,000
413,000
50,000
329,000
538,000
50,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support
*High Airflow power supplies are required for iConverter XG+, XGT+ and GM4 installations. Refer to Application notes.
