Fast Ethernet Fiber-to-Fiber Managed Converter/Transponder

iConverter® 100FF

22c02097e4438bd2f2f3fe4a6a3ab0e1 XL

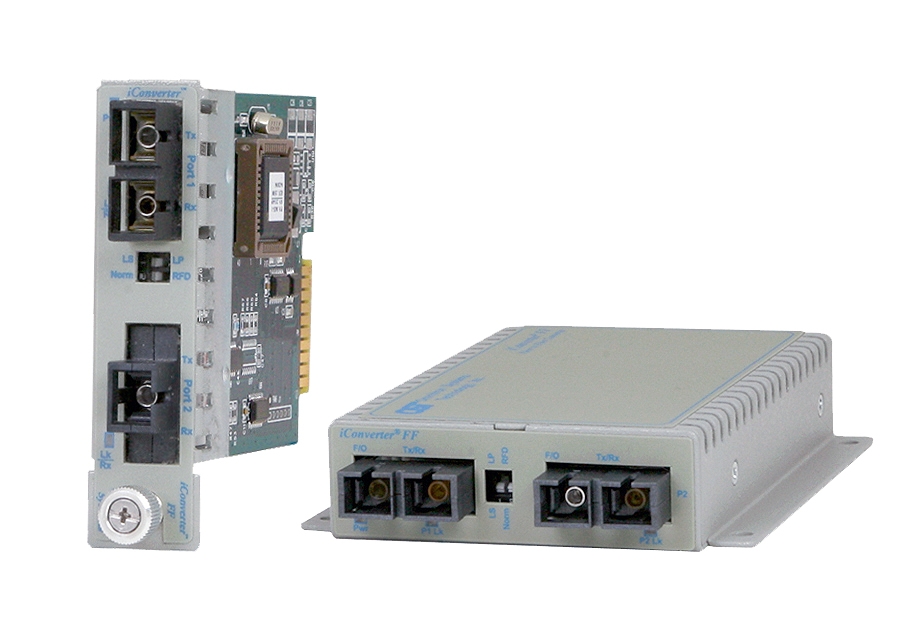

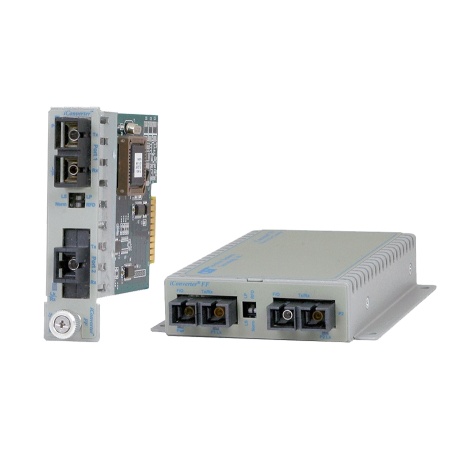

The iConverter 100FF is a Fast Ethernet fiber-to-fiber converter/transponder available as a compact, unmanaged standalone unit or a managed chassis plug-in module. The iConverter 100FF provides a cost-effective solution to extend fiber network distances with multimode to single-mode, dual fiber to s ...Read more

Features
  • Conforms to IEEE 802.3 and 100BASE-FX specs
  • Module supports a constant rate signal from 1Mbps to 100Mbps
  • Supports MM, SM DF with ST and SC connectors, and SM SF with SC connectors
  • User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
  • LED displays for immediate visual status of each port
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents
  • Fiber-to-fiber converter/transponder supporting:
    • Multimode dual fiber to single-mode dual fiber
    • Multimode dual fiber to single-mode single-fiber
    • Single-mode dual fiber to single-mode single-fiber
    • Wavelength conversion
  • Conforms to IEEE 802.3 and 100BASE-FX specifications
  • Module supports a constant rate signal from 1Mbps to 100Mbps
  • Supports multimode, single-mode dual fiber with ST and SC connectors, and single-mode single-fiber with SC connectors
  • User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
  • LED displays for immediate visual status of each port
  • Plug-in modules are hot-swappable in 19-Module, 5-Module, 2-Module or 1-Module chassis
  • Management of the plug-in module is available with the addition of a management module to the chassis
  • SNMP management via NetOutlook® provides real-time port and module status information, remote parameter configuration and trap notification
  • Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges
  • TAA,BAA and NDAA compliant, and Made in the USA
  • Lifetime Warranty and free 24/7 Technical Support

Networks often require conversion from multimode to single-mode fiber, which supports longer distances. In this application, two Ethernet switches equipped with multimode fiber ports are connected utilizing a pair of fiber-to-fiber converters which convert the multimode fiber to single-mode and enable network connectivity across the distance between the switches.




Step 1: Choose a Base Part Number (xxxx-x-pt)

Port
Fiber
Type
Distance
Connector Types
Tx / Rx
Lambda

(nm)
Min. Tx
Power

(dBm)
Max. Tx
Power

(dBm)
Min. Rx
Power

(dBm)
Max. Rx
Power

(dBm)
Min.
Attenuation

(dB)
Link
Budget

(dB)
ST/DF ST/DF,
ST/DF SC/SF
SC/DF SC/DF,
SC/DF SC/SF
Port 1
MM/DF
2km
-
8622-61-pt
850/850
-10
-4
-24
-3
-
14
Port 2
SM/DF
30km
1310/1310
-15
-8
-31
-8
-
16
Port 1
MM/DF
5km
8620-1-pt
8622-1-pt
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/DF
30km
1310/1310
-15
-8
-31
-8
-
16
Port 1
MM/DF
5km
8620-2-pt
8622-2-pt
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/DF
60km
1310/1310
-5
0
-31
-3
3
26
Port 1
MM/DF
5km
-
8622-3-pt
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/DF
120km
1550/1550
-5
0
-31
-3
3
26
Port 1
MM/DF
5km
8630-1-pt
8634-1-pt
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/SF1
20km
1310/1550
-15
-5
-30
-3
-
15
Port 1
MM/DF
5km
8631-1-pt
8635-1-pt
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/SF1
20km
1550/1310
-15
-5
-30
-3
-
15
Port 1
MM/DF
5km
8630-2-pt
8634-2-pt
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/SF1
40km
1310/1550
-8
0
-30
-3
3
22
Port 1
MM/DF
5km
8631-2-pt
8635-2-pt
1310/1310
-24
-14
-31
-14
-
7
Port 2
SM/SF1
40km
1550/1310
-8
0
-30
-3
3
22
Port 1
SM/DF
30km
8632-1-pt
8636-1-pt
1310/1310
-15
-8
-31
-8
-
16
Port 2
SM/SF1
20km
1310/1550
-15
-5
-30
-3
-
15
Port 1
SM/DF
30km
8633-1-pt
8637-1-pt
1310/1310
-15
-8
-31
-8
-
16
Port 2
SM/SF1
20km
1550/1310
-15
-5
-30
-3
-
15
Port 1
SM/DF
30km
8632-2-pt
8636-2-pt
1310/1310
-15
-8
-31
-8
-
16
Port 2
SM/SF1
40km
1310/1550
-8
0
-30
-3
3
22
Port 1
SM/DF
30km
8633-2-pt
8637-2-pt
1310/1310
-15
-8
-31
-8
-
16
Port 2
SM/SF1
40km
1550/1310
-8
0
-30
-3
3
22
1When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.
MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber
Contact Omnitron for other configurations, extended temperature (-40 to 75°C) and RoHS (5/6) compliant models.
For chassis options, see iConverter Chassis and Mounting Options web page.

Step 2: Choose a Power Option (xxxx-x-pt)

<leave blank> = Plug-in module
D = Barrel Connector and AC/DC Power Adapter, 100-240VAC, 50-60Hz, with US power cord with integrated mounting brackets
E = Barrel Connector and Universal AC/DC Adapter, 100-240 VAC, 50-60Hz, No Power Cord, with integrated mounting brackets
F = Direct DC input, 2 pin terminal connector, no AC/DC power adapter, with integrated mounting brackets

Step 3: Choose an Operating Temperature Range (xxxx-x-pt)

<leave blank> = Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)





Accessories

Model Number
  Description
8251-0
  DIN Rail Mounting Clip for standalone models
8260-0
  1U Rack Mount Shelf for standalone models

iConverter 100FF (Data Sheet)

iConverter 100FF Plug-in (User Manual)

iConverter 100FF Standalone (User Manual)

The iConverter 100FF is a Fast Ethernet fiber-to-fiber converter/transponder available as a compact, unmanaged standalone unit or a managed chassis plug-in module. The iConverter 100FF provides a cost-effective solution to extend fiber network distances with multimode to single-mode, dual fiber to single-fiber, and wavelength (850/1310 and 1310/1550) conversion.

The iConverter 100FF supports a constant data rate signal from 1Mbps to 100Mbps allowing the converter to be used in Ethernet networks as well as other fiber-to-fiber protocol applications. Both ports operate at the same date rate.

iConverter 100FF models support multimode and single-mode dual fiber with ST and SC connectors; and single-mode single-fiber with SC connectors.

The 100FF features user-selectable Link Propagate and Remote Fault Detection modes to facilitate quick fault detection, isolation and reporting.

iConverter 100FF media converters are available as compact, unmanaged standalone units, or chassis plug-in modules that can be managed with a Management Module (NMM2) or Network Interface Device (NID) installed in the chassis. The management module provides access to all the advanced features on the module.

The management software can override the physical DIP-switch settings such as link modes. Some of the real-time 100FF parameters that can be monitored include power, link, data activity status, module type and model, hardware and software revisions, serial numbers and a user-defined identifier.

The 100FF standalone models are available with an external AC to DC power adapter or with a 2-pin terminal connector for direct connection to DC power. The standalone module can be DIN-Rail mounted using the optional DIN-Rail mounting clips (8251-0).

The hot-swappable plug-in module can be mounted in a 19 or 5-Module iConverter chassis with redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.

The iConverter Multi-Service Platform consists of Network Interface Devices, T1/E1 multiplexers, CWDM/DWDM multiplexers and managed media converters that combine to deliver Carrier Ethernet and TDM services over fiber or CWDM/DWDM wavelengths. This flexible architecture supports a wide variety of configurations for scalable and reliable fiber connectivity in Service Provider and Enterprise networks.

Description
iConverter 100FF
Fast Ethernet Fiber-to-Fiber Managed Converter/Transponder
Standard Compliances
IEEE 802.3
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size
Unlimited
Port Type
Fiber:

100BASE-FX (ST, SC)
100BASE-LX (ST, SC)
100BASE-ZX (SC)
100BASE-BX (Single-fiber: SC)
Cable Types
Fiber:
Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC Adapter:
(US)

AC Adapter:
(Universal)
100 - 240VAC/50 - 60Hz
0.05A @ 120VAC

100 - 240VAC/50 - 60Hz
0.05A @ 120VAC
DC Power Requirements
DC Input:
(Backplane)

DC Input:
(Terminal Block)

 DC Input:
(AC Adapter)
3.3VDC, 0.5A @ 3.3VDC


5 - 32VDC, 0.3A @ 9VDC (1.0A max)
2-Pin Terminal (non-isolated)

5 - 32VDC, 0.3A @ 9VDC (1.0A max)
2.5mm Barrel Connector
Dimensions
W x D x H
Plugin:


Standalone:
0.85” x 4.5” x 2.8”
(21.6 mm x 114.3 mm x 71.1 mm)

3.8” x 4.8” x 1.0”
(96.5 mm x 121.9 mm x 25.4 mm)
Weight
Plug-in:

Standalone w/o Adapter:
Standalone w Adapter:
 8 oz. (226.8 grams)

1.0 lb. (453.6 grams)
1.5 lbs. (680.4 grams)
Temperature
Commercial:
Wide:
Storage:
   0 to 50°C
-40 to 60°C
-40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
Plugin:

Standalone
w/o Adapter:
w/ US Adapter:
w/ Universal  Adapter:
1,100,000


1,100,000
250,000
100,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support
