1-Module Power Chassis

iConverter® 1-Module Chassis

f7a0a54c92471ac4480e727e4ccf93df XL
The 1-Module Power Chassis is designed for network edge or Customer Premises deployments where low-profile, low cost and flexible upgrades are important. The compact 1-Module iConverter Power Chassis supports a single iConverter module and is powered by an external AC power adapter or external DC po ...Read more

Features
  • 1-Module Power Chassis with external AC adapter power supply or direct DC power
  • DC input supports 20 to 60VDC via three pin terminal connector with isolated ground
  • NEBS Level 3 Compliant
  • Houses all single-slot models of hot-swappable iConverter media converter and switch modules
  • Models 8241-X and 8243-X support Dying Gasp (Power Loss Trap) when used with a Network Interface Device
  • Wall-mount or tabletop options for flexible installations
  • DIN-rail and 19? rack mounting options available
  • Management is available with the addition of a Network Interface Device (NID) in the chassis
  • SNMP management via NetOutlook? provides real-time port and module status information, remote parameter configuration and trap notification
  • Commercial (0 to +50? C) and wide (-40 to +60? C) temp ranges
  • TAA,BAA and NDAA compliant, and Made in the USA
  • Lifetime Warranty and free 24/7 Technical Support
icons

  • Description
  • Features
  • Specifications
  • Ordering
  • Documents
  • 1-Module Power Chassis with external AC adapter power supply or direct DC power
  • DC input supports 20 to 60VDC via three pin terminal connector with isolated ground
  • NEBS Level 3 Compliant
  • Houses all single-slot models of hot-swappable iConverter media converter and switch modules
  • Models 8241-X and 8243-X support Dying Gasp (Power Loss Trap) when used with a Network Interface Device
  • Wall-mount or tabletop options for flexible installations
  • DIN-rail and 19? rack mounting options available
  • Management is available with the addition of a Network Interface Device (NID) in the chassis
  • SNMP management via NetOutlook® provides real-time port and module status information, remote parameter configuration and trap notification
  • Commercial (0 to +50? C) and wide (-40 to +60? C) temperature ranges
  • TAA,BAA and NDAA compliant, and Made in the USA
  • Lifetime Warranty and free 24/7 Technical Support

Step 1: Choose a Base Part Number (xxxx-xt)

Model NumberModel TypePower Description
8240-1t 1-Module Chassis with 3.3 watt AC Power Supply

2.5 mm Barrel Connector, 100 to 240VAC, 50/60Hz, 0.13A @ 120VAC, AC/DC Power Adapter with US Plug
8240-2t 1-Module Chassis with 3.3 watt AC Power Supply

2.5 mm Barrel Connector, 100 to 240VAC, 50/60Hz, 0.13A @ 120VAC, AC/DC Power Adapter with IEC 320 Socket, no AC power cord
8241-1t 1-Module Chassis with 5.0 watt AC Power Supply with dying gasp

2.5 mm Barrel Connector, 100 to 240VAC, 50/60Hz, 0.15A @ 120VAC, AC/DC Power Adapter with US Plug
8241-2t 1-Module Chassis with 5.0 watt AC Power Supply with dying gasp

2.5 mm Barrel Connector, 100 to 240VAC, 50/60Hz, 0.15A @ 120VAC, AC/DC Power Adapter with IEC 320 Socket, no AC power cord
8242-1t 1-Module Chassis with 8.3 watt AC Power Supply

2.1 mm Barrel Connector, 100 to 240VAC, 50/60Hz, 1.0A @ 120VAC, AC/DC Power Adapter with IEC 320 Socket, US AC power cord included
8242-2t 1-Module Chassis with 8.3 watt AC Power Supply

2.1 mm Barrel Connector, 100 to 240VAC, 50/60Hz, 1.0A @ 120VAC, AC/DC Power Adapter with IEC 320 Socket, no AC power cord
8242-9t 1-Module Chassis with 8.3 watt 48 VDC Power Supply Direct DC 3-Pin Terminal, +/- 20 to 60 VDC 0.6A @ 48VDC, no power cord
8243-9t 1-Module Chassis with 8.3 watt 48 VDC Power Supply with dying gasp Direct DC 3-Pin Terminal, +/- 20 to 60 VDC 0.6A @ 48VDC, no power cord
8243-1t 1-Module Chassis with 8.3 watt AC Power Supply with dying gasp

2.1 mm Barrel Connector, 100 to 240VAC, 50/60Hz, 1.0A @ 120VAC, AC/DC Power Adapter with IEC 320 Socket, US AC power cord included
8243-2t 1-Module Chassis with 8.3 watt AC Power Supply with dying gasp

2.1 mm Barrel Connector, 100 to 240VAC, 50/60Hz, 1.0A @ 120VAC, AC/DC Power Adapter with IEC 320 Socket, no AC power cord

Use the Power Calculator to determine the iConverter chassis power supplies required for your module configuration.

Contact Omnitron for other operating temperatures and RoHS (5/6) compliant models.

Step 2: Choose an Operating Temperature Range (xxxx-xt)

<leave blank> = Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)
Z = Wide temperature (-40 to 75°C) - 8.3 watt models only





Accessories

Model Number
Description
8249-0
   Wall-Mount Hardware Kit
8260-0
   19" Rack-Mount Shelf
8250-0
   DIN Rail Mounting Kit
9130-0
   NEBS Grounding Kit for 8.3 watt Chassis Only

The 1-Module Power Chassis is designed for network edge or Customer Premises deployments where low-profile, low cost and flexible upgrades are important. The compact 1-Module iConverter Power Chassis supports a single iConverter module and is powered by an external AC power adapter or external DC power source (20 to 60VDC).

Any iConverter single-slot module can be installed in the 1-Module Power Chassis and function as a standalone unit. The unit can be wall or DIN-rail mounted with optional mounting kits. Utilizing the iConverter 19” rack-mount shelf, up to four chassis can be securely mounted side-by-side.

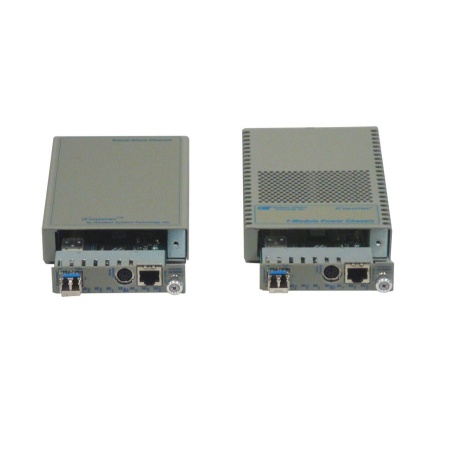

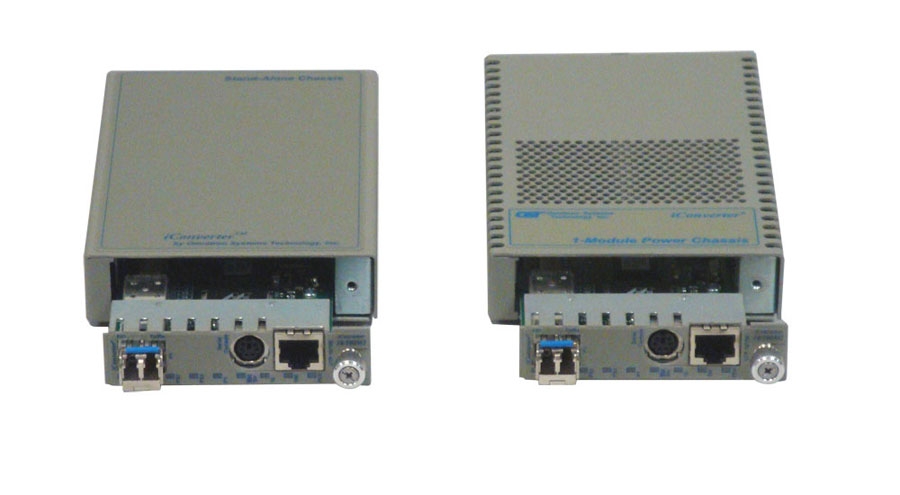

The chassis supports managed edge demarcation applications when an iConverter Network Interface Device (NID) plug-in module with integrated management (such as the 10/100M2 shown in the photos above) is installed in the chassis. Models with “Dying Gasp” support allow NIDs to send a power failure alarm in the event of power loss.

Description1-Module AC1-Module AC1-Module AC1-Module AC1-Module 48VDC*
Model Number
Standard:
Dying Gasp:

8240-1 (3.3 watt)

8240-2 (3.3 watt)

8242-1

8242-2

8242-9
8241-1 (5 watt)
8241-2 (5 watt)
8243-1
8243-2
8243-9
Module Capacity 1
Regulatory Compliances

Safety: UL, cUL, CE, NEBS Level 3, UKCA

EMI: FCC Class A

ACT: TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Power Supply Type
AC/DC Power Supply
with US Plug
AC/DC Power Supply
with IEC 320 Socket
AC/DC Power Supply
with US Power Cord
AC/DC Power Supply
with IEC 320 Socket
Internal DC Supply
3-Pin Terminal
Input Power Requirements
(typical)
100 to 240VAC,
50 / 60Hz
0.13A @ 120VAC
100 to 240VAC,
50 / 60Hz
0.19A @ 120VAC
100 to 240VAC,
50 / 60Hz
1.0A @ 120VAC
100 to 240VAC
50 / 60Hz
1.0A @ 120VAC
20 to 60VDC
0.6A Max
Output Power
3.3 watts / 5.0 watts
1A @ 3.3VDC /
1.5A @ 3.3VDC
3.3 watts / 5.0 watts
1A @ 3.3VDC /
1.5A @ 3.3VDC
8.3 watts
2.5A @ 3.3VDC
8.3 watts
2.5A @ 3.3VDC
8.3 watts
2.5A @ 3.3VDC
Input Power Connector
8 to 16 VDC
(2.5mm Barrel Connector)
8 to 16 VDC
(2.5mm Barrel Connector)
20 to 60 VDC*
(2.1mm Barrel Connector)
20 to 60VDC*
(2.1mm Barrel Connector)
20 to 60 VDC*
(3-Pin Terminal Isolated)
Dimensions
W x D x H		 3.8” x 5.5” x 1.0” (96.52 mm x 139.7 mm x 25.4 mm) 3.8” x 6.0” x 1.0” (96.52 mm x 152.4 mm x 25.4 mm)
Weight 1.5 lbs. (0.68 kg)
Temperature Commercial: 0 to 50°C
Wide: -40 to 60°C
Extended: -40 to 75°C - 8.3 watt models only
Storage: -40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hrs) 250,000 100,000 260,000 260,000 2,700,000
Warranty Lifetime warranty with 24/7/365 free Technical Support

 *Effective range is 18 to 60VDC when using a module without dying gasp support.

Rear Views

Rear Views 1 module



  AC/DC Power Adapter with US Plug

Wall Wort PS flexpoint

 AC/DC Power Adapter with IEC 320 Socket

Universal PS flexpoint
