Ethernet AUI to 10BASE-T Transceiver

FlexPoint® 10AUI/T

3899dfe821816fbcb3db3e3b23f81585 XL

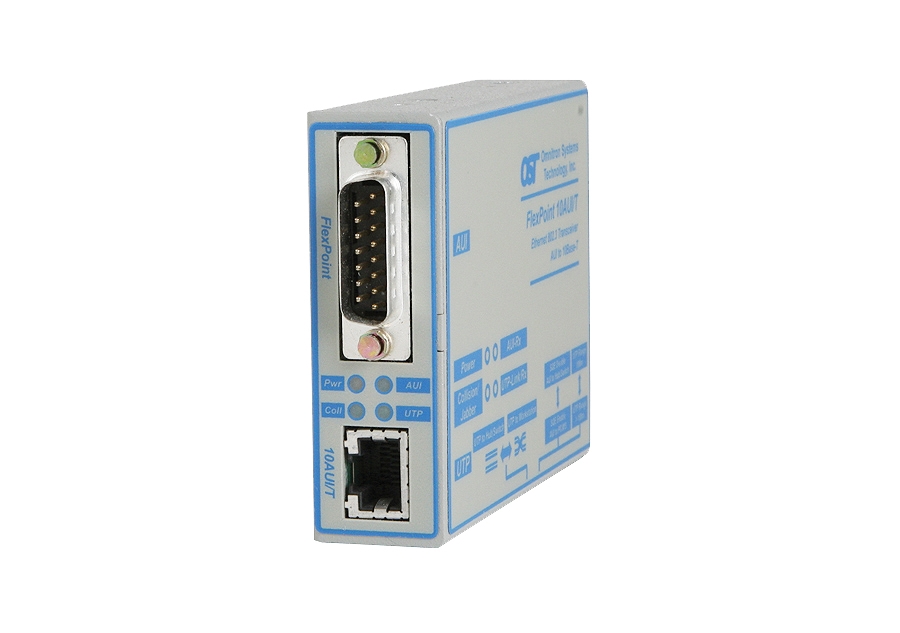

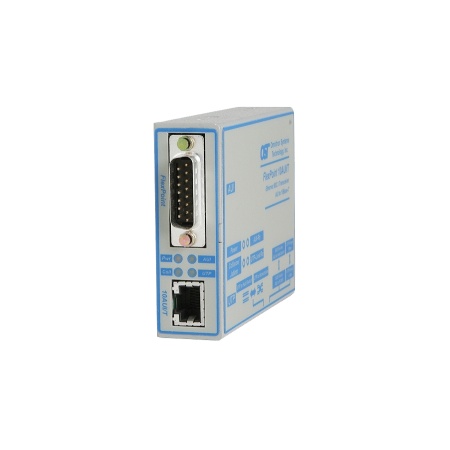

The FlexPoint 10AUI/T is a 10BASE-T to Attachment Unit Interface (AUI) converter. The transceiver provides the physical medium conversion between units equipped with the AUI and the unshielded twisted pair (UTP) connectors. The FlexPoint 10AUI/T Transceiver operates in Half-Duplex. It supports swit ...Read more

Features
  • IEEE 802.3 AUI to 10BASE-T Transceiver
  • Half-Duplex operation
  • Connects to any AUI host, powered or non-powered
  • Multiple power options
  • Switch-selectable SQE function
icons

  • Description
  • Features
  • Specifications
  • Ordering
  • Documents
  • IEEE 802.3 AUI to 10BASE-T Transceiver
  • Half-Duplex operation
  • Connects to any AUI host, powered or non-powered
  • Multiple power options
  • Switch-selectable SQE function
  • Labeled status LEDs and switches for quick and easy installation
  • Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint Powered Chassis
  • Completely software independent with no installation of drivers required
  • Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges
  • TAA, BAA and NDAA Compliant, and Made in the USA
  • Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support

Step 1: Choose a Base Part Number (xxxx-pt)

Model NumberDescription
4321-pt
 10AUI to 10BASE-T Media Converter, 50 meters (AUI) to 100 meters (UTP)
Contact Omnitron for other operational temperature ranges and RoHS (5/6) compliant models

Step 2: Choose a Power Option (xxxx-pt)

-0 = Barrel Connector, No AC/DC Power Adapter
-1 = Barrel Connector and US AC/DC Power Adapter, 100-240 VAC, 50-60Hz
-2 = Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

Step 3: Choose an Operating Temperature Option (xxxx-pt)

<leave blank> = Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)





  -1 = Barrel Connector and US AC/DC Power Adapter, 100-240 VAC, 50-60Hz

Wall Wort PS flexpoint

 -2 = Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

Universal PS flexpoint





Accessories

Model NumberDescriptionModel NumberDescription
4385 FlexPoint 14-Module Chassis with two 48VDC Power Supplies 4395 FlexPoint 14-Module Chassis with two AC Power Supplies
4386 FlexPoint 14-Module Chassis with one 48VDC Power Supply 4396 FlexPoint 14-Module Chassis with one AC Power Supply
4389 Spare 48VDC Power Supply 4399 Spare AC Power Supply
4392 FlexPoint 5-Module Rack-Mount Shelf 4380 FlexPoint Wall-Mounting Hardware Kit
4384
FlexPoint DC to DC Power Adapter
Input: 18-60VDC Output: 5VDC
 4384-W
FlexPoint DC to DC Power Adapter
Input: 18-60VDC
Output: 5VDC Wide Temperature Model (-40 to 60°C)
8250 FlexPoint DIN-Rail Mounting Kit 4381 Wall-Mounting Hardware Kit for DC to DC Power Adapter (4384)
9141-3 AUI Cable - 3 feet
See all FlexPoint accessories at: www.omnitron-systems.com/flexpoint-chassis-options.php



CONFIGURATION

The 9141-3 cable, ordered separately, is used to connect the FlexPoint 10AUI/T to a external AUI device. The 9141-3 is a 15-pin D style, male/female, straight-through cable. It has a sliding clip in place of the thumbscrews normally found on a D-connector to hold two connectors together.

FlexPoint 10AUI/T (Data Sheet)

FlexPoint 10AUI/T (User Manual)

The FlexPoint 10AUI/T is a 10BASE-T to Attachment Unit Interface (AUI) converter. The transceiver provides the physical medium conversion between units equipped with the AUI and the unshielded twisted pair (UTP) connectors.

The FlexPoint 10AUI/T Transceiver operates in Half-Duplex. It supports switch-enabled SQE function, also known as heartbeat. This signal tests the collision detection electronics of the transceiver, and informs the Ethernet interface that the collision detection circuits and signal paths are working correctly.

Descriptions of the LED indicators are provided on the label for easy in-the-field configuration, installation and maintenance. The LEDs report the availability of power, port activity and link status, collision and jabbers. The Collision/Jabber LED provides error indications. Collisions are the result of multiple hosts trying to use an Ethernet segment at the same time while jabbers are frames that exceed the maximum frame size.

A crossover switch eliminates the need for a crossover cable and facilitates connectivity to network equipment such as hubs, switches and workstations.

FlexPoint modules can be mounted utilizing optional wall-mounting hardware or with DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a high-density 14-Module, power-redundant Powered Chassis.

FlexPoint modules installed in the 5-Module shelf or used as standalone devices can be powered by an external AC to DC power adapter, or through the 5VDC chassis connector. Standalone modules can also be powered by attaching an external DC power supply (18-60VDC) or from the AUI connector. When used in the 14-Module power-redundant Powered Chassis with any combination of AC and DC power supplies, the installed modules are powered via the 5VDC chassis connector.

The wide variety of FlexPoint mounting and power options provide flexible upgrade paths as network requirements change and grow.

FlexPoint unmanaged media converters are easy to use and provide dependable fiber connectivity in Enterprise and Government networks around the world.

Description
 FlexPoint 10AUI/T
 10AUI/T to 10BASE-T Media Converter
Standard Compliances IEEE 802.3
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Port Types
AUI:
Copper:
10AUI/T (DB-15 male)
10BASE-T (RJ-45)
Cable Types
AUI:
Copper:
Ethernet AUI cable (50 meters max)
EIA/TIA 568A/B, Cat 3 UTP and higher
AC Power Requirements
AC Adapter:
100 - 240VAC/50 - 60Hz
0.01A @ 120VAC (typical)
DC Power Requirements

Voltage Range:
Nominal Voltage:
Nominal Power:
Barrel Connector
8.0 to 15.0VDC
9VDC
0.1A @ 9VDC
Molex Connector
4.75 to 5.25VDC
5VDC
0.2A @ 5VDC
AUI Connector
8.0 to 15.0VDC
12VDC
0.7A @ 12VDC
Dimensions (W x D x H)
 3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight
 Without AC Adapter:
6 oz. (170.1 grams)
Temperature
Commercial:
Wide:
Storage:
    0 to 50°C
-40 to 60°C
-40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m
MTBF (hrs)
 Without AC Adapter (-0):
With AC Adapter (-1):
With AC Adapter (-2):		 1,200,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support
