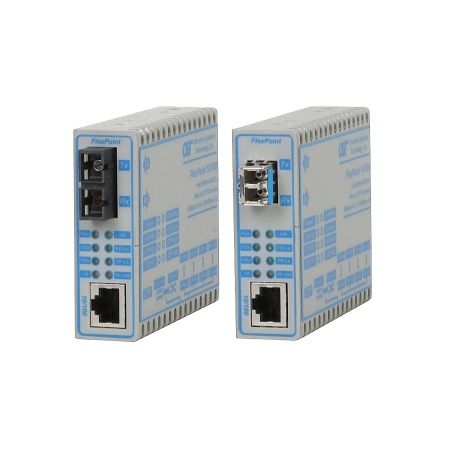

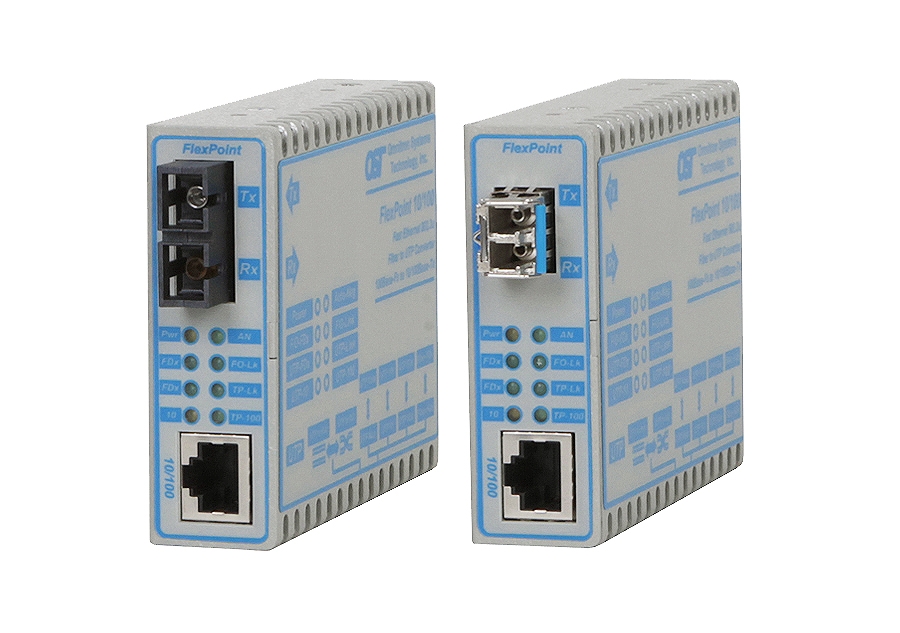

10/100 RJ-45 to Fast Ethernet Fiber Media Converter

FlexPoint® 10/100

fd8b0f77d767f1f6640afba6916ff67c XL
The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension. The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance sup ...Read more

Features
  • 10/100BASE-T to 100BASE-FX Ethernet media converter
  • Supports 10BASE-T, 100BASE-TX, 100BASE-FX
  • Supports 100Mbps SFP transceivers for standard, CWDM and DWDM wavelengths
  • Extends network distances up to 120km
  • RJ-45 port supports 10/100 and Half/Full-Duplex auto/ manual negotiation via DIP-switches and MDI/MDIX auto-crossover
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents
  • 10/100BASE-T to 100BASE-FX Ethernet media converter
  • Supports 10BASE-T, 100BASE-TX, 100BASE-FX
  • RJ-45 port supports 10/100 and Half/Full-Duplex auto/ manual negotiation via DIP-switches and MDI/MDIX auto-crossover
  • Supports 100Mbps SFP transceivers for standard, CWDM and DWDM wavelengths
  • Fixed fiber port supports multimode and single-mode dual fiber with ST, SC and LC connectors; and single-mode single-fiber with SC connectors
  • Extends network distances up to 120km
  • Labeled status LEDs and switches for quick and easy installation
  • Available in AC and DC models
  • Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint Powered Chassis
  • Completely software independent with no installation of drivers required
  • Commercial (0 to +50°C), wide (-40? to +60°C) and extended (-40°C to +75°C) temperature ranges
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support

In this enterprise campus application example, FlexPoint 10/100 media converters are installed in a 14-Module Redundant Power chassis for high-density fiber distribution from UTP switch equipment at the Network Core. A UTP workgroup switch (A) is connected via fiber with a standalone FlexPoint 10/100 media converter. Another FlexPoint 10/100 converts the fiber to UTP in a fiber-to-desktop application (B). An Ethernet switch (C) is connected directly via fiber to the FlexPoint module at the Network Core. In all cases, multimode or single-mode fiber can be used, and fiber links can be extended up to 120km using single-mode fiber.



Step 1: Choose a Base Part Number (xxxx-pt)

Fiber
Type
Distance
Connector Types
Tx / Rx
Lambda

(nm)
Min. Tx
Power

(dBm)
Max. Tx
Power

(dBm)
Min. Rx
Power

(dBm)
Max. Rx
Power

(dBm)
Min.
Attenuation

(dB)
Link
Budget

(dB)
ST
SC
LC
SFP
-
-
-
-
-
4359-pt
-
-
-
-
-
-
-
MM/DF
5km
4342-pt
4340-pt
4355-1pt
-
1310/1310
-24
-14
-31
-14
-
7
SM/DF
30km
4343-pt
4341-pt
4355-2pt
-
1310/1310
-15
-8
-31
-8
-
16
SM/DF
60km
4345-pt
4344-pt
4355-3pt
-
1310/1310
-5
0
-31
-3
3
26
SM/DF
120km
-
4349-pt
4355-4pt
-
1550/1550
-5
0
-31
-3
3
26
SM/SF1
20km
-
4357-1pt
-
-
1310/1550
-15
-5
-30
-3
-
15
SM/SF1
20km
-
4357-2pt
-
-
1550/1310
-15
-5
-30
-3
-
15
1When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.
MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber
Contact Omnitron for other operational temperature ranges and RoHS (5/6) compliant models
Order the appropriate SFPs separately. Visit the Omnitron Optical Transceivers web page.

Step 2: Choose a Power Option (xxxx-pt)

-0 = Barrel Connector, No AC/DC Power Adapter
-1 = Barrel Connector and US AC/DC Power Adapter, 100-240 VAC, 50-60Hz
-2 = Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)
-9 = 2 Pin DC Terminal Connector (non-isolated), 5-32VDC,No AC/DC Power Adapter

Step 3: Choose an Operating Temperature Option (xxxx-pt)

<leave blank> = Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)
Z = Extended temperature (-40 to 75°C)





  -1 = Barrel Connector and US AC/DC Power Adapter, 100-240 VAC, 50-60Hz

Wall Wort PS flexpoint

 -2 = Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

Universal PS flexpoint





Accessories

Model NumberDescriptionModel NumberDescription
4380 Wall-Mounting Hardware Kit for Modules 4381 Wall-Mounting Hardware Kit for DC to DC Power Adapter
4384 DC to DC Power Adapter 4384-W DC to DC Power Adapter, Wide Temperature (-40 to 60°C)
4385 14-Module Chassis with two 48VDC Power Supplies 4386 14-Module Chassis with one 48VDC Power Supply
4389 Spare 48VDC Power Supply 4392 5-Module Rack-Mount Shelf
4395 14-Module Chassis with two AC Power Supplies 4396 14-Module Chassis with one AC Power Supply
4399 Spare AC Power Supply 8250 DIN-Rail Mounting Kit
See all FlexPoint accessories on FlexPoint Chassis and Mounting Options product page.

FlexPoint 10/100 (Data Sheet)

FlexPoint 10/100 (User Manual)

The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.

The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports.

When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover.

The fiber port supports fixed-fiber connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fiber, in standard, CWDM and DWDM wavelengths.

Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power, port activity and link status, speed and duplex modes.

FlexPoint modules can be mounted utilizing optional wall-mounting hardware or with DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a high-density 14-Module, power-redundant Powered Chassis.

FlexPoint modules installed in the 5-Module shelf or used as standalone devices can be powered by an external AC to DC power adapter, 2-pin DC terminal connector or through the 5VDC chassis connector. Standalone modules can also be powered by attaching an external DC power supply (18-60VDC). When used in the 14-Module power-redundant Powered Chassis with any combination of AC and DC power supplies, the installed modules are powered via the 5VDC chassis connector.

The wide variety of FlexPoint mounting and power options provide flexible upgrade paths as network requirements change and grow.

FlexPoint unmanaged media converters are easy to use and provide dependable fiber connectivity in Enterprise and Government networks around the world.

Description
 FlexPoint 10/100
 10/100BASE-T Copper to 100BASE-FX Fiber Media Converter
Standard Compliances
 IEEE 802.3
Regulatory Compliances

Safety:

EMI:

ACT

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size
 Up to 1536 bytes
Port Types
Copper:

Fiber:
10/100BASE-T (RJ-45)

100BASE-FX (ST, SC, LC, SFP)
100BASE-BX (SC, SFP) Single-fiber
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC Adapter:

100 - 240VAC/50 - 60Hz
0.06A @ 120VAC (typical)
DC Power Requirements

Voltage Range:
Nominal Voltage:
Nominal Power:
Terminal or Barrel Connector
5.0 to 32VDC
9VDC
0.5A @ 9VDC
Molex Connector
4.75 to 5.25VDC
5VDC
0.8A @ 5VDC
Dimensions
W x D X H
 3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight
 Without AC Adapter:
6 oz. (170.1 grams)
Temperature
 Commercial:
Wide:
Extended:
Storage: 		    0 to 50°C
-40 to 60°C
-40 to 75° C
-40 to 80° C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
 w/o AC Adapter (-0, -9):
w/ AC Adapter (-1):
w/ AC Adapter (-2): 		 1,100,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support
