Fast Ethernet Fiber-to-Fiber Converter/Transponder

FlexPoint® 100FF

9b2c4b44fb86522964124ed80d03c5e8 XL

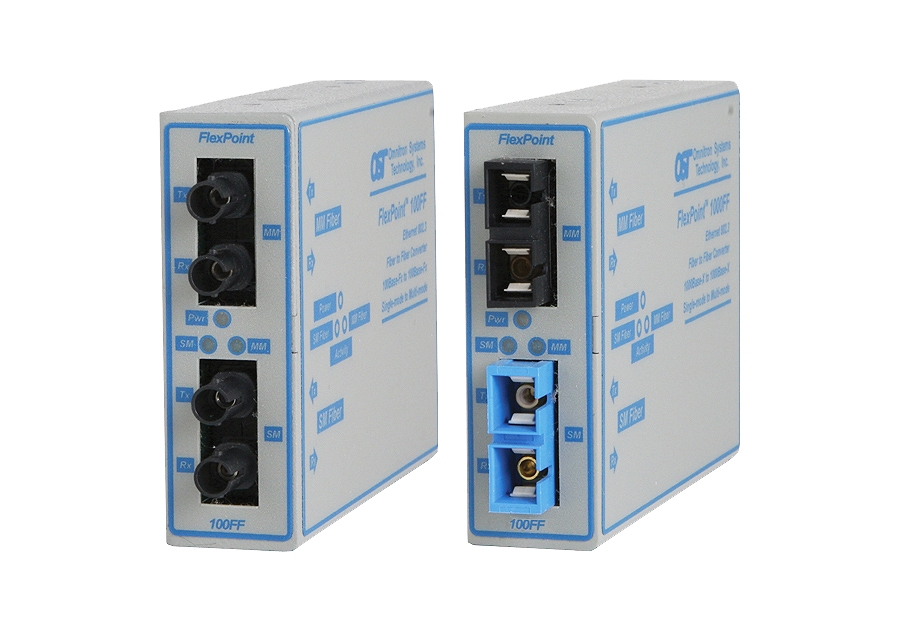

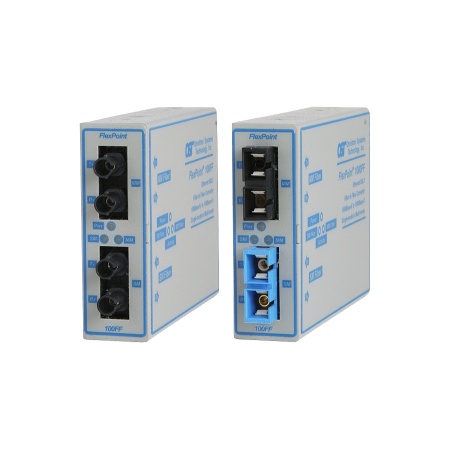

The FlexPoint 100FF is a Fast Ethernet fiber-to-fiber converter/transponder that provides reliable and cost-effective extension of network distances by connecting multimode fiber networks or devices over single-mode fiber cabling. The FlexPoint 100FF is designed to operate with a constant rate sign ...Read more

Features
  • Conforms to IEEE 802.3 and 100BASE-FX specs
  • Operates with a constant rate signal from 1Mbps to 100Mbps
  • Supports MM and SM DF with ST or SC connectors
  • Extends network distances up to 120km
  • Plug-and-play installation requires no manual configuration or software drivers
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents
  • Fiber-to-Fiber Converter/Transponder supporting:
    • Multimode dual fiber to multimode dual fiber
    • Multimode dual fiber to single-mode dual fiber
    • Single-mode dual fiber to single-mode dual fiber
    • Wavelength conversion
  • Conforms to IEEE 802.3 and 100BASE-FX specifications
  • Operates with a constant rate signal from 1Mbps to 100Mbps
  • Supports multimode and single-mode dual fiber with ST or SC connectors
  • Plug-and-play installation requires no manual configuration or software drivers
  • Supports auto-negotiation of duplex mode
  • Extends network distances up to 120km
  • Labeled status LEDs for quick and easy installation
  • Wall-mount or rack-mount on a 5-Module shelf or in a 14-Module power-redundant FlexPoint Powered Chassis
  • TAA, BAA, NDAA compliant, and Made in the USA
  • Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support

The FlexPoint 100FF fiber converter can extend the network across single-mode fiber with distances up to 120km. In this application, two 10/100Mbps Ethernet switches are connected utilizing a pair of FlexPoint 100FF fiber converters, which are connected to the switches via a multimode fiber uplink.



Step 1: Choose a Base Part Number (xxxx-p)

Port
Fiber
Type
Distance
Connector Types
Tx / Rx
Lambda

(nm)
Min. Tx
Power

(dBm)
Max. Tx
Power

(dBm)
Min. Rx
Power

(dBm)
Max. Rx
Power

(dBm)
Min.
Attenuation

(dB)
Link
Budget

(dB)
ST
SC
Port 1
MM/DF
5km
4420-p
4421-p
1310
-24
-14
-31
-14
-
7
Port 2
MM/DF
5km
1310
-24
-14
-31
-14
-
7
Port 1
MM/DF
2km
4414-6p
4415-6p
850
-10
-4
-24
-3
-
14
Port 2
SM/DF
30km
1310
-15
-8
-31
-8
-
16
Port 1
MM/DF
5km
4410-p

4411-p

1310
-24
-14
-31
-14
-
7
Port 2
SM/DF
30km
1310
-15
-8
-31
-8
-
16
Port 1
MM/DF
5km
4412-p

4413-p

1310
-24
-14
-31
-14
-
7
Port 2
SM/DF
60km
1310
-5
0
-31
-3
3
26
Port 1
MM/DF
5km
-
4425-p
1310
-24
-14
-31
-14
-
7
Port 2
SM/DF
120km
1550
-5
0
-31
-3
3
26
Port 1
SM/DF
60km
-
4423-p

1310
-5
0
-31
-3
3
26
Port 2
SM/DF
120km
1550
-5
0
-31
-3
3
26
MM = Multimode, SM = Single-mode, DF = Dual Fiber
Contact Omnitron for other operational temperature ranges and RoHS (5/6) compliant models.

Step 2: Choose a Power Option (xxxx-p)

 -0 = Barrel Connector, No AC/DC Power Adapter
 -1 = Barrel Connector and US AC/DC Power Adapter, 100-240 VAC, 50-60Hz
 -2 = Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

Operating Temperature

Commercial temperature (0 to 50°C)





  -1 = Barrel Connector and US AC/DC Power Adapter, 100-240 VAC, 50-60Hz

Wall Wort PS flexpoint

 -2 = Barrel Connector and Universal AC/DC Power Adapter, 100-240VAC, 50-60Hz (requires AC power cord)

Universal PS flexpoint





Accessories

Model NumberDescriptionModel NumberDescription
4380 Wall-Mounting Hardware Kit for Modules 4381 Wall-Mounting Hardware Kit for DC to DC Power Adapter
4384 DC to DC Power Adapter 4384-W DC to DC Power Adapter, Wide Temperature (-40 to 60°C)
4385 14-Module Chassis with two 48VDC Power Supplies 4386 14-Module Chassis with one 48VDC Power Supply
4389 Spare 48VDC Power Supply 4392 5-Module Rack-Mount Shelf
4395 14-Module Chassis with two AC Power Supplies 4396 14-Module Chassis with one AC Power Supply
4399 Spare AC Power Supply 8250 DIN-Rail Mounting Kit
See all FlexPoint accessories on FlexPoint Chassis and Mounting Options product page.

FlexPoint 100FF (Data Sheet)

FlexPoint 100FF (User Manual)

The FlexPoint 100FF is a Fast Ethernet fiber-to-fiber converter/transponder that provides reliable and cost-effective extension of network distances by connecting multimode fiber networks or devices over single-mode fiber cabling.

The FlexPoint 100FF is designed to operate with a constant rate signal between 1Mbps to 100Mbps allowing the converter to be used in Ethernet networks as well as other fiber-to-fiber protocol applications.

No manual configuration is required with the plug-and-play FlexPoint 100FF. Connect the fiber cables to the appropriate interface and the installation is complete.

Depending on the model, the fiber port operates at 850nm, 1310nm or 1550nm and features SC or ST connectors. Multimode fiber models support distances of up to 5km, and single-mode fiber models support distances of up to 120km.

The FlexPoint 100FF features descriptions of the LED indicators on the label for easy in-the-field installation and maintenance. The LEDs report the availability of power and the detection of devices attached to the fiber ports.

FlexPoint modules can be mounted utilizing optional wall-mounting hardware or with DIN-rail mounting brackets. They can also be rack-mounted in a 5-Module shelf or in a high-density 14-Module, power-redundant Powered Chassis.

FlexPoint modules installed in the 5-Module shelf or used as standalone devices can be powered by an external AC to DC power adapter, or through the 5VDC chassis connector. Standalone modules can also be powered by attaching an external DC power supply (18-60VDC). When used in the 14-Module power-redundant Powered Chassis with any combination of AC and DC power supplies, the installed modules are powered via the 5VDC chassis connector.

The wide variety of FlexPoint mounting and power options provide flexible upgrade paths as network requirements change and grow.

FlexPoint unmanaged media converters are easy to use and provide dependable fiber connectivity in Enterprise and Government networks around the world.

Description
 FlexPoint 100FF
 Fast Ethernet Fiber-to-Fiber Converter/Transponder
Standard Compliances
 IEEE 802.3, Protocol Transparent
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size
 Supports unlimited frame sizes
Port Types
Fiber:
 100BASE-X (ST,SC)
Cable Types
Fiber:
Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC Adapter:

100 - 240VAC/50 - 60Hz
0.04A @ 120VAC (typical)
DC Power Requirements

Voltage Range:
Nominal Voltage:
Nominal Power:
Barrel Connector
6.0 to 15.0VDC
9VDC
0.2A @ 9VDC
Molex Connector
4.75 to 5.25VDC
5VDC
0.5A @ 5VDC
Dimensions
W x D x H
 3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight
 w/o AC Adapter:
6 oz. (170.1 grams)
Temperature
 Commercial:
Storage: 		    0 to 50°C
-40 to 80° C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
 w/o AC Adapter (-0):
w/ AC Adapter (-1):
w/ AC Adapter (-2): 		 2,600,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support
