OmniConverter® GPoE30/S and GHPoE60/S

Unmanaged 30W and 60W Gigabit PoE Extender with Booster Technology

question
Contact Us Where to Buy

Unmanaged 30W and 60W Gigabit PoE Extender with Booster Technology

  • Multiple port configurations:
    • 1 RJ-45 PoE/PD + 1 RJ-45 PoE/PSE
    • 1 RJ-45 PoE/PD + 2 RJ-45 PoE/PSE
  • Can be Powered by IEEE 802.3at or High-Power PoE 60W Power Sourcing Equipment
  • Can Power IEEE 802.3af PoE, IEEE 802.3at or High-Power PoE 60W Powered Devices
  • Voltage boosting technology to guarantee minimum voltage requirement to the Powered Device
  • Plug-and Play installation with auto-negotiation of data rates and duplex modes
  • DIN-rail mountable
  • Commercial (0 to +50ºC) and wide (-40 to +60ºC) operating temperature ranges
  • Free 24/7/365 Technical Support
  • Lifetime warranty
  • Made in the USA

OmniConverter GPoE30/S and GHPoE60/S are unmanaged gigabit PoE Extenders that enable the delivery of Ethernet data and Power over Ethernet (PoE) beyond the standard 100 meter limit of twisted pair copper cabling.

OmniConverter PoE Extenders provide cost-effective distance extension and connectivity to remote PoE devices where external power is not available or hard to provision, or when replacing copper with fiber becomes cost prohibitive.

OmniConverter PoE Extenders are 10/100/1000BASE-T Ethernet extenders that function as both Powered Devices (PD) and Power Sourcing Equipment (PSE), and require no external AC power. They feature one PoE/PD port and one or two PoE/PSE ports, and can be powered by an IEEE 802.3at or High-Power PoE 60W power source, such as a PSE switch.

Utilizing data regeneration and voltage level boosting capabilities, OmniConverter PoE Extenders can be daisy chained to break through the Ethernet distance barrier and deliver 10/100/1000 data and power to multiple PoE powered devices.

Due to cable resistance, voltage drop across the cabling could lower the voltage below the minimum standard requirement of the attached PD. OmniConverter PoE Extenders have smart voltage-boosting technology to maintain the required standard compliant PoE voltage levels between hops.

OmniConverter PoE Extenders are plug and play devices that support auto-negotiation of data rates and duplex modes for simple in-line installation to instantly extend network distances.

In applications where only Ethernet data extension is required (with no Powered Device), a combination of GHPoE60/S and GPoE30/S Extenders can achieve a distance of up to 800 meters with a High-Power PoE 60W PSE at the head end.

Basic PoE Extender Application

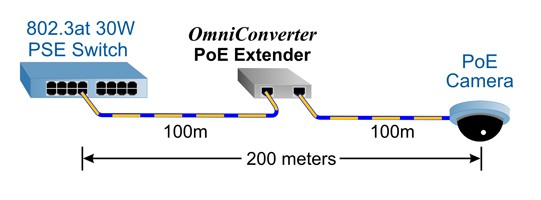

This example shows an OmniConverter PoE Extender powering an 802.3at PoE camera, and achieving a distance of 200 meters (656 feet) between an 802.3at PoE PSE switch and the camera.



200 Meters with PoE Extender

PoE Extender with Two Powered Devices Application

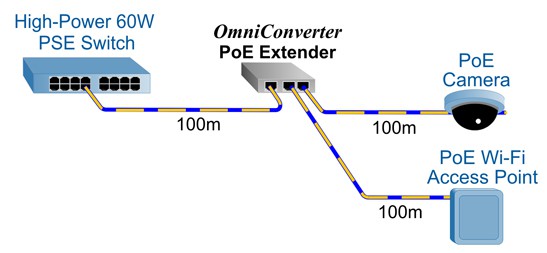

This example shows an OmniConverter PoE Extender with two PoE/PSE ports powering an 802.3af camera and an 802.3at Wi-Fi Access Point 200 meters from the High-Power PoE 60W PSE switch.


200 Meters with PoE Extender and Two Powered Devices

PoE Extender Daisy Chain Application

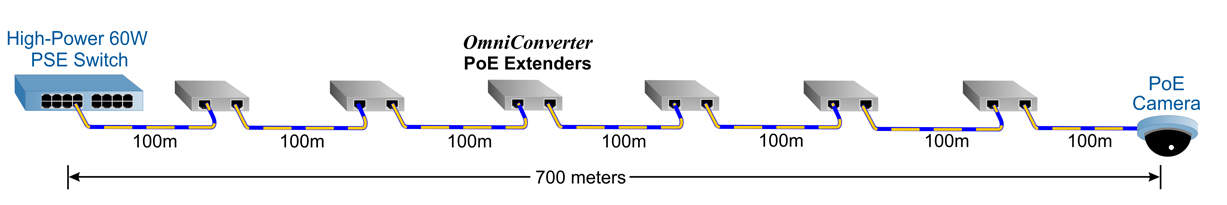

In this example, six OmniConverter PoE Extenders are deployed in a daisy chain extending the distance between a High-Power PoE PSE switch and an 802.3af PoE camera. The total distance between the switch and the camera is 700 meters (2,296 feet). With Omnitron’s exclusive voltage boosting technology, the input voltage at the PoE camera is guaranteed to meet the IEEE standard.


700 Meters with PoE Extender Daisy Chain

PoE Drop-and-Extend Application

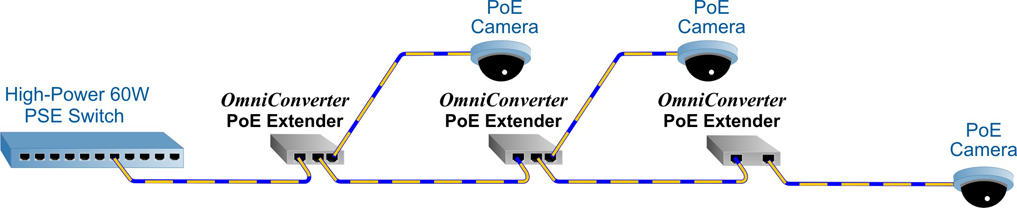

In this example, three OmniConverter PoE Extenders are deployed in a daisy chain that is powered by a High-Power 60W PSE switch. PoE cameras are dropped off at the first and second PoE Extender locations using models with one RJ-45 PoE/PD port and two RJ-45 PoE/PSE ports.

The daisy chain continues to the third PoE Extender, and to the final camera for a distance of for 400 meters (1,312 feet).


400 Meters with PoE Extender Drop-and-Extend Daisy Chain

Description
OmniConverter GPoE30/S and GHPoE60/S
10/100/1000BASE-T Ethernet PoE/PD to PoE/PSE Extenders
Standard Compliances
IEEE 802.3, IEEE 802.3at PoE+, HPoE (60W)
   Environmental
REACH, RoHS and WEEE
PoE/PD Mode IEEE Alternate A (Alt A)
Frame Size
Up to 10,240 bytes
Port Types
Copper:
10/100/1000BASE-T (RJ-45)
Cable Types
Copper:
EIA/TIA 568A/B, Cat 5 UTP and higher
Power Requirements
PoE:
+/-46 to +/-57VDC
Dimensions
W: 3.8” x D: 4.8” x H: 1.0”
L: 96.52 mm x B: 121.92 mm x H: 25.4 mm
Weight 0.8 lbs; 355 grams
Operating Temperature
Commercial:
Wide:
   0 to 50°C
-40 to +60°C
Humidity
 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs)
1xPD Port + 1xPSE Port:
1xPD Port + 2xPSE Ports:
375,000
317,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support


Standards and Compliances
Safety*
UL 60950-1
IEC 60950-1:2005+A1:2009 and
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
CE Mark
EMC
EN 55032/24 CE Emissions/Immunity
IEC 61000-6-4 Industrial Emissions
IEC 61000-6-2 Industrial Immunity
EMI CISPR 32, FCC 47 Part 15 Subpart B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m (passed industrial rating of 10V/m)
IEC 61000-4-4 EFT: Power: 1 kV (passed industrial rating of 2 kV)
IEC 61000-4-4 EFT: Signal: 0.5 kV (passed industrial rating of 1 kV)
IEC 61000-4-5 Surge: Power: 1 kV (passed industrial rating of 2 kV)
IEC 61000-4-5 Surge: Signal: 1 kV
IEC 61000-4-6 CS: Signal: 3 Vrms (passed industrial rating of 10 Vrms)
IP Rating IP20 Protection
 *Pending

 Distance and Power
PSE Source PowerCable TypeDistance Meters/FeetNumber of ExtendersExpected Power for PD*
802.3at
30W
Cat5 200m / 656' 1 17.6W
300m / 984' 2 11.3W
400m / 1,312' 3 6.0W
500m / 1,640' 4 1.2W
Cat5e 200m / 656' 1 18.6W
300m / 984' 2 12.2W
400m / 1,312' 3 6.7W
500m / 1,640' 4 1.8W
Cat6 200m / 656' 1 19.9W
300m / 984' 2 13.5W
400m / 1,312' 3 7.9W
500m / 1,640' 4 2.9W
High-Power
60W
Cat5 200m / 656' 1 38.8W
300m / 984' 2 29.2W
400m / 1,312' 3 21.4W
500m / 1,640' 4 14.8W
600m / 1,968' 5 9.1W
700m / 2,296'  6 4.0W
Cat5e 200m / 656' 1 40.8W
300m / 984' 2 31.1W
400m / 1,312' 3 23.2W
500m / 1,640' 4 16.6W
600m / 1,968' 5 10.7W
700m / 2,296'  6 5.4W
800m / 2,624'  7 Data Only
Cat6 200m / 656' 1 43.5W
300m / 984' 2 34.0W
400m / 1,312' 3 25.9W
500m / 1,640' 4 19.0W
600m / 1,968' 5 12.9W
700m / 2,296'  6 7.4W
800m / 2,624'  7 2.4W
* Distances are based on a daisy chain topology with no drop locations along chain. Distances also based on using certified Cat5, Cat5e or Cat6 cabling with no patch cables or panels.

 Model Number
 Description
2000-11
GPoE30/S with 1 RJ-45 PoE/PSE, Commercial Temperature
2000-12
GPoE30/S with 2 RJ-45 PoE/PSE, Commercial Temperature
2001-11
GHPoE60/S with 1 RJ-45 PoE/PSE, Commercial Temperature
2001-12
GHPoE60/S with 2 RJ-45 PoE/PSE, Commercial Temperature
For Wide Temperature models (-40 to 60°C), add a “W” to the end of the model number.
For example, 2000-11W
