MUX/DEMUX and Optical Add/Drop Mux Modules

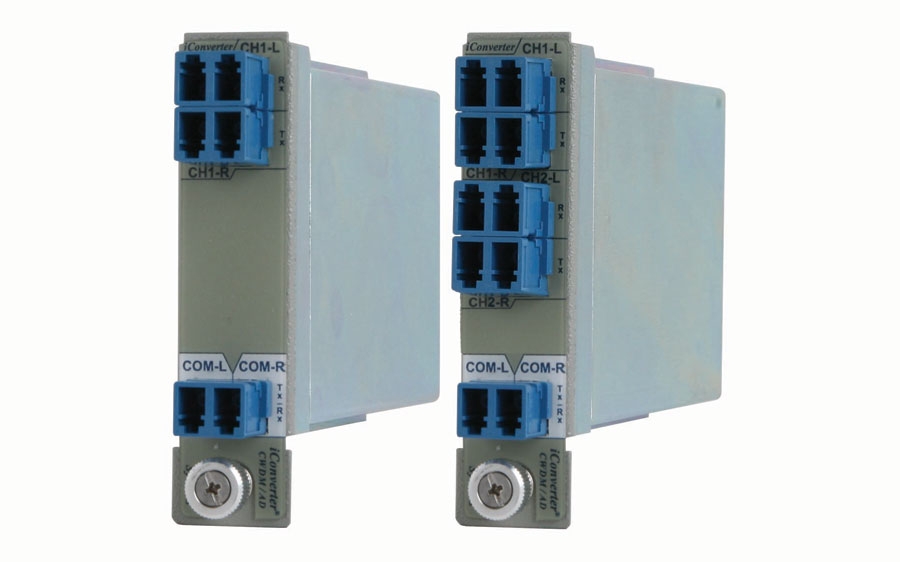

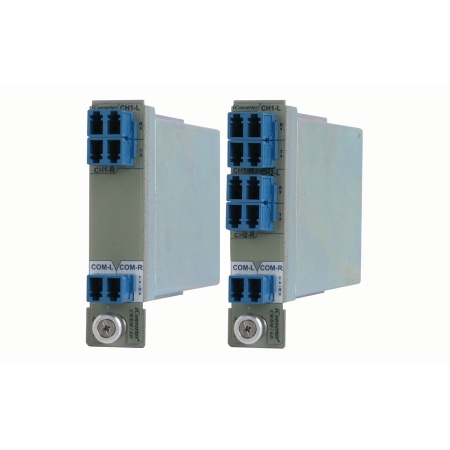

iConverter® Single-Fiber CWDM Multiplexers and Add/Drop

4695cb3b19cbf906e45dac0da0913068 XL
iConverter Single-Fiber Course Wave Division Multiplexing (CWDM) modules provide a flexible and cost-effective solution for increasing the fiber capacity of single fiber networks. CWDM over single-fiber increases network bandwidth capacity by enabling multiple wavelengths, or data channels that carr ...Read more

Features
  • 2 and 4-Channel modules are scalable to 4 or 8 Channels using a Band Splitter module
  • Protocol and rate transparent for applications up to 10Gbps
  • Minimal and uniform optical loss facilitates easy network planning
  • Industry standard LC connectors
  • Highly compact form factor
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

iConverter Single-Fiber CWDM/X

  • 2 and 4-Channel MUX/DEMUX modules
  • 2 and 4-Channel modules are scalable to 4 or 8 Channels using a Band Splitter module

iConverter Single-Fiber CWDM/AD

  • 1-Channel Optical Add and Drop Multiplexers modules
  • Add and Drop functions in both directions

Common Product Features

  • Protocol and rate transparent for applications up to 10Gbps
  • Minimal and uniform optical loss facilitates easy network planning
  • Industry standard LC connectors
  • Highly compact form factor
  • Seamless integration with other iConverter media converters and chassis for multi-service platforms
  • Compatible with OmniLight® chassis using the iConverter LGX Adapter
  • Passive device that can be installed in a powered chassis for managed applications
  • One (1) Year Warranty and Free 24/7 Technical Support

Linear Add/Drop

In this application, 1-Channel SF OADMs and a 4-Channel SF MUX/DEMUX module creates a linear network dropping services off to four sites on a single-fiber common link.

At the headend, a 4-Channel single-fiber MUX/DEMUX is used to connect four Ethernet switches each supporting two wavelengths over a common fiber link. At the first site, a 1-Channel OADM is installed to remove and add the 1470/1490nm wavelength which is associated with Network A. The remaining wavelengths (1510/1530nm, 1550/1570nm and 1590/1610nm) are passed through the OADM to the next site.

The 1510/1530nm wavelength associated with Network B is dropped at the second site while the 1550/1570nm and 1590/1610nm wavelengths are passed on to the last two sites. The 1550/1570nm wavelength associate with Network C is dropped at the third site. Since only 4 channels are used, the last site does not need a OADM module.


Basic Application Diagrams

Below are block diagrams representing a 4-Channel CWDM Single-Fiber point-to-point application and a 4-Channel CWDM Single-Fiber point-to-point with an OADM somewhere in between the 4-Channel MUXs.

All Single-Fiber modules have dual fiber channel ports and single-fiber common ports. The CWDM SFP transceiver required for any single-fiber application depends on the Rx wavelength of the Single-Fiber module.

In the 4-Channel point-to-point diagram below, the CWDM SFP transceiver wavelength needed for Channel 1 of the 8877-0 module is 1470nm.

In the 4-Channel point-to-point with OADM, the CWDM SFP transceiver wavelength needed for the OADM Channel 1 Left is 1490nm and for Channel 1 Right is 1470nm.

Examples with CWDM symbols cwdm sf

Step 1: Choose a Base Part Number (xxxx-xt)

Model NumberModel TypeChannel Port
ITU Center Wavelengths (nm) Tx (Out) / Rx (In)
8870-0t   2-Channel MUX/DEMUX with LC UPC Connectors  Channel 1 = 1471/1491, Channel 2 = 1511/1531
8871-0t  2-Channel MUX/DEMUX with LC UPC Connectors  Channel 1 = 1491/1471, Channel 2 = 1531/1511
8872-0t  2-Channel MUX/DEMUX with LC UPC Connectors  Channel 1 = 1551/1571, Channel 2 = 1591/1611
8873-0t  2-Channel MUX/DEMUX with LC UPC Connectors  Channel 1 = 1571/1551, Channel 2 = 1611/1591
8874-0t  4-Channel MUX/DEMUX with LC UPC Connectors
 Channel 1 = 1271/1291, Channel 2 = 1311/1331,
 Channel 3 = 1351/1371, Channel 4 = 1431/1451
8875-0t  4-Channel MUX/DEMUX with LC UPC Connectors
 Channel 1 = 1291/1271, Channel 2 = 1331/1311,
Channel 3 = 1371/1351, Channel 4 = 1451/1431
8876-0t   4-Channel MUX/DEMUX with LC UPC Connectors
 Channel 1 = 1471/1491, Channel 2 = 1511/1531,
 Channel 3 = 1551/1571, Channel 4 = 1591/1611
8877-0t   4-Channel MUX/DEMUX with LC UPC Connectors
 Channel 1 = 1491/1471, Channel 2 = 1531/1511,
 Channel 3 = 1571/1551, Channel 4 = 1611/1591
8878-λt 1-Channel Add/Drop Lower Band with LC UPC Connectors  λ = 27 (1271/1291), 31 (1311/1331), 35 (1351/1371), 39 (1391/1411), 43 (1431/1451)
8878-λt 1-Channel Add/Drop Upper Band with LC UPC Connectors  λ = 47 (1471/1491), 51 (1511/1531), 55 (1551/1571), 59 (1591/1611)

Single-fiber CWDM/X models must be used in pairs. The Tx wavelengths on one end has to match the Rx wavelengths on the other.

For the 1-Channel OADMs, the Channel Port Left wavelengths are shown in the table above. Channel Port Right wavelengths are reversed from Channel Port Left.

1-Channel Lower Band OADM Example: For wavelength 1351/1371, l = 35, 8878-35

1-Channel Upper Band OADM Example: For wavelength 1551/1571, l = 55, 8878-55

Contact Omnitron for other port configurations, extended temperature (-40 to 75°C) and RoHS (5/6) compliant models.

See chassis and mounting options at: iConverter Chassis and Mounting Option web page.

Step 2: Choose an Operating Temperature Option (xxxx-xt)

<leave blank> = Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)



 Logic Diagrams



CWDM Symbols

iConverter Single-Fiber CWDM/X (Data Sheet)

iConverter Single-Fiber CWDM/X (User Manual)

iConverter Single-Fiber CWDM/AD (User Manual)

iConverter Single-Fiber Course Wave Division Multiplexing (CWDM) modules provide a flexible and cost-effective solution for increasing the fiber capacity of single fiber networks. CWDM over single-fiber increases network bandwidth capacity by enabling multiple wavelengths, or data channels that carry independent services over existing fiber infrastructure. Up to eight separate data channels can be transported on a single fiber link with iConverter Single-Fiber CWDM modules.

The iConverter CWDM/X and CWDM/AD single-fiber modules are protocol and rate transparent allowing different services up to 10Gbps to be transported across the same common fiber link. The single-fiber modules support dual fiber Channel Ports and single-fiber Common Port connections. Each fiber strand on the Channel Port supports a different wavelength, one wavelength for transmit (TX) and a different wavelength for receive (RX).

Single-Fiber CWDM/X Multiplexer/Demultiplexer

Single-Fiber iConverter CWDM/X modules are available in 2 and 4-Channel models, supporting a variety of wavelength combinations and port configurations. In point-to-point applications, the CWDM/X modules operate in pairs, maximizing the number of wavelengths supported.

Single-Fiber CWDM/AD Add & Drop Multiplexers

iConverter 1-Channel Single-Fiber CWDM/AD modules are CWDM Optical Add and Drop Multiplexers (OADM). The CWDM/AD modules add (multiplex) and drop (de-multiplex) one channel on one or both directions of a CWDM single-fiber link. Nine standard models of the 1-Channel Single-Fiber CWDM/AD modules are available.

iConverter CWDM/AD modules add new access points anywhere on a single-fiber CWDM network, without impacting the remaining channels traversing the network. Access points can be added to linear, bus, and ring networks, where the dual-direction ring design provides redundant protected architecture.

Description
iConverter CWDM/X and CWDM/AD
Single-Fiber CWDM MUX/DEMUX and ADD/DROP
Regulatory Compliances
Safety:
EMI:
UL, CE, UKCA
FCC Class A
Environmental
RoHS, WEEE, REACH
Port Types
Fiber:
LC (UPC)
Cable Types
Fiber:
Single-mode: 9/125μm
Channel Ports: Dual Fiber
Common Port: Single-Fiber
DC Power Requirements
DC Input:
(Backplane)
3.3VDC, 0.025A @ 3.3VDC
(when management is required, otherwise passive operation)
Dimensions
W x D x H
0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm)
Weight
12 oz. (340.2 grams)
Temperature
Commercial:
Wide:
Storage:
    0 to 50°C
 -40 to 60°C
 -40 to 80°C
Humidity
5 to 90% operational (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
> 1,000,000
Warranty
One (1) year warranty with 24/7/365 free Technical Support



Optical Characteristics
ParameterUnitsValues
Common Port Operating Wavelength nm 1270 - 1610
CWDM Center Channel nm 1271, 1291, 1311, 1331, 1351, 1371, 1431, 1451, 1431, 1451, 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611
CWDM Channel Spacing nm
20
1-Channel OADM Insertion Loss dB < 1.9
2-Channel MUX Insertion Loss dB < 1.9
4-Channel MUX Insertion Loss dB < 2.4
Adjacent Channel Isolation dB > 30
Non-Adjacent Channel Isolation
 dB > 40
Return Loss (filtered channel) dB ≥ 45



Wavelengths
