Carrier Ethernet 2.0 Certified NIDs with Power over Ethernet

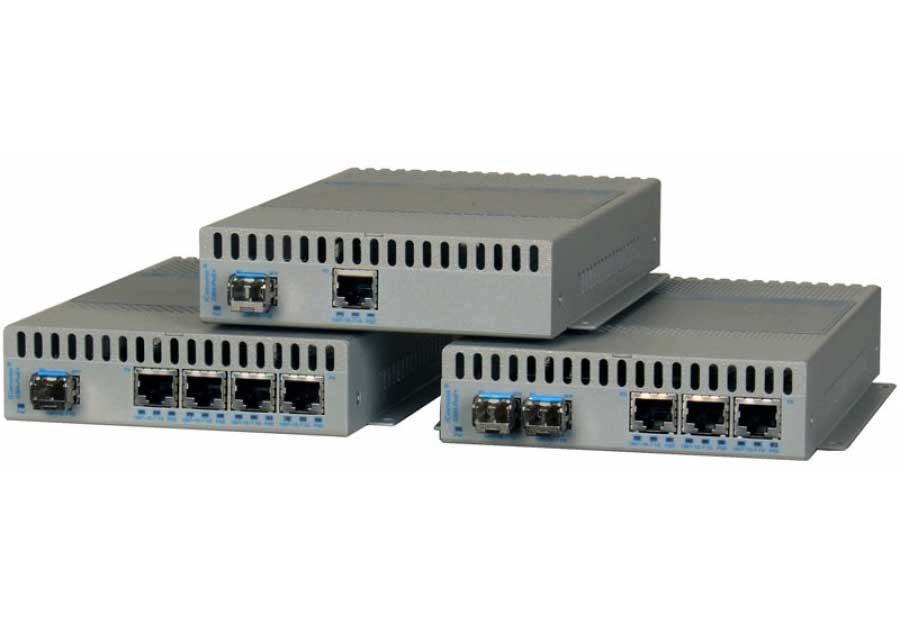

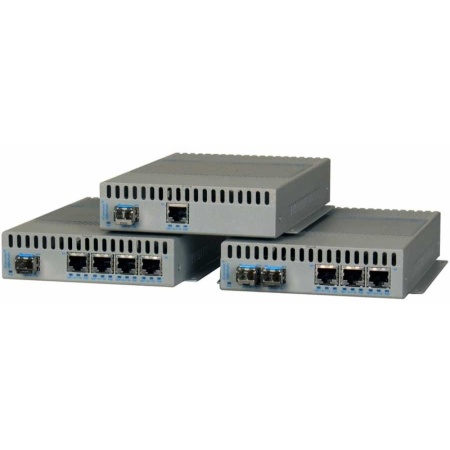

iConverter® GM4 PoE+ and GM4 HPoE

The iConverter GM4 PoE Network Interface Devices (NID) deliver advanced Carrier Ethernet 2.0 services and provide integrated Power over Ethernet (PoE) at the demarcation. GM4 PoE NIDs function as PoE Power Sourcing Equipment in small cell (metro cell) and Wi-Fi applications, where the radio equipmen ...Read more

Features

PoE sourcing of 802.3af (15W), 802.3at (30W) and High-Power PoE (60W)
MEF Carrier Ethernet 2.0 Network Interface Device
Integrated IPv4, IPv6, SNMPv1/v2c/v3, SSH, Telnet and IP-less 802.3ah OAM management
SNMP management via NetOutlook? Network Management Software
Supports DF and SF Gigabit and Fast Ethernet SFP transceivers for standard, CWDM or DWDM wavelengths

PRODUCT SELECTOR

Description
Advanced Features
Features
Specifications
Applications
Ordering
Documents

Power over Ethernet sourcing of 802.3af (15W), 802.3at (30W) and High-Power PoE (60W)
MEF Carrier Ethernet 2.0 Network Interface Device
Integrated IPv4, IPv6, SNMPv1/v2c/v3, SSH, Telnet and IP-less 802.3ah OAM management
SNMP management via NetOutlook® Network Management Software
Multiple port configurations:
- 1 or 2 100/1000Mbps SFP Fiber Ports
- 1 to 4 RJ-45 PoE 10/100/1000 Ports
Supports dual fiber and single-fiber Gigabit and Fast Ethernet SFP transceivers for standard, CWDM or DWDM wavelengths
RJ-45 port supports 10/100/1000 and Half/Full-Duplex auto-negotiation and MDI/MDIX auto-crossover
10,240 byte Jumbo frames
Advanced traffic management with service mapping, traffic policing and shaping with Hierarchical Rate Limiting
IEEE 802.1ag Connectivity Fault Management
ITU-T Y.1731 End-to-End Performance Monitoring
RFC 5357 TWAMP responder and initiator
Zero-Touch Provisioning
ITU-T Y.1564 Ethernet Service Activation Testing
IETF RFC 2544 Ethernet Service Activation Testing
ITU-T G.8262 Sync-E and IEEE 1588v2 Timing
ITU-T G.8031 and G.8032v2 Ethernet Protection Switching
IEEE 802.1ax/802.3ad LAG with LACP
TAA, BAA and NDAA compliant, and Made in the USA

Management	Service OAM and Testing
IPv4, IPv6, Telnet, SNMPv1, SNMPv2c, SNMPv3, SSH, Serial Console	IEEE 802.3ah Link OAM with Dying Gasp*
SNMP management via NetOutlook Network Management software	IEEE 802.1ag Connectivity Fault Management with 8 Maintenance Domain levels and 256 Maintenance Associations
IP-less management through 802.3ah OAM extensions	IEEE 802.1ag Maintenance Intermediate Points for fault isolation
MEF 30 and 31 Service OAM Fault Management MIBs	ITU-T-Y.1731 Performance Monitoring with threshold monitoring and crossing alerts
Syslog	Advanced classification and filtering of Layer 1, 2, 3 or 4 subscriber traffic as an EVC or CoS flow
Traffic Management	RFC 5357 TWAMP IP SLA Performance Monitoring
IEEE 802.1Q VLAN Tagging	IETF RFC 2544 (built-in Test-head) with wire-speed, per flow testing of throughput, latency, jitter and loss
IEEE 802.1ad Q-in-Q VLAN Tagging	ITU-T-Y.1564 Service Testing (built-in Test-head) with multi-flow testing of information rate, latency, jitter and frame loss
Service Multiplexing of up to 256 EVCs	Per port and per flow loopback with MAC (Layer 2) swap or IP (Layer 3) swap
User-configurable Ethertype	Third party in-band loopback support
All ports configurable as UNI or NNI	Zero-Touch Provisioning (DHCP/TFTP)
Ingress and Egress traffic management	Portal integration with Cyan Blue Planet, Ocular IP, Orion Solarwinds and Web EMS
Hierarchical rate limiting with two-level color aware policing	Built-in UTP cable tester for troubleshooting to the Customer Equipment
CIR/EIR color aware ?two rates, three colors? bandwidth profiles	Protection and Redundancy
Port Mirroring	Port Redundancy (Primary and Backup Link)
IEEE 802.1p CoS Priority	IEEE 802.1ax/802.3ad LAG with LACP (1:1 and 1+1)
per Port, VLAN ID, PCP, IPv4/IPv6 (TOS/DiffServe) Priority, MAC address, IP address, TCP Port or L2CP	ITU-T-G.8031 Ethernet Linear Protection with sub-50ms failover
L2CP Policy Management	ITU-T-G.8032 Ethernet Ring Protection with sub-50ms failover
L2PT Tunneling to encapsulate STP, VTP, PVST and CDP protocols	IEEE 802.1w Rapid Spanning Tree Protocol
RFC 4541 IGMP Snooping	Link Modes
DHCP Relay Option 82	Power over Ethernet
Timing and Synchronization	IEEE 802.3af (15W), 802.3at (30W) and HPoE (60W)
IEEE 1588v2 Transparent Clock	Heartbeat signal to verify connectivity to the PD
ITU-T G.8262 Synchronous Ethernet
Security and Authentication
TACACS+, RADIUS, 802.1x and Access Control Lists
*Supported on all standalone models. Supported on plug-in models when installed in a 1-Module or 2-Module chassis with dying gasp support.

Commercial (0 to 50?C), wide (-40? to 60?C) and extended (-40? to 75? C) temperature ranges

Metro Ethernet Ring

In the application example, a Service Provider offers metro/small cell coverage in addition to Wi-Fi hot spot services. The multiport GM4 PoE NIDs provide full PoE power on each RJ-45 port.

GM4 PoE NIDs are available with two SFP fiber ports, and support G.8032 Ethernet Ring Protection Switching to enable resilient ring configurations. An on-board sensing circuit monitors the equipment enclosures for unauthorized tampering.

A GM4 PoE NID and the power supply can be installed in a compact NEMA enclosure for outdoor deployments.

GM4-PoE-App

Step 1: Choose a Base Part Number (xxxxS-xx-pt)

iConverter GM4-PoE+
Port Configuration						Model Number	Description
Position 1	Position 2	Position 3	Position 4	Position 5	Position 6	Model Number	Description
SFP	-	RJ-45	-	-	-	8991S-11-pt	GM4-PoE+ with 1 SFP Port and 1 PoE+ RJ-45 Port
SFP	-	RJ-45	RJ-45	RJ-45	RJ-45	8991S-14-pt	GM4-PoE+ with 1 SFP Port and 4 PoE+ RJ-45 Ports
SFP	SFP	-	RJ-45	RJ-45	-	8991S-22-pt	GM4-PoE+ with 2 SFP Ports and 2 PoE+ RJ-45 Ports
SFP	SFP	-	RJ-45	RJ-45	RJ-45	8991S-23-pt	GM4-PoE+ with 2 SFP Ports and 3 PoE+ RJ-45 Ports
RJ-45 - Fixed Copper Port, SFP - Small Form Pluggable Transceiver Contact Omnitron for other fiber options. Order the appropriate Fast or Gigabit SFPs separately. Visit the Omnitron Optical Transceivers web page.

Step 2: Choose a Power Option (xxxxS-xx-pt)

D = Barrel Connector and AC/DC Power Adapter, 100-240VAC, 50-60Hz, with US power cord with integrated mounting brackets

E = Barrel Connector and Universal AC/DC Adapter, 100-240 VAC, 50-60Hz, No Power Cord, with integrated mounting brackets

F = Direct DC input, 3 pin terminal connector, no AC/DC power adapter, with integrated mounting brackets

Step 3: Choose an Operating Temperature Range (xxxxS-xx-pt)

<leave blank> = Commercial temperature (0 to 50°C)

W = Wide temperature (-40 to 60°C) - see AC/DC Derating Table

Z = Wide temperature (-40 to 75°C) - not available for models with AC/DC Adapters

AC/DC Adapter Temperature Derating Total Available Wattage to RJ-45 Ports
Model	Watts Required	40°C	50°C	60°C
GM4-PoE+ 1 RJ-45 PoE+ Port	30 watts	Full Power	Full Power	Full Power
GM4-PoE+ 2 RJ-45 PoE+ Ports	60 watts	Full Power	Full Power	Full Power
GM4-PoE+ 3 RJ-45 PoE+ Ports	90 watts	Full Power	Full Power	Full Power
GM4-PoE+ 4 RJ-45 PoE+Ports	120 watts	Full Power	Full Power	90 watts
The AC/DC Adapter Temperature derating table is not applicable to models with DC Terminal (see Ordering table for Direct DC power option F). The DC Terminal models will provide full PoE power over the operating temperature range of the module as long as the DC input voltage meets the requirements stated in the specification table on page 3.

Step 1: Choose a Base Part Number (xxxxT-xx-pt)

iConverter GM4-HPoE
Port Configuration						Model Number	Description
Position 1	Position 2	Position 3	Position 4	Position 5	Position 6	Model Number	Description
SFP	-	RJ-45	-	-	-	8991T-11-pt	GM4-HPoE with 1 SFP Port and 1 PoE+ RJ-45 Port
SFP	-	RJ-45	RJ-45	RJ-45	RJ-45	8991T-14-pt	GM4-HPoE with 1 SFP Port and 4 PoE+ RJ-45 Ports
SFP	SFP	-	RJ-45	RJ-45	-	8991T-22-pt	GM4-HPoE with 2 SFP Ports and 2 PoE+ RJ-45 Ports
SFP	SFP	-	RJ-45	RJ-45	RJ-45	8991T-23-pt	GM4-HPoE with 2 SFP Ports and 3 PoE+ RJ-45 Ports
RJ-45 - Fixed Copper Port, SFP - Small Form Pluggable Transceiver Contact Omnitron for other fiber options. Order the appropriate Fast or Gigabit SFPs separately. Visit the Omnitron Optical Transceivers web page.

Step 2: Choose a Power Option (xxxxT-xx-pt)

D = Barrel Connector and AC/DC Power Adapter, 100-240VAC, 50-60Hz, with US power cord with integrated mounting brackets

E = Barrel Connector and Universal AC/DC Adapter, 100-240 VAC, 50-60Hz, No Power Cord, with integrated mounting brackets

F = Direct DC input, 3 pin terminal connector, no AC/DC power adapter, with integrated mounting brackets

Step 3: Choose an Operating Temperature Range (xxxxT-xx-pt)

<leave blank> = Commercial temperature (0 to 50°C)

W = Wide temperature (-40 to 60°C) - see AC/DC Derating Table

Z = Wide temperature (-40 to 75°C) - not available for models with AC/DC Adapters

AC/DC Adapter Temperature Derating Total Available Wattage to RJ-45 Ports
Model	Watts Required	40°C	50°C	60°C
GM4-HPoE 1 RJ-45 HPoE Port	60 watts	Full Power	Full Power	Full Power
GM4-HPoE 2 RJ-45 HPoE Ports	120 watts	Full Power	Full Power	Full Power
GM4-HPoE 3 RJ-45 HPoE Ports	180 watts	Full Power	177 watts	Not Supported
GM4-HPoE 4 RJ-45 HPoE Ports	240 watts	Full Power	177 watts	Not Supported
The AC/DC Adapter Temperature derating table is not applicable to models with DC Terminal (see Ordering table for Direct DC power option F). The DC Terminal models will provide full PoE power over the operating temperature range of the module as long as the DC input voltage meets the requirements stated in the specification table on page 3.

Accessories
Model Number	Description
8251-0	DIN Rail Mounting Clips
8260-0	19” 1U Rack Mount Shelf (up to 2 converters)

iConverter GM4 PoE+ and GM4 HPoE (Data Sheet)

iConverter GM4 PoE+ and GM4 HPoE (Quick Start)

iConverter Menu Driven Interface for GM3 and GM4 NIDs

iConverter Command Line Interface for GM3 and GM4 NIDs

By integrating Carrier Ethernet demarcation and PoE functions into a single device, Service Providers can easily deploy Wi-Fi hot spots and small cells almost anywhere, reduce equipment costs and overall power consumption. This integrated PoE NID speeds time to market and reduces technical risks.

The GM4 PoE NIDs are available in two PoE power levels. GM4-PoE+ and GM4-HPoE models support IEEE 802.3af PoE (15W) and 802.3at PoE+ (30W) on each RJ-45 port. The GM4-HPoE models also provide 60 Watts of High-Power PoE (also called 4 Pair PoE, PoE++, or UPoE) to all RJ-45 ports.

The GM4 PoE NID supports carrier-class Ethernet Service OAM standards. IEEE 802.1ag Connectivity Fault Management (CFM) proactively monitors service availability and provides tools for rapid fault isolation. ITU-T Y.1731 Performance Monitoring provides the ability to monitor key SLA parameters including frame delay, frame delay variation and frame loss. These OAM features provide proactive fault detection and rapid isolation of potential service problems, enabling SLA assurance while reducing Operational costs (OPEX).

The GM4 PoE NID supports ITU-T Y.1564 and RFC 2544 service testing to easily verify the configuration and performance of Ethernet services prior to customer hand off. RFC 2544 provides per flow testing of Key Performance Indicators (KPI), such as throughput, latency, jitter and frame loss up to full wire speed. Y.1564 is a comprehensive Carrier Ethernet testing standard that tests all data flows and service attributes, including multi-flow Information Rate and Traffic Policing. Y.1564 tests all performance attributes simultaneously so testing is run quickly and efficiently, and can detect potential interaction between data flows.

The GM4 supports ITU-T G.8031 Ethernet Linear Protection Switching and G.8032v2 Ethernet Ring Protection Switching with Connectivity Check Messages (CCM) at 3.3ms rate for sub-50ms protection switching. G.8032v2 includes multi-ring protection and sub-ring support.

Zero-Touch Provisioning (ZTP) allows providers to achieve efficiencies in service activation that accelerate turn up and reduce the need for onsite technicians. ZTP allows service provisioning to be centralized, standardized and remotely managed.

The integrated management eliminates the cost and space required for external management hardware. The integrated management provides comprehensive remote configuration and performance monitoring.

The GM4 supports IPv4 and IPv6 addressing, IP-Less protocol using the IEEE 802.3ah OAM channel, SNMPv1/ v2c/v3, SSH, Telnet and serial console port.

The IP address is user-defined or can be resolved through DHCP. Telnet and serial console management interfaces are supported, and utilize an easy-to-use, menu-driven interface. The serial interface provides local configuration access.

SNMP management is available via Omnitron’s NetOutlook® SNMP Network Management Software with an intuitive Graphical User Interface, or third party SNMP software.

The GM4 Small Form Pluggable (SFP) standalone models support a wide variety of Gigabit and Fast Ethernet SFP transceivers in standard, CWDM and DWDM wavelengths.

The RJ-45 port supports 10/100/1000 and Half/Full-Duplex auto-negotiation and Pause control, with both hardware and software manual override controls. The module supports frame sizes up to 10,240 bytes.

The GM4-PoE+ and GM4-HPoE are available in 2, 4 and 5 port models, with up to four RJ-45 ports with PoE. They are DC powered, or available with an external AC to DC power adapter. Built-in mounting brackets provide table-top and wall-mounting capability, and can also be rack-mounted using the 19” 1U rack-mounting shelf or DIN-rail mounted using the optional DIN-rail Mounting Clips (8251-0).

Specifications

Description	iConverter GM4-PoE and GM4-HPoE 10/100/1000BASE-T Copper to 100/1000BASE-X Fiber Network Interface Device with Power over Ethernet
Standard Compliances	IEEE 802.1Q, 802.1ad, 802.1ax, 802.1p, 802.3, 802.3ad, 802.3ah, 802.1ag, 1588v2, 802.3af (15W), 802.3at (30W) and High-Power PoE (60W) RFC 2819 (RMON), 2863 (IF-MIB), 2131 (DHCP), 2544, 5357 ITU-T G.8031, G.8032, G.8262, Y.1731, Y.1564 MEF Carrier Ethernet 2.0 Certified, MEF 6.2, 9, 10.2, 14, 21, 26.1, 30, 31, 33
Regulatory Compliances	Safety: EMI: ACT	UL, cUL, CE, NEBS Level 3, UKCA FCC Class A TAA, BAA, NDAA
Environmental	REACH, RoHS and WEEE
Management	IPv4, IPv6, Telnet, SNMPv1, SNMPv2c, SNMPv3, SSH, Serial Console
Frame Size	Up to 10,240 bytes
Port Types	Copper: Fiber: Serial:	10/100/1000BASE-T (RJ-45) 100BASE-X (SFP) 1000BASE-X (SFP) RJ-45
Cable Types	Copper: Fiber: Serial:	EIA/TIA 568 A/B, Category 5 and higher Multimode: 50/125μm, 62.5/125μm Single-mode: 9/125μm EIA/TIA 568 A/B, Category 3 and higher
AC Power Requirements	AC Adapter:	100 - 240VAC/50 - 60Hz 2.8A @ 120VAC (max)
DC Power Requirements	DC Input:	48 - 57VDC PoE/PoE+ Models: 1 RJ-45 Port (30W), 0.83A @ 48VDC 2 RJ-45 Ports (60W), 1.50A @ 48VDC 3 RJ-45 Ports (90W), 2.13A @ 48VDC 4 RJ-45 Ports (120W), 2.74A @ 48VDC HPoE Models: 1 RJ-45 Port (60W), 1.45A @ 48VDC 2 RJ-45 Ports (120W), 2.70A @ 48VDC 3 RJ-45 Ports (180W), 4.01A @ 48VDC 4 RJ-45 Ports (240W), 5.24A @ 48VDC
Power Input	All models except 8991T-14, 8991T-23: 2.1 mm Barrel Connector or 3-Pin Terminal (isolated) For 8991T-14, 8991T-23 models: DIN-6 Connector or 3-Pin Terminal (isolated)
Dimensions W x D x H	5” x 7.5” x 1.375” (127 mm x 190.5 mm x 34.93 mm)
Weight	w/o Adapter: w Adapter:	1.38 lbs. (0.626 kg) 2.50 lbs. (1.13 kg)
Temperature	Commercial: Wide: Extended: Storage:	0 to 50°C -40 to 60°C (-20°C AC cold start) -40 to 75°C (-20°C AC cold start) - not supported with AC/DC Power Adapter -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	8991S-11, 8991T-11: 8991S-14, 8991L-14: 8991T-14: 8991S-22, 8991T-22: 8991S-23, 8991L-23: 8991T-23:	77,258 73,708 98,980 75,328 73,918 99,360
Warranty	3 year warranty with 24/7/365 free Technical Support

GM4 PoE+ and GM4 HPoE Port Configuration

There are six possible connector positions on the front of the GM4.

Position 1 and 2 are SFP ports. Position 3, 4, 5 and 6 are RJ-45 ports.

The placement of the connectors will depend on the model. See ordering table for port configuration.

Port Position gm4 poe
