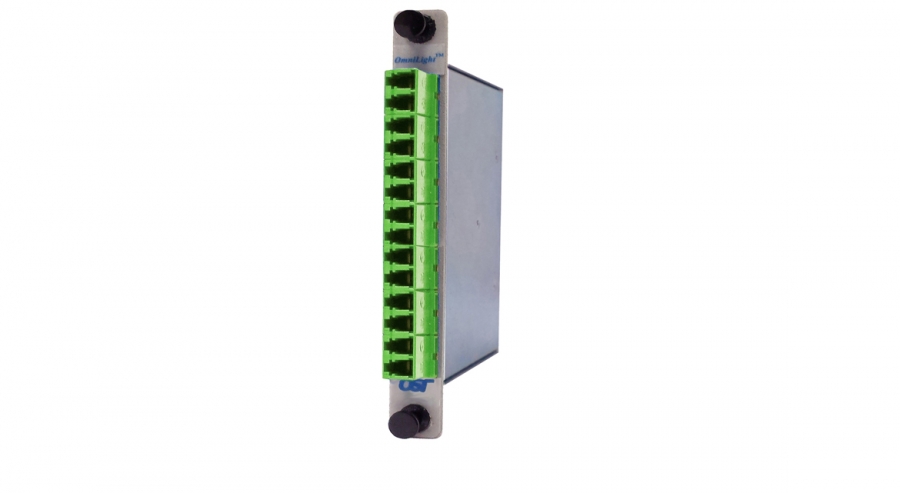

OmniLight® 5 Channel Single-Fiber CWDM Multiplexer/Demultiplexer



Features


Supports five bidirectional data channels for access or transport networks

  • Supports ten unidirectional data channels for cable operator data/video overlay networks
  • 1310nm Pass Band Port to transport legacy services
  • Optional OTDR port
  • Protocol and rate transparent for applications up to 10Gbps
  • Industry standard LC/APC connectors
  • Half-size LGX Form Factor
  • Commercial (0 to 50°C) and extended (-40 to 85°C) temperature ranges
  • One (1) year Warranty and Free 24/7/365 Technical Support




Description


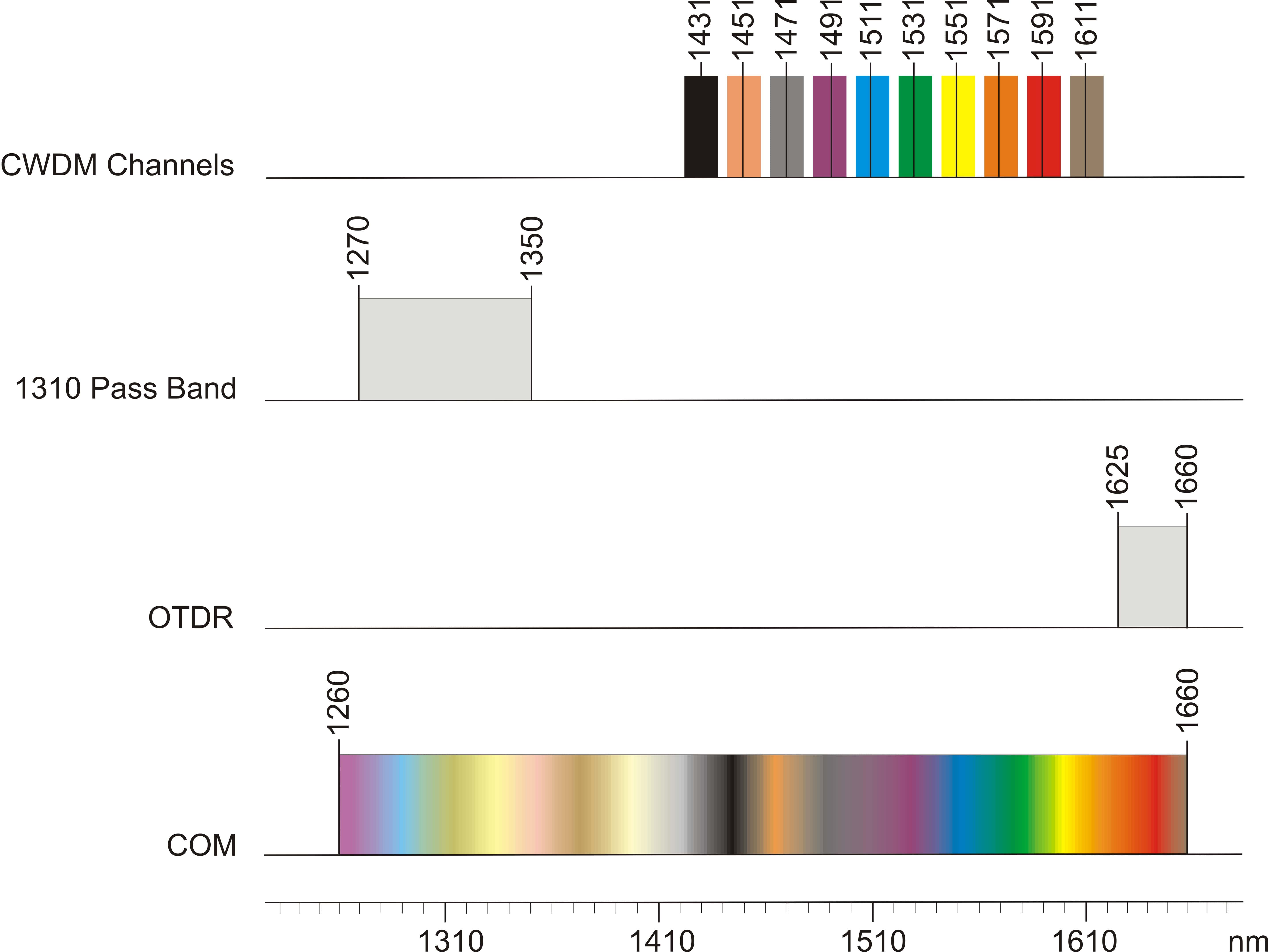

The OmniLight half-size LGX 5-Channel Single-Fiber CWDM Multiplexer/Demultiplexer (MUX/DEMUX) modules support ITU-T G.694.2 wavelengths between 1431nm to 1611nm in 20nm increments with a 1310nm Pass Band Port. An optional Optical Time Domain Reflectometer (OTDR) port is available which provides the ability to test the integrity of the fiber optic link without disturbing the wavelength channels.

These CWDM modules are protocol and rate transparent allowing different services up to 10Gbps to be transported across the same common fiber link.

OmniLight family of LGX form factor CWDM and DWDM passive optical modules and chassis support the highest port density available in the LGX form factor.

OmniLight optical modules are passive devices that require no external power. They can be installed in any OmniLight chassis.

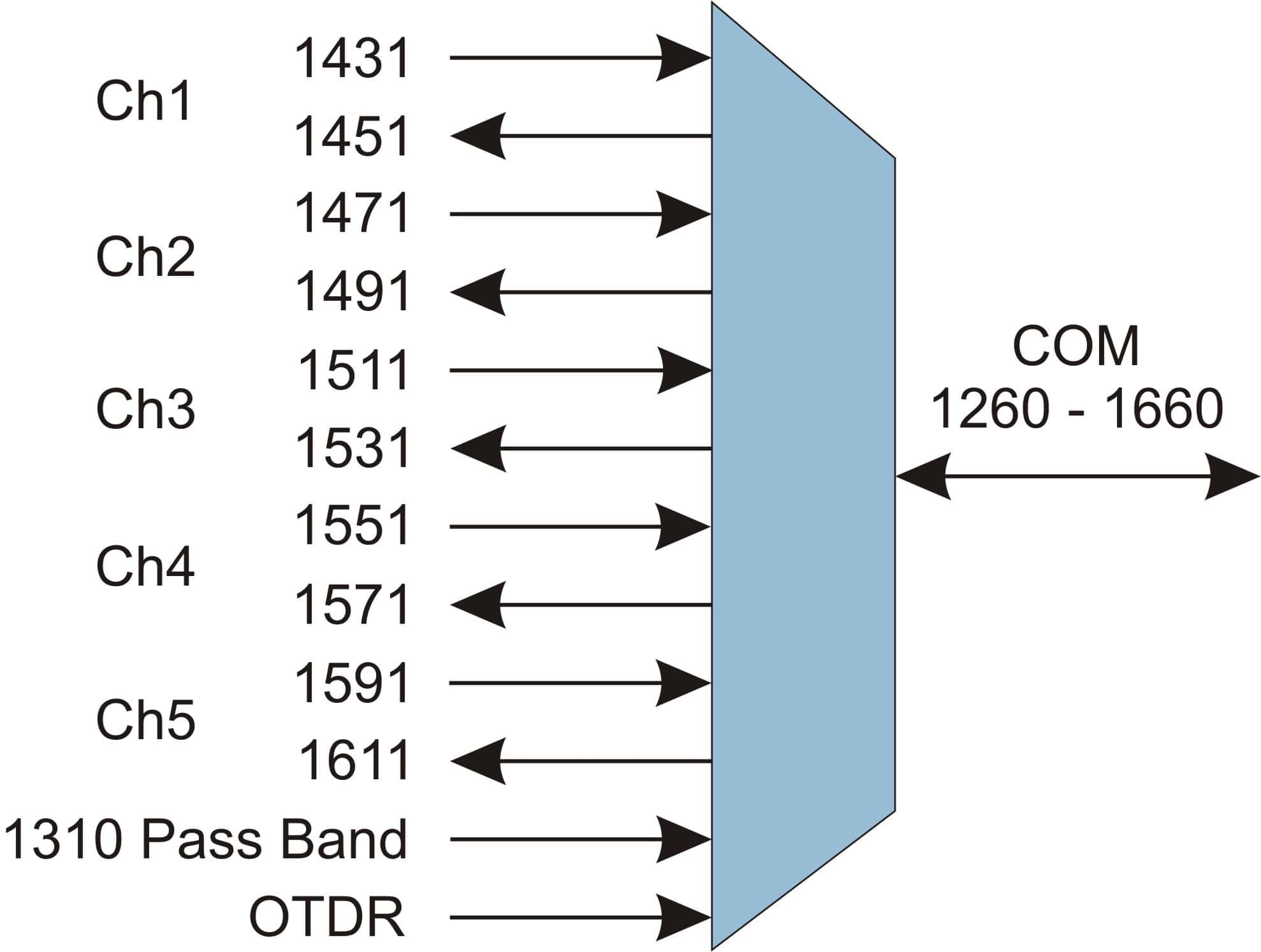

Functional diagram of the 5-Channel Single-Fiber CWDM MUX/DEMUX with 1310nm Pass Band and optional OTDR



The 5-Channel Single-Fiber MUX/DEMUX can be configured to operate as a 10-Channel Single-Fiber MUX or a 10-Channel Single-Fiber DEMUX.



Block_Diagram_MUX-5.jpg Block_Diagram_DEMUX.jpg

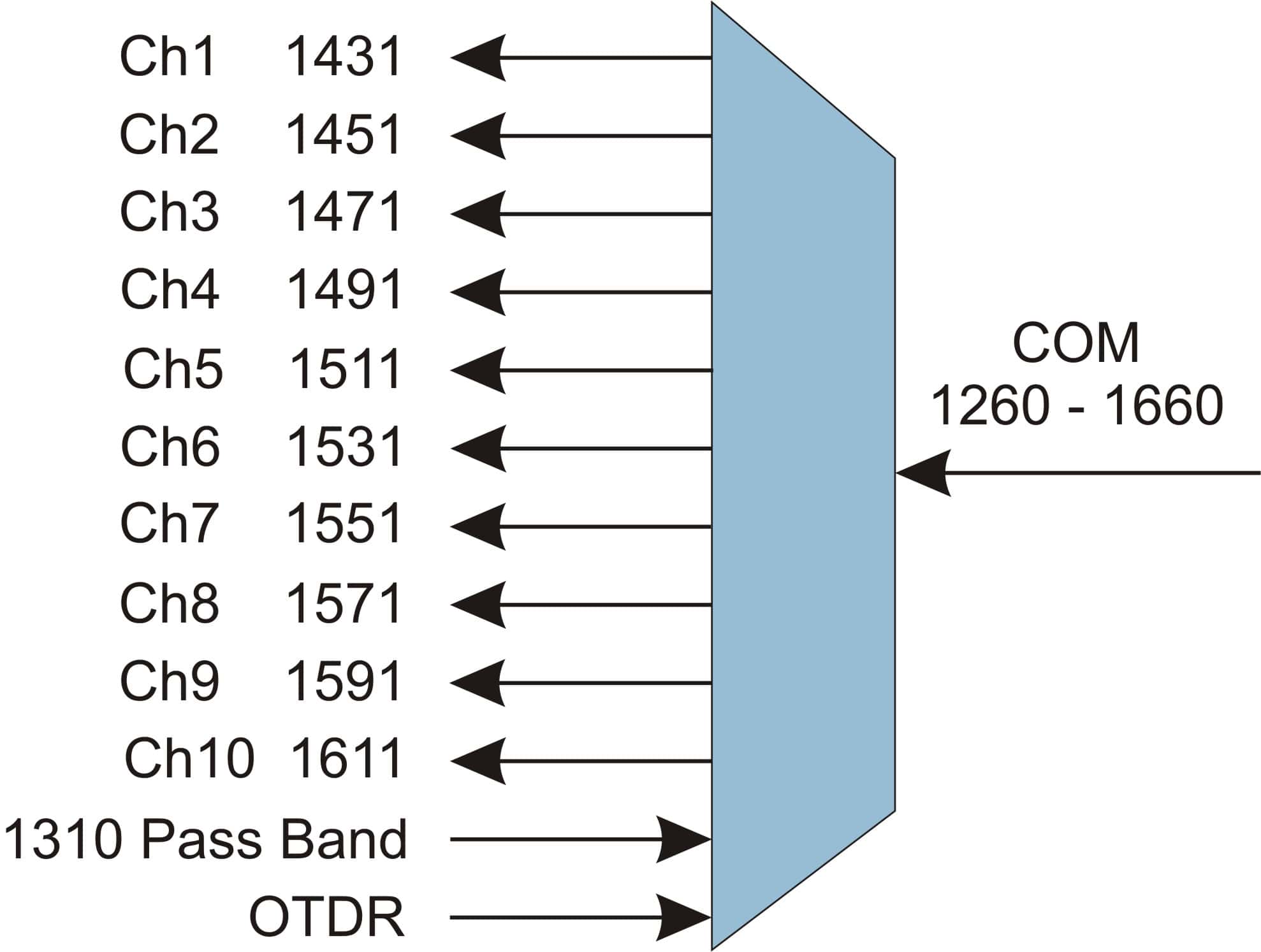

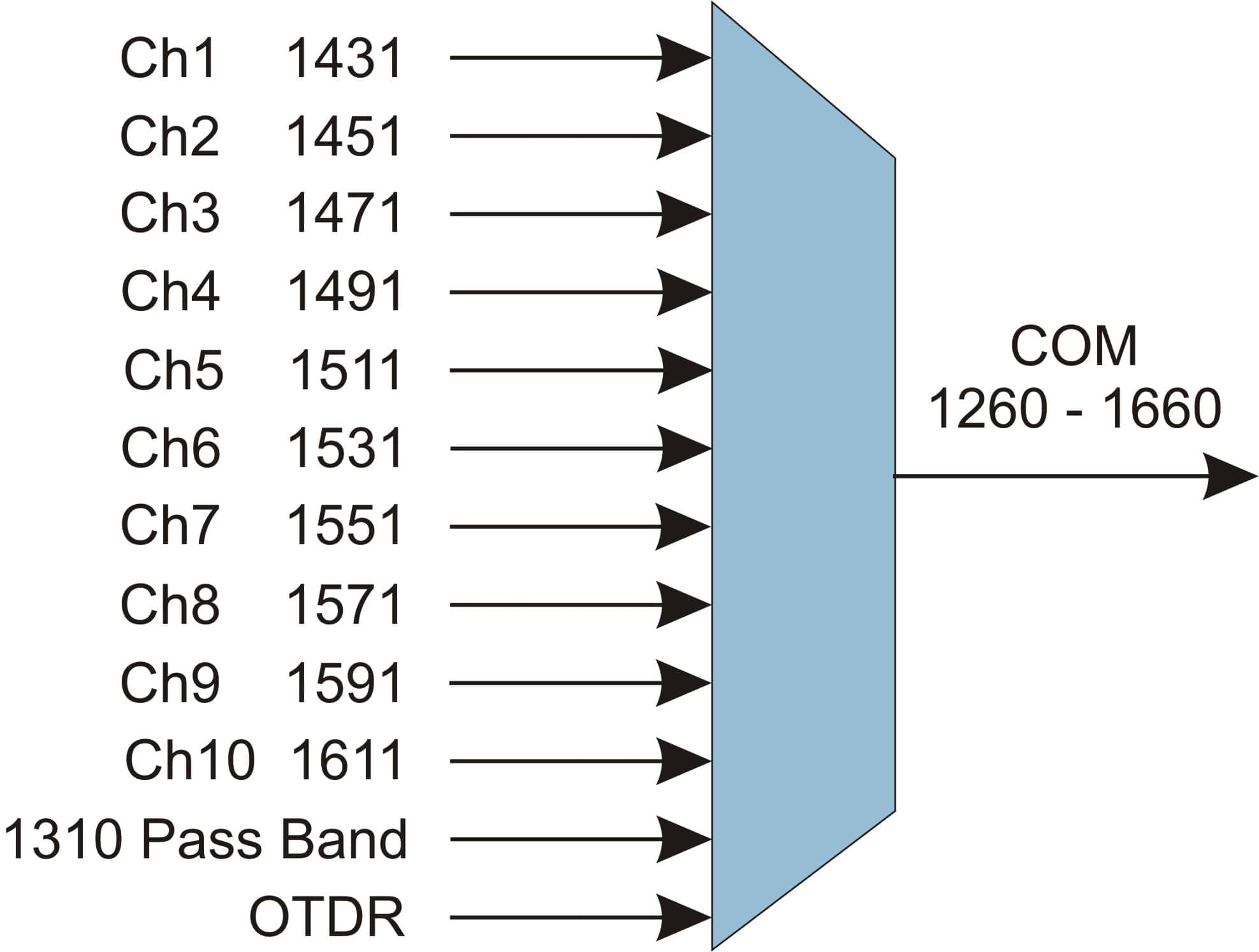

Functional diagram of the 10-Channel Single-Fiber CWDM MUX (on the left) or DEMUX (on the right) with 1310nm Pass Band and optional OTDR





Specifications


Description
OmniLight CWDM/X
5-Channel Single-Fiber CWDM MUX/DEMUX
Regulatory Compliances
Telecordia GR-1209, GR-1221
UL, CE, RoHS2 (6/6), WEEE, REACH
Port Types
Fiber:
5 Channel: LC (UPC)
Cable Types
Fiber:

Channel Ports:
Common Port:
Single-mode: 9/125μm (OM1)

Dual Fiber or Single-Fiber
Dual Fiber
Dimensions
W: 0.562” x D: 3.0” x H: 5.10”
L: 14.3 mm x B: 76.2 mm x H: 129.5 mm
Weight
7 oz.; 200 grams
Temperature
Commercial:
Extended:
Storage:
    0 to 50°C
 -40 to 85°C
 -40 to 85°C
Humidity
5 to 95% operational (non-condensing)
0 to 95% storage
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
> 1,000,000
Warranty
One (1) year warranty with 24/7/365 free Technical Support





Optical Characteristics
Parameter
Units
Values
Common Port
Operating Wavelength
dB
1260 - 1660
CWDM Center Channel


dB


1431, 1451, 1471, 1491,
1511, 1531, 1551, 1571,
1591, 1611
CWDM Channel Spacing
dB
20
1310 Pass Band
dB
1270 - 1350
CWDM Pass Band Width
dB
± 6.5
OTDR
dB
1625 - 1660
Ripple over Pass Band
dB
≤ 0.5
1431 CWDM Insertion Loss*
dB
Typical 4.4, Max 5.0
1451 CWDM Insertion Loss*
dB
Typical 4.0, Max 4.7
1471 CWDM Insertion Loss*
dB
Typical 3.7, Max 4.4
1491 CWDM Insertion Loss*
dB
Typical 3.4, Max 4.1
1511 CWDM Insertion Loss*
dB
Typical 3.1, Max 3.8
1531 CWDM Insertion Loss*
dB
Typical 2.8, Max 3.5
1551 CWDM Insertion Loss*
dB
Typical 2.5, Max 3.2
1571 CWDM Insertion Loss*
dB
Typical 2.2, Max 2.9
1591 CWDM Insertion Loss*
dB
Typical 1.9, Max 2.6
1611 CWDM Insertion Loss*
dB
Typical 1.6, Max 2.3
1310 Pass Band Insertion Loss*
dB
Typical 0.8, Max 1.0
OTDR Insertion Loss*
dB
Typical 1.4, Max 2.5
Adjacent Channel Isolation
dB
≥ 30
Insertion Loss Thermal Stability
dB
≤ 0.006
Wavelength Thermal Stability
dB
≤ 0.002
Polarization Dependent Loss (PDL)
dB
≤ 0.15
Polarization Mode Dispersion (PMD)
dB
≤ 0.15
Return Loss
dB
≥ 45
Directivity
dB
≥ 55
*Note – Above specs includes connector loss










Ordering


Model NumberDescription
5900-03
  5-Channel Single-Fiber CWDM MUX/DEMUX with 1310 Pass Band
5900-04
  5-Channel Single-Fiber CWDM MUX/DEMUX with 1310 Pass Band and OTDR



Model Number
Description
5800-1
  OmniLight 14-Module 3-RU Passive Optical Chassis
5800-5
  OmniLight 3-Module 1-RU Passive Optical Shelf
5800-20
   23” Rack Mount Extender
5800-21
   Wall Mount Bracket
