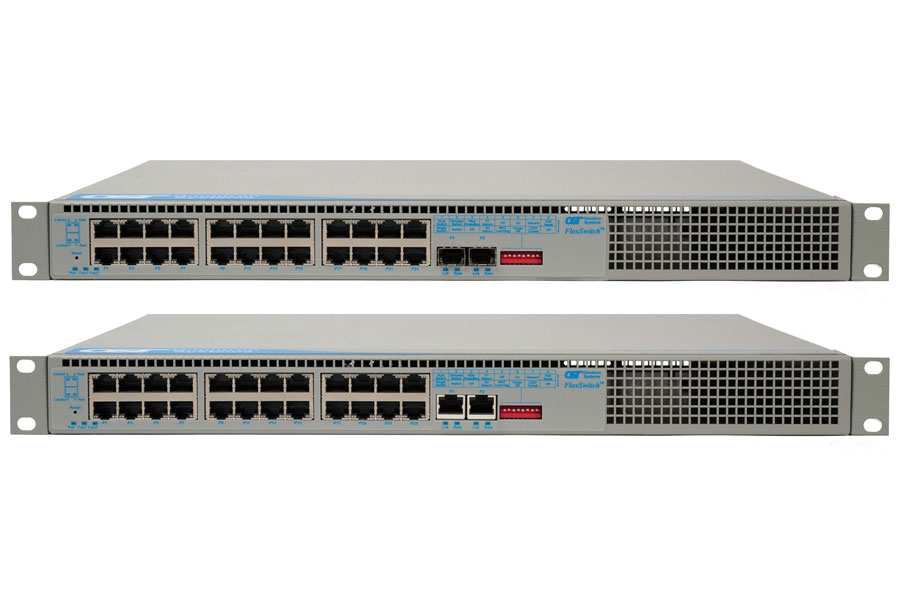

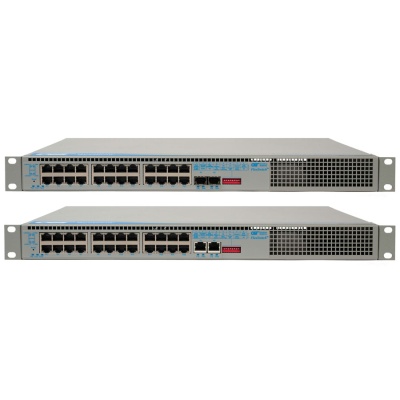

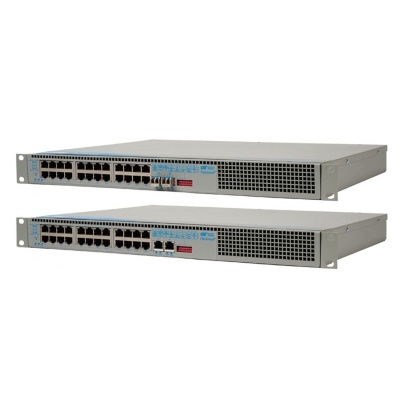

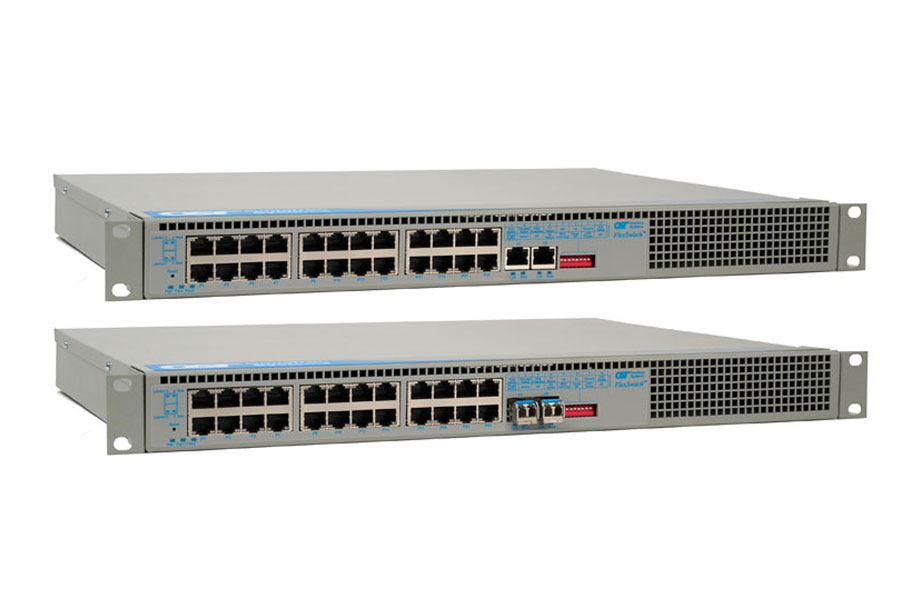

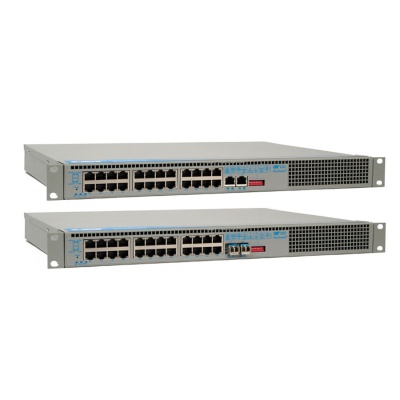

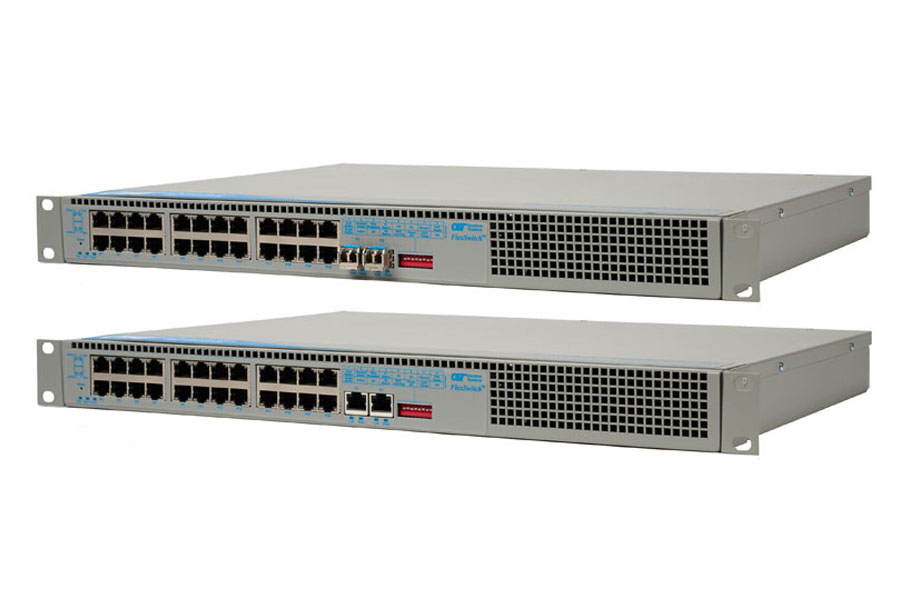

Unmanaged 24 Port 10Gigabit Ethernet Switch

FlexSwitch® 10GR/Sx

flexswitch-10gr-sx
The FlexSwitch 10GR/Sx is an unmanaged Ethernet switch that features two 1/10G SFP/SFP+ or multi-gigabit/ multi-rate RJ-45 uplink ports and twenty-four 10/100/1000 RJ-45 copper ports. This layer 2 switch is ideal for connecting computers and servers in a high density office environment. The RJ-45 u ...Read more


Features
  • Unmanaged 24 port Ethernet switch
  • 2x SFP/SFP+ or 2x RJ-45 Multigigabit uplink ports
  • Dual Device mode for operating as two separate switches
  • Directed Switch mode prevents flooding of multicast video traffic
  • TAA, BAA and NDAA compliant, and Made in the USA
icons
Add to Quote
  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

The FlexSwitch 10GR/Sx is an unmanaged Ethernet switch that features two 1/10G SFP/SFP+ or multi-gigabit/ multi-rate RJ-45 uplink ports and twenty-four 10/100/1000 RJ-45 copper ports. This layer 2 switch is ideal for connecting computers and servers in a high density office environment.

The RJ-45 uplink ports support multi-gigabit/multi-rate speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps.

The switch supports Dual Device mode, Directed Switch mode and Redundant Uplinks.

Dual Device mode enables the switch to operate as two independent and isolated switches. In Dual Device mode, the switch provides separate and independent traffic paths, each supporting one uplink port and twelve user ports.

Directed Switch mode directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.

Redundant fiber or copper uplinks provide protection and restoration for critical applications. In the event of a failure on the primary uplink port, the switch will failover to the secondary uplink port.

For daisy-chain applications, the second uplink port can be used to cascade multiple switches.

The mode of operation is configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the front of the FlexSwitch for ease of identification and use.

The switches feature Small Form Pluggable (SFP) transceiver receptacle ports supporting a variety of copper and fiber transceivers. It supports multi-gigabit copper transceivers and 1G and 10G fiber transceivers in standard, CWDM and DWDM wavelengths.

An alarm relay is available to detect he status of the input power to the switch. The relay contact can be configured for normally open or normally closed operation. One alarm input is available for detecting external events such as door open or closed.

The switch can be 19” rack mounted using the attached rack-mount brackets. They are available with an internal 100 to 240V AC power supply or with a DC terminal connector.

Description

FlexSwitch 10GR/Sx

Unmanaged 10Gigabit Ethernet Switch with Multi-Gigabit/Multi-Rate Uplink Ports
Standard Compliances

IEEE 802.3

Regulatory Compliances

(*Pending)

Safety*: UL 62368-1, UL 60950-1,

            IEC 62368-1, IEC 60950-1,

            EN 62368-1, EN 60950-1,

            CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

            CE Mark, UKCA

EMC:   EN 55032/24 CE Emissions/Immunity,

            IEC 61000-6-4 Industrial Emissions,

            IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

            IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

            IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

            IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

            IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

            IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

            IEC 61000-4-6 CS: Signal: 10 V,

            IEC 61000-4-8 (Magnetic Field) 30A/m,

            IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP30D Protection

ACT: TAA, BAA,NDAA
Environmental RoHS, WEEE, REACH
Frame Size Up to 10,240 bytes
Port Types

Copper:      100/1000BASE-T, 2.5GBASE-T/5GBASE-T/10GBASE-T (RJ-45 Uplink Ports)

                   10/100/1000BASE-T (RJ-45 User Ports)

SFP/SFP+:  10GBASE-X Fiber Transceivers,   10GBASE-T Copper Transceivers

                   1000BASE-X Fiber Transceivers, 1000BASE-T Copper Transceivers

                   10/100/1000BASE-T SGMII Copper Transceivers
Cable Types

Copper:  RJ-45 User Ports

               EIA/TIA 568A/B, Cat 5 UTP and higher

               RJ-45 Uplink Ports

               10BASE-T: Cat 3, 4, 5, 5e, 6, 6A

               100BASE-TX: Cat 5, 5e, 6, 6A

               1G/2.5G: 4-pair Cat 5e, 6, 6A, 7

               5G: 4-pair Cat 6, 6A, 7

              10G: 4-pair Cat 6A, 7

Fiber:     Multimode: 50/125, 62.5/125µm

              Single-mode: 9/125µm
AC Power Requirements (Internal AC Power Supply)

100 - 240VAC/50 - 60Hz

1.5A max at 115VAC, 1.0A max at 230VAC

IEC 320 Socket
DC Power Requirements
(Models with DC Terminals)

+12 to +57VDC; 0.67A @ 56VDC

4 Pin Terminal (isolated)
Alarm Contact (Output)

2 form C Relay for Normally Open and Normally Closed Operation

110VDC/125VAC Maximum Voltage, 2A Maximum Current
Alarm Sensor (Input) 2.0ma @ 3.3VDC Closure Detection
Dimensions (W x D x H) 17.375” x 14” x 1.75” (441.3 mm x 355.6 mm x 44.45 mm)
Weight

8.9 lbs (4037 grams)
Operating Temperature*

Commercial: 0 to 50°C

Wide:         -40 to 60°C (-20°C AC cold start)

Extended:  -40 to 75°C

Storage:     -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs)

AC Model: 49,800

DC Model: 81,000
Warranty 5 year product warranty with 24/7/365 free Technical Support
  • 19” Rack-Mounted Unmanaged 24 port Ethernet switch
  • Dual Device mode for operating as two separate switches
  • Directed Switch mode prevents flooding of multicast video traffic
  • Uplink redundancy
  • Two SFP/SFP+ transceiver uplink ports or multi-gigabit/multi-rate copper ports
  • 1/10G SFP/SFP+ standard/CWDM/DWDM fiber transceiver uplink ports
  • SFP/SFP+ uplink ports support copper and fiber transceivers
  • Multi-gigabit/multi-rate RJ-45 uplink ports support speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps
  • Twenty-four 10/100/1000 RJ-45 user ports
  • Alarm contacts and sensors
  • Internal AC to DC Power Supply or DC terminal connector
  • Commercial (0º to 50ºC), wide (-40º to 60ºC) and extended (-40º to 75ºC) operating temperature ranges
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Free 24/7/365 Technical Support

Office Application

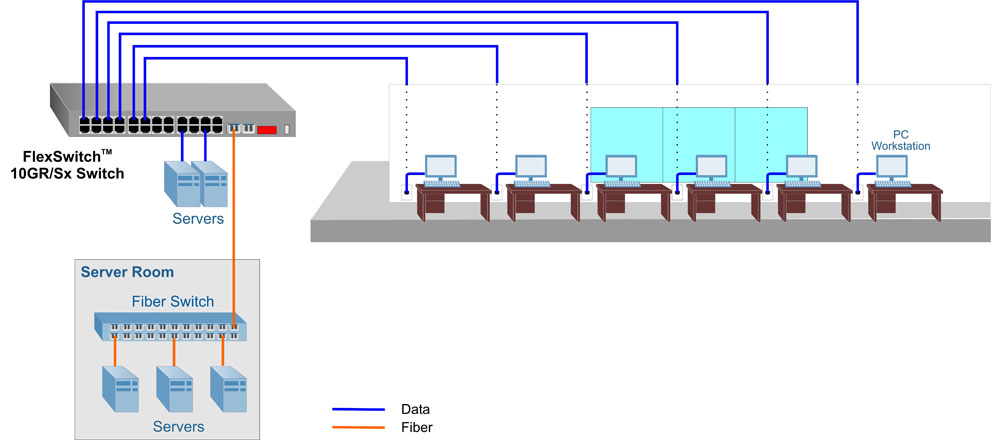

In this application example, a FlexSwitch 10GR/Sx switch is providing connectivity to multiple Workstations in an office environment. Additional workstations can be connected. Local and remote servers are connected either directly to the switch or connected via fiber to the Server Room.



FlexSwitch 10GRPoE Sx Office App



Step 1: Choose the Base Part Number (6905-x0-0pt)

Model NumberDescription
6905-00-0pt FlexSwitch 10GR/Sx 2 x SFP/SFP+ uplink ports, 24 x 10/100/1000 ports, rack mount
6905-10-0pt* FlexSwitch 10GR/Sx 2 x 100/1G/2.5G/5G/10G RJ-45 uplink ports, 24 x 10/100/1000 ports, rack mount
Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Omnitron Optical Transceivers web page.

Step 2: Choose the Power Option (6905-x0-0pt)

1 = IEC 320 Socket, Internal 100 - 240 VAC Power Supply, with Power Cord
9 = Direct DC terminal connector, 12V to 57VDC

Step 3: Choose the Operating Temperature Range Option (6905-x0-0pt)

= Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C) - Check table for available wattage for models with AC/DC Power Adapter
Z = Extended temperature (-40 to 75°C) - Check table for available wattage for models with AC/DC Power Adapter







Accessories

Model NumberDescription
 8092-1  19” Rack Mount Kit (included with chassis)
 8092-2 23” Rack Mount Kit
 8092-3 ETSI Rack Mounting Kit

FlexSwitch 10GR/Sx (Data Sheet)

FlexSwitch 10GR/Sx (User Manual)
