100M/1G to 1G/10G Fiber-to-Fiber Media Converter

iConverter® 10GXX

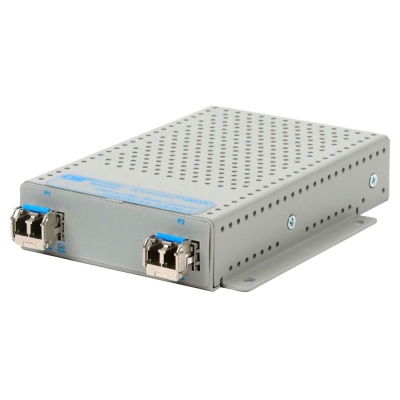

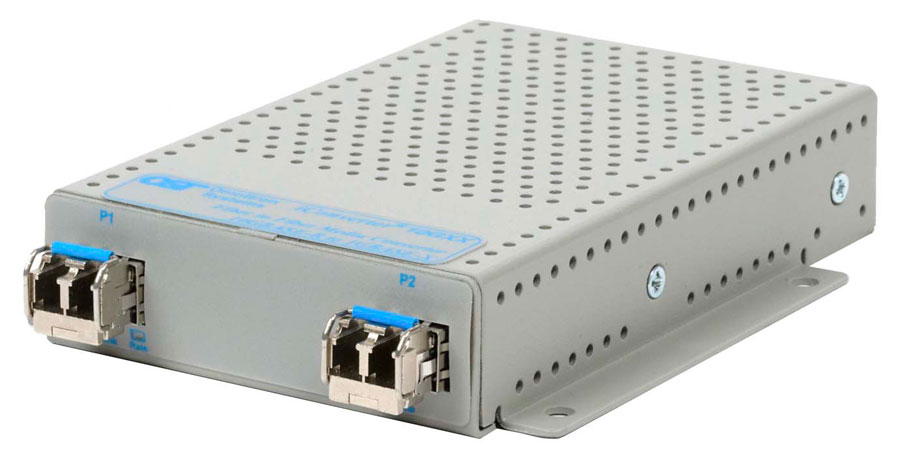

iconverter_10gxx_image
The iConverter 10GXX is a 100M/1G SFP fiber to 1G/10G SFP/SFP+ rate-switching fiber media converter. The 10GXX supports 100BASE-X or 1000BASE-X and 1000BASE-X or 10GBASE-R Small Form Pluggable transceivers. The 100M/1G SFP transceiver port supports autonegotiation. The iConverter 10GXX supports fr ...Read more


Features
  • Converts 100Mbps or 1Gbps fiber to 1Gbps or 10Gbps fiber
  • Supports 100M/1G SFP and 1G/10G SFP/SFP+ transceivers
  • SFP+ port supports multi-gigabit 100M/1G/2.5G/5G/10GBASE-T transceivers
  • Supports multimode, single-mode, dual-fiber and single-fiber transceivers
  • Made in the USA and TAA, BAA and NDAA compliant
icons
  • Description
  • Features
  • Specifications
  • Applications
  • Ordering

The iConverter 10GXX is a 100M/1G SFP fiber to 1G/10G SFP/SFP+ rate-switching fiber media converter. The 10GXX supports 100BASE-X or 1000BASE-X and 1000BASE-X or 10GBASE-R Small Form Pluggable transceivers.

The 100M/1G SFP transceiver port supports autonegotiation.

The iConverter 10GXX supports frame sizes from 64 bytes to 10,240 bytes and supports a variety of Link Modes to facilitate quick fault detection, isolation, and reporting.

The media converters support a variety of copper and fiber SFP transceivers. They support 10/100/1000BASE-T and 1000BASE-T copper transceivers and 100M, 1G and 10G multimode or single-mode fiber, dual or single-fiber transceivers in standard, CWDM and DWDM wavelengths.

The SFP+ transceiver port supports multi-gigabit 100M/1G/2.5G/5G/10GBASE-T transceivers.

The compact standalone media converters can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting clip (8251-0). They can also be mounted on a 1U 19” rack-mount shelf. They are available with DC input power via terminal connector or an external 100 to 240VAC power adapter.

Description 100M/1G SFP Fiber to 1G/10G SFP/SFP+ Fiber Media Converter
Standard Compliances IEEE 802.3, 802.3u, 802.3ab, 802.3z and 802.3ae
Regulatory Compliances *Pending

Safety: UL/IEC 62368-1, UL/IEC 60950-1/ CUL CSA C22.2 No. 60950; EN 60950-1:2006

CE Mark, UKCA

EMI: FCC 47CFR, Part 15 Class A,

AS/NZS 3548, AS/NZS 4417.1 and AS/NZS 4417.2,

ICES-003 Issue 3,

EN 55032/CISPR 22 and EN55035,

EN61000-3-2,

VCCI V3/2001.04 (CISPR 22A:1997, Class A)

EMS: IEC 61000-4-2 ESD: Contact Discharge: +/- 8 kV; Air Discharge: +/- 15 kV,

IEC 61000-4-3 Radiated: 80 MHz to 1 GHz: 1.4GHz to 2.0GHz; 5 v/m, 2.0GHz to 2.7GHz; 5 v/m,

IEC 61000-4-4 EFT: DC power line +/- 4 kV, Data Line +/- 4kV),

IEC 61000-4-5 Surge: DC power line, Line/Line +/- 2kV, Line/Earth +/- 2kV, data line /earth +/- 2kV ; Common mode and Differential mode,

IEC 61000-4-6 Conducted: 150kHz to 80 MHz; 10Vrms, IEC 61000-4-8 Magnetic Field: 30A/m (Magnetic Field) (Power Frequency Magnetic Field Immunity Test),

IEC 61000-4-11 Voltage Dips: 70% dip, 40% variation

IP Rating: IP30D Protection

ACT: TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size Up to 10,240 bytes
Port Types

Access:





Uplink:

100BASE-X Fiber Transceivers, 1000BASE-X Fiber Transceivers,

1000BASE-T Copper Transceivers, 10/100/1000BASE-T SGMII Copper Transceivers

1000BASE-X Fiber Transceivers,

10GBASE-X Fiber Transceivers, 10GBASE-T Copper Transceivers

10/100/1000/2.5G/5G/10GBASE-T Multi-rate Copper Transceivers
Cable Types Fiber:

Multimode: 50/125, 62.5

Single-mode: 9/125µm
AC Power Requirements (Models with AC/DC Adapter)

100 - 240VAC/50 - 60Hz

0.93A @ 240VAC (max)

Barrel Connector
DC Power Requirements (Models with DC Terminal)

9 to 16VDC;

0.54A @ 12VDC

2 Pin Terminal
Dimensions
W x D x H

3.8” x 4.8” x 1.0” (96.5 mm x 121.9 mm x 25.4 mm)
Weight

Module Only: 1.0 lbs. (454 grams)

w/ Adapter: 1.5 lbs. (680 grams)
Temperature
Commercial:
Wide:
Industrial:
Storage:
 0 to 50°C
-40 to 60°C (-20°C AC cold start)
-40 to 75°C (-20°C AC cold start)
-40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hrs)

Module Only: 489,830

AC/DC Adapter: 100,000
Warranty Lifetime warranty with 24/7/365 free Technical Support
  • 10GXX is a 100M/1G fiber to 1G/10G fiber media converters
  • Conforms to IEEE 802.3u, 802.3ab, 802.3z and 802.3ae specifications
  • The 10GXX supports 100M or 1G SFP and 10G SFP+ transceivers
  • Supports 10/100/1000BASE-T and 1000BASE-T, copper transceivers
  • Supports dual fiber and single-fiber SFP/SFP+ transceivers for standard, CWDM or DWDM wavelengths
  • RJ-45 copper port supports 10/100/1000 and Half/FullDuplex auto-negotiation and MDI/MDIX auto-crossover
  • 10,240 byte jumbo frames
  • User-selectable link fault detection modes facilitate quick fault detection, isolation and reporting
  • Automatic Link Recovery
  • Commercial (0 to 50°C), wide (-40 to 60°C) and extended (-40 to 75°C) temperature ranges
  • TAA, BAA and NDAA Compliant, and Made in the USA
  • Lifetime warranty and free 24/7/365 Technical Support

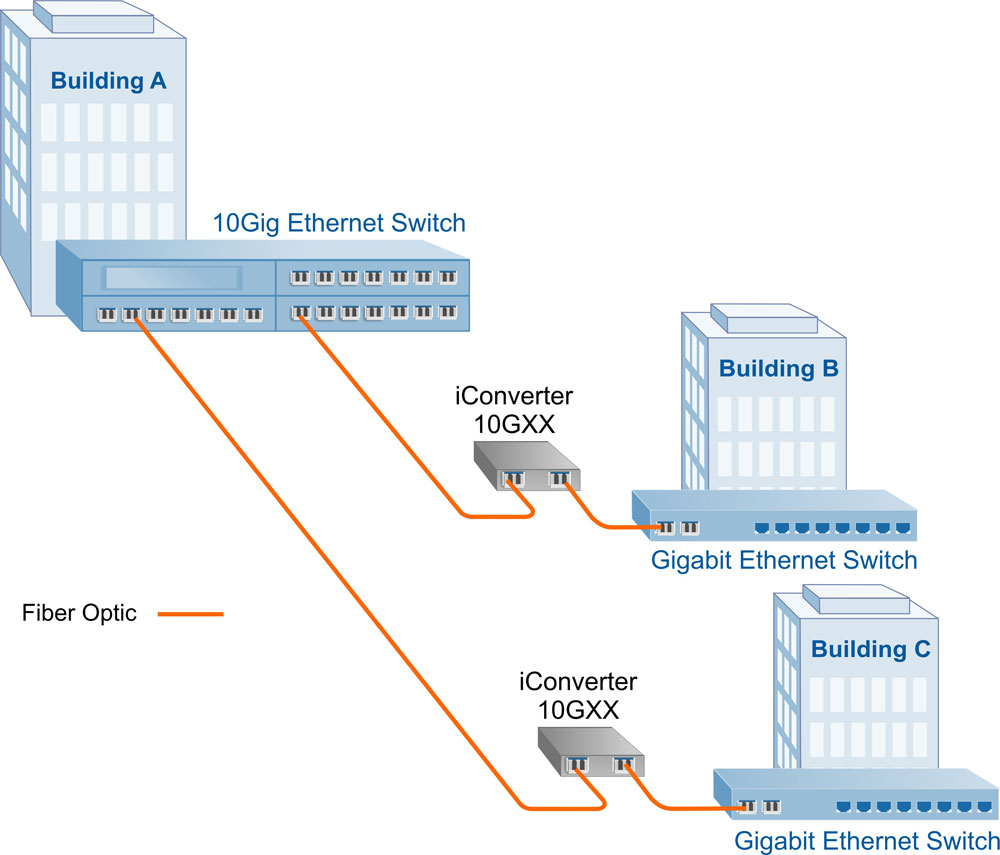

In this application example, the 10GXX media converters are deployed in a star topology network with fiber links distributed from a central location.

At Building A, a 10G fiber switch is providing multiple fiber links to the remote buildings.

At Building B and C, the iConverter 10GXT media converters provide a 1G fiber connection to a gigabit Ethernet switch in the building.

The media converters support Link Modes used to provide network notification of fiber faults. Link failures on any port are propagated to managed network switches, notifying network administrators of link failure.






Step 1: Choose a Base Part Number (8585N-x-pt)

Model Number
  Description
8585N-0-pt iConverter 10GXX SFP Receptacle to SFP/SFP+ Receptacle
Order the appropriate SFPs separately.Visit the Omnitron Optical Transceivers web page.

 Step 2: Choose a Power Option (8585N-x-pt)

Models without Integrated Mounting Brackets
A = Barrel Connector and AC/DC Power Adapter, 100-240VAC, 50-60Hz, with US power cord without integrated mounting brackets
B = Barrel Connector and Universal AC/DC Adapter, 100-240 VAC, 50-60Hz, No Power Cord, without integrated mounting brackets
C = Direct DC input, 2 pin terminal connector, no AC/DC power adapter, without integrated mounting brackets
G = No AC/DC Adapter provided, without integrated mounting brackets
Models with Integrated Mounting Brackets
D = Barrel Connector and AC/DC Power Adapter, 100-240VAC, 50-60Hz, with US power cord with integrated mounting brackets
E = Barrel Connector and Universal AC/DC Adapter, 100-240 VAC, 50-60Hz, No Power Cord, with integrated mounting brackets
F = Direct DC input, 2 pin terminal connector, no AC/DC power adapter, with integrated mounting brackets
H = No AC/DC Adapter provided, with integrated mounting brackets

Step 3: Choose an Operating Temperature Range (8585N-x-pt)

= Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)
Z = Extended temperature (-40 to 75°C)





Accessories

Model Number Description
8250-0  DIN Rail Mounting Kit
8251-0 DIN Rail Mounting Clip
8260-0 1U Rack Mount Shelf (four module per shelf)
