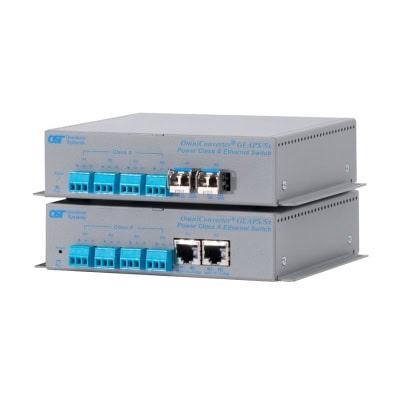

The OmniConverter GLAPS/Sx is an unmanaged Single Pair Ethernet (SPE) switch that features copper or fiber uplink ports and four single-pair 10BASE-T1L copper ports designed for digital instrumentation solutions used for Industrial process automation applications. The SPE switch can be deployed in a ...Read more

Features
  • Unmanaged 4-Port 10BASE-T1L Single Pair Ethernet PSE Switch
  • Interoperable with Class A and C spur edge/field devices with 1.0 V peak-to-peak signal amplitude
  • Interoperable with Class 3 and 4 trunk edge/field devices with 2.4 V peak-to-peak signal amplitude
  • Up to 92 watts per 10BAST-T1L port
  • SFP transceiver uplink port or 10/100/1000 copper port
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents
  • Unmanaged 4-Port 10BASE-T1L Single Pair Ethernet PSE Switch
  • Dual Device mode for operating as two separate switches
  • Directed Switch mode prevents flooding of multicast traffic
  • Uplink redundancy
  • Supports four 3-pin terminal or IEC 63171-2 connector
  • Interoperable with Class A and C spur edge/field devices with 1.0 V peak-to-peak signal amplitude
  • Interoperable with Class 3 and 4 trunk edge/field devices with 2.4 V peak-to-peak signal amplitude
  • Up to 92 watts per 10BAST-T1L port
  • SFP transceiver uplink port or 10/100/1000 copper port
  • 100/1000 SFP standard/CWDM/DWDM fiber transceiver uplink port
  • Uplink port supports copper and fiber SFP transceivers
  • 2-Pin DC terminal
  • Wall, Rack and DIN-rail mountable
  • Commercial (0º to 50ºC), wide (-40º to 60ºC) and extended (-40º to 75ºC) operating temperature ranges
  • TAA, BAA and NDAA compliant, and Made in the USA
  • Free 24/7/365 Technical Support

Industrial Process Automation

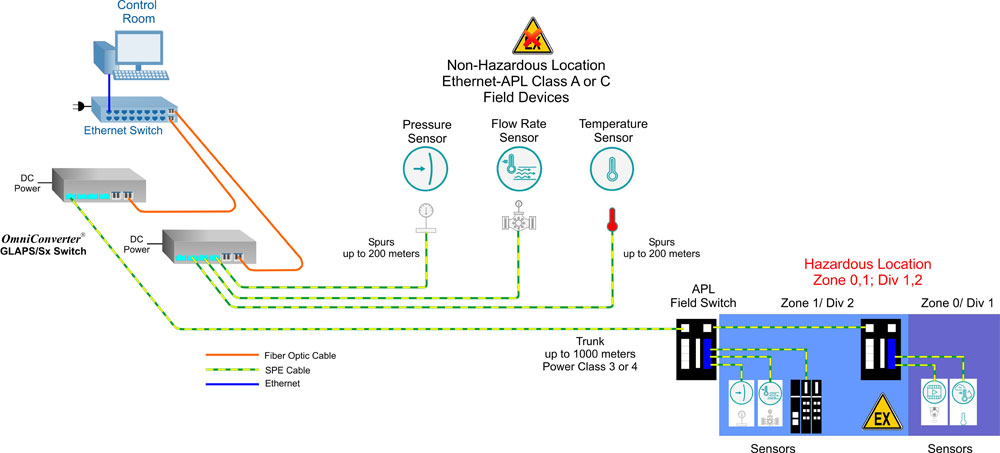

For applications where the industrial processing sensors exceed the copper Ethernet distance from the Environmental Control Room, an OmniConverter GLAPS/Sx 10BASE-T1L Single Pair Ethernet switch can be used to extend a fiber connection to within the copper distance of the sensors. The OmniConverter GLAPS/Sx extends a 10Mbps Ethernet copper connection to the industrial processing sensors using SPE cabling. Three Ethernet-APL Field Devices are connected up to 200 meters across a spur connection in a non-hazardous area. A fourth is extended across a trunk connection up to 1000 meters to an Ethernet-APL Field Switch in a hazardous area.

GLAPS SxApp 1

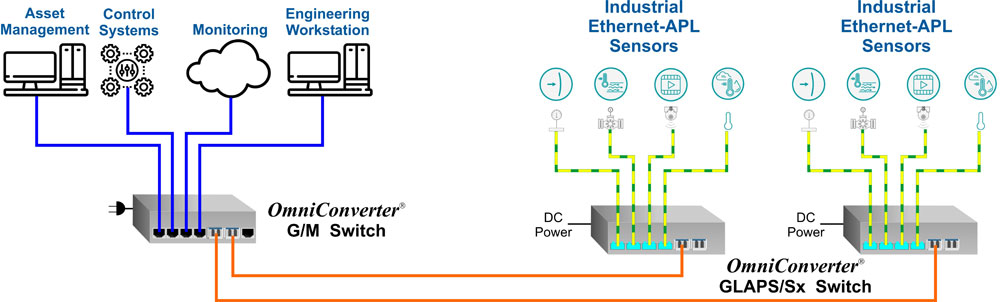

To monitor and control Ethernet-APL Field Devices in an Industrial Warehouse, a GLAPS/Sx 10BASE-TL1 Single Pair Ethernet switch is used to power the field devices and connect to the different monitoring and control systems.

GLAPS Sx App 2

Step 1: Choose a Base Part Number (29xx-x-4c-9t)

Model NumberDescription
2952-0-4c-9t 4 x 10BASE-T1L PSE + 2 x 100/1000 SFP Ports, 1.0V, Class A, Direct DC input, +24 to +48VDC
2952-1-4c-9t 4 x 10BASE-T1L PSE + 2 x 10/100/1000 RJ-45 Ports, 1.0V, Class A, Direct DC input, +24 to +48VDC
2937-0-4c-9t 4 x 10BASE-T1L PSE + 2 x 100/1000 SFP Ports, 1.0V, Class A, Direct DC input, +12 to +15VDC
2937-1-4c-9t 4 x 10BASE-T1L PSE + 2 x 10/100/1000 RJ-45 Ports, 1.0V, Class A, Direct DC input, +12 to +15VDC
2953-0-4c-9t 4 x 10BASE-T1L PSE + 2 x 100/1000 SFP Ports, 1.0V, Class C, Direct DC input, +24 to +48VDC
2953-1-4c-9t 4 x 10BASE-T1L PSE + 2 x 10/100/1000 RJ-45 Ports, 1.0V, Class C, Direct DC input, +24 to +48VDC
2939-0-4c-9t 4 x 10BASE-T1L PSE + 2 x 100/1000 SFP Ports, 1.0V, Class C, Direct DC input, +12 to +15VDC
2939-1-4c-9t 4 x 10BASE-T1L PSE + 2 x 10/100/1000 RJ-45 Ports, 1.0V, Class C, Direct DC input, +12 to +15VDC
2941-0-4c-9t 4 x 10BASE-T1L PSE + 2 x 100/1000 SFP Ports, 2.4V, Class 3, Direct DC input, +46 to +50VDC
2941-1-4c-9t 4 x 10BASE-T1L/PSE + 2 x 10/100/1000 RJ-45 Ports, 2.4V, Class 3, Direct DC input, +46 to +50VDC
2943-0-4c-9t 4 x 10BASE-T1L PSE + 2 x 100/1000 SFP Ports, 2.4V, Class 4, Direct DC input, +46 to +50VDC
2943-1-4c-9t 4 x 10BASE-T1L PSE + 2 x 10/100/1000 RJ-45 Ports, 2.4V, Class 4, Direct DC input, +46 to +50VDC

Step 2: Choose a SPE Connector Type (29xx-x-4c-9t)

0 = 3-pin SPE Terminal Connector
2 = IEC 63171-2 SPE Connector

Step 3: Power Option (29xx-x-4c-9t)

9 = Direct DC 2 pin terminal connector, no AC/DC power adapter

Step 4: Choose an Operating Temperature Option (29xx-x-4c-9t)

= Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)
Z = Extended temperature (-40 to 75°C)



ACCESSORIES

Model Number Description
8251-0 DIN-Rail Mounting Clip
8260-0 19” rack mount shelf (up to 2 modules)

OmniConverter GLAPS/Sx Single Pair Ethernet Switch (Data Sheet)

OmniConverter GLAPS/Sx Single Pair Ethernet Switch (User Manual)

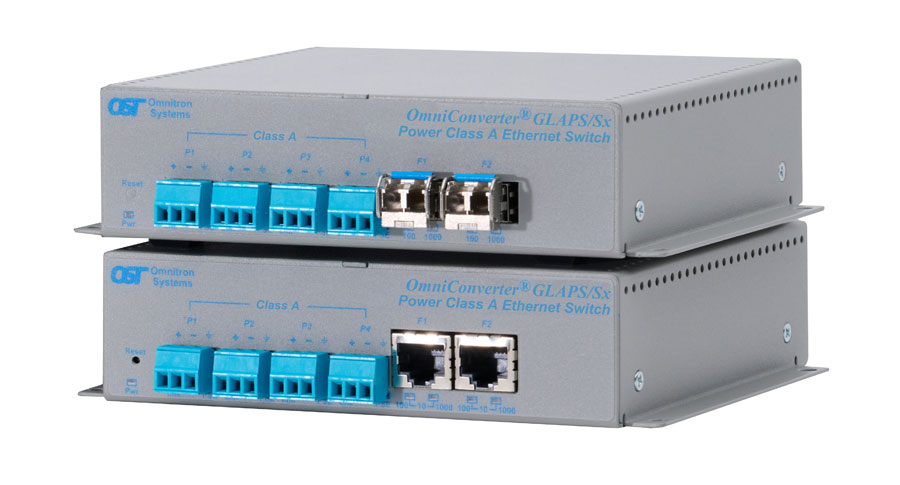

The OmniConverter GLAPS/Sx is an unmanaged Single Pair Ethernet (SPE) switch that features copper or fiber uplink ports and four single-pair 10BASE-T1L copper ports designed for digital instrumentation solutions used for Industrial process automation applications. The SPE switch can be deployed in a spur or trunk topology.

The GLAPS/Sx switch features four 10BASE-T1L 3-pin terminal or IEC 63171-2 ports and two 10/100/1000 RJ-45 or 100/1000 fiber SFP uplink ports.

The switches are interoperable with Ethernet-APL Class A and C edge/field devices, and Class 3 and 4 trunk SPE switches. These switches are capable of delivering up to 92 watts per Single Pair Ethernet port, depending on the power class model type.

The GLAPS/Sx SPE switches support 1.0V or 2.4V peak-to-peak signal amplitude voltage when connecting to Class A and C edge/field devices or Class 3 and 4 Trunk devices, respectively.

Depending on the model number, the SPE switch can be connected to a spur segment or to a trunk segment. A spur segment has a maximum distance of 200 meters and data signal amplitude of 1.0 volt peak-to-peak. A trunk segment has a maximum distance of 1000 meters and data signal amplitude of 2.4 volts peak-to-peak.

The switch supports Dual Device mode, Directed Switch mode and Redundant Uplinks.

Dual Device mode enables the module to operate as two independent and isolated Ethernet switches. In Dual Device mode, the GLAPS/Sx provides separate and independent data traffic paths between the two uplink ports and four SPE ports.

Directed Switch mode directs process automation multicast traffic only to the appropriate uplink port, preventing the multicast process automation traffic from flooding to other network ports.

Redundant fiber or copper uplinks provide protection and restoration for critical applications. In the event of a failure on the primary uplink port, the switch will automatically switchover to the secondary uplink port. Once the failed uplink port has been restored, the switch will return to the primary uplink port.

For daisy-chain applications, the second uplink port can be used to cascade multiple switches.

The GLAPS/Sx modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the SPE switch for ease of identification and use.

The switch features Small Form Pluggable (SFP) transceiver receptacle ports supporting a variety of copper and fiber transceivers. It supports 10/100/1000BASE-T and 1000BASE-T, copper transceivers and 100M and 1G multimode or single-mode fiber, dual or single-fiber transceivers in standard, CWDM and DWDM wavelengths.

The switch can be wall mounted, rack mounted using a shelf (8260-0) or DIN-rail mounted using the DIN-rail mounting clips (8251-0). The switch is available with a 2-Pin DC terminal connector.

Description

OmniConverter® GLAPS/Sx

10T/T1L to 100/1000 Fiber or 10/100/1000 Copper Uplinks
Unmanaged 10BASE-T1L PSE Ethernet Switch
Base Model Number 2052 2937 2953 2939 2941 2943
Standard Compliances

IEEE 802.3,

10BASE-T1L compliant
Regulatory Compliances (Pending)

Safety: UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             CUL CSA C22.2 No. 60950,

             EN 60950-1:2006

             CE Mark,

             UKCA

EMI:      FCC 47CFR, Part 15 Class A

             AS/NZS 3548, AS/NZS 4417.1 and AS/NZS 4417.2

             ICES-003 Issue 3

             EN 55032/CISPR 22 and EN55035

             EN61000-3-2

             VCCI V3/2001.04 (CISPR 22A:1997, Class A)

EMC:    IEC/EN61000-4-2, IEC/EN61000-4-3

             IEC/EN61000-4-4, IEC/EN61000-4-5

             IEC/EN61000-4-6, IEC/EN61000-4-8

             IEC/EN61000-4-11

ACT:     TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
Frame Size Up to 2,048 bytes
Port Types

10BASE-T1L:

3-Pin Terminal or
IEC 63171 Connector


Model 2952 Class A
edge/field device:
24 to 48 VDC
1.0 V peak-to-peak; 0.5 W


Model 2937 Class A
edge/field device:
12 to 15 VDC
1.0 V peak-to-peak; 0.5 W

3-Pin Terminal or
IEC 63171 Connector


Model 2952 Class A
edge/field device:
24 to 48 VDC
1.0 V peak-to-peak; 0.5 W


Model 2937 Class A
edge/field device:
12 to 15 VDC
1.0 V peak-to-peak; 0.5 W

3-Pin Terminal or
IEC 63171 Connector


Class 3
edge/field device:


46 to 50 VDC
2.4 V peak-to-peak,
36 W

3-Pin Terminal or
IEC 63171 Connector


Class 4
edge/field device:


46 to 50 VDC
2.4 V peak-to-peak,
92 W
Uplink:

RJ-45: 10/100/1000BASE-T

SFP: 100BASE-X and 1000BASE-X Fiber Transceivers, 1000BASE-T Copper Transceivers

10/100/1000BASE-T SGMII Copper Transceivers
Cable Types

10BASE-T1L:





  RJ-45 Copper:



Fiber:

Single-Pair Ethernet (SPE) cable,

IEC 61156-13 (fixed) or IEC 61156-14 (flexible) 18AWG cable or better



EIA/TIA 568A/B, Cat 3 UTP and higher



Multimode: 50/125, 62.5/125μm

Single-mode: 9/125μm

DC Power Requirements

(with DC Terminals)

+24 to +48VDC;
0.36A @ 48VDC
2 Pin Terminal

+12 to +15VDC;
0.78A @ 12VDC
2 Pin Terminal

+24 to +48VDC;
0.52A @ 48VDC
2 Pin Terminal

+12 to +15VDC;
0.94A @ 12VDC
2 Pin Terminal

+46 to +50VDC;
5.16A @ 48VDC
2 Pin Terminal

+46 to +50VDC;
8.20A @ 48VDC
2 Pin Terminal

Dimensions

(W x D x H)

6.28” x 5.2” x 1.5” (159.5 mm x 132.1 mm x 38.1 mm)
Weight

1.5 lb.; 720 grams
Operating Temperature

Commercial: 0 to 50°C

Wide: -40 to 60°C (-20°C AC cold start)

Extended: -40 to 75°C (-20°C AC cold start)

Storage: -40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hours)

224,000

224,000

224,000

224,000

220,000

220,000
Warranty 5 year warranty with 24/7/365 free Technical Support



Hazardous Area Use Disclaimer:
This product is not certified for use in hazardous (classified) locations, including Zone 0, Zone 1, or Zone 2 as defined by IEC 60079-10-1 or equivalent national standards.
It is intended for installation in non-hazardous (safe) areas only.
The product supports interoperability with Ethernet-APL networks and devices, including those installed in hazardous zones, provided that all connections are made through
certified intrinsically safe interfaces as part of a compliant system architecture.
When connecting to devices located in hazardous areas, appropriate energy-limiting devices, field switches, or barriers must be used to ensure compliance with all applicable
safety standards.
