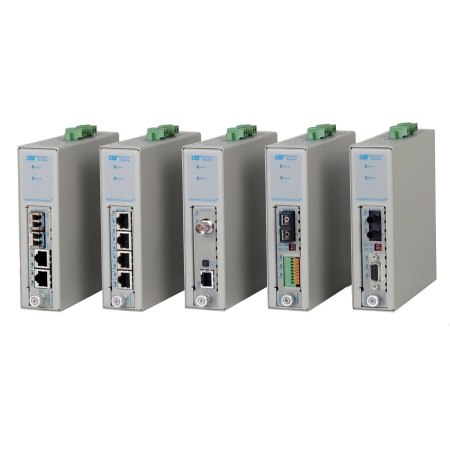

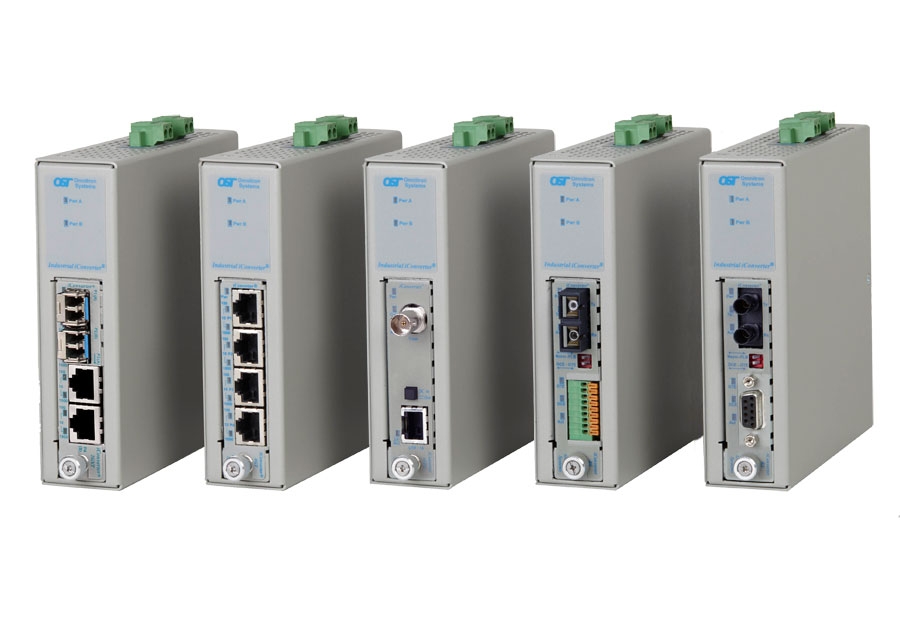

iConverter® 1-Module Industrial Power Chassis

937f929d420ab20a5c9d96a1ab9e2021 XL
The iConverter 1-Module Industrial Power Chassis is a compact, versatile chassis featuring a single or dual DC terminal power connection supporting 12 to 36VDC or 20 to 60VDC providing flexible installation options. Utilizing the combination of iConverter modules and 1-Module Industrial chassis ena ...Read more

Features
  • 1-Module Industrial Power Chassis
  • Single or dual DC power for redundancy
  • DC input supports 12 to 36VDC or 20 to 60VDC
  • Wall, Rack or DIN-rail mountable
  • Fan-less design for long life
icons

  • Description
  • Features
  • Specifications
  • Ordering
  • Documents
  • 1-Module Industrial Power Chassis
  • Single or dual DC power for redundancy
  • DC input supports 12 to 36VDC or 20 to 60VDC
  • Dying Gasp (Power Loss Trap)*
  • LED indicators for each power source
  • Wall, Rack or DIN-rail mountable
  • Fan-less design for long life
  • Commercial (0 to +50°C), wide (-40 to +60°C) and extended (-40 to +75°C) operating temperature ranges
  • TAA, BAA and NDAA compliant, and Made in the USA
  • 5 Year Warranty and free 24/7 Technical Support

*Supported with managed module installed

Step 1: Choose a Base Part Number (xxxx-x-pt)

Model NumberDescription
8270-1-pt 1-Module Chassis +/-12 to +/-36 VDC
8270-2-pt 1-Module Chassis +/-20 to +/-60 VDC

Step 2: Choose a Power Option (xxxx-x-pt)

1 = Single DC 2-Pin Terminal Power Connector
2 = Dual DC 2-Pin Terminal Power Connectors

Step 3: Choose an Operating Temperature Range (xxxx-x-pt)

<leave blank> = Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)
Z = Extended temperature (-40 to 75°C)



Model NumberDescription
8260-3 Wall-Mount Plate
8260-0 19” Rack-Mount Shelf

iConverter 1-Module Industrial Power Chassis (Data Sheet)

iConverter 1-Module Industrial Power Chassis (User Manual)

The iConverter 1-Module Industrial Power Chassis is a compact, versatile chassis featuring a single or dual DC terminal power connection supporting 12 to 36VDC or 20 to 60VDC providing flexible installation options.

Utilizing the combination of iConverter modules and 1-Module Industrial chassis enables a full range of industrial network applications, such as access control, data acquisition and Industrial Internet of Things (IIoT) to be supported. This includes a wide range of copper and fiber industrial applications by utilizing selected iConverter module.

The chassis can be DIN-rail mounted using the included DIN-rail mounting clip or wall mounted using the optional wall mounting plate. The chassis operates over a temperature range of -40 to +75°C.

Description 1-Module DC
12 to 36 VD		 1-Module DC
20 to 60 VDC
Regulatory Compliances (pending)

Safety: UL, cUL, CE, NEBS Level 3, UKCA

EMI: FCC Class A

ACT: TAA, BAA, NDAA
Environmental

RoHS, WEEE, REACH
Input Power
Requirements (typical)		 +/-12 to +/-36 VDC
1.5A Max @ 12VDC		 +/-20 to +/-60 VDC
0.8A Max @ 20VDC
Output Power 10.0 watts 3.0A @ 3.3VDC
Power Connector 2 Position Terminal (Isolated)
Dimensions W: 1.5" x D: 5.5" x H: 5.5"
L: 38.1 mm x B: 139.7 mm x H: 139.7 mm
Weight 1.5 lbs. (0.68 kg)
Temperature Commercial: 0 to 50°C
Wide: -40 to 60°C
Extended: -40 to 75°C
Storage: -40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hrs) 517,000
Warranty 5 Year warranty with 24/7/365 free Technical Support
¹Pending



SUPPORTED MODULES

The following table indicates the supported modules for the 1-Module Industrial chassis over the specific operating temperature ranges.

SpeedDescriptionModule Name
Model # Range		Commercial
0 to 50°C		Wide
-40 to 60°C		Extended
-40 to 75°C
10Mbps Copper-to-Fiber Ethernet Media Converter
10 Copper to 10 Fiber		 10FL/T
830x-x - 831x-x		 x x
Copper-to-Coax Ethernet Media Converter
10 Copper to 10 Coax		 10T/2
8340-0		 x x
100Mbps Copper-to-Fiber Ethernet Media Converter
10/100 Copper to 100 Fiber		 10/100
838x-x - 839x-x		 x x x
1000Mbps 4-Port 10/100/1000 Copper Ethernet Switch Module 4GT
8482-4		 x x x
Dual Copper-to-Fiber Ethernet Media Converter
10/100/100 Copper to 100/1000 Fiber		 2GXT
8484-4		 x x x

Copper-to-Fiber Ethernet Media Converter

10/100/1000 Copper to 100/1000 Fiber

GX/T2

8520N-x - 8539N-x

 x x x
Fiber-to-Fiber Ethernet Media Converter
1000 Fiber to 1000 Fiber		 GX/X
854x-xx - 855x-xx		 x x x
100 and 1000Mbps Fiber-to-Fiber Ethernet Media Converter
1000 Fiber to 100 Fiber		 GX/F
856x-xx 		 x x x
9.8Gbps to 11.32Gbps Fiber-to-Fiber Converter/Transponder
Power Level 2: SFP+ to SFP+		 XG*
8599P-xx		 x
1Mbps to 8.5Gbps Fiber-to-Fiber Converter/Transponder
Protocol-Transparent (1M to 8.50G )		 xFF
8699-x		 x x x
Serial Copper-to-Fiber RS-232 Media Converter
Serial RS-232 to Fiber		 RS232
876x-x - 877x-x		 x x x
Copper-to-Fiber RS-422/485 Media Converter
Serial RS-422 / RS-485 to Fiber		 RS422/485
878x-x - 879x-x		 x x x
Managed 100Mbps Copper-to-Fiber Ethernet Media Converter with Management
10/100 Copper to 100 Fiber		 10/100M2
890xN-x - 891x-x		 x x x
Fiber-to-Fiber Ethernet Media Converter with Management
100 SFP to 100 SFP		 2FXM2
8959N-0		 x x x
Managed 1000Mbps Copper-to-Fiber Ethernet Media Converter with Management
10/100/1000 Copper to 1000 Fiber		 GX/TM2
892xN-x - 893xN-x		 x
2 and 3-Port Copper-to-Fiber or Fiber-to-Fiber
Ethernet Media Converter with Management
100/1000 Fiber to 100/1000 Fiber,
10/100/1000 Copper to 100/1000 Fiber,
10/100/1000 Copper to 10/100/1000 Copper		 GM3
892xP-x - 893xP-X
897xP-x
8989P-0, 8999P-0		 x x x



*NOTE: The iConverter XG+ and XGT+ 10G modules are not supported in the 1-Module Industrial Powered Chassis.
