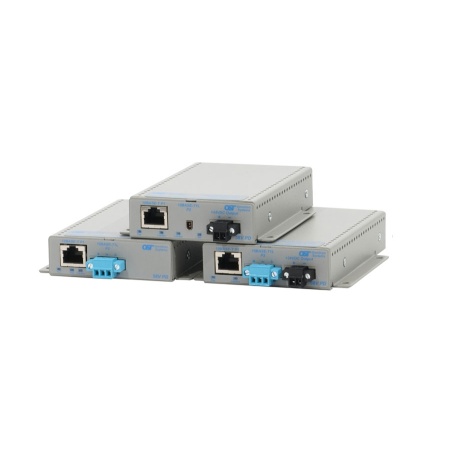

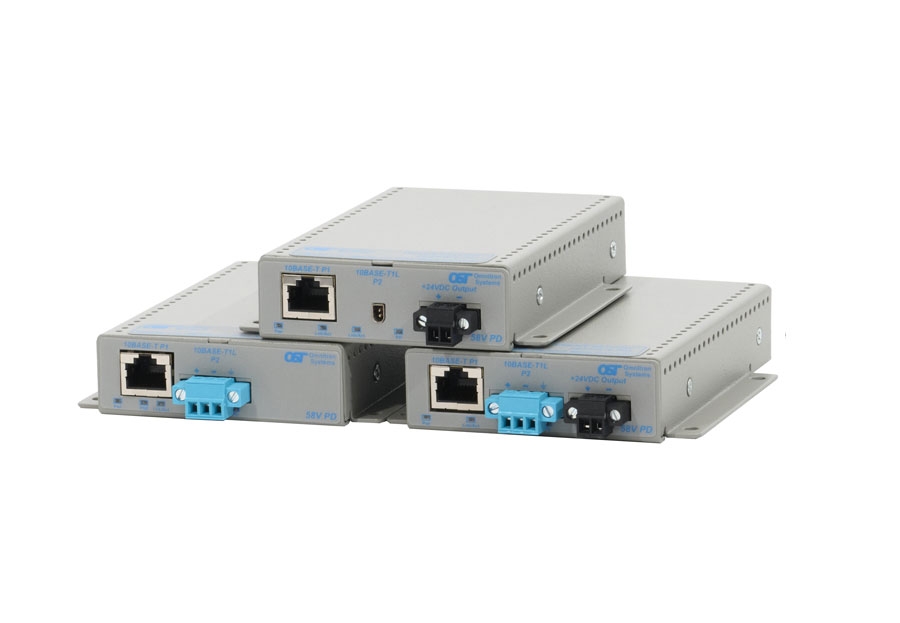

10Mbps 10BASE-T to 10BASE-T1L Converters

OmniConverter® Single Pair Power over Ethernet

bf337492a0864d5a8d1619941820aa93 XL
The OmniConverter Single Pair Power over Ethernet converters are IEEE 802.3cg compliant products that function as PoE injectors and Powered Devices. They convert 10BASE-T Ethernet to single-pair 10BASE-T1L Ethernet. They use single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up ...Read more

Features
  • Unmanaged 10BASE-T to 10BASE-T1L Single-Pair PoE converter
  • Automatic detection of Class 10 through Class 15 PD devices
  • 12VDC or 24VDC Power Splitter output
  • AC to DC Power Adapter or 2-Pin DC terminal
  • IEEE 802.3cg single-pair Ethernet on terminal or IEC 63171-2 SPE connector
icons

  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents
  • Unmanaged 10BASE-T to 10BASE-T1L Single-Pair Power over Ethernet converter
  • IEEE 802.3cg single-pair Ethernet on terminal or IEC 63171-2 SPE connector
  • Power over Ethernet
    • 10BASET ? PoE+/PSE or PoE+/PD
    • 10BASE-T1L ? SPoE/PSE or SPoE/PD
  • Automatic detection of Class 10 through Class 15 PD devices
  • 12VDC or 24VDC Power Splitter output
  • AC to DC Power Adapter or 2-Pin DC terminal
  • DIN-rail mount with optional brackets
  • Commercial (0 to +50?C), wide (-40 to +60?C) and extended (-40 to +75?C) operating temperature ranges
  • TAA, BAA and NDAA compliant
  • Made in the USA
  • Free 24/7/365 Technical Support with lifetime warranty

Building Automation Application

This example shows a Building Automation application using a combination of OmniConverter 10TPD/LPS and 10TPS/LPD to connect building systems back to a centralized control room. No external AC power is required for the modules since the 10TPD/LPS modules are powered by the GPoE+/M PoE+ switch and the 10TPS/LPD modules are powered over the SPE cable. Each building system is powered by PoE/PoE+ from the OmniConverter 10TPS/LPD modules. Systems controlled by the OmniConverter modules include Fire Alarm, Lighting, Elevator Control, Access Control to Floors, Security Surveillance and HVAC.

10T T1L SPoE Building Automation App



Extend Ethernet and Power up to 1200 meters using PD and SPoE Devices

In this example, the OmniConverter 10TPD/LPS is receiving power from a PoE+ Ethernet switch and delivering power (SPoE) across a SPE cabling to an OmniConverter 10TPS/LPD. The OmniConverter 10TPS/LPD is powering a IEEE 802.3at camera up to 100 meters in distance.

10T T1L PD PSE App



Extend Ethernet and power up to 1200 meters to a non PoE device

In this example, the OmniConverter 10T/LPS is delivering power (SPoE) across a SPE cabling to an OmniConverter 10T/LPDS. The 10T/LPDS is powering a Wi-fi access point using the 12V or 24V DC power out of the 10T/LPDS device splitter power port. This is useful when no external power is available at the far end.

10T T1L Splitter WiFi App

Step 1: Choose a Base Part Number (2020-c0-mpt)

OmniConverter 10T/LPS
Model NumberDescription
2020-c0-mpt 10T/LPS - 1 x 10BASE-T RJ-45 and 1 x 10BASE-T1L SPoE

Step 2: Choose a SPE Connector Type (2020-c0-mpt)

0 = 3-pin Terminal
2 = IEC 63171-2 SPE jack

Step 3: Choose a Mounting Option (2020-c0-mpt)

0 = Without integrated mounting brackets
1 = With integrated mounting brackets

Step 4: Choose a Power Option (2020-c0-mpt)

0 = Barrel Connector, No AC/DC Power Adapter provided
1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord
2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord
8 = External AC/DC Adapter, 100 - 240 VAC included, PS JET/PSE Certified, with Japanese Power Cord
9 = Direct DC 2 pin terminal connector, no AC/DC power adapter

Step 5: Choose an Operating Temperature Option (2020-c0-mpt)

<leave blank> = Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)
Z = Extended temperature (-40 to 75°C)





Step 1: Choose a Base Part Number (20xx-c0-m0t)

OmniConverter 10TPD/LPS and 10TPS/LPD
Model NumberDescription
2030-c0-mpt 10TPD/LPS - 1 x 10BASE-T PD RJ-45 and 1 x 10BASE-T1L SPoE
2045-c0-mpt 10TPS/LPD58 - 1 x 10BASE-T PoE+ RJ-45 and 1 x 10BASE-T1L PD (Class 15, 58VDC PD model)

Step 2: Choose a SPE Connector Type (20xx-c0-m0t)

0 = 3-pin Terminal
2 = IEC 63171-2 SPE jack

Step 3: Choose a Mounting Option (20xx-cy-m0t)

0 = Without integrated mounting brackets
1 = With integrated mounting brackets

Power Option

0 = No external power input (Powered through the PD port)

Step 4: Choose an Operating Temperature Option (20xx-cy-m0t)

<leave blank> = Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)
Z = Extended temperature (-40 to 75°C)





Step 1: Choose a Base Part Number (20xx-cy-m0t)

OmniConverter 10T/LPDS
Model NumberDescription
2050-cy-m0t 10T/LPDS30 - 1 x 10BASE-T RJ-45 and 1 x 10BASE-T1L 30 VDC (Class 12) PD with Splitter
2055-cy-m0t 10T/LPDS58 - 1 x 10BASE-T RJ-45 and 1 x 10BASE-T1L 58 VDC (Class 15) PD with Splitter

Step 2: Choose a SPE Connector Type (20xx-cy-m0t)

0 = 3-pin Terminal
2 = IEC 63171-2 SPE jack

Step 3: Choose the Splitter Output Voltage (20xx-cy-m0t)

1 = 12VDC Terminal Connector
2 = 24VDC Terminal Connector

Step 4: Choose a Mounting Option (20xx-cy-m0t)

0 = Without integrated mounting brackets
1 = With integrated mounting brackets

Power Option

0 = No external power input (Powered through the PD port)

Step 5: Choose an Operating Temperature Option (20xx-cy-m0t)

<leave blank> = Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)
Z = Extended temperature (-40 to 75°C)

OmniConverter Single Pair Power over Ethernet (Data Sheet)

OmniConverter Single Pair Power over Ethernet (User Manual)

SPoE Cable Distance (Application Note)

The OmniConverter Single Pair Power over Ethernet converters are IEEE 802.3cg compliant products that function as PoE injectors and Powered Devices. They convert 10BASE-T Ethernet to single-pair 10BASE-T1L Ethernet. They use single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 1km.

The Single Pair Power over Ethernet converters feature one IEEE 802.3cg compliant 10BASE-T1L terminal or IEC 63171-2 SPE port and one 10BASE-T RJ-45 port supporting 10Mbps full-duplex data rates.

The following are the product configurations.

Product NameBase Model #10BASE-T Port10T1L Port
10T/LPS 2020 - SPoE PSE Auto Detects Classes 10 - 15 30/58VDC PD
10TPD/LPS 2030 PoE+ PD SPoE PSE Auto Detects Classes 10 - 15 30/58VDC PD
10TPS/LPD58 2045 PoE+ PSE SPoE PD Class 15 58 VDC PD models
10T/LPDS30 2050 - SPoE PD Class 12 30 VDC PD models with Splitter
10T/LPDS58 2055 - SPoE PD Class 15 58 VDC PD models with Splitter

The 10T/LPDS models feature an additional 2-pin terminal connector providing a DC output voltage of 12 or 24 volts to power low voltage devices.

The Single Pair Power over Ethernet converters achieve seamless Ethernet connectivity to IEEE 802.3cg compliant devices, such as field transmitters, building controllers or cameras. Bookend configurations support end-to-end Ethernet connectivity supporting a variety of powering options.

They are available as a standalone unit with or without integrated mounting brackets. They can be DIN-rail mounted using the optional DIN-rail mounting clip kit (8252-0). Models are available with an external 100 to 240VAC power adapter or with a 2-Pin DC terminal connector.

Description

10T/LPS

10BASE-T to 10BASE-T1L

SPoE

10TPD/LPS

10BASE-T PD to 10BASE-T1L

SPoE

10TPS/LPD

10BASE-T PoE+ to 10BASE-T1L

PD

10T/LPDS

10BASE-T to 10BASE-T1L

PD with Splitter

Base Model Number 2020 2030 2045 2050/2055
Standard Compliances

IEEE 802.3,

IEEE 802.3cg

IEEE 802.3,

IEEE 802.3cg,

IEEE 802.3af,

IEEE 802.3at

IEEE 802.3,

IEEE 802.3cg,

IEEE 802.3af,

IEEE 802.3at

IEEE 802.3,

IEEE 802.3cg
Regulatory Compliances (Pending)

Safety: UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             CUL CSA C22.2 No. 60950-1,

             EN 60950-1:2006

             CE Mark,

             UKCA

EMI:      FCC 47CFR, Part 15 Class A

             AS/NZS 3548, AS/NZS 4417.1 and AS/NZS 4417.2

             ICES-003 Issue 3

             EN 55032/CISPR 22 and EN55035

             EN61000-3-2

             VCCI V3/2001.04 (CISPR 22A:1997, Class A)

EMC:    IEC/EN61000-4-2, IEC/EN61000-4-3

             IEC/EN61000-4-4, IEC/EN61000-4-5

             IEC/EN61000-4-6, IEC/EN61000-4-8

             IEC/EN61000-4-11

ACT:     TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
Frame Size Up to 1518 bytes
Port Types

10BASE-T: RJ-45

10BASE-T1L:

3-Pin Terminal or

IEC 63171 SPE/SPoE Connector

Auto Detects Classes 10-15

30VDC/58VDC PD

10BASE-T: RJ-45 PoE+/PD

10BASE-T1L:

3-Pin Terminal or

IEC 63171 SPE/SPoE Connector

Auto Detects Classes 10-15

30VDC/58VDC PD

10BASE-T: RJ-45 PoE+/PSE

10BASE-T1L:

3-Pin Terminal or

IEC 63171 SPE/PD Connector

Class 15 PD

10BASE-T: RJ-45

10BASE-T1L:

3-Pin Terminal or

IEC 63171 SPE/PD Connector

Splitter Output: 12 or 24VDC

Model 2050: Class 12 PD

Model 2055: Class 15 PD
Cable Types

10BASE-T: Ethernet, EIA/TIA 568A/B, Cat 3 or better

10BASE-T1L: Single-Pair Ethernet (SPE) cable, IEC 61156-13 (fixed) or IEC 61156-14 (flexible) 18AWG cable or better

AC Power Requirements

(with AC/DC Adapters)

100 - 240VAC

50-60Hz,

0.91A @ 120VAC

2.1mm Barrel

 N/A N/A N/A

DC Power Requirements

(with DC Terminals)

+50 to +58VDC;

1.69A @ 56VDC

2 Pin Terminal

 N/A N/A N/A

Dimensions

(W x D x H)

without mounting brackets: 3.1” x 4.8” x 1.0” (78.7 mm x 121.9 mm x 25.4 mm)

with mounting brackets: 3.8” x 4.8” x 1.0” (96.5 mm x 121.9 mm x 25.4 mm)
Weight

Module Only: 1.0 lbs. (453.6 grams)

Module w/ Adapter: 1.9 lbs. (852.6 grams)
Operating Temperature

Commercial: 0 to 50°C

Wide: -40 to 60°C

Extended: -40 to 75°C

Storage: -40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hours)

Module Only:1,233,000

AC/DC Adapter:100,000

Module Only: 995,000

AC/DC Adapter: N/A

Module Only: 1,557,000

AC/DC Adapter: N/A

Module Only: 1,935,000

AC/DC Adapter: 100,000
Warranty Lifetime warranty with 24/7/365 free Technical Support
