Multi-Gigabit 100M, 1G, 2.5G, 5G, 10G PoE Media Converters

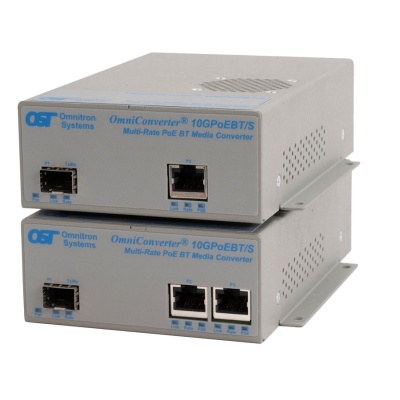

OmniConverter® 10GPoE+/S and 10GPoEBT/S

The OmniConverter 10GPoE+/S and 10GPoEBT/S are unmanaged 10G Ethernet media converters featuring one 1/10G SFP/SFP+ uplink port and one or two multi-gigabit/ multi-rate RJ-45 Power-over-Ethernet user ports. They support PoE, PoE+ and PoE++ up to 100 watts depending on the model. The RJ-45 user port ...Read more


Features
  • Unmanaged 10G multi-gigabit/multi-rate PoE media converters
  • IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt (60W and 100W)
  • Directed Switch mode prevents flooding of multicast video traffic
  • 1 1/10G SFP/SFP+ standard/CWDM/DWDM transceiver uplink port
  • RJ-45 multi-gigabit/multi-rate ports support speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps
icons
  • Description
  • Features
  • Specifications
  • Applications
  • Ordering
  • Documents

The OmniConverter 10GPoE+/S and 10GPoEBT/S are unmanaged 10G Ethernet media converters featuring one 1/10G SFP/SFP+ uplink port and one or two multi-gigabit/ multi-rate RJ-45 Power-over-Ethernet user ports. They support PoE, PoE+ and PoE++ up to 100 watts depending on the model.

The RJ-45 user ports support multi-gigabit/multi-rate speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps, supporting frame sizes up to 10,240 bytes.

The 10GPoE+/S supports IEEE 802.3at (15 and 30W) and the 10GPoEBT/S supports IEEE 802.3bt (60 and 100W) per user port depending on the model.

The two RJ-45 port models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports.

The modules support a PoE power reset function that enables the attached PD device, such as a camera or access point, to be re-initialized remotely, eliminating the need for costly truck rolls to remote PD sites. When a problem with a PD is detected, the fiber port on the module can be disconnected, triggering the PoE power reset function.

The media converters feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fiber transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 100M/1G/2.5G/5G/10GBASE-T multi-gigabit copper transceivers and 1G and 10G multimode or single-mode fiber, dual or single-fiber transceivers in standard, CWDM and DWDM wavelengths.

The media converters are well suited for the power and bandwidth demands imposed by IP cameras, access points and small cell devices on the market today. They automatically negotiate and deliver the power level required by a Powered Device (PD) partner, delivering up to 100 watts of power per port.

OmniConverter 10G media converters provide high-speed network distance extension with fiber optic cabling, and function as PoE injectors.

The modules can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting clip (8251-0). They can also be mounted on a 1U 19” rack-mount shelf. They are available with DC input power via terminal connectors or external 100 to 240VAC power adapter.

Description OmniConverter 10GPoE+/S
Multi-gigabit/multi-rate copper to 1/10G SFP
Media Converter with IEEE 802.3at PoE+		 OmniConverter 10GPoEBT/S
Multi-gigabit/multi-rate copper to 1/10G SFP Media Converter
with IEEE 802.3bt PoE 60W or 100W
Standard Compliances

IEEE 802.3, 802.3bz,

IEEE 802.3af (15.4 watts max)

IEEE 802.3at (30 watts max)

IEEE 802.3, 802.3bz,

IEEE 802.3af (15.4 watts max), IEEE 802.3at (30 watts max)

IEEE 802.3bt (60 watts or 100 watts max)

Regulatory Compliances

*Pending

Safety: UL 62368-1*, UL 60950-1*,

             IEC 62368-1*, IEC 60950-1*,

             EN 62368-1*, EN 60950-1*,

             CAN/CSA C22.2 No. 62368-1-14*, CAN/CSA C22.2 No. 60950-1*,

             CE Mark, UKCA

EMC:   EN 55032/24 CE Emissions/Immunity, UKCA

EMI:    CISPR 32,

            FCC 47 Part 15 Subpart B Class A

EMS:   IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

            IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m,

            IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV (DC models),

            IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

            IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

            IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

            IEC 61000-4-6 CS: Signal: 3 Vrms,

            IEC 61000-4-8 ( Magnetic Field) 30 A/m,

            IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection

ACT:    TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size Up to 10,240 bytes
Port Types

Copper: 100/1000BASE-T, 2.5GBASE-T/5GBASE-T/10GBASE-T (RJ-45)

SFP/SFP+: 10GBASE-X Fiber Transceivers, 10GBASE-T Copper Transceivers

                 1000BASE-X Fiber Transceivers, 1000BASE-T Copper Transceivers

                 10/100/1000BASE-T SGMII Copper Transceivers

                 10/100/1000/2.5G/5G/10GBASE-T Multi-rate Copper Transceivers
Cable Types

Copper: Twisted-pair cable up to 100 meters

              100BASE-TX: 4-pair UTP Cat 5, 5e, 6, 6A

              1G/2.5G: 4-pair UTP Cat 5e, 6, 6A, 7

               5G: 4-pair UTP Cat 6, 6A, 7

              10G: 4-pair UTP Cat 6A, 7

Fiber:    Multimode: 50/125, 62.5/125µm

             Single-mode: 9/125µm
AC Power Requirements
(Models with AC/DC Adapters)		 1 RJ-45 Port
100 - 240VAC, 50 - 60Hz
0.75A @ 240VAC (max)
2.1 mm Barrel Connector		 60W Model - 1 RJ-45 Port
100 - 240VAC, 50 - 60Hz
0.75A @ 240VAC (max)
2.1 mm Barrel Connector		 100W Model - 1 RJ-45 Port
100 - 240VAC, 50 - 60Hz
2.50A @ 240VAC (max)
2.1 mm Barrel Connector
2 RJ-45 Ports
100 - 240VAC, 50 - 60Hz
0.75A @ 240VAC (max)
2.1 mm Barrel Connector		 60W Model - 2 RJ-45 Ports
100 - 240VAC, 50 - 60Hz
2.50A @ 240VAC (max)
2.1 mm Barrel Connector		 100W Model - 2 RJ-45 Ports
100 - 240VAC, 50 - 60Hz
2.50A @ 240VAC (max)
2.1 mm Barrel Connector
DC Power Requirements
(Models with DC Terminals)		 1 RJ-45 Port
46 to 57VDC; 0.68A @ 56VDC (max)
2 Pin Terminal		 60W Model - 1 RJ-45 Port
46 to 57VDC; 1.22A @ 56VDC (max)
2 Pin Terminal		 100W Model - 1 RJ-45 Port
46 to 57VDC; 1.93A @ 56VDC (max)
2 Pin Terminal
2 RJ-45 Ports
46 to 57VDC; 1.25A @ 56VDC (max)
2 Pin Terminal		 60W Model - 2 RJ-45 Ports
46 to 57VDC; 2.32A @ 56VDC (max)
2 Pin Terminal		 100W Model - 2 RJ-45 Ports
46 to 57VDC; 3.76A @ 56VDC (max)
2 Pin Terminal
Dimensions (W x D x H) 3.8” x 4.8” x 1.0” (96.5 mm x 121.9 mm x 25.4 mm)
Weight Module Only: 1.0 lbs. (454 grams)
w/ Adapter: 1.7 lbs. (771 grams)		 Module Only: 1.0 lbs. (454 grams)
w/ Adapter: 1.8 lbs. (816 grams)		 Module Only: 1.0 lbs. (454 grams)
w/ Adapter: 1.8 lbs. (816 grams)
Operating Temperature
(See Temperature Derating Table)		 Commercial: 0 to 50°C
Wide:          -40 to 60°C (-20°C AC cold start)
Extended    -40 to 75°C (-20°C AC cold start)
Storage:      -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hrs) Module Only: 240,870
AC/DC Adapter: 100,000		 Module Only: 217,200
AC/DC Adapter: 100,000
Warranty Lifetime warranty with registration and 24/7/365 free Technical Support



Power / Voltage Requirements and Specifications
DescriptionIEEE 802.3af 15W PoEIEEE 802.3at 30W PoE+IEEE 802.3.bt 60W PoE
(Type 3)		IEEE 802.3bt 100W PoE
(Type 4)
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC 51.0 to 57.0 VDC 53.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC 50.0 to 56.0 VDC 52.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts 60 watts 100 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC 42.5 VDC 41.1 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts 51 watts 71 watts
* at 100 meters using Cat5
    • Unmanaged 10G multi-gigabit/multi-rate PoE media converters
    •  Models support IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt (60W and 100W)
    • Directed Switch mode prevents flooding of multicast video traffic
    • Configurable PoE power reset
    • One 1/10G SFP/SFP+ standard/CWDM/DWDM transceiver uplink port
    • Uplink port supports copper and fiber SFP/SFP+ transceivers
    • RJ-45 multi-gigabit/multi-rate ports support speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps
    • Multiple port configurations:
      • 2 Port Device: 1 SFP/SFP+ + 1 RJ-45
      • 3 Port Device: 1 SFP/SFP+ + 2 RJ-45
    • AC to DC Power Adapter or 2-Pin DC terminal
    • Wall, Rack and DIN-rail mountable
    • Commercial (0º to 50ºC), wide (-40º to 60ºC) and extended (-40º to 75ºC) operating temperature ranges
    • TAA, BAA and NDAA, and Made in the USA
    • Lifetime warranty and free 24/7/365 Technical Support

Security and Wireless

In this application example, outdoor IP surveillance cameras and Wi-Fi 6/6E Access Points are installed throughout a large facility. An iConverter® XM5 fiber switch is used to distribute a fiber link from a control room to OmniConverter media converters with fiber ports.

The OmniConverter media converters provide up to 100W of Power-over-Ethernet (PoE) to an IP camera and Wireless Access Point at each location, each of which can be located up to 100 meters from the media converter.

The camera and access point have full bandwidth capability utilizing the 10G fiber uplink port on each 10GPoEBT/S media converter.

Security and Wireless 10gpoe/s-10gpoebt/s



Small Cell

Small cell devices are increasing their demand on both power and bandwidth requirements. Speeds of 10Gbps and power of 100W is not uncommon with today’s small cell devices.

In this application example, high-speed small cell devices requiring up to 10Gbps bandwidth are deployed inside several buildings. An iConverter® XM5 fiber switch is used to distribute a fiber link to each OmniConverter media converter.

The OmniConverter 10GPoEBT/S media converters provide up to 100 watts and speeds up to 10Gbps on the RJ-45 user ports.

Small Cell App10GPoE S and 10GPoEBT S

Step 1: Choose a Base Part Number (919xN-xx-pt)

OmniConverter 10GPoE+/S Models
Model NumberDescription
9191N-0-11-pt OmniConverter 10GPoE+/S with 1 x SFP/SFP+ uplink port and 1 x multi-gigabit/multi-rate RJ-45 IEEE 802.3at port
9191N-0-12-pt OmniConverter 10GPoE+/S with 1 x SFP/SFP+ uplink port and 2 x multi-gigabit/multi-rate RJ-45 IEEE 802.3at ports
Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.

Step 2: Choose a Power Option (919xN-xx-pt)

0 = No External AC/DC Adapter included. Requires a AC/DC Adapter with a 2.1mm barrel connector
1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord
2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord
8 = External AC/DC Adapter, 100 - 240 VAC included, PS JET/PSE Certified, with Japanese Power Cord
9 = Direct DC 2 pin terminal connector, no AC/DC power adapter

Step 3: Choose an Operating Temperature Range Option (919xN-xx-pt)

= Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)
Z = Extended temperature (-40 to 75°C)





AC/DC Adapter Temperature Derating - Total Available Wattage to RJ-45 Ports
Model RJ-45 Ports Watts Required

Watts Available

@40°C

Watts Available

@50°C

Watts Available

@60°C

Watts Available

@70°C

Watts Available

@75°C
10GPoE+/S 1 30 watts Full Power Full Power Full Power Full Power Full Power
2 60 watts Full Power Full Power Full Power Full Power Full Power
The AC/DC Adapter Temperature table is not applicable to models with DC Terminal (see Ordering table for Direct DC power option 9). The DC Terminal models will provide full PoE power over the operating temperature range of the module as long as the DC input voltage meets the requirements stated in the specification table.







Step 1: Choose a Base Part Number (919xN-xx-pt)

OmniConverter 10GPoEBT/S Models
Model NumberDescription
9192N-0-11-pt OmniConverter 10GPoEBT/S 1 x SFP/SFP+ uplink port and 1 x multi-gigabit/multi-rate RJ-45 IEEE 802.3bt 30/60W port
9192N-0-12-pt OmniConverter 10GPoEBT/S 1 x SFP/SFP+ uplink port and 2 x multi-gigabit/multi-rate RJ-45 IEEE 802.3bt 30/60W ports
9194N-0-11-pt OmniConverter 10GPoEBT/S 1 x SFP/SFP+ uplink port and 1 x multi-gigabit/multi-rate RJ-45 IEEE 802.3bt 30/60/100W port
9194N-0-12-pt OmniConverter 10GPoEBT/S 1 x SFP/SFP+ uplink port and 2 x multi-gigabit/multi-rate RJ-45 IEEE 802.3bt 30/60/100W ports
Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.

Step 2: Choose a Power Option (919xN-xx-pt)

0 = No External AC/DC Adapter included. Requires a AC/DC Adapter with a 2.1mm barrel connector
1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord
2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord
8 = External AC/DC Adapter, 100 - 240 VAC included, PS JET/PSE Certified, with Japanese Power Cord
9 = Direct DC 2 pin terminal connector, no AC/DC power adapter

Step 3: Choose an Operating Temperature Range Option (919xN-xx-pt)

= Commercial temperature (0 to 50°C)
W = Wide temperature (-40 to 60°C)
Z = Extended temperature (-40 to 75°C) - Check table for available wattage for models with AC/DC Power Adapter





AC/DC Adapter Temperature Derating - Total Available Wattage to RJ-45 Ports
Model RJ-45 Ports Watts Required Watts Available
@40°C		 Watts Available
@50°C		 Watts Available
@60°C		 Watts Available
@70°C		 Watts Available
@75°C
10GPoEBT/S 60 watts 1 60 watts Full Power Full Power Full Power Full Power Full Power
2 120 watts Full Power Full Power Full Power 77 watts 36 watts
10GPoEBT/S 100 watts 1 100 watts Full Power Full Power Full Power 77 watts 36 watts
2 200 watts Full Power Full Power Full Power 77 watts 36 watts
The AC/DC Adapter Temperature table is not applicable to models with DC Terminal (see Ordering table for Direct DC power option 9). The DC Terminal models will provide full PoE power over the operating temperature range of the module as long as the DC input voltage meets the requirements stated in the specification table.





Accessories

Model NumberDescription
8250-0 DIN-Rail Mounting Kit
8251-0 DIN-Rail Mounting Clip
8260-0 19” 1U Rack Mount Shelf (up to 3 converters)

OmniConverter 10GPoE+/S and 10GPoEBT/S (User Manual)

OmniConverter 10GPoE+/S and 10GPoEBT/S (Data Sheet)
