Unmanaged Industrial Multi-Gigabit 100M, 1G, 2.5G, 5G, 10G PoE+ Switch

RuggedNet® 10GMGPoE+/Si

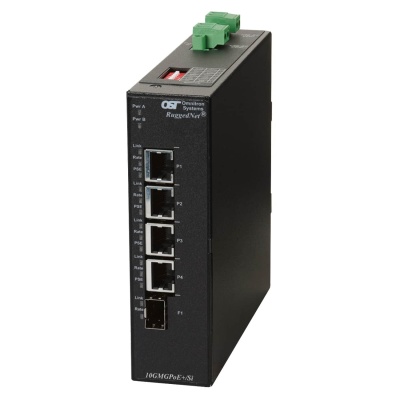

RuggedNet 10GMGPoE+ Si SFP
RuggedNet® 10GMGPoE+/Si: 2 x 100M/1G/2.5G/5G/10G RJ-45 No PoE and 2 x 10/100/1Gbps RJ-45 No PoE to 1 x 1 Gbps / 10 Gbps Uplink, SFP, Fiber type depends on SFP, SFP-Dependent, Distance depends on SFP, Unmanaged Ethernet Switch, DIN-Rail Mount, DC 2-Pin Terminal (x2), Extended Temperature R ...Read more


Part Number

9661-0-14-2Z

icons
Add to Quote

  • Description
  • Specifications
  • Documents

RuggedNet 10GMGPoE+/Si and 10GMGPoEBT/Si (Datasheet)

RuggedNet 10GMGPoE+/Si (User Manual)

RuggedNet 10GMGPoEBT/Si (User Manual)



Wall Mount Plate (User Manual)

RuggedNet® 10GMGPoE+/Si: 2 x 100M/1G/2.5G/5G/10G RJ-45 No PoE and 2 x 10/100/1Gbps RJ-45 No PoE to 1 x 1 Gbps / 10 Gbps Uplink, SFP, Fiber type depends on SFP, SFP-Dependent, Distance depends on SFP, Unmanaged Ethernet Switch, DIN-Rail Mount, DC 2-Pin Terminal (x2), Extended Temperature Range

Specifications

Description

RuggedNet® 10GMGPoE+/Si

Unmanaged Industrial IEEE 802.3at 10Gigabit Multi-Gigabit/Multi-Rate Ethernet Switch

RuggedNet® 10GMGPoEBT/Si

Unmanaged Industrial IEEE 802.3bt 10Gigabit Multi-Gigabit/Multi-Rate Ethernet Switch
Standard Compliances

IEEE 802.3, 802.3bz,

IEEE 802.3af (15.4 watts max)

IEEE 802.3at (30 watts max)

IEEE 802.3, 802.3bz, IEEE 802.3af (15.4 watts max),

IEEE 802.3at (30 watts max)

IEEE 802.3bt (60 watts or 100 watts max)
Regulatory Compliances
(Pending)

Safety*:  UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             EN 62368-1, EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

             CE Mark, UKCA

EMC:    EN 55032/24 CE Emissions/Immunity,

             IEC 61000-6-4 Industrial Emissions, IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (on UTP cabling) and 20 V/m (on STP cabling)

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV,

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV,

             IEC 61000-4-6 CS: Signal: 10 V,

             IEC 61000-4-8 ( Magnetic Field), 30A/m,

             IEC 61000-4-11 (General Immunity in Industrial Environments)

IP Rating: IP20 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
PoE Modes IEEE Alternate A (Alt A)
Frame Size Up to 10,240 bytes
Port Types

Copper:       100/1000BASE-T, 2.5GBASE-T/5GBASE-T/10GBASE-T (RJ-45)

                    10/100/1000BASE-T (RJ-45)

SFP/SFP+:  10GBASE-X Fiber Transceivers, 10GBASE-T Copper Transceivers

                    1000BASE-X Fiber Transceivers, 1000BASE-T Copper Transceivers

                    10/100/1000BASE-T SGMII Copper Transceivers

                    100/1000/2.5G/5G/10GBASE-T Multi-rate Copper Transceivers
Cable Types

Copper: Twisted-pair cable up to 100 meters

              10BASE-T: 4-pair UTP Cat 3, 4, 5, 5e, 6, 6A

              100BASE-TX: 4-pair UTP Cat 5, 5e, 6, 6A

              1G/2.5G: 4-pair UTP Cat 5e, 6, 6A, 7

              5G: 4-pair UTP Cat 6, 6A, 7

              10G: 4-pair UTP Cat 6A, 7

Fiber:    Multimode: 50/125, 62.5/125µm

              Single-mode: 9/125µm
DC Power Requirements
(Models with DC Terminals)

+46 to +57VDC;

2.34A @ 56VDC

2 Pin Terminal (isolated)

60 watt Models:

+46 to +57VDC;

4.49A @ 56VDC

2 Pin Terminal (isolated)

100 watt Models:

+46 to +57VDC;

7.38A @ 56VDC

2 Pin Terminal (isolated)
Dimensions
(W x D x H)		 1.5” x 5.2” x 5.5” (38.1 mm x 132.1 mm x 139.7 mm)
Weight

1.5 lbs. (680 grams)
Operating Temperature
(See Temperature Derating Table)

Extended: -40 to 75°C

Storage: -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs)

260,000
Warranty 5 year product warranty with 24/7/365 free Technical Support



Power / Voltage Requirements and Specifications

DescriptionIEEE 802.3af 15W PoEIEEE 802.3at 30W PoE+

IEEE 802.3.bt 60W PoE

(Type 3)

IEEE 802.3.bt 60W PoE

(Type 3)

Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC 51.0 to 57.0 VDC 53.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC 50.0 to 56.0 VDC 52.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts 60 watts 100 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC 42.5 VDC 41.1 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts 51 watts 71 watts
* at 100 meters using Cat5
