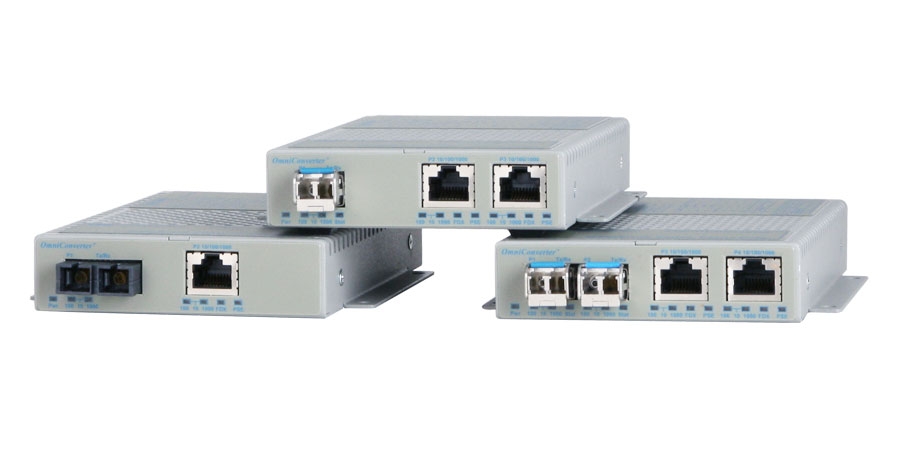

OmniConverter® GHPoEBT/S

10/100/1000 Media Converter with Power over Ethernet (60W and 100W PoE)

The OmniConverter GHPoE/S and GHPoEBT/S are multi-port media converters that convert 10/100/1000BASE-T copper to 1000BASE-X or 100BASE-FX fiber and support Power-over-Ethernet (HPoE and 802.3bt PoE). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data.



Features


The OmniConverter GHPoEBT/S replaces the GHPoE/S and is recommended for all new designs.



  • IEEE 802.3bt compliant 60W and 100W media converters
  • The GHPoEBT/S supports 60W and 100W per IEEE 802.3bt on one or two RJ-45 copper ports
  • 10/100/1000BASE-T copper to 1000BASE-X or 100BASE-X fiber media converter
  • Supports 100BASE-X or 1000BASE-X standard, CWDM and DWDM SFP transceivers
  • Supports frame sizes up to 10,240 bytes
  • Multiple port configurations:
    • 2 Port Device: 1 Fiber + 1 RJ-45
    • 3 Port Device: 2 Fiber + 1 RJ-45
    • 3 Port Device: 1 Fiber + 2 RJ-45
    • 4 Port Device: 2 Fiber + 2 RJ-45
  • Dual fiber models support redundant fiber link protection
  • Configurable PoE power reset
  • Available in AC and DC models
  • Integrated wall mount brackets
  • Commercial (0º to 50ºC), wide (-40º to 60ºC) and extended (-40º to 75ºC) operating temperature ranges
  • Made in the USA
  • Lifetime Warranty and free 24/7 Technical Support




Description


The OmniConverter GHPoEBT/S is a multi-port Hign-Power PoE Ethernet media converters that feature one or two fiber ports and one or two 10/100/000 RJ-45 copper Power-over-Ethernet ports.

The GHPoEBT/S is an IEEE 802.3bt media converter featuring 60 and 100 watts per RJ-45 port. The GHPoEBT/S are ideal for outdoor PTZ (pan-tilt-zoom) cameras with heaters and blowers, multi-stream wireless access points and small cells installations. All OmniConverter models support frame sizes up to 10,240 bytes.

OmniConverter PoE media converters provide network distance extension with fiber optic cabling and function as a PoE injector.

Models with two Small Form Pluggable (SFP) fiber receptacles support redundant fiber uplinks for critical applications that require protection and sub 50ms restoration in the event of a fiber failure. The second fiber port can also be used to cascade multiple media converters, or as another switch port.

Configurable features include link modes and a PoE power reset function that enables a PD device to be re-initialized remotely, eliminating the need for costly truck rolls to remote PD sites. When a problem with a PD is identified, the fiber port on a managed switch can be shut down or disconnected, triggering the PoE power reset function on the OmniConverter. The PoE power to the PD is disabled for 2 seconds when a loss of receive fiber link is detected by the OmniConverter.

Link modes can be configured to propagate loss-of-link faults to managed devices, immediately notifying administrators of network outages.

The OmniConverter PoE media converters are available with fixed fiber ST, SC, and LC connectors or Small Form Pluggable (SFP) transceiver receptacles. Fiber ports support multimode or single-mode and dual fiber or singlefiber. SFP models support 100Mbps and 1000Mbps standard, CWDM and DWDM transceivers in a variety of distances and fiber types.

The compact standalone OmniConverter media converters can be tabletop mounted, wall-mounted, or DIN-rail mounted using an optional DIN-rail mounting kit. They can also be mounted on a 1U 19” rack-mount shelf. They are available with DC input power via terminal connectors or external 100 to 240 VAC power adapters.





Examples


Security and Wireless

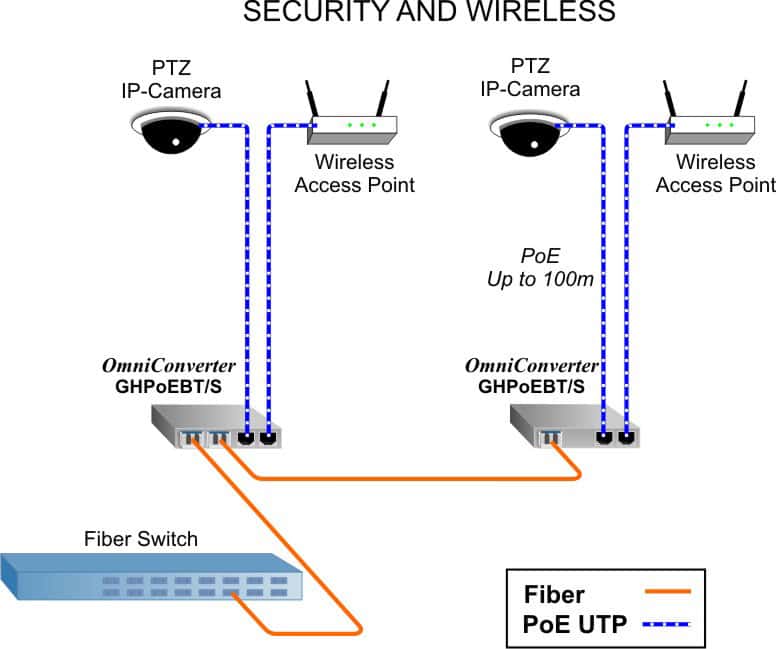

In this application example, outdoor IP surveillance cameras and Wireless Access Points are installed throughout a large facility. A network switch with fiber ports is used to distribute a fiber link from a control room to an OmniConverter media converter with dual fiber ports. The second fiber port on the OmniConverter is used to daisy-chain the fiber to the next location, where an OmniConverter media converter with one fiber port terminates the fiber.

The OmniConverter media converters provide Power over Ethernet (PoE) over UTP cables to an IP camera and Wireless Access Point at each location, each of which can be located up to 100 meters from the media converter.

For 60W or 100W PoE devices, such as cameras with heaters/blowers or pan/tilt/zoom motors, the GHPoEBT/S can be used for devices that require up to 100W.

Ceiling Application BT GHPoEBT S

Small Cell

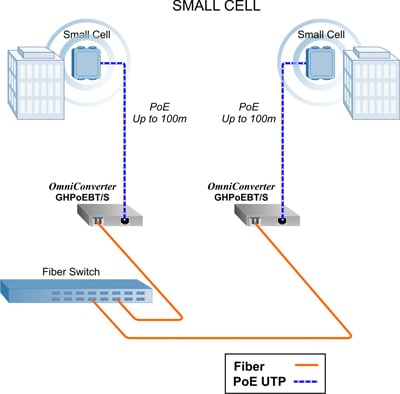

In this application example, High-Power small cell devices are deployed inside several buildings. A network switch with fiber ports is used to distribute a fiber link to OmniConverter media converters.

The OmniConverter GHPoEBT/S media converters are capable of providing up to 100 watts on the RJ-45 ports.

Product GHPoE BT Small Cell





Specifications


Description OmniConverter GHPoEBT/S
10/100/1000BASE-T to 1000BASE-X or 100BASE-X Fiber Media Converter with 60W or 100W
Standard Compliances IEEE 802.3,
IEEE 802.3af (15.40 watts max), IEEE 802.3at (30 watts max)
IEEE 802.3bt (60 and 100 watts max)
PoE Supported Modes IEEE Alternate A (Alt A) and 4 Pair
Regulatory Compliances

Safety: UL 62368-1,

             UL 60950-1,

             IEC 62368-1,

             IEC 60950-1,

             EN 62368-1,

             EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14,

             CAN/CSA C22.2 No. 60950-1,

             CE Mark

EMC:   EN 55032/24 CE Emissions/Immunity,

             IEC 61000-6-4 Industrial Emissions,

             IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

             IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

             IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

             IEC 61000-4-6 CS: Signal: 10 V,

             IEC 61000-4-8 ( Magnetic Field) 30 A/m,

             IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection
Environmental RoHS, WEEE, REACH
Frame Size Up to 10,240 bytes
Port Types
Copper : 10/100/1000BASE-T (RJ-45)
   Fiber :  100BASE-X (SFP)
               1000BASE-X (ST, SC, LC, SFP)
               1000BASE-BX (SC, SFP)
Cable Types
Copper :  EIA/TIA 568A/B, Cat 5 UTP and higher
   Fiber :  Multimode: 50/125, 62.5/125μm
               Single-mode: 9/125μm
AC Power Requirements
(Models with AC/DC Adapters)		 60W Model - 1 RJ-45 Port
100 - 240VAC/50 - 60Hz
0.62A @ 120VAC (typical)		 100W Model - 1 RJ-45 Port
100 - 240VAC/50 - 60Hz
1.00A @ 120VAC (typical)
60W Model - 2 RJ-45 Ports
100 - 240VAC/50 - 60Hz
1.19A @ 120VAC (typical)		 100W Model - 2 RJ-45 Ports
100 - 240VAC/50 - 60Hz
1.95A @ 120VAC (typical)
DC Power Requirements
(Models with DC Terminals)		 60W Model - 1 RJ-45 Port
+/-44 to +/-57VDC;
1.16A @ 56VDC
3 Pin Terminal (isolated)		 100W Model - 1 RJ-45 Port
+/-44 to +/-57VDC;
1.88A @ 56VDC
3 Pin Terminal (isolated)
60W Model - 2 RJ-45 Ports
+/-44 to +/-57VDC;
2.25A @ 56VDC
3 Pin Terminal (isolated)		 100W Model - 2 RJ-45 Ports
+/-44 to +/-57VDC;
3.67A @ 56VDC
3 Pin Terminal (isolated)
Dimensions (W x D x H) 4.5” x 6.0” x 1.0” (114.3 mm x 152.4 mm x 25.4 mm)
Weight Module Only: 1.1 lbs.; ( 498.9 grams)
Module w/ AC Adapter: 2.8 lbs.; (1256.4 grams)
Operating Temperature* Commercial: 0 to 50°C
Wide: -40 to 60°C (-20°C AC cold start)
Extended: -40 to 75°C (-20°C AC cold start)
Storage: -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hrs) Module Only: 474,000
AC/DC Adapter: 100,000
Warranty Lifetime warranty with 24/7/365 free Technical Support



Power / Voltage Requirements and Specifications per IEEE
Description IEEE 802.3af 15W PoE IEEE 802.3at 30W PoE+
IEEE 802.3bt 60W PoE
(Type 3)
IEEE 802.3bt 100W PoE
(Type 4)
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC 51.0 to 57.0 VDC 53.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC 50.0 to 56.0 VDC 52.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts 60 watts 100 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC 42.5 VDC 41.1 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts 51 watts 71 watts
* at 100 meters using Cat5




Ordering


OmniConverter GHPoEBT/S IEEE 802.3bt 60W Models
Fiber TypeDistanceConnector Type

Tx / Rx

Lambda (nm)

Min. Tx

Power (dBm)

Max. Tx

Power (dBm)

Min. Rx

Power (dBm)

Max.

Rx Power (dBm)

Min

Attenuation (dB)

Link

Budget (dB)

STSCLCSFP
MM 220/550m1 9500B-0-ypt 9502B-0-ypt 9506B-0-ypt - 850/850 -10 -4 -17 -3 - 7
MM (x2) 220/550m1  -  - 9506DB-0-ypt - 850/850 -10 -4 -17 -3 - 7
SM 12km 9501B-1-ypt 9503B-1-ypt 9507B-1-ypt - 1310/1310 -9.5 -3 -19.5 -3 - 10
SM (x2) 12km -   -  9507DB-0-ypt - 1310/1310 -9.5 -3 -19.5 -3 - 10
SM 34km 9501B-2-ypt 9503B-2-ypt  - - 1310/1310 -5 0 -23 -3 3 18
SM 80km - 9503B-3-ypt  - - 1550/1550 -5 0 -23 -3 3 18
SM 110km - 9503B-4-ypt  - - 1550/1550 0 5 -24 -3 8 24
SM 140km - 9503B-5-ypt  - - 1550/1550 2 5 -28 -8 13 30
MM-SF2 550m - 9510B-0-ypt  - - 1310/1550 -9 -3 -18 -3 - 9
MM-SF2 550m - 9511B-0-ypt  - - 1550/1310 -9 -3 -18 -3 - 9
SM-SF2 20km - 9510B-1-ypt  - - 1310/1550 -9.5 -3 -20 -3 - 10.5
SM-SF2 20km - 9511B-1-ypt  - - 1550/1310 -9.5 -3 -20 -3 - 10.5
SM-SF2 40km - 9510B-2-ypt  - - 1310/1550 -3 0 -20 -3 3 17
SM-SF2 40km - 9511B-2-ypt  - - 1550/1310 -3 0 -20 -3 3 17
SFP(x1) - -   -  - 9519B-0-ypt - - - - - - -
SFP(x2) -  -  - -  9519B-1-ypt - - - - - - -
1 62.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m.
2 When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.
MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber

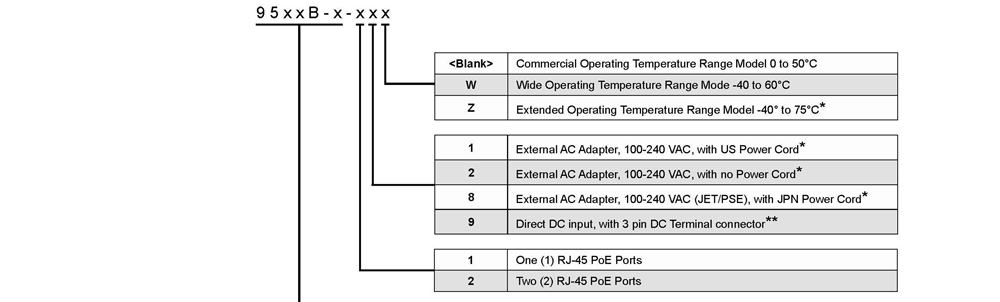

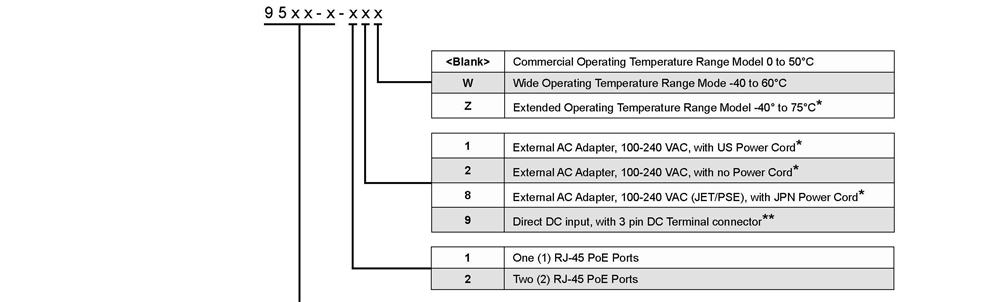

Base Model Number: 95xxB-x-ypt
Select the model from ordering table above.
Add # of RJ-45 ports (y), power option (p) and operating temperature range (t) to the model type selected.
Number of RJ-45 Ports (y):
1 = One RJ-45 Ports 2 = Two RJ-45 Ports
Power Options (p):
1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord 8 = External AC/DC Adapter, 100 - 240 VAC included, with Japanese Power Cord
2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord 9 = Direct DC 3 pin terminal connector, no AC/DC power adapter
See AC/DC Adapter Temperature table below when ordering AC Powered models (power option 1, 2 or 8)
The Direct DC input models (power option 9) will provide full PoE power over the operating temperature range of the module as long as the DC input voltage meets the requirements stated in the specification table.
Operating Temperature Options (t):
<leave blank> = Commercial temperature (0 to 50°C) W = Wide temperature (-40 to 60°C)
Z = Extended temperature (-40 to 75°C)
 Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.



AC/DC Adapter Temperature - Total Available Wattage to RJ-45 Ports
Model RJ-45 Ports Watts Required 40°C 50°C 60°C 70°C 75°C
GHPoEBT/S 60 watts 1 60 watts Full Power Full Power Full Power Full Power 50 watts
2 120 watts Full Power 100 watts 80 watts 60 watts 50 watts
The AC/DC Adapter Temperature table is not applicable to models with DC Terminal (see Ordering table for Direct DC power option 9). The DC Terminal models will provide full PoE power over the operating temperature range of the module as long as the DC input voltage meets the requirements stated in the specification table.

OmniConverter GHPoEBT/S IEEE 802.3bt 100W Models
Fiber TypeDistanceConnector Type

Tx / Rx

Lambda (nm)

Min. Tx

Power (dBm)

Max. Tx

Power (dBm)

Min. Rx

Power (dBm)

Max.

Rx Power (dBm)

Min

Attenuation (dB)

Link

Budget (dB)

STSCLCSFP
MM 220/550m1 9150B-0-ypt 9152B-0-ypt 9156B-0-ypt - 850/850 -10 -4 -17 -3 - 7
MM (x2) 220/550m1  -  - 9156DB-0-ypt - 850/850 -10 -4 -17 -3 - 7
SM 12km 9151B-1-ypt 9153B-1-ypt 9157B-1-ypt - 1310/1310 -9.5 -3 -19.5 -3 - 10
SM (x2) 12km -   - 9157DB-1-ypt - 1310/1310 -9.5 -3 -19.5 -3 - 10
SM 34km 9151B-2-ypt 9153B-2-ypt  - - 1310/1310 -5 0 -23 -3 3 18
SM 80km - 9153B-3-ypt  - - 1550/1550 -5 0 -23 -3 3 18
SM 110km - 9153B-4-ypt  - - 1550/1550 0 5 -24 -3 8 24
SM 140km - 9153B-5-ypt  - - 1550/1550 2 5 -28 -8 13 30
MM-SF2 550m - 9160B-0-ypt  - - 1310/1550 -9 -3 -18 -3 - 9
MM-SF2 550m - 9161B-0-ypt  - - 1550/1310 -9 -3 -18 -3 - 9
SM-SF2 20km - 9160B-1-ypt  - - 1310/1550 -9.5 -3 -20 -3 - 10.5
SM-SF2 20km - 9161B-1-ypt  - - 1550/1310 -9.5 -3 -20 -3 - 10.5
SM-SF2 40km - 9160B-2-ypt  - - 1310/1550 -3 0 -20 -3 3 17
SM-SF2 40km - 9161B-2-ypt  - - 1550/1310 -3 0 -20 -3 3 17
SFP(x1) - -   -  - 9169B-0-ypt - - - - - - -
SFP(x2) -  -  - -  9169B-1-ypt - - - - - - -
1 62.5/125µm, 100/140µm multimode fiber up to 220m. 50/125µm multimode fiber up to 550m.
2 When using single-fiber (SF) media converter models, the Tx wavelength on one end has to match the Rx wavelength on the other.
MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber

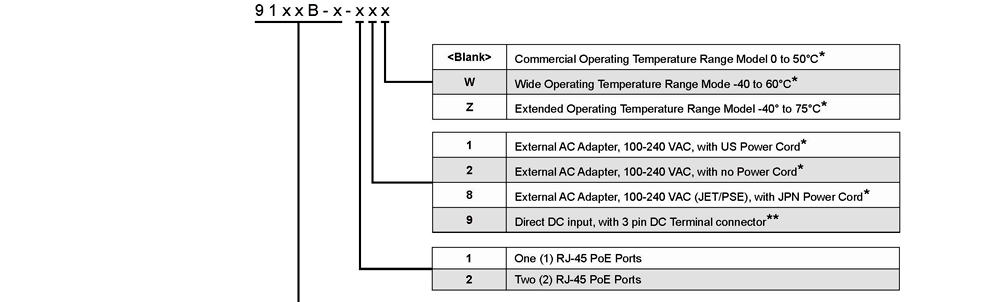

Base Model Number: 91xxB-x-ypt
Select the model from ordering table above.
Add # of RJ-45 ports (y), power option (p) and operating temperature range (t) to the model type selected.
Number of RJ-45 Ports (y):
1 = One RJ-45 Ports 2 = Two RJ-45 Ports
Power Options (p):
1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord 8 = External AC/DC Adapter, 100 - 240 VAC included, with Japanese Power Cord
2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord 9 = Direct DC 3 pin terminal connector, no AC/DC power adapter
See AC/DC Adapter Temperature table below when ordering AC Powered models (power option 1, 2 or 8)
The Direct DC input models (power option 9) will provide full PoE power over the operating temperature range of the module as long as the DC input voltage meets the requirements stated in the specification table.
Operating Temperature Options (t):
<leave blank> = Commercial temperature (0 to 50°C) W = Wide temperature (-40 to 60°C)
Z = Extended temperature (-40 to 75°C)
 Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.







AC/DC Adapter Temperature - Total Available Wattage to RJ-45 Ports
Model RJ-45 Ports Watts Required 40°C 50°C 60°C 70°C 75°C
GHPoEBT/S 100watts 1 100 watts Full Power Full Power No AC Model Available
2 200 watts No AC Model Available
The AC/DC Adapter Temperature table is not applicable to models with DC Terminal (see Ordering table for Direct DC power option 9). The DC Terminal models will provide full PoE power over the operating temperature range of the module as long as the DC input voltage meets the requirements stated in the specification table.

Accessories
Model NumberDescription
 8250-0  DIN-Rail Mounting Kit
 8251-0 DIN Rail Mounting Clip
 8260-0 1U Rack Mount Shelf




Documents


pdf OmniConverter GHPoEBT/S (Datasheet) (886 KB)

pdf OmniConverter GHPoEBT/S (User Manual) (699 KB)
