OmniConverter® G/M SFPs not included
OmniConverter® G/M

Managed Ethernet 6 and 10 Port Gigabit Fiber Switch



Features


Managed Ethernet 6 and 10 Port Gigabit Fiber Switch

  • Supports 1000BASE-X Gigabit fiber and 10/100/1000BASE-T RJ-45
  • Multiple configurations, including 6 Port and 10 Port:
    • 1 Fiber + 4 Copper
    • 2 Fiber + 4 Copper
    • 1 Fiber + 8 Copper
    • 2 Fiber + 8 Copper
  • Management via Web, Telnet, SSH and serial interfaces
  • Supports SNMPv1 and SNMPv2c protocols
  • SNMP management via Omnitron’s NetOutlook® management software, or third-party SNMP management software
  • Supports ST, SC and LC fiber ports or SFP transceivers
  • Fiber redundancy on models with two fiber ports
  • Dual Device mode for operating as two separate switches
  • Directed Switch mode to prevent port flooding
  • Supports jumbo frames up to 10,240 bytes
  • Wall and DIN-rail mountable
  • Commercial (0º to 50ºC), wide (-40º to 60ºC) and extended (-40º to 75ºC) operating temperature ranges
  • Free 24/7/365 Technical Support
  • IEEE 802.1Q VLAN tagging and IEEE 802.1ad Q-in-Q Provider Bridge VLAN stacking
  • DHCP Relay Option 82
  • IEEE 802.1ab Link Layer Discovery Protocol
  • Rate Limiting, Queue prioritization and Class of Service
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • Static MAC configuration and blocking of unknown Unicast/Multicast addresses
  • SNTP / NTP and time of day
  • IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists
  • RFC 5424 Syslog




Description


The OmniConverter G/M is a compact Ethernet gigabit fiber edge switch that features one or two Gigabit fiber ports and four or eight 10/100/1000 RJ-45 copper ports. The OmniConverter G/M enables network distance extension with fiber cabling.

The OmniConverter G/M is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

The OmniConverter G/M supports Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate fiber port, preventing the multicast video traffic from flooding other network ports.

Models with two fiber ports support redundant fiber uplinks for critical applications that require protection and sub 50ms restoration in the event of a fiber failure. The second fiber port may also be used to daisy-chain multiple Ethernet switches, or it may be used as another switch port.

Models with two fiber ports also support Dual Device mode that enables the G/M to operate as two independent and isolated Ethernet switches. In Dual Device mode, the G/M provides separate and independent data traffic paths between the two fiber links and four or eight RJ-45 ports.

The G/M modes of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH or Serial Console management interfaces. The G/M supports in-band and out-of-band management. In-band management is provided by accessing the module through any of the Ethernet RJ-45 or fiber ports and supports IP-based web, Telnet, SSH and SNMPv1/v2c management interfaces. Out-of-band management is provided by accessing the serial console port. Omnitron’s NetOutlook SMNP software can be used for real-time alarm reporting and monitoring of each port.

The OmniConverter G/M is available with fixed ST, SC, and LC connectors or Small Form Pluggable (SFP) transceiver receptacles. Fiber ports support multimode or single-mode and dual fiber or single-fiber with distances up to 140 km. SFP models support a variety of distances in standard and CWDM wavelengths.

The compact OmniConverter Ethernet switches can be wall mounted or DIN-rail mounted using an optional DIN-rail mounting clip. They are available with 2-Pin DC Terminal and AC to DC 100 - 240VAC power adapters.





Examples


Daisy Chain Application

OmniConverter G/M Ethernet fiber switches can be deployed in a simple daisy chain topology.

In this application example, Gigabit fiber is distributed from a fiber switch at a network hub location to OmniConverter G/M fiber switches deployed along a fiber daisy chain that connects multiple OmniConverter G/M switches with two fiber ports. Each OmniConverter G/M provides fiber connectivity to the fiber links, and copper connectivity to IP cameras, routers, and workstations at each location along the daisy chain.



G_M_Manufacturing App.jpg



Directed Switch Mode

The G/M can be configured to operate in Directed Switch Mode, which directs video traffic only to the uplink fiber port, as shown in the diagram below, preventing the multicast traffic from flooding other network ports.

This example shows a video camera that broadcasts a multicast video stream to the entire network, and the video stream is received by all of the destinations. This multicast video can cause port flooding on other network devices (including other cameras, printers and workstations). To avoid this, multicast traffic is routed only to ports where the destination devices are connected.



PoE Switch Directed Switch Mode GPoE+M



Dual Device Mode

For secure applications requiring two separate network domains over fiber runs to the same location, the G/M can be configured in Dual Device Mode.

The G/M provides separate and independent data traffic paths between the two fiber links and four or eight RJ-45 ports. In the example below, the green lines represent a Security network and the purple lines represent a Workgroup network.



GHPoE M Dual Media Converter Mode





Management




The IP-based web management provides easy access to all the features of the OmniConverter using any standard web browser.

IP-based web management provides remote management of the OmniConverter compact fiber switches, and provides the ability to remotely monitor status and configure hardware/software parameters.

The management software provides intuitive and easy-to-navigate menu options for system status, port statistics and configuration screens.

Configuration capabilities include port settings, DIP-switches, VLAN, switch modes, firmware updates and system maintenance.





Specifications


Description
OmniConverter G/M
10/100/1000BASE-T to 1000BASE-X
Managed Ethernet 6 and 10 Port Gigabit Fiber Switch
Standard Compliances
IEEE 802.3, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1w,
RFC 5424, SNTP, RADIUS, TACACS+, IEEE 802.1x
Environmental
REACH, RoHS and WEEE
Management
Web, Telnet, SSHv2, Serial Console, SNMP v1/v2c
Frame Size
Up to 10,240 bytes
Port Types
Copper:

Fiber:

Serial:
10/100/1000BASE-T (RJ-45)

1000BASE-X (ST, SC, LC, SFP)

RJ-45
Cable Types
Copper:

Fiber:


Serial:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125, 62.5/125μm
Single-mode: 9/125μm

Category 3 and higher
AC Power Requirements
(Models with AC/DC Adapters)
4 RJ-45 Ports:



8 RJ-45 Ports:
AC/DC Power Adapter
100 - 240VAC/50 - 60Hz
0.09A @ 120VAC (typical)

AC/DC Power Adapter
100 - 240VAC/50 - 60Hz
0.10A @ 120VAC (typical)
DC Power Requirements
(Models with DC Terminals)
4 RJ-45 Ports:




8 RJ-45 Ports:
12 to 57VDC;
0.85A @ 12VDC
0.19A @ 48VDC
2 Pin Terminal (isolated)

12 to 57VDC;
0.77A @ 12VDC
0.21A @ 48VDC
2 Pin Terminal (isolated)
Dimensions
W: 6.28” x D: 5.2” x H: 1.5”
L: 159.5 mm x B: 132.1 mm x H: 38.1 mm
Weight
4 RJ-45 Ports:


8 RJ-45 Ports:
Module Only: 1.1 lb.; 499 grams
Module with AC/DC Adapter: 1.6 lbs.; 726 grams

Module Only: 1.5 lbs.; 700 grams
Module with AC/DC Adapter: 2.12 lbs.; 962 grams
Operating Temperature
Commercial:
Wide:
Extended:
 Storage:
   0 to 50°C
-40 to 60°C (-20°C AC cold start)
-40 to 75°C (-20°C AC cold start)
-40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
-100m to 4,000 (operational)
MTBF (hrs)
4 RJ-45 Ports:


 8 RJ-45 Ports:
Module Only: 280,000
Module with AC/DC Adapter: 74,000

Module Only: 285,000
Module with AC/DC Adapter: 74,000
Warranty
5 year product warranty with 24/7/365 free Technical Support
2 year AC power adapter warranty


Standards and Compliances
Safety*
UL 60950-1
IEC 60950-1:2005+A1:2009 and
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
CE Mark
EMC
EN 55032/24 CE Emissions/Immunity
IEC 61000-6-4 Industrial Emissions
IEC 61000-6-2 Industrial Immunity
EMI CISPR 32, FCC 47 Part 15 Subpart B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m (passed industrial rating of 10V/m)
IEC 61000-4-4 EFT: Power: 1 kV (passed industrial rating of 2 kV)
IEC 61000-4-4 EFT: Signal: 0.5 kV (passed industrial rating of 1 kV)
IEC 61000-4-5 Surge: Power: 1 kV (passed industrial rating of 2 kV)
IEC 61000-4-5 Surge: Signal: 1 kV
IEC 61000-4-6 CS: Signal: 3 Vrms (passed industrial rating of 10 Vrms)
IP Rating IP20 Protection
*Pending

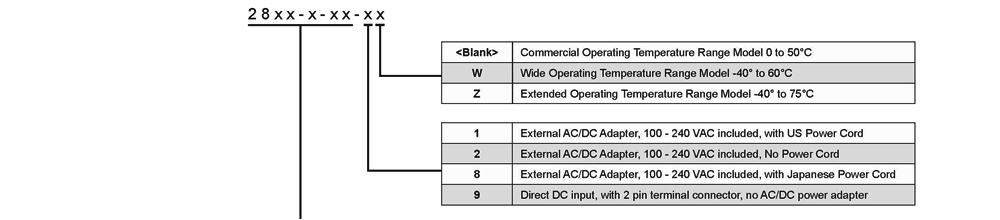

Ordering


OmniConverter G/M Ethernet Fiber Switch 4-Port

Fiber TypeDistanceConnector TypeTx Lambda (nm)Rx Lambda (nm)Min. Tx Power (dBm)Max. Tx Power (dBm)Min. Rx Power (dBm)Max. Rx Power (dBm)Min Attenuation (dB)Link
Budget (dB)
STSCLCSFP
MM/DF 220/550m* 2820-0-14 2822-0-14 2826-0-14 - 850 850 -10 -4 -17 -3 - 7
MM/DF (x2) 220/550m* - - 2826-0-24 - 850 850 -10 -4 -17 -3 - 7
MM/DF 2km - 2822-6-14 - - 1310 1310 -9.5 -3 -19.5 -3 - 10
SM/DF 12km 2821-1-14 2823-1-14 2827-1-14 - 1310 1310 -9.5 -3 -19.5 -3 - 10
SM/DF (x2) 12km - - 2827-1-24 - 1310 1310 -9.5 -3 -19.5 -3 - 10
SM/DF 34km - 2823-2-14 - - 1310 1310 -5 0 -23 -3 3 18
SM/DF 80km - 2823-3-14 - - 1550 1550 -5 0 -23 -3 3 18
SM/DF 110km - 2823-4-14 - - 1550 1550 0 5 -24 -3 8 24
SM/DF 140km - 2823-5-14 - - 1550 1550 2 5 -28 -8 13 30
MM/SF 220/550m* - 2830-0-14 - - 1310 1550 -9 -3 -18 -3 - 9
MM/SF 220/550m* - 2831-0-14 - - 1550 1310 -9 -3 -18 -3 - 9
SM/SF 20km
- 2830-1-14 - - 1310 1550 -9.5 -3 -20 -3 - 10.5
SM/SF 20km
- 2831-1-14 - - 1550 1310 -9.5 -3 -20 -3 - 10.5
SM/SF 40km
- 2830-2-14 - - 1310 1550 -3 0 -20 -3 3 17
SM/SF 40km
- 2831-2-14 - - 1550 1310 -3 0 -20 -3 3 17
SFP (x1) - - - - 2839-0-14 - - - - - - - -
SFP (x2) - - - - 2839-0-24 - - - - - - - -
* 62.5/125μm, 100/140μm multimode fiber up to 220m. 50/125μm multimode fiber up to 550m.
When using single-fiber (SF) models, the Tx wavelength on one end has to match the Rx wavelength on the other.
Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Omnitron Optical Transceivers web page.



OmniConverter G/M thernet Fiber Switch 8-Port

Fiber TypeDistanceConnector TypeTx Lambda (nm)Rx Lambda (nm)Min. Tx Power (dBm)Max. Tx Power (dBm)Min. Rx Power (dBm)Max. Rx Power (dBm)Min Attenuation (dB)Link
Budget (dB)
STSCLCSFP
MM/DF 220/550m* 2820-0-18 2822-0-18 2826-0-18 - 850 850 -10 -4 -17 -3 - 7
MM/DF (x2) 220/550m* - - 2826-0-28 - 850 850 -10 -4 -17 -3 - 7
MM/DF 2km - 2822-6-18 - - 1310 1310 -9.5 -3 -19.5 -3 - 10
SM/DF 12km 2821-1-18 2823-1-18 2827-1-18 - 1310 1310 -9.5 -3 -19.5 -3 - 10
SM/DF (x2) 12km - - 2827-1-28 - 1310 1310 -9.5 -3 -19.5 -3 - 10
SM/DF 34km - 2823-2-18 - - 1310 1310 -5 0 -23 -3 3 18
SM/DF 80km - 2823-3-18 - - 1550 1550 -5 0 -23 -3 3 18
SM/DF 110km - 2823-4-18 - - 1550 1550 0 5 -24 -3 8 24
SM/DF 140km - 2823-5-18 - - 1550 1550 2 5 -28 -8 13 30
MM/SF 220/550m* - 2830-0-18 - - 1310 1550 -9 -3 -18 -3 - 9
MM/SF 220/550m* - 2831-0-18 - - 1550 1310 -9 -3 -18 -3 - 9
SM/SF 20km
- 2830-1-18 - - 1310 1550 -9.5 -3 -20 -3 - 10.5
SM/SF 20km
- 2831-1-18 - - 1550 1310 -9.5 -3 -20 -3 - 10.5
SM/SF 40km
- 2830-2-18 - - 1310 1550 -3 0 -20 -3 3 17
SM/SF 40km
- 2831-2-18 - - 1550 1310 -3 0 -20 -3 3 17
SFP (x1) - - - - 2839-0-18 - - - - - - - -
SFP (x2) - - - - 2839-0-28 - - - - - - - -
* 62.5/125μm, 100/140μm multimode fiber up to 220m. 50/125μm multimode fiber up to 550m.
When using single-fiber (SF) models, the Tx wavelength on one end has to match the Rx wavelength on the other.
Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Omnitron Optical Transceivers web page.




Accessories
 Model Number
 Description
 8251-0
  DIN-Rail Mounting Clip
 8260-0
  19" Rack Mount Shelf
