10/100/1000 Media Converter with IEEE 802.3bt Power over Ethernet (60W and 100W)

OmniConverter® GPoEBT/S

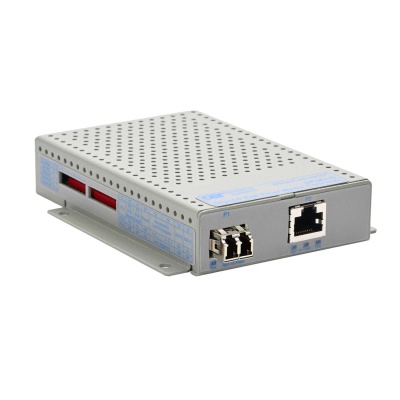

OmniConverter PoE 1 LC 1 RJ-45
Lifetime Warranty
OmniConverter® GPoEBT/S : 1 x 10/100/1000 Mbps RJ-45 100W PoE++ to 1 Gbps Fiber, LC, Single-Mode Dual Fiber 1310nm, 12km, DC 2-Pin Terminal, Extended Temperature -40 to 75 deg


Part Number

9157N-1-19Z

icons

  • Description
  • Specifications
  • Documents

OmniConverter GPoEBT/S (Data sheet)

OmniConverter GPoEBT/S (User Manual)

Media Converter Comparison App Note (The Application Note provides a cross reference from the Previous/Old models to the Enhanced models)

OmniConverter® GPoEBT/S : 1 x 10/100/1000 Mbps RJ-45 100W PoE++ to 1 Gbps Fiber, LC, Single-Mode Dual Fiber 1310nm, 12km, DC 2-Pin Terminal, Extended Temperature -40 to 75 deg

Specifications

Description OmniConverter GHPoEBT/S
10/100/1000BASE-T to 1000BASE-X or 100BASE-X Fiber Media Converter with 60W or 100W
Standard Compliances

IEEE 802.3,

IEEE 802.3af (15.40 watts max), IEEE 802.3at (30 watts max), IEEE 802.3bt (60 and 100 watts max)

Regulatory Compliances

(Pending)

Safety: UL 62368-1, UL 60950-1,

            IEC 62368-1, IEC 60950-1,

            EN 62368-1, EN 60950-1,

            CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1,

            CE Mark, UKCA

EMC:   EN 55032/24 CE Emissions/Immunity,

            IEC 61000-6-4 Industrial Emissions,

            IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

            IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

            IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

            IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

            IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

            IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

            IEC 61000-4-6 CS: Signal: 10 V,

            IEC 61000-4-8 (Magnetic Field) 30A/m,

            IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP30D Protection

ACT: TAA, BAA,NDAA
Environmental RoHS, WEEE, REACH
PoE Power Modes IEEE Alterative A (Alt A) and 4 pair
Frame Size Up to 10,240 bytes
Port Types

Copper: 10/100/1000BASE-T (RJ-45)

Fiber:     100BASE-X (SFP)

              1000BASE-X (ST, SC, LC, SFP)

              10/100/1000 SGMII (RJ-45 SFP)

              1G SERDES (RJ-45 SFP)
Cable Types

Copper: EIA/TIA 568A/B, Cat 5 UTP and higher

Fiber:     Multimode: 50/125, 62.5/125µm

               Single-mode: 9/125µm
AC Power Requirements
(Models with AC/DC Adapters)

60W Model - 1 RJ-45 Port

100 - 240VAC/50 - 60Hz, 0.61A @ 120VAC (typical)

100W Model - 1 RJ-45 Port

100 - 240VAC/50 - 60Hz, 0.99A @ 120VAC (typical)

60W Model - 2 RJ-45 Ports

100 - 240VAC/50 - 60Hz, 1.18A @ 120VAC (typical)

100W Model - 2 RJ-45 Ports

100 - 240VAC/50 - 60Hz, 1.94A @ 120VAC (typical)
DC Power Requirements
(Models with DC Terminals)

60W Model - 1 RJ-45 Port

+/-46 to +/-57VDC, 1.15A @ 56VDC

2 Pin Terminal (isolated)

100W Model - 1 RJ-45 Port

+/-46 to +/-57VDC, 1.88A @ 56VDC

2 Pin Terminal (isolated)

60W Model - 2 RJ-45 Ports

+/-46 to +/-57VDC, 2.23A @ 56VDC

2 Pin Terminal (isolated)

100W Model - 2 RJ-45 Ports

+/-46 to +/-57VDC, 3.67A @ 56VDC

2 Pin Terminal (isolated)
Dimensions (W x D x H) 3.8” x 4.8” x 1.0” (96.5 mm x 121.9 mm x 25.4 mm)
Weight

Module Only: 1.0 lbs.; 453.6 grams

Module w/ Adapter: 1.8 lbs.; 816.4grams
Operating Temperature*

Commercial: 0 to 50°C

Wide:         -40 to 60°C (-20°C AC cold start)

Extended:  -40 to 75°C (-20°C AC cold start)

Storage:     -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hrs)

Module Only: 584,000

AC/DC Adapter: 100,000
Warranty Lifetime warranty with 24/7/365 free Technical Support
