miConverter GX T PoED LC TT
Lifetime Warranty

10/100/1000BASE-T to 1000BASE-X Ethernet Media Converter - PoE Powered

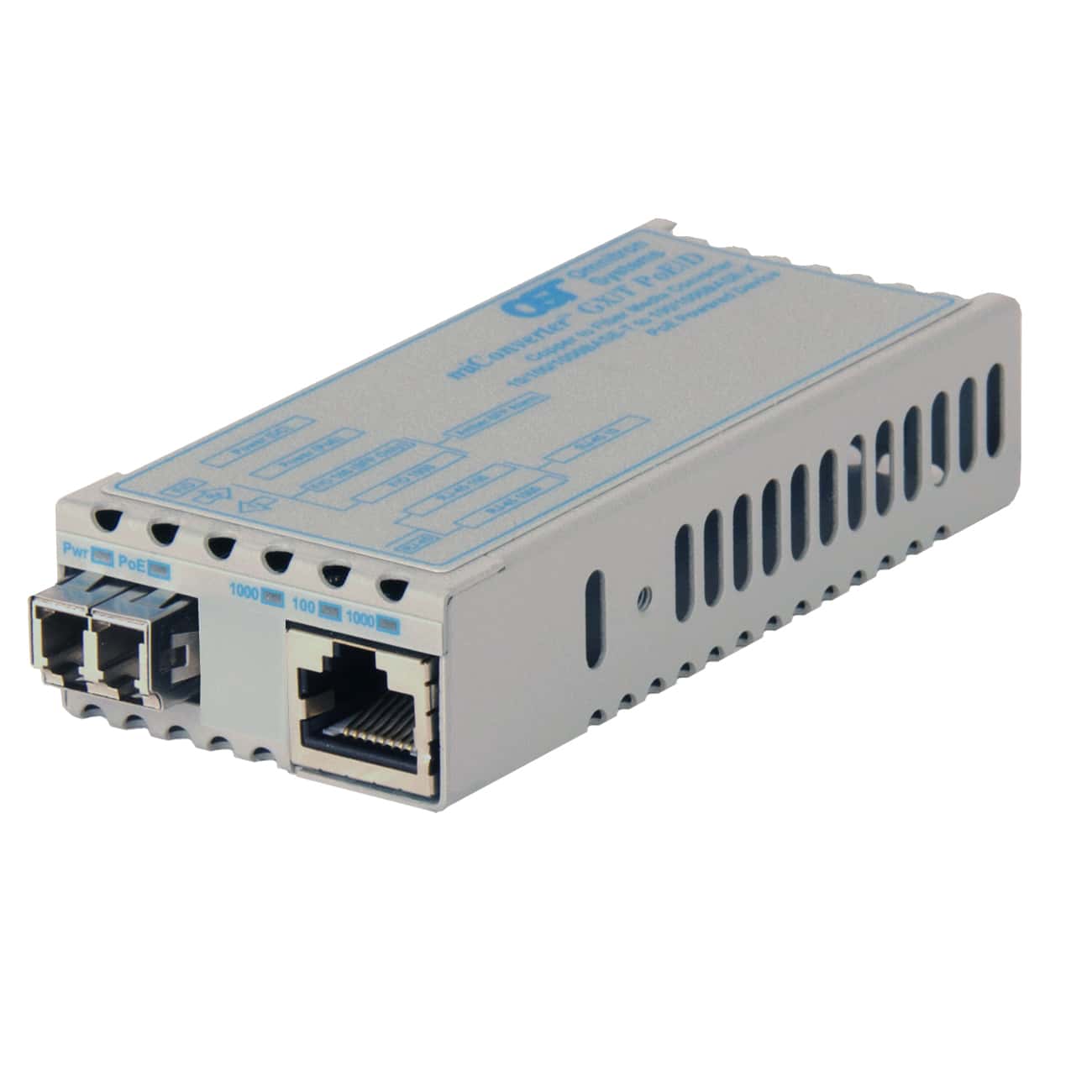

miConverter® GX/T PoE/D

Part Number: 1226D-0-00



Add to Quote
icons
  • Description
  • Specifications
  • Documents

miConverter® GX/T PoE/D: 10/100/1Gbps RJ-45 to 100Mbps/1Gbps, LC, Multimode Dual Fiber, 850nm, 220 / 550m, No AC/DC Power Adapter, Commercial Temperature 0 to 50 deg C

Specifications

Description
 miConverter GX/T PoE/D
 10/100/1000BASE-T to 100/1000BASE-X Fiber Converter Powered by PoE
Standard Compliances
 IEEE 802.3
Regulatory Compliances

Safety: UL, cUL, CE, UKCA

EMI: FCC Class A

ACT: TAA, BAA, NDAA
Environmental RoHS, REACH, WEEE
Frame Size
 Up to 10,240 bytes
Port Types
Copper:

Fiber:
10/100/1000BASE-T (RJ-45)

100BASE-X (SFP)
1000BASE-X (ST, SC, LC, SFP)
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC/DC Adapter:

100 - 240VAC/50 - 60Hz
0.03A @ 120VAC (max)
DC Power Requirements
DC Input:
(AC/DC Adapter)

   DC Input:
(Terminal Connector)

   DC Input:
(PoE)
8.0 to 60.0VDC
0.278A @ 9VDC
2.5mm Barrel Connector
8.0 to 60.0VDC
0.278A @ 9VDC
2-Pin Terminal (non-isolated)
44 - 57VDC, 0.05A @ 48VDC (typical)
RJ-45 (Alternative A & B)
Dimensions
W x D x H
Standalone:


Standalone
w/Integrated Brackets
1.71” x 4.10” x 0.84”
(43.4 mm x 104.1 mm x 21.3 mm)

2.41” x 4.10” x 0.84”
(61.2 mm x 104.1 mm x 21.3 mm)
Weight
Module Only:
With AC/DC Adapter:
 4 oz. (113.4 grams)
12 oz. (340.2 grams)
Temperature
Commercial:
Wide:
Storage:
  0 to 50°C
-40 to 60°C, -20°C AC cold start
-50 to 85°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
Module Only:
With AC/DC Adapter:
859,588
102,249
Warranty
 Lifetime warranty with 24/7/365 free Technical Support

miConverter GX/T PoE/D ( Data Sheet )

miConverter GX/T PoE/D (User Manual)
