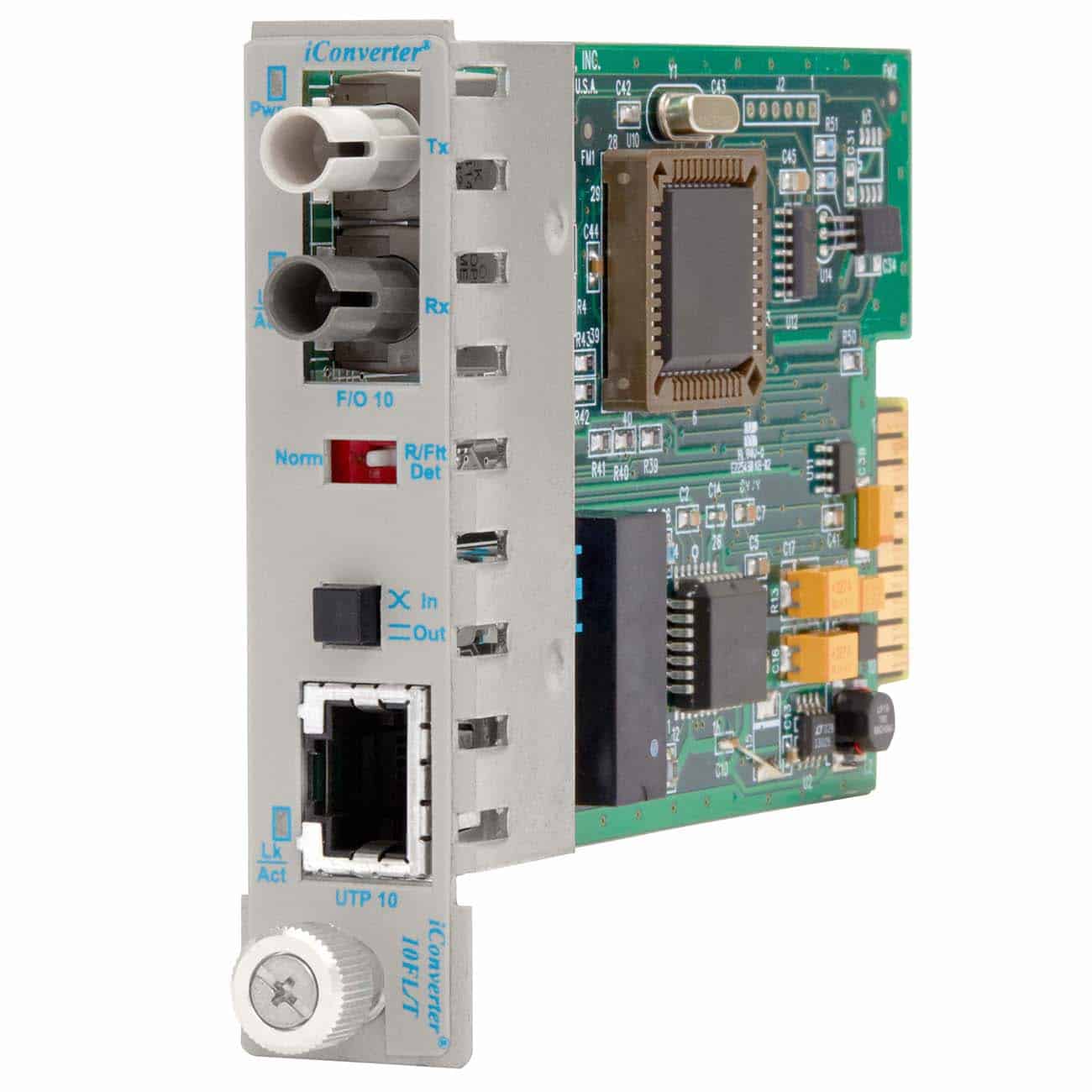

10BASE-T to 10BASE-FL Managed Ethernet Media Converter

iConverter® 10FL/T

Iconverter 10FL T ST PI
Lifetime Warranty
iConverter® 10FL/T: 10 Mbps RJ-45 to 10 Mbps, ST, Single-Mode Dual Fiber, 1310nm, 30km, Powered by Chassis, Commercial Temperature 0 to 50 deg C


Part Number

8301-1

icons
Add to Quote

  • Description
  • Specifications
  • Documents

iConverter 10FL/T (Data Sheet)

iConverter 10FL/T (User Manual)

iConverter® 10FL/T: 10 Mbps RJ-45 to 10 Mbps, ST, Single-Mode Dual Fiber, 1310nm, 30km, Powered by Chassis, Commercial Temperature 0 to 50 deg C

Specifications

Description
 iConverter 10FL/T
 10BASE-T Copper to 10BASE-FL Fiber Media Converter
Standard Compliances
IEEE 802.3
Regulatory Compliances

Safety:

EMI:

ACT

UL, cUL, CE, NEBS Level 3, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size
Unlimited
Port Type
Copper:

Fiber:
10BASE-T (RJ-45)

10BASE-FL (ST, SC, LC)
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm

DC Power Requirements
DC Input:
(Backplane)
3.3VDC, 1.0A @ 3.3VDC
Dimensions
W x D x H
0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm)
Weight
8 oz. (226.8 grams)
Temperature
Commercial:
Wide:
Storage:
   0 to 50°C
-40 to 60°C
-40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
 830,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support
