10/100/1000BASE-T to 100/1000BASE-X Ethernet Media Converter

FlexPoint® GX/T

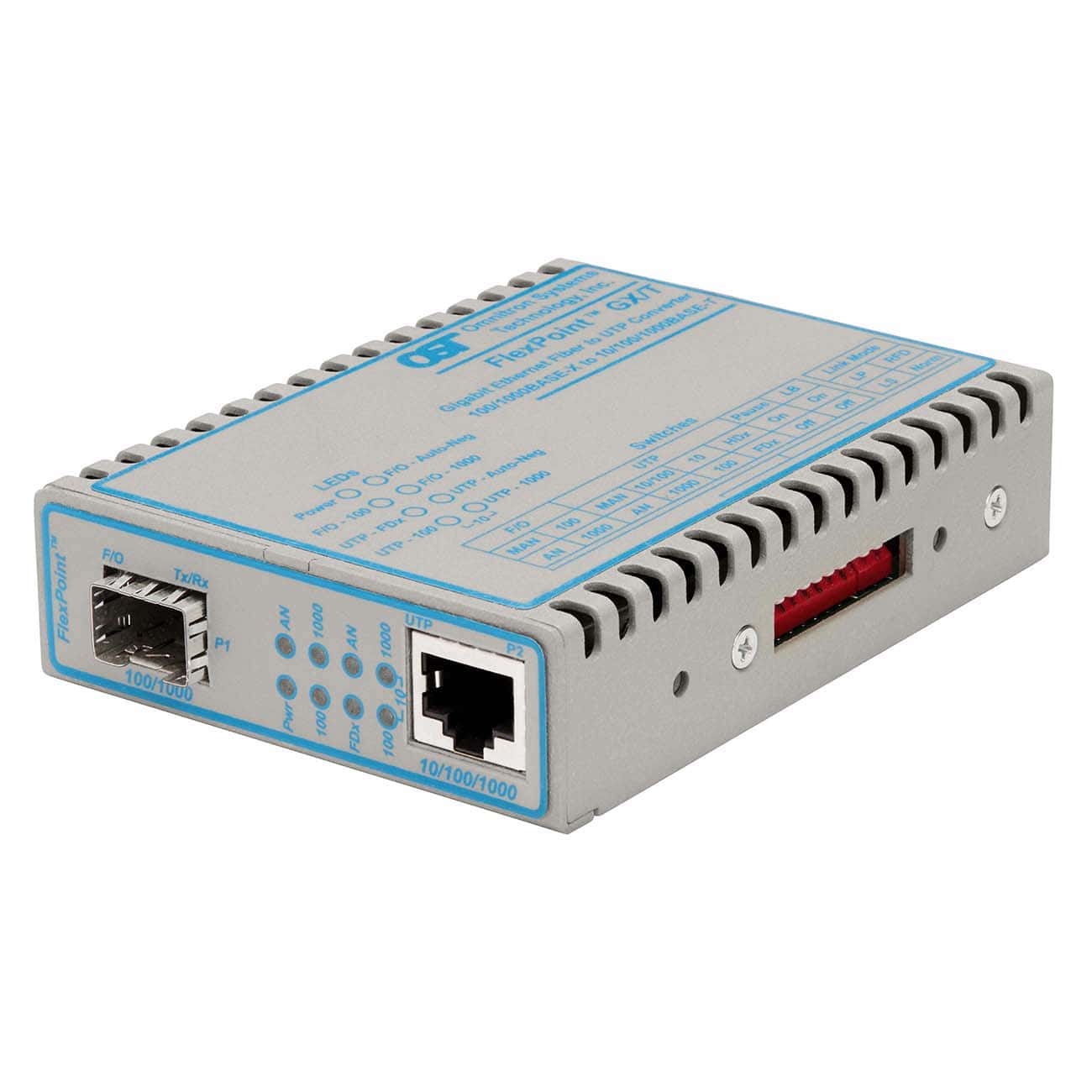

FlexPoint GXT SFP
Lifetime Warranty
FlexPoint® GX/T: 10/100/1Gbps RJ-45 to 100Mbps/1Gbps, SFP, Fiber Type depends on SFP, Wavelength depends on SFP, Distance depends on SFP, US 100-240VAC, Commercial Temperature 0 to 50 deg C


Part Number

4719-1

icons

  • Description
  • Specifications
  • Documents

FlexPoint GX/T (Data Sheet)

FlexPoint GX/T (User Manual)

FlexPoint® GX/T: 10/100/1Gbps RJ-45 to 100Mbps/1Gbps, SFP, Fiber Type depends on SFP, Wavelength depends on SFP, Distance depends on SFP, US 100-240VAC, Commercial Temperature 0 to 50 deg C

Specifications

Description
 FlexPoint GX/T
 10/100/1000BASE-T Copper to 100BASE-FX/1000BASE-X Fiber Media Converter
Standard Compliances
 IEEE 802.3
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size
 Up to 10,240 bytes
Port Types
Copper:

Fiber:
10/100/1000BASE-T (RJ-45)

100BASE-FX (SFP)
1000BASE-X (ST, SC, SFP)
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC Adapter:

100 - 240VAC/50 - 60Hz
0.03A @ 120VAC (typical)
DC Power Requirements

Voltage Range:
Nominal Voltage:
Nominal Power:
Barrel Connector
5.0 to 32VDC
9VDC
0.3A @ 9VDC
Molex Connector
4.75 to 5.25VDC
5VDC
0.5A @ 5VDC
Dimensions
W x D x H
 3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight
 w/o AC Adapter:
6 oz. (170.1 grams)
Temperature
 Commercial:
Wide:
Storage: 		    0 to 50°C
-40 to 60°C
-40 to 80° C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
 w/o AC Adapter (-0):
w/ AC Adapter (-1):
w/ AC Adapter (-2): 		 900,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support
