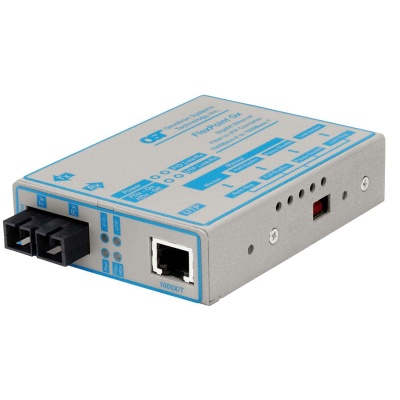

FlexPoint GX SC
Lifetime Warranty

1000BASE-T to 1000BASE-X Ethernet Media Converter

FlexPoint® Gx

Part Number: 4370-2



icons
  • Description
  • Specifications
  • Documents

FlexPoint® Gx: 1 Gbps RJ-45 to 1 Gbps, SC, Multimode Dual Fiber, 850nm, 220m, Univ 100-240VAC, Commercial Temperature 0 to 50 deg C

Specifications

Description
 FlexPoint Gx
 1000BASE-T Copper to 1000BASE-X Fiber Media Converter
Standard Compliances
 IEEE 802.3
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size
 Supports frame sizes up to 10K bytes
Port Types
Copper:

Fiber:
1000BASE-T (RJ-45)

1000BASE-X (ST, SC, LC, MT-RJ)
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC Adapter:

100 - 240VAC/50 - 60Hz
0.04A @ 120VAC (typical)
DC Power Requirements

Voltage Range:
Nominal Voltage:
Nominal Power:
Barrel Connector
6.0 to 15VDC
9VDC
0.4A @ 9VDC
Molex Connector
4.75 to 5.25VDC
5VDC
0.6A @ 5VDC
Dimensions
W x D x H
 3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight
 w/o AC Adapter:
6 oz. (170.1 grams)
Temperature
 Commercial:
Wide:
Storage: 		    0 to 50°C
-40 to 60°C
-40 to 80° C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
 w/o AC Adapter (-0):
w/ AC Adapter (-1):
w/ AC Adapter (-2): 		 990,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support

FlexPoint Gx (Data Sheet)

FlexPoint Gx (User Manual)
