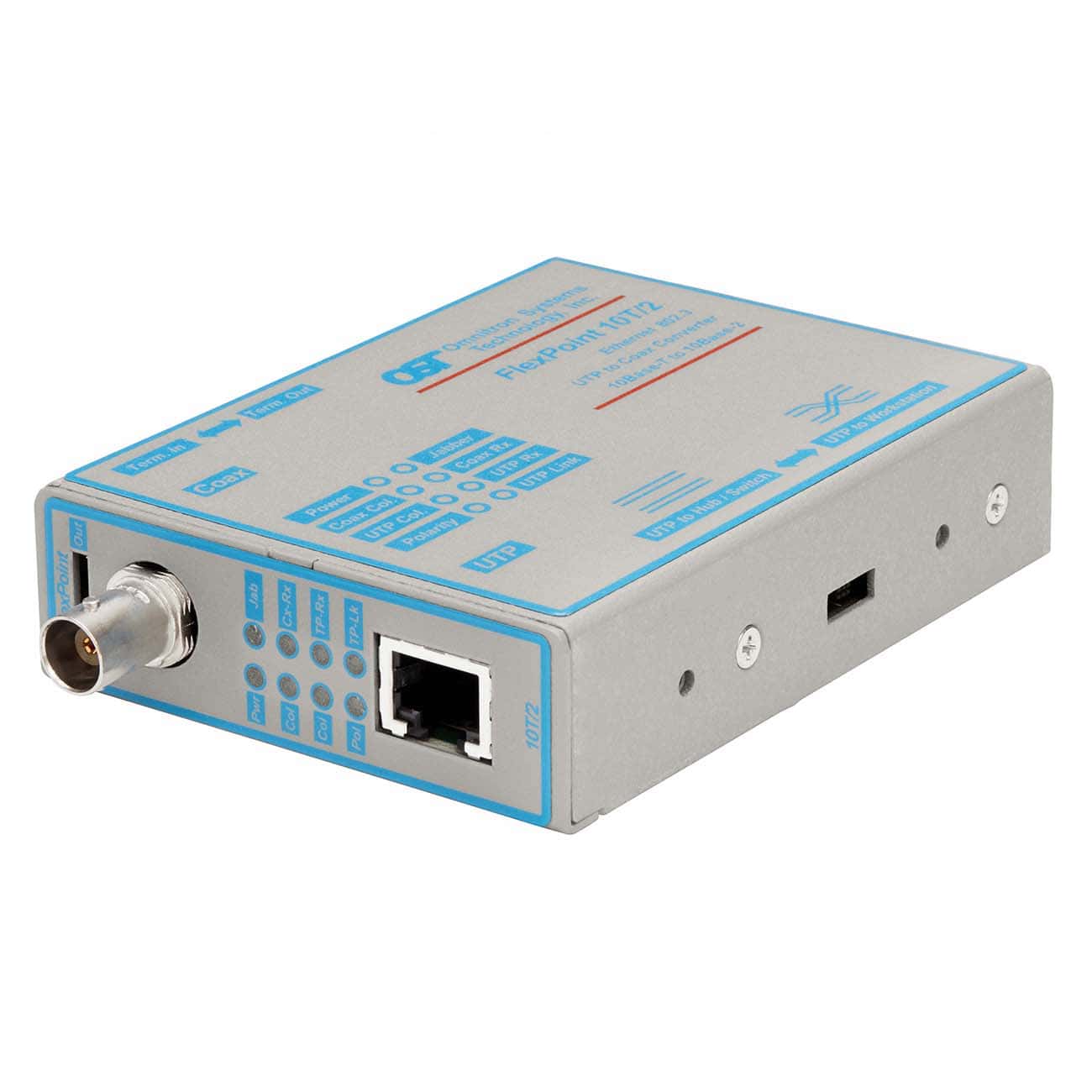

10BASE-T Copper to 10BASE-2 Coax Media Converter

FlexPoint® 10T/2

FlexPoint 10T 2
Lifetime Warranty
FlexPoint® 10T/2: 10 Mbps RJ-45 to 10 Mbps, , , , , No AC/DC Power Adapter, Wide Temperature -40 to 60 deg C


Part Number

4320-0W

icons

  • Description
  • Specifications
  • Documents

FlexPoint 10T/2 (Data Sheet)

FlexPoint 10T/2 (User Manual)

FlexPoint® 10T/2: 10 Mbps RJ-45 to 10 Mbps, , , , , No AC/DC Power Adapter, Wide Temperature -40 to 60 deg C

Specifications

Description
 FlexPoint 10T/2
10BASE-T Copper to 10BASE-2 Coax Media Converter
Standard Compliances IEEE 802.3
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Port Types
Coax:
Copper:
10BASE-2 (BNC)
10BASE-T (RJ-45)
Cable Types
Coax:
Copper:
50 ohm, RG-58/U, RG-58C/U or equivalent
EIA/TIA 568A/B, Cat 3 UTP and higher
AC Power Requirements
AC Adapter:

100 - 240VAC/50 - 60Hz
0.09A @ 120VAC (typical)
DC Power Requirements

Voltage Range:
Nominal Voltage:
Nominal Power:
Barrel Connector
8.0 to 15.0VDC
9VDC
0.47A @ 9VDC
Molex Connector
4.75 to 5.25VDC
5VDC
0.84A @ 5VDC
Dimensions
W x D x H
 3.0" x 4.0" x 1.0" (76.2 mm x 101.6 mm x 25.4 mm)
Weight
 Without AC Adapter:
6 oz. (170.1 grams)
Temperature
 Commercial:
Wide:
Storage: 		    0 to 50°C
-40 to 60°C
-40 to 80° C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
 Without AC Adapter (-0):
With AC Adapter (-1):
With AC Adapter (-2): 		 1,200,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support
