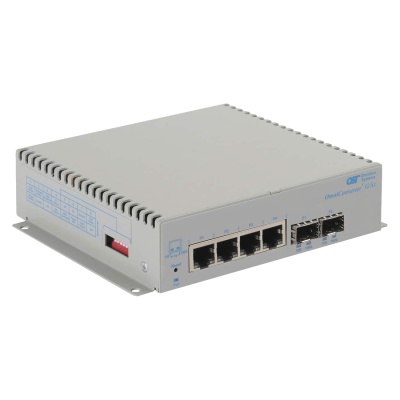

OmniConverter G Sx 2xSFP 4xRJ-45

Unmanaged Gigabit Ethernet Switch

OmniConverter® G/Sx

Part Number: 2879-0-24-1



Add to Quote
icons
  • Description
  • Specifications
  • Documents

OmniConverter® G/Sx: 4 x 10/100/1Gbps RJ-45 No PoE to 2 x 1 Gbps, SFP, Fiber type depends on SFP, SFP-Dependent, Distance depends on SFP, Unmanaged Ethernet Switch, Standalone/Wall-Mount, US 100-240VAC, Commercial/Enterprise Temperature Range

Specifications

Description OmniConverter® G/SX
10/100/1000BASE-T with Gigabit Fiber or 10/100/1000BASE-T Copper Uplinks
Managed 6 or 10 Port Gigabit Ethernet Switch
Standard Compliances IEEE 802.3
Regulatory Compliances

Safety: UL 62368-1, UL 60950-1,

             IEC 62368-1, IEC 60950-1,

             EN 62368-1, EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14,

             CAN/CSA C22.2 No. 60950-1,

             CE Mark, UKCA

EMC:    EN 55032/24 CE Emissions/Immunity,

             IEC 61000-6-4 Industrial Emissions,

             IEC 61000-6-2 Industrial Immunity

EMI:     CISPR 32,

             FCC 47 Part 15 Subpart B Class A

EMS:    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

             IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m,

             IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV (DC models),

             IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

             IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

             IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

             IEC 61000-4-6 CS: Signal: 10 V,

             IEC 61000-4-8 (Magnetic Field) 30A/m,

             IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection

ACT: TAA, BAA, NDAA
Environmental REACH, RoHS and WEEE
Frame Size Up to 10,240 bytes
Port Types

Copper: RJ-45: 10/100/1000BASE-T

Fiber:     Fixed: ST, SC, LC 1000BASE-X Fiber

               SFP:   10/100/1000BASE-T SGMII Copper Transceiver or

                          100BASE-X SGMII Fiber Transceiver or

                          1000BASE-X SERDES Fiber Transceivers
Cable Types

Copper: EIA/TIA 568A/B, Cat 5 UTP and higher

Fiber:     Multimode: 50/125, 62.5/125µm

               Single-mode: 9/125µm
AC Power Requirements
(Models with AC/DC Adapters)

100 - 240VAC/50 - 60Hz

0.2A max at 115VAC;

0.1A max at 230VAC
DC Power Requirements
(Models with DC Terminals)

4 RJ-45 Ports:

+12 to +57VDC;

0.68A @ 12VDC

0.17A @ 48VDC

2 Pin Terminal (isolated)

8 RJ-45 Ports:

+12 to +57VDC;

0.75A @ 12VDC

0.19A @ 48VDC

2 Pin Terminal (isolated)
Dimensions
;(W x D x H)		 6.28” x 5.2” x 1.5” (159.5 mm x 132.1 mm x 38.1 mm)
Weight 4 RJ-45 Ports:
Module Only: 1.5 lb.; 720 grams
Module with AC/DC Adapter: 2.0 lbs.; 913 grams		 8 RJ-45 Ports:
Module Only: 1.6 lbs.; 748 grams
Module with AC/DC Adapter: 2.1 lbs.; 941 grams
Operating Temperature Commercial: 0 to 50°C
Wide: -40 to 60°C (-20°C AC cold start)
Extended: -40 to 75°C (-20°C AC cold start)
Storage: -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m (operational)
MTBF (hrs) Module Only: 309,000
AC/DC Adapter: 100,000
Warranty 5 year product warranty with 24/7/365 free Technical Support
2 year AC power adapter warranty
