In today's fast-paced digital landscape, the demand for faster and more reliable internet connections has reached an all-time high. The advent of Wi-Fi 6 technology promises to address these demands with its advanced features and capabilities. At the heart of this evolution lies the necessity for multi-gigabit Ethernet connections, which play a significant role in unlocking the true potential of Wi-Fi 6.
802.11ax, also referred to as WiFi 6, is the most recent generation of wireless networking technology. In terms of speed, capacity, and performance, it delivers a significant improvement over WiFi 5 (802.11ac). WiFi 6 is built to manage the rising demand for high-bandwidth applications like video streaming, online gaming, and IoT (Internet of Things) devices as well as the expanding number of devices connected to a network.
Support for higher data rates is one of WiFi 6's standout features. OFDMA (Orthogonal Frequency Division Multiple Access) and MU-MIMO (Multi-User Multiple Input Multiple Output) are two of the technologies used to achieve higher data rates. By breaking up its channel into smaller sub-channels using OFDMA, Wi-Fi 6 can utilize the available bandwidth more effectively while also reducing latency. By enabling simultaneous communication with several devices, MU-MIMO increases the network's capacity.
Wi-Fi 6 operates primarily in the 2.4 GHz and 5 GHz frequency bands, which are commonly used for Wi-Fi communication. Wi-Fi 6E on the other hand, utilizes the 6 GHz frequency band in addition to the 2.4 GHz and 5 GHz bands. This additional spectrum in the 6 GHz band provides more available channels and less interference, allowing for even faster and more dependable wireless connections.
Overall Wi-Fi 6E offers the same benefits as Wi-Fi 6 but with the added advantage of operating in more channels an in the less congested 6 GHz band, resulting in improved performance.
It's crucial to take into account the network's backhaul infrastructure, which comprises the link between the Wi-Fi 6 router/access point device and the rest of the network through an Ethernet connection, in order to fully utilize the high-speed capabilities of WiFi 6. While WiFi 6 can deliver impressive speeds to compatible devices over the air interface, the network's overall performance can only be improved if the backhaul connection can handle the increased data rates. Multi-gigabit Ethernet connections are useful in this situation.
To fully support the high-speed capabilities of WiFi 6, Gigabit Ethernet (1 Gbps) connections may need to offer greater capacity, particularly in situations where several devices are utilizing the network at once and need high data rates. Higher speeds, such as 2.5 Gbps or 5 Gbps, offered by multi-gigabit Ethernet connections are more compatible with the potential throughput of WiFi 6.
By deploying multi-gigabit Ethernet connections for your network infrastructure, you can ensure that the backhaul connection can handle the increased data demands of WiFi 6. This helps prevent bottlenecks and provides a seamless experience for users, allowing them to enjoy the benefits of the improved wireless performance fully.
In the age of Wi-Fi 6/6E, where faster speeds and enhanced capacity are not just luxuries but necessities, Omnitron Multigigabit Ethernet Converters emerge as the solution to bridge the gap between technology and infrastructure. Their role in adapting, integrating, and future-proofing network designs is instrumental in unlocking the true potential of Wi-Fi 6E.
Omnitron Multigigabit Ethernet Converters are well suited for IP cameras, access points, and small cell devices' bandwidth demands. By choosing Omnitron, organizations are not only meeting the demands of today but also setting themselves up for the innovations of tomorrow.

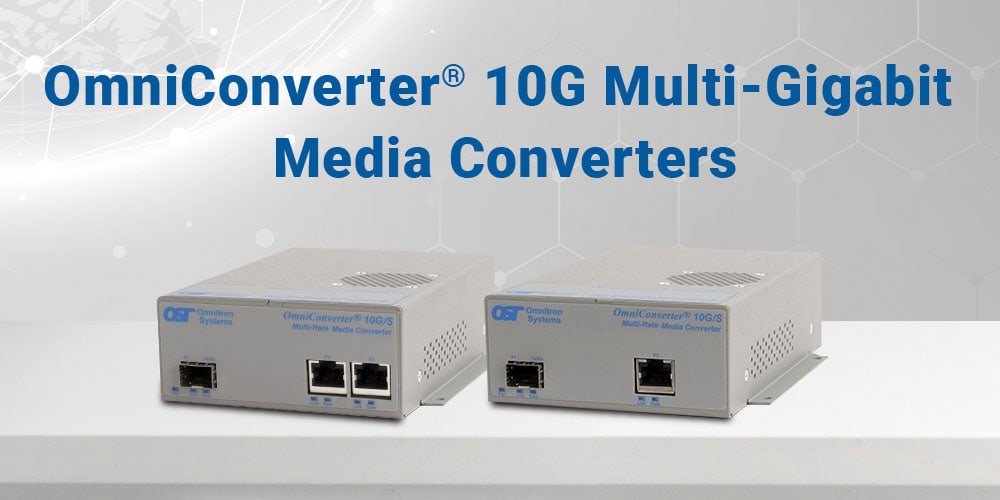

The OmniConverter unmanaged 10G Ethernet media converters support multi-gigabit/multi-rate speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, and 10Gbps. They feature one or two multi-gigabit/multi-rate RJ-45 user ports and one 1/10G SFP/SFP+ uplink port supporting up to 10GBASE-T copper transceivers and 10G multimode or single-mode fiber.
Each OmniConverter 10G/S media converter connects to an iConverter® XM5 10G fiber switch in this combined application. The OmniConverter media converters provide high-speed connectivity to small cell devices that require up to 10Gbps bandwidth, IP surveillance cameras, and Wi-Fi 6/6E Access Points. All devices are located near an AC power source.
The OmniConverter unmanaged 10G Multi-Gigabit/Multi-Rate PoE media converters featuring one 1/10G SFP/SFP+ uplink port supports up to 10GBASE-T copper transceivers and 1G and 10G multimode or single-mode fiber, and one or two multi-gigabit RJ-45 PoE user ports, support multi-gigabit speeds of 10Mbps, 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, and 10Gbps.
In this application example, outdoor IP surveillance cameras and Wi-Fi 6/6E Access Points are installed throughout a large facility. An iConverter® XM5 fiber switch distributes a fiber link from a control room to OmniConverter media converters with fiber ports.
The OmniConverter media converters provide up to 100W of Power-over-Ethernet (PoE) to an IP camera and Wireless Access Point at each location, each of which can be located up to 100 meters from the media converter. The camera and access point have full bandwidth capability utilizing the 10G fiber uplink port on each 10GPoEBT/S media converter.
WiFi 6/6E is a powerful wireless technology that provides a noticeable increase in speed and capacity over previous generations. To make the most of WiFi 6/6E's capabilities, it's advisable to consider upgrading to multi-gigabit Ethernet connections for your network infrastructure to provide sufficient bandwidth and avoid potential limitations in overall performance.
If you have any future questions about multi-gigabit Ethernet connections or if you are still trying to decide which of the following products is well suited for your network, contact Omnitron systems technicians to get pre-sale support. All Omnitron Systems media converters are designed and manufactured in the USA. They are TAA and NDAA compliant, and all media converters feature a Lifetime Warranty and free 24/7 technical support. We are available 24/7 to answer your questions. Call us now to get pre-sale support.
