OmniConverter® FPoE/SE and FPoE+/SE

10/100/1000BASE-T to 100BASE-X Media Converter with Power over Ethernet (PoE or PoE+)

The cost-effective OmniConverter FPoE/SE and FPoE+/SE media converters provide 10/100/1000BASE-T copper to 1000BASE-X fiber conversion and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing



Features


  • Multi-port media converter and PoE Power Sourcing Equipment
  • 10/100BASE-T1 copper to 100BASE-X fiber media converter
  • Supports 100BASE-X fixed-fiber and 100BASE-X standard, CWDM and DWDM SFP transceivers
  • Supports frame sizes up to 10,240 bytes
  • The FPoE/SE supports IEEE 802.3af PoE on one or two RJ-45 copper ports
  • The FPoE+/SE supports IEEE 802.3at PoE+ on one or two RJ-45 copper ports
  • Multiple port configurations:
    • 2 Port Device: 1 Fiber + 1 RJ-45
    • 3 Port Device: 1 Fiber + 2 RJ-45
  • Plug and Play
  • Available in AC and DC models
  • Integrated wall mount brackets
  • Commercial (0 to 50ºC) and wide (-40 to 60ºC) operating temperature ranges
  • Made in the USA
  • Lifetime Warranty and free 24/7 Technical Support

1RJ-45 port also supports 1000BASE-T data rate





Description


The OmniConverter FPoE/SE and FPoE+/SE are cost-effective, multi-port media converters that convert 10/100BASE-T copper to 100BASE-X fiber and support Power-over-Ethernet (PoE and PoE+). Classified as Power Sourcing Equipment (PSE), they can provide power to one or two Powered Devices (PDs) using standard UTP cables that carry the Ethernet data. The OmniConverter functions as a PoE mini-switch, and supports single or dual RJ-45 ports.

OmniConverter PoE media converters provide network distance extension with fiber optic cabling, and function as PoE injectors that enable powering devices such as IP-phones, surveillance cameras and wireless access points with Power over Ethernet (PoE).

OmniConverter media converters are available in two power levels. FPoE/SE models support PoE (IEEE 802.3af) and provide 15.40W of power per RJ-45 port. FPoE+/SE models support PoE+ (IEEE 802.3at) and provide 30W per port for more demanding PDs such as video conferencing equipment, PTZ (pan-tilt-zoom) cameras and multi-stream 802.11n wireless access points. The OmniConverter FPoE/SE and FPoE+/SE support frame sizes up to 10,240 bytes.

The OmniConverter PoE media converters are available with fixed fiber ST and SC connectors or Small Form Pluggable (SFP) transceiver receptacles. Fiber ports support multimode or single-mode and dual fiber or singlefiber. SFP models support 100Mbps standard, CWDM and DWDM transceivers in a variety of distances and fiber types.

The compact standalone OmniConverter media converters can be tabletop mounted, wall mounted, or DIN-rail mounted using an optional DIN-rail mounting kit. They can also be mounted on a 1U 19” rack-mount shelf. They are available with DC terminal power or external 100 to 240V AC universal power adapter.





Examples


This example shows a combined security and fiber-to-desk application.

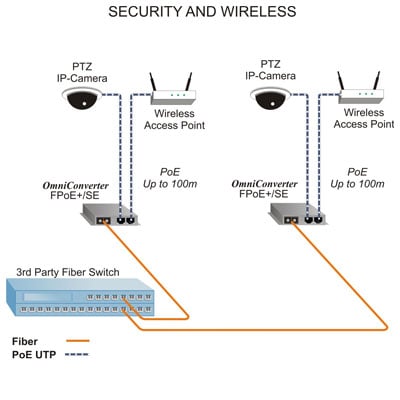

PoE+ IP surveillance cameras and Wireless Access Points are installed throughout a large facility. A network switch with fiber ports can be used to distribute fiber links from a control room to OmniConverter media converters.

OmniConverter FPoE+/SE media converters provide up to 30 watts of Power over Ethernet (PoE+) over UTP cables to an IP camera and Wireless Access Point at each location, each of which can be located up to 100m from the media converter.

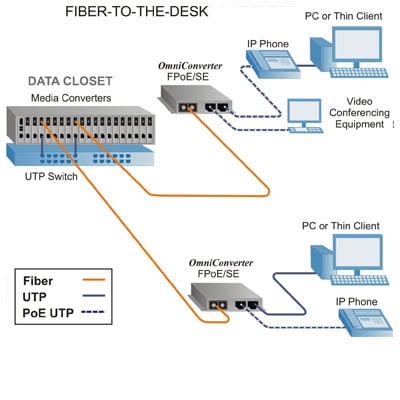

A fiber-to-the-desk network is deployed to leverage the security and distance benefits of fiber.

In the main data closet, iConverter, miConverter or FlexPoint media converters can be installed in high-density rack-mount chassis to provide reliable and cost-effective fiber distribution from existing copper network equipment.

Fiber optic cables run to each office, where they are terminated by OmniConverter media converters. The OmniConverter media converters convert fiber to copper and, provide data and power to desktop devices such as IP phones and video conferencing equipment. They automatically disable PoE power to non-PoE desktop devices such as PCs and laptops.

FPoe SE FTTD App





Specifications


Description OmniConverter FPoE/SE
10/100BASE-T to 100BASE-X
Fiber Media Converter with PoE
OmniConverter FPoE+/SE
10/100BASE-T to 100BASE-X
Fiber Media Converter with PoE+
Standard Compliances IEEE 802.3,
IEEE 802.3af (15.40 watts max)
IEEE 802.3,
IEEE 802.3af (15.40 watts max),
IEEE 802.3at (30 watts max)
PoE Supported Modes IEEE Alternate B (Alt B)
Regulatory Compliances
(*Pending)

Safety: UL 62368-1*,

             UL 60950-1,

             IEC 62368-1*,

             IEC 60950-1,

             EN 62368-1*,

             EN 60950-1,

             CAN/CSA C22.2 No. 62368-1-14*,

             CAN/CSA C22.2 No. 60950-1,

             CE Mark

EMI:     FCC Class A,

             CE Class A

EMS:    CE

IP Rating: IP20 Protection

Environmental RoHS, WEEE, REACH
Frame Size Up to 10,240 bytes
Port Types Copper: 10/100BASE-T (RJ-45)
Fiber:    100BASE-X (ST, SC, SFP)
              100BASE-BX (SC, SFP)
Cable Types Copper: EIA/TIA 568A/B, Cat 5 UTP and higher
Fiber:     Multimode: 50/125, 62.5/125µm
               Single-mode: 9/125µm
AC Power Requirements
(Models with AC/DC Adapters)

1 RJ-45 Port

100 - 240VAC/47 to 63Hz

0.20A @ 120VAC (typical)

1 RJ-45 Port

100 - 240VAC/47 to 63Hz

0.36A @ 120VAC (typical)

2 RJ-45 Ports

100 - 240VAC/50 - 60Hz

0.37A @ 120VAC (typical)

2 RJ-45 Ports

100 - 240VAC/50 - 60Hz

0.69A @ 120VAC (typical)

DC Power Requirements
(Models with DC Terminals)

1 RJ-45 Port

+/-46 to +/-57VDC;

0.32A @ 48VDC

2 Pin Terminal (non-isolated)

1 RJ-45 Port

+/-48 to +/-57VDC;

0.59A @ 48VDC

2 Pin Terminal (non-isolated)

1 RJ-45 Port

+/-48 to +/-57VDC;

0.59A @ 48VDC

3 Pin Terminal (isolated)

2 RJ-45 Ports

+/-46 to +/-57VDC;

0.60A @ 48VDC

2 Pin Terminal (non-isolated)

2 RJ-45 Ports

+/-48 to +/-57VDC;

1.12A @ 48VDC

2 Pin Terminal (non-isolated)

2 RJ-45 Ports

+/-48 to +/-57VDC;

1.12A @ 48VDC

3 Pin Terminal (isolated)

A minimum DC input voltage of 50VDC is required to guarantee 25.5 watts (for 802.3at) at the end of 100 meters on Cat 5 cable or better.
Dimensions (W x D x H) 3.8” x 4.8” x 1.0” (96.5 mm x 121.9 mm x 25.4 mm)
Weight Module Only: 1.1 lbs. (498.9 grams)
Module w/ Adapter: 1.6 lbs. (725.7 grams)
Module Only: 1.1 lbs. (498.9 grams)
Module w/ Adapter: 2.3 lbs. (1043.3 grams)
Operating Temperature
Commercial: 0 to 50°C
Wide:           -40 to 60°C (-20°C cold start)
Storage:       -40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hours)

Module Only: 1,238,000

AC/DC Adapter: 100,000

Module Only: 776,000

AC/DC Adapter: 100,000

Warranty Lifetime warranty with 24/7/365 free Technical Support

Power / Voltage Requirements and Specifications per IEEE
Description IEEE 802.3af PoE IEEE 802.3at PoE+
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts
* at 100 meters using Cat5




Ordering


OmniConverter FPoE/SE IEEE 802.3af 15W Models
Fiber TypeDistanceConnector Type

Tx / Rx

Lambda

(nm)

Min. Tx

Power

(dBm)

Max. Tx

Power

(dBm)

Min. Rx

Power

(dBm)

Max. Rx

Power

(dBm)

Min

Attenuation

(dB)

Link
Budget

(dB)

STSCSFP
MM/DF 5km 9360-0-ypt 9362-0-ypt - 1310/1310 -24 -14 -31 -14 - 7
SM/DF 30km 9361-1-ypt 9363-1-ypt - 1310/1310 -15 -8 -31 -8 - 16
SM/DF 60km 9361-2-ypt 9363-2-ypt - 1310/1310 -5 0 -31 -3 3 26
SM/DF 120km - 9363-3-ypt - 1550/1550 -5 0 -31 -3 3 26
MM-SF1 5km - 9370-0-ypt - 1310/1550 -8 0 -28 0 - 20
MM-SF1 5km - 9371-0-ypt - 1550/1310 -8 0 -28 0 - 20
SM-SF1 20km - 9370-1-ypt - 1310/1550 -15 -5 -30 -3 - 15
SM-SF1 20km - 9371-1-ypt - 1550/1310 -15 -5 -30 -3 - 15
SM-SF1 40km - 9370-2-ypt - 1310/1550 -8 0 -30 -3 3 22
SM-SF1 40km - 9371-2-ypt - 1550/1310 -8 0 -30 -3 3 22
SFP - - - 9379-0-ypt - - - - - - -
1 When using single-fiber (SF) models, the Tx wavelength on one end has to match the Rx wavelength on the other.
MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber.

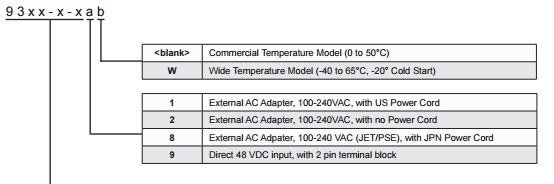

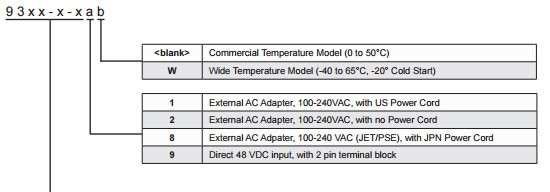

Base Model Number: 93xx-x-ypt
Select the model from ordering table above.
Add # of RJ-45 ports (y), power option (p) and operating temperature range (t) to the model type selected.
Number of RJ-45 Ports (y):
1 = One RJ-45 Ports 2 = Two RJ-45 Ports
Power Options (p):
1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord 8 = External AC/DC Adapter, 100 - 240 VAC included, with Japanese Power Cord
2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord 9 = Direct DC 2 pin terminal connector, no AC/DC power adapter
Operating Temperature Options (t):
<leave blank> = Commercial temperature (0 to 50°C) W = Wide temperature (-40 to 60°C)
 Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.



OmniConverter FPoE+/SE IEEE 802.3at 30W Models
Fiber TypeDistanceConnector Type

Tx / Rx

Lambda

(nm)

Min. Tx

Power

(dBm)

Max. Tx

Power

(dBm)

Min. Rx

Power

(dBm)

Max. Rx

Power

(dBm)

Min
Attenuation
(dB)

Link
Budget

(dB)

STSCSFP
MM/DF 5km 9380-0-ypt 9382-0-ypt - 1310/1310 -24 -14 -31 -14 - 7
SM/DF 30km 9381-1-ypt 9383-1-ypt - 1310/1310 -15 -8 -31 -8 - 16
SM/DF 60km 9381-2-ypt 9383-2-ypt - 1310/1310 -5 0 -31 -3 3 26
SM/DF 120km - 9383-3-ypt - 1550/1550 -5 0 -31 -3 3 26
MM-SF1 5km - 9390-0-ypt - 1310/1550 -8 0 -28 0 - 20
MM-SF1 5km - 9391-0-ypt - 1550/1310 -8 0 -28 0 - 20
SM-SF1 20km - 9390-1-ypt - 1310/1550 -15 -5 -30 -3 - 15
SM-SF1 20km - 9391-1-ypt - 1550/1310 -15 -5 -30 -3 - 15
SM-SF1 40km - 9390-2-ypt - 1310/1550 -8 0 -30 -3 3 22
SM-SF1 40km - 9391-2-ypt - 1550/1310 -8 0 -30 -3 3 22
SFP - - - 9399-0-ypt - - - - - - -
1 When using single-fiber (SF) models, the Tx wavelength on one end has to match the Rx wavelength on the other.
MM = Multimode, SM = Single-mode, DF = Dual Fiber, SF = Single-fiber.
Base Model Number: 93xx-x-ypt
Select the model from ordering table above.
Add # of RJ-45 ports (y), power option (p) and operating temperature range (t) to the model type selected.
Number of RJ-45 Ports (y):
1 = One RJ-45 Ports 2 = Two RJ-45 Ports
Power Options (p):
1 = External AC/DC Adapter, 100 - 240 VAC included, with US Power Cord 9 = Direct DC 2 pin terminal connector, no AC/DC power adapter
2 = External AC/DC Adapter, 100 - 240 VAC included, No Power Cord F = Direct DC 3 pin terminal connector, no AC/DC power adapter
8 = External AC/DC Adapter, 100 - 240 VAC included, with Japanese Power Cord
Operating Temperature Options (t):
<leave blank> = Commercial temperature (0 to 50°C) W = Wide temperature (-40 to 60°C)
 Contact Omnitron for other fiber options. Order the appropriate SFPs separately. Visit the Optical Transceivers web page.



Accessories
Model Number
Description
8250-0
DIN-Rail Mounting Bracket
8251-0
DIN-Rail Mounting Clip
8260-0
19" rack mount shelf
