Multi-Gigabit/Multi-Rate 10M, 100M, 1G, 2.5G, 5G, 10G PoE Media Converters

OmniConverter® 10GPoE+/S

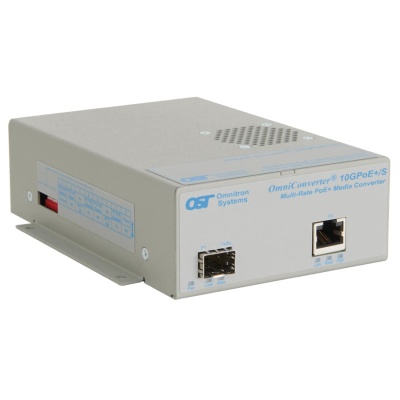

OmniConverter 10GPoE+ S 1xSFP 1xRJ-45
Lifetime Warranty
OmniConverter® 10GPoE+/S: 10/100/1000/2.5/5/10G RJ-45 PoE+ to 1 Gbps / 10 Gbps, SFP, Fiber Type depends on SFP, Wavelength depends on SFP, Distance depends on SFP, US 100-240VAC, Wide Temperature -40 to 60 deg C


Part Number

9191-0-11-1W

icons
Add to Quote

  • Description
  • Specifications
  • Documents

OmniConverter 10GPoE+/S and 10GPoEBT/S (User Manual)

OmniConverter 10GPoE+/S and 10GPoEBT/S (Data Sheet)

OmniConverter® 10GPoE+/S: 10/100/1000/2.5/5/10G RJ-45 PoE+ to 1 Gbps / 10 Gbps, SFP, Fiber Type depends on SFP, Wavelength depends on SFP, Distance depends on SFP, US 100-240VAC, Wide Temperature -40 to 60 deg C

Specifications

Description OmniConverter 10GPoE+/S
Multi-gigabit/multi-rate copper to 1/10G SFP
Media Converter with IEEE 802.3at PoE+		 OmniConverter 10GPoEBT/S
Multi-gigabit/multi-rate copper to 1/10G SFP Media Converter
with IEEE 802.3bt PoE 60W or 100W
Standard Compliances

IEEE 802.3, 802.3bz,

IEEE 802.3af (15.4 watts max)

IEEE 802.3at (30 watts max)

IEEE 802.3, 802.3bz,

IEEE 802.3af (15.4 watts max), IEEE 802.3at (30 watts max)

IEEE 802.3bt (60 watts or 100 watts max)
Regulatory Compliances

Safety: UL 62368-1*, UL 60950-1*,

             IEC 62368-1*, IEC 60950-1*,

             EN 62368-1*, EN 60950-1*,

             CAN/CSA C22.2 No. 62368-1-14*, CAN/CSA C22.2 No. 60950-1*,

             CE Mark, UKCA

EMC:   EN 55032/24 CE Emissions/Immunity, UKCA

EMI:    CISPR 32,

            FCC 47 Part 15 Subpart B Class A

EMS:   IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV,

            IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m,

            IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV (DC models),

            IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models),

            IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models),

            IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models),

            IEC 61000-4-6 CS: Signal: 3 Vrms,

            IEC 61000-4-8 ( Magnetic Field) 30 A/m,

            IEC 61000-4-11 (Voltage Dips, interrupts)

IP Rating: IP20 Protection

ACT:    TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size Up to 10,240 bytes
Port Types

Copper:      10/100/1000BASE-T, 2.5GBASE-T/5GBASE-T/10GBASE-T (RJ-45)

SFP/SFP+: 10GBASE-X Fiber Transceivers, 10GBASE-T Copper Transceivers

                    1000BASE-X Fiber Transceivers, 1000BASE-T Copper Transceivers

                    10/100/1000BASE-T SGMII Copper Transceivers

                    10/100/1000/2.5G/5G/10GBASE-T Multi-rate Copper Transceivers
Cable Types

Copper: Twisted-pair cable up to 100 meters

              10BASE-T: 4-pair UTP Cat 3, 4, 5, 5e, 6, 6A

              100BASE-TX: 4-pair UTP Cat 5, 5e, 6, 6A

              1G/2.5G: 4-pair UTP Cat 5e, 6, 6A, 7

               5G: 4-pair UTP Cat 6, 6A, 7

              10G: 4-pair UTP Cat 6A, 7

Fiber:    Multimode: 50/125, 62.5/125µm

             Single-mode: 9/125µm
AC Power Requirements
(Models with AC/DC Adapters)		 1 RJ-45 Port
100 - 240VAC/50 to 60Hz
0.40A @ 120VAC (typical)
2.1 mm Barrel Connector		 60W Model - 1 RJ-45 Port
100 - 240VAC/50 - 60Hz
0.69A @ 120VAC (typical)
2.1 mm Barrel Connector		 100W Model - 1 RJ-45 Port
100 - 240VAC/50 - 60Hz
1.08A @ 120VAC (typical)
DIN-6 Connector
2 RJ-45 Ports
100 - 240VAC/50 - 60Hz
0.72A @ 120VAC (typical)
2.1 mm Barrel Connector		 60W Model - 2 RJ-45 Ports
100 - 240VAC/50 - 60Hz
1.30A @ 120VAC (typical)
DIN-6 Connector		 100W Model - 2 RJ-45 Ports
100 - 240VAC/50 - 60Hz
2.08A @ 120VAC (typical)
DIN-6 Connector
DC Power Requirements
(Models with DC Terminals)		 1 RJ-45 Port
+46 to +57VDC;
0.74A @ 56VDC
2 Pin Terminal		 60W Model - 1 RJ-45 Port
+46 to +57VDC;
1.28A @ 56VDC
2 Pin Terminal		 100W Model - 1 RJ-45 Port
+46 to +57VDC;
2.00A @ 56VDC
2 Pin Terminal
2 RJ-45 Ports
+46 to +57VDC;
1.34A @ 56VDC
2 Pin Terminal		 60W Model - 2 RJ-45 Ports
+46 to +57VDC;
2.43A @ 56VDC
2 Pin Terminal		 100W Model - 2 RJ-45 Ports
+46 to +57VDC;
3.87A @ 56VDC
2 Pin Terminal
Dimensions (W x D x H) 4.8” x 6.0” x 1.75” (121.92 mm x 152.4 mm x 44.45 mm)
Weight Module Only: 1.1 lbs. (499 grams)
w/ Adapter: 3.2 lbs. (1452 grams)		 Module Only: 1.1 lbs. (499 grams)
w/ Adapter: 3.2 lbs. (1452 grams)		 Module Only: 1.1 lbs. (499 grams)
w/ Adapter: 3.7 lbs. (1678 grams)
Operating Temperature
(See Temperature Derating Table)		 Commercial: 0 to 50°C
Wide:         -40 to 60°C (-20°C AC cold start)
Storage:     -40 to 80°C
Humidity 5% to 95% (non-condensing)
Altitude -100m to 4,000m
MTBF (hrs) Module Only: 265,000
AC/DC Adapter: 100,000		 Module Only: 263,000
AC/DC Adapter: 100,000
Warranty Lifetime warranty with registration and 24/7/365 free Technical Support
* Pending



Power / Voltage Requirements and Specifications
DescriptionIEEE 802.3af 15W PoEIEEE 802.3at 30W PoE+IEEE 802.3.bt 60W PoE
(Type 3)		IEEE 802.3bt 100W PoE
(Type 4)
Power Supply Voltage Range 46.0 to 57.0 VDC 51.0 to 57.0 VDC 51.0 to 57.0 VDC 53.0 to 57.0 VDC
Voltage Range at PSE port Output 44.0 to 56.0 VDC 50.0 to 56.0 VDC 50.0 to 56.0 VDC 52.0 to 56.0 VDC
Maximum Power from PoE/PSE port 15.4 watts 30 watts 60 watts 100 watts
Minimum Voltage at PoE/PD port input* 37.0 VDC 42.5 VDC 42.5 VDC 41.1 VDC
Minimum Power at PoE/PD port* 12.95 watts 25.5 watts 51 watts 71 watts
* at 100 meters using Cat5
