10/100/1000BASE-T to 1000BASE-X Ethernet Media Converter

miConverter® GX/T

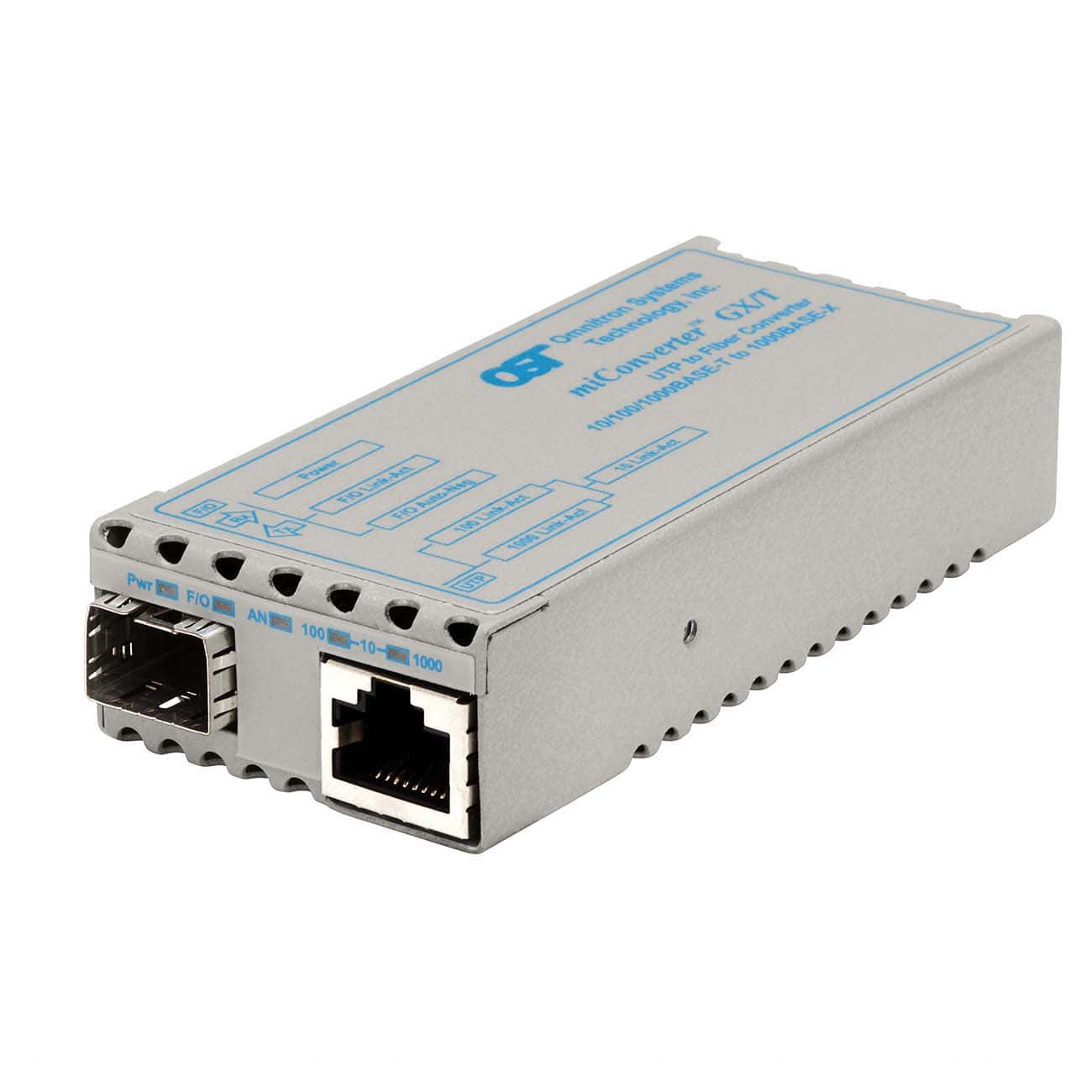

miconverter GX T SFP
Lifetime Warranty
miConverter® GX/T: 10/100/1Gbps RJ-45 to 100Mbps/1Gbps, SFP, Fiber Type depends on SFP, Wavelength depends on SFP, Distance depends on SFP, US 100-240VAC, Extended Temperature -40 to 75 deg C


Part Number

1239-0-1Z

icons
Add to Quote

  • Description
  • Specifications
  • Documents

miConverter GX/T (Data Sheet)

miConverter GX/T (User Manual)

miConverter® GX/T: 10/100/1Gbps RJ-45 to 100Mbps/1Gbps, SFP, Fiber Type depends on SFP, Wavelength depends on SFP, Distance depends on SFP, US 100-240VAC, Extended Temperature -40 to 75 deg C

Specifications

Description
 miConverter GX/T
 10/100/1000BASE-T Copper to 1000BASE-X Fiber Media Converter
Standard Compliances IEEE 802.3
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size

Fixed Fiber Models: Up to 9K bytes

SFP Model: Up to 10,240 bytes
Port Types

Copper:

Fiber:





10/100/1000BASE-T (RJ-45)

100BASE-X (SFP)

1000BASE-X (ST, SC, SFP)

1000BASE-BX (SC Single-Fiber, SFP)
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC/DC Adapter:

100 - 240VAC/50 - 60Hz
0.02A @ 120VAC (max)
DC Power Requirements
DC Input:
(AC/DC Adapter)


DC Input:
(Terminal Block)
5.0 to 12.0VDC
0.35A @ 5VDC
2.5mm Barrel Connector

5.0 to 12.0VDC
0.35A @ 5VDC
2-Pin Terminal (non-isolated)
Dimensions
(W x D x H)		 1.71" x 4.10" x 0.84" (43.4 mm x 104.1 mm x 21.3 mm)
Weight
Module Only:
with AC/DC Adapter:
 4 oz. (113.4 grams)
12 oz. (340.2 grams)
Temperature
Commercial:
Wide:
Extended:
Industrial:
Storage:
    0 to 50°C
-40 to 60°C
-40 to 75°C
-40 to 85°C
-50 to 85°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
Module Only:
AC/DC Adapter:
Universal AC/DC Adapter:
 878,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support
