1000BASE-T to 1000BASE-X Gigabit Ethernet Media Converter

miConverter® Gx

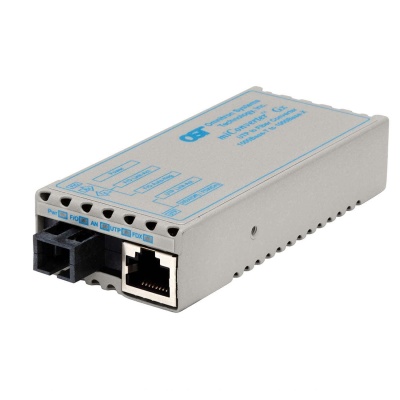

miconverter GX SCSF
Lifetime Warranty
miConverter® Gx: 1 Gbps RJ-45 to 1 Gbps, SC, Multimode Single Fiber, 1310nm / 1550nm, 220 / 550m, No AC/DC Power Adapter, Wide Temperature -40 to 60 deg C


Part Number

1210-0-0W

icons

  • Description
  • Specifications
  • Documents

miConverter Gx (Data Sheet)

miConverter Gx (User Manual)

miConverter® Gx: 1 Gbps RJ-45 to 1 Gbps, SC, Multimode Single Fiber, 1310nm / 1550nm, 220 / 550m, No AC/DC Power Adapter, Wide Temperature -40 to 60 deg C

Specifications

Description
 miConverter Gx
 1000BASE-T Copper to 1000BASE-X Fiber Media Converter
Standard Compliances IEEE 802.3
Regulatory Compliances

Safety: UL, cUL, CE, UKCA

EMI: FCC Class A

ACT: TAA, BAA, NDAA
Environmental RoHS, REACH, WEEE
Frame Size Unlimited frame sizes
Port Types
Copper:

Fiber:
1000BASE-T (RJ-45)

1000BASE-X (ST, SC, LC, SFP)
1000BASE-BX (SC Single-Fiber, SFP)
Cable Types
Copper:

Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power Requirements
AC/DC Adapter:

100 - 240VAC/50 - 60Hz
0.03A @ 120VAC (max)
2.5mm Barrel Connector
DC Power Requirements
DC Input:
(AC/DC Adapter)



DC Input:
(DC Terminal)



DC Input:
(Micro-B)
5.0 to 12.0VDC,
0.5A @ 5VDC
0.3A @ 9VDC
2.5mm Barrel Connector

5.0 to 12.0VDC,
0.5A @ 5VDC
0.3A @ 9VDC
2-Pin Terminal (non-isolated)

4.75 to 5.25VDC,
0.5A @ 5VDC
Micro-B Receptacle
Dimensions
W x D x H		 1.71" x 4.10" x 0.84" (43.4 mm x 104.1 mm x 21.3 mm)
Weight
Module Only:
With AC/DC Adapter:
 4 oz. (113.4 grams)
12 oz. (340.2 grams)
Temperature
Commercial:
Wide:
Storage:
    0 to 50°C
 -40 to 60°C
 -40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
Module Only:
AC/DC Adapter::
Universal AC/DC Adapter:
 810,000
250,000
100,000
Warranty
 Lifetime warranty with 24/7/365 free Technical Support
