Managed Serial RS422/RS485 to Fiber Media Converter

iConverter® RS422/485

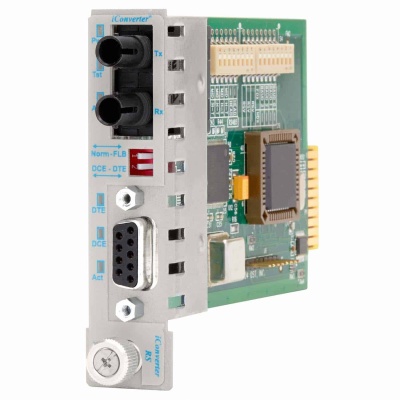

Iconverter RS ST2 PI
Lifetime Warranty
iConverter® RS422/485: RS422/485 DB-9 to Fiber, ST, Multimode Dual Fiber, 1310nm, 5km, Powered by Chassis, Commercial Temperature 0 to 50 deg C


Part Number

8780-0

icons
Add to Quote

  • Description
  • Specifications
  • Documents

iConverter RS422/485 (Data Sheet)

iConverter RS422/485 (User Manual)

iConverter® RS422/485: RS422/485 DB-9 to Fiber, ST, Multimode Dual Fiber, 1310nm, 5km, Powered by Chassis, Commercial Temperature 0 to 50 deg C

Specifications

Description
 iConverter RS422/485
 Managed Serial RS-422 and RS-485 to Fiber Media Converter
Data Rates
Asynchronous:

110 bps to 1,024,000 bps (full-duplex)

110 bps to 921,600 bps (half-duplex)
Standard Compliances
EIA-422/485
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Port Type
Serial:

Fiber:
DB9 Female or Terminal Block

Dual fiber ST, SC and LC
Single-fiber SC
Cable Types
Serial:

Fiber:
24 gauge (typical)

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
DC Power Requirements
DC Input:
(Backplane)
3.3VDC, 0.5A @ 3.3VDC
Dimensions
W x D x H
0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm)
Weight
8 oz. (226.8 grams)
Temperature
Commercial:
Wide:
Storage:
   0 to 50°C
-40 to 60°C
-40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
850,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support
