10/100/1000 Copper to Gigabit Fiber Media Converter and Network Interface Device

iConverter® GX/TM2

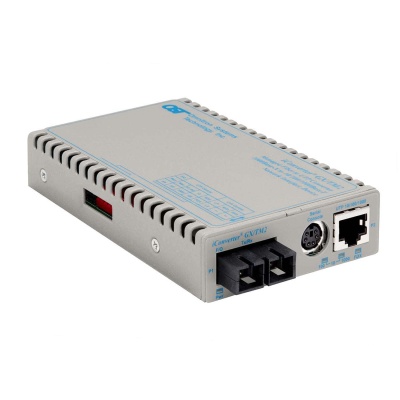

iconverter GX TM2 SC TT
Lifetime Warranty
iConverter® GX/TM2: 10/100/1Gbps RJ-45 to 1 Gbps, SC, Multimode Dual Fiber, 1310nm, 2km, Univ 100-240VAC, Extended Temperature -40 to 75 deg C


Part Number

8922N-6-BZ

icons
Add to Quote

  • Description
  • Specifications
  • Documents

iConverter GX/TM2 (Datasheet)

GX/TM2 Plug-In (Quick Start)

GX/TM2 Standalone (Quick Start)

iConverter GX/TM2 Plug-in and Standalone (User Manual)

iConverter® GX/TM2: 10/100/1Gbps RJ-45 to 1 Gbps, SC, Multimode Dual Fiber, 1310nm, 2km, Univ 100-240VAC, Extended Temperature -40 to 75 deg C

Specifications

Description

iConverter GX/TM2

10/100/1000BASE-T Copper to Gigabit Fiber Media Converter and Network Interface Device
Standard Compliances

IEEE 802.1Q, 802.1p, 802.3, 802.3ah, 802.1ad

RFC 2819 (RMON), 2863 (IF-MIB), 2131 (DHCP)

MEF 9, 14, 21
Regulatory Compliances

Safety:

EMI:

ACT:

UL, cUL, CE, NEBS Level 3, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Management IPv4, Telnet, SNMPv1, SNMPv2c, SNMPv3, Serial Console
Frame Size Up to 10,240 bytes
Port Types
Copper:

Fiber:


Serial:

10/100/1000BASE-T (RJ-45)

1000BASE-X Dual Fiber (ST, SC, LC, SFP)
1000BASE-BX Single-Fiber (SC, SFP)

RS-232 (Mini DIN-6 female)
Mini DIN-6 to DB-9 adapter included
Cable Types
Copper:

Fiber:


Serial:
EIA/TIA 568 A/B, Category 5 and higher

Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm

RS-232, 22 to 24 AWG, 12 to 50 pF/ft
AC Power Requirements
AC Adapter:
(US)

 AC Adapter:
(Universal)
100 - 240VAC/50 - 60Hz
0.08A @ 120VAC (max)

100 - 240VAC/50 - 60Hz
0.08A @ 120VAC (max)
DC Power Requirements
DC Input:
(Backplane)

DC Input:
(Terminal Block)

DC Input:
(AC Adapter)
3.3VDC, 1.1A @ 3.3VDC


8 - 15VDC, 0.6A @ 9VDC max
2-Pin Terminal (non-isolated)

8 - 15VDC, 0.6A @ 9VDC max
2.5mm Barrel Connector
Dimensions
(W x D x H)
Plugin:


Standalone:


w/mounting brackets:
0.85” x 4.5” x 2.8”
(21.6 mm x 114.3 mm x 71.1 mm)

3.1” x 4.8” x 1.0”
(78.74 mm x 121.92 mm x 25.4 mm)

3.8” x 4.8” x 1.0”
(96.5 mm x 121.9 mm x 25.4 mm)
Weight
Plug-in:

Standalone
w/o AC adapter:
w/ AC adapter:
8 oz.; 226.8 grams


1.0 lb.; 453.6 grams
1.5 lbs.; 680.4 grams
Temperature
Commercial:
Wide:
Extended:
Storage:
   0 to 50°C
-40 to 60°C
-40 to 75°C
-40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
Plug-in:
w/o AC adapter:
w/ AC adapter (US):
w/ AC adapter (Unv):
450,000
450,000
250,000
100,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support
