Gigabit to Fast Ethernet Managed Fiber-to-Fiber Converter / Transponder

iConverter® GX/F

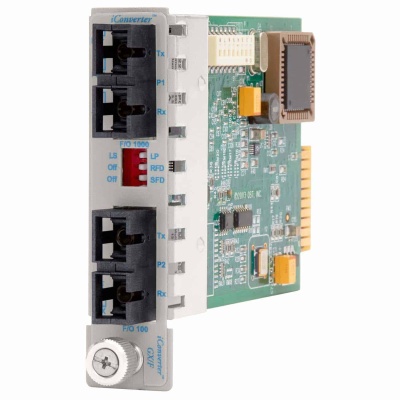

Iconverter GX F 2XSC PI
Lifetime Warranty
iConverter® GX/F: 1 Gbps to 100 Mbps, SC, Multimode Dual Fiber / Single-Mode Dual Fiber, 850nm/130, 220m/30km, Powered by Chassis, Wide Temperature -40 to 60 deg C


Part Number

8562-02W

icons
Add to Quote

  • Description
  • Specifications
  • Documents

iConverter GX/F (Data Sheet)

iConverter GX/F (User Manual)

iConverter® GX/F: 1 Gbps to 100 Mbps, SC, Multimode Dual Fiber / Single-Mode Dual Fiber, 850nm/130, 220m/30km, Powered by Chassis, Wide Temperature -40 to 60 deg C

Specifications

Description
 iConverter GX/F
 Gigabit to Fast Ethernet Converter/Transponder
Standard Compliances
IEEE 802.3, 802.1Q, 802.1p, 802.1ad
RFC 2819 (RMON)
Regulatory Compliances
Safety:
EMI:
ACT:
UL, cUL, CE, UKCA
FCC Class A
TAA,BAA, NDAA
Environmental
RoHS, WEEE, REACH
Frame Size
Up to 1,536 bytes
Port Types
Fiber:
100BASE-FX (SC)
100BASE-LX (SC, LC)
100BASE-ZX (SC, LC)
100BASE-BX (SC)
1000BASE-SX (SC)
1000BASE-LX (SC, LC)
1000BASE-ZX (SC, LC)
1000BASE-BX (SC)
Cable Types
 Fiber:
Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
DC Power Requirements
 DC Input:
(Backplane)
3.3VDC, 1.5A @ 3.3VDC
Dimensions
W x D x H		 0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm)
Weight
 8 oz. (226.8 grams)
Temperature
Commercial:
Wide:
Storage:
    0 to 50°C
 -40 to 60°C
 -40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
730,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support
