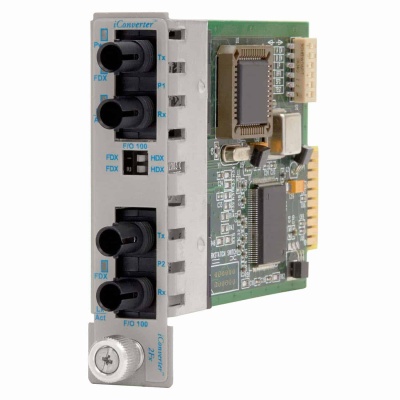

Managed Fiber-to-Fiber Converter

| |

iConverter® 2Fx: 100 Mbps to 100 Mbps, ST, Multimode Dual Fiber, 1310nm, 5km, Powered by Chassis, Wide Temperature -40 to 60 deg C

Description	iConverter 2Fx 100BASE-FX to 100BASE-FX Fiber Media Converters
Standard Compliances	IEEE 802.3, 802.1Q, 802.1p RFC 2819 (RMON)
Regulatory Compliances	Safety: EMI: ACT:	UL, cUL, CE, UKCA FCC Class A TAA, BAA, NDAA
Environmental	RoHS, WEEE, REACH
Frame Size	Up to 1,563 bytes
Port Type	Fiber:	100BASE-FX (ST, SC, LC) 100BASE-LX (ST, SC, LC) 100BASE-ZX (SC, LC) 100BASE-BX (SC Single-Fiber)
Cable Types	Fiber:	Multimode: 50/125µm, 62.5/125µm Single-mode: 9/125µm
DC Power Requirements	DC Input: (Backplane)	3.3VDC, 0.9A @ 3.3VDC
Dimensions W x D x H	0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm)
Weight	8 oz. (226.8 grams)
Temperature	Commercial: Wide: Storage:	0 to 50°C -40 to 60°C -40 to 80°C
Humidity	5% to 95% (non-condensing)
Altitude	-100m to 4,000m (operational)
MTBF (hrs)	880,000
Warranty	Lifetime warranty with 24/7/365 free Technical Support

Part Number: 8440-0W
