10BASE-T to 10BASE-2 Managed Ethernet Media Converter

iConverter® 10T/2

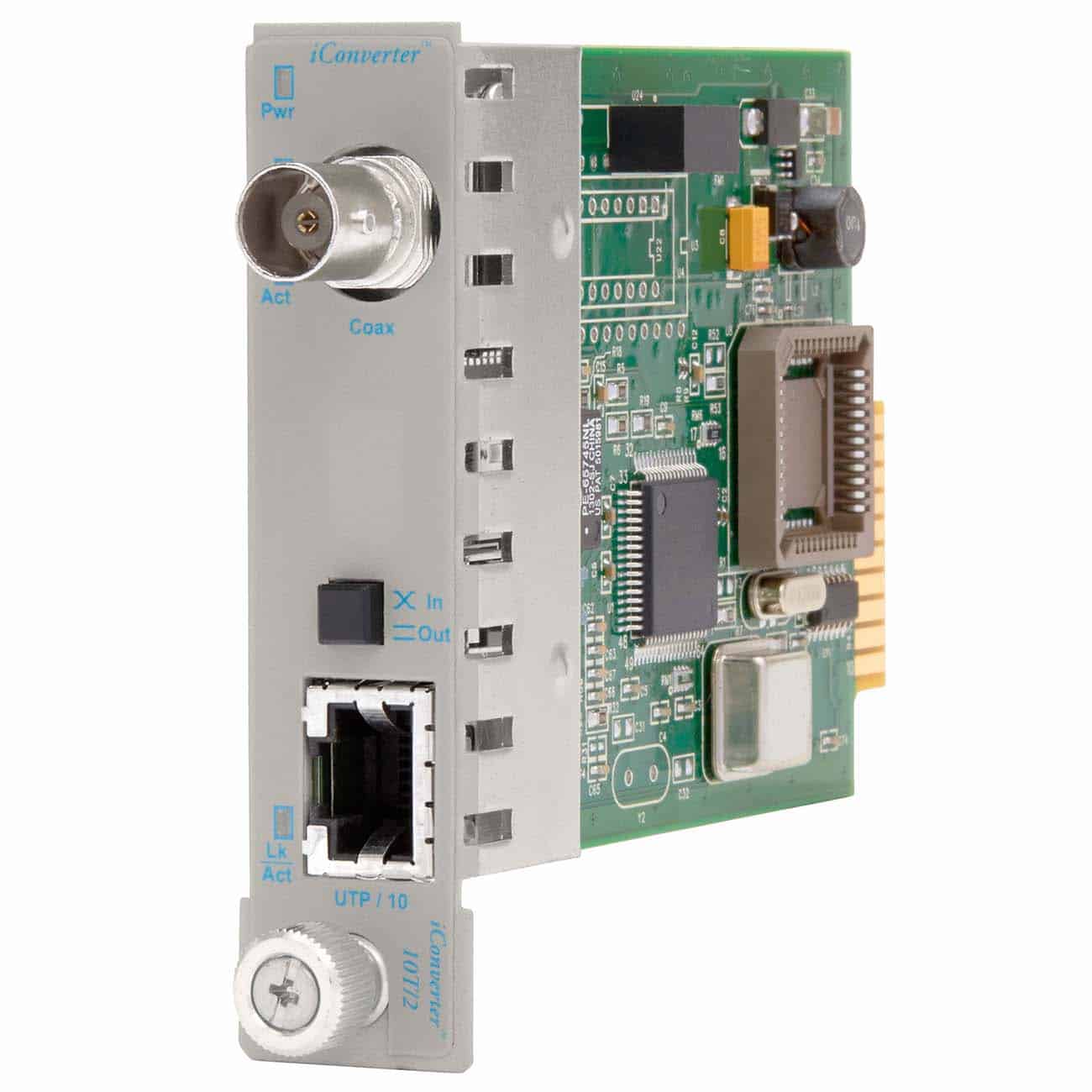

Iconverter 10T 2 Coax PI
Lifetime Warranty
iConverter® 10T/2: 10 Mbps Coax to 10 Mbps, RJ-45, Copper / Coax, , 100m, Powered by Chassis, Wide Temperature -40 to 60 deg C


Part Number

8340-0W

icons
Add to Quote

  • Description
  • Specifications
  • Documents

iConverter 10T/2 (Data Sheet)

iConverter 10T/2 (User Manual)

iConverter® 10T/2: 10 Mbps Coax to 10 Mbps, RJ-45, Copper / Coax, , 100m, Powered by Chassis, Wide Temperature -40 to 60 deg C

Specifications

Description
 iConverter 10T/2
 10BASE-T to 10BASE-2 Media Converter
Standard Compliances
IEEE 802.3
Regulatory Compliances

Safety:

EMI:

ACT

UL, cUL, CE, NEBS Level 3, UKCA

FCC Class A

TAA, BAA, NDAA
Environmental RoHS, WEEE, REACH
Frame Size
Unlimited
Port Type
Copper:

Coax:
10BASE-T (RJ-45)

10BASE-2 (BNC)
Cable Types
Copper:

Coax:
EIA/TIA 568A/B, Cat 5 UTP and higher

50 ohm RG-58U or equivalent
DC Power Requirements
DC Input:
(Backplane)
3.3VDC, 1.0A @ 3.3VDC
Dimensions
W x D x H
0.85” x 4.5” x 2.8” (21.6 mm x 114.3 mm x 71.1 mm)
Weight
8 oz. (226.8 grams)
Temperature
Commercial:
Wide:
Storage:
   0 to 50°C
-40 to 60°C
-40 to 80°C
Humidity
 5% to 95% (non-condensing)
Altitude
 -100m to 4,000m (operational)
MTBF (hrs)
 720,000
Warranty
Lifetime warranty with 24/7/365 free Technical Support
